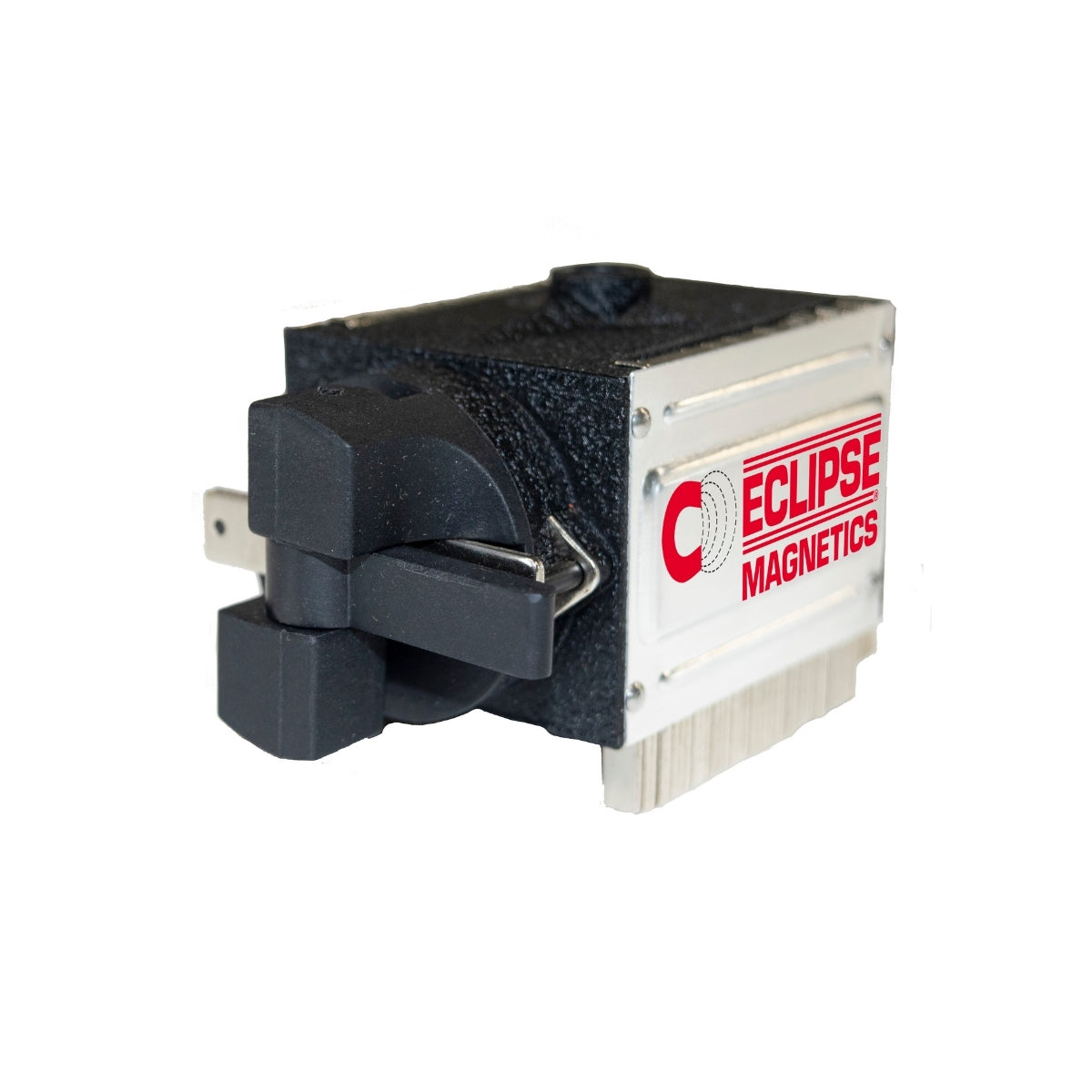

Eclipse Magnetics Switchable Anyform Magnetic Base is a versatile, adaptive mounting base designed to provide a secure magnetic hold on virtually any ferrous surface, including uneven or irregular profiles. Its multi-segment magnetic construction allows the base to flex and conform to the shape of the surface, ensuring maximum contact and holding power.
With a maximum clamping force of up to 50 kg, this innovative design delivers exceptional grip on flat, curved, or contoured surfaces. The switchable on/off toggle mechanism allows quick activation or release of the magnetic field, while an integrated lever system enables easy adjustment or locking of the magnetic segments for precise positioning.
Ideal for inspection, measurement, and lighting applications, the Eclipse Magnetics Anyform Magnetic Base includes an M8 threaded connection, allowing secure attachment of compatible fixtures and accessories. Built for flexibility and durability, it’s the perfect solution for workshop, engineering, and quality control environments.
Key Features
-
Adaptive magnetic design: multiple magnetic segments mould to any ferrous surface for optimal contact
-
Switchable on/off control: toggle mechanism enables easy engagement or release
-
Strong holding power: delivers up to 50 kg of clamping force
-
Universal surface compatibility: ideal for flat, curved, or uneven profiles
-
Adjustable locking lever: allows segment control for precise positioning
-
M8 threaded connection: enables secure attachment of inspection, measurement, or lighting fixtures
-
Durable construction: engineered for workshop and industrial use
Technical Data
(Download the full datasheet)
|
Product Number
|
Length (mm)
|
Width (mm)
|
Height (mm)
|
Pull Force (kg)
|
Weight (kg)
|
Hole Thread
|
|
E905WF/AF
|
91
|
30
|
55
|
50
|
0.90
|
M8
|
