Energise-to-Release Electro-Permanent Magnets | Ø35mm & Ø50mm | Up to 500N Holding Force

Description

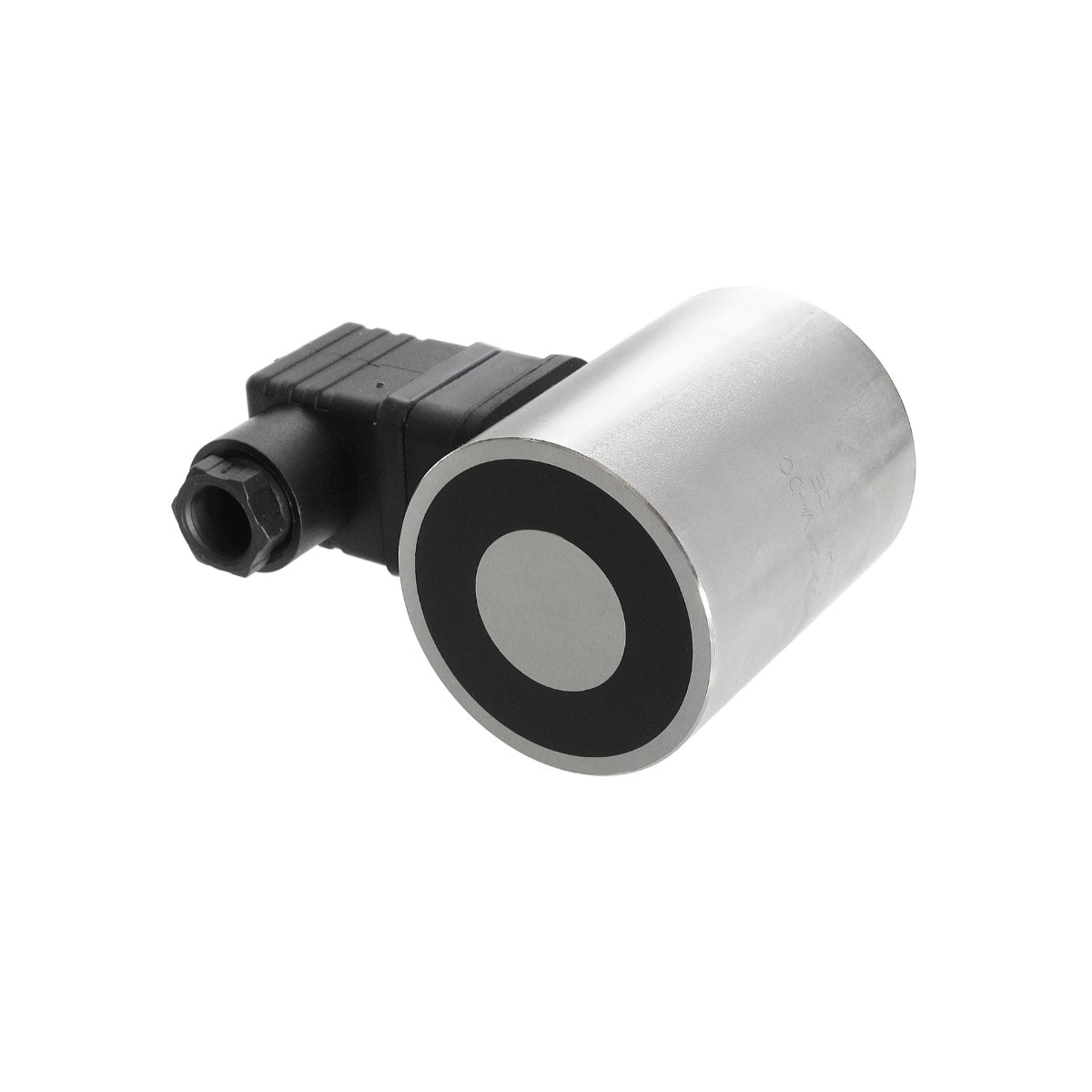

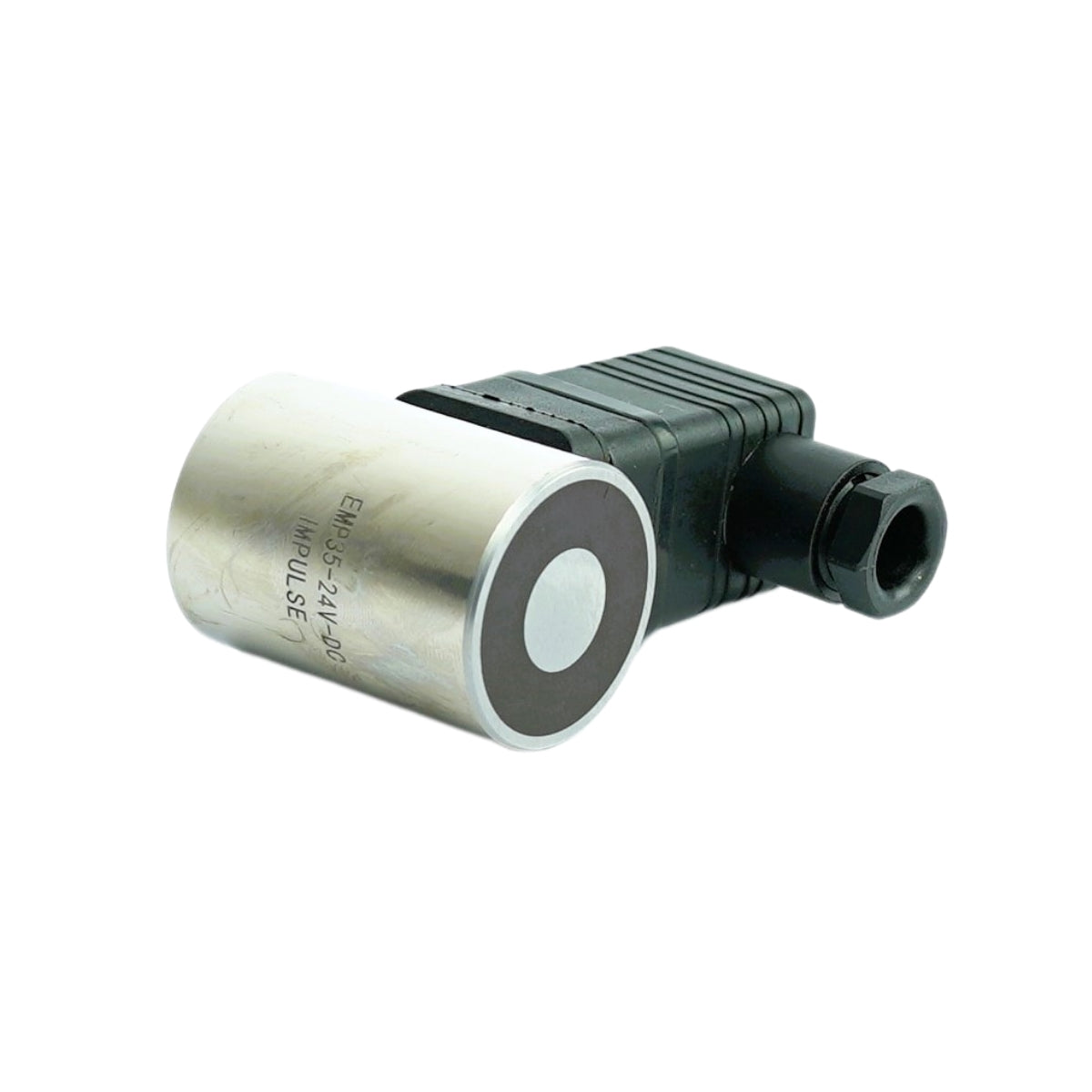

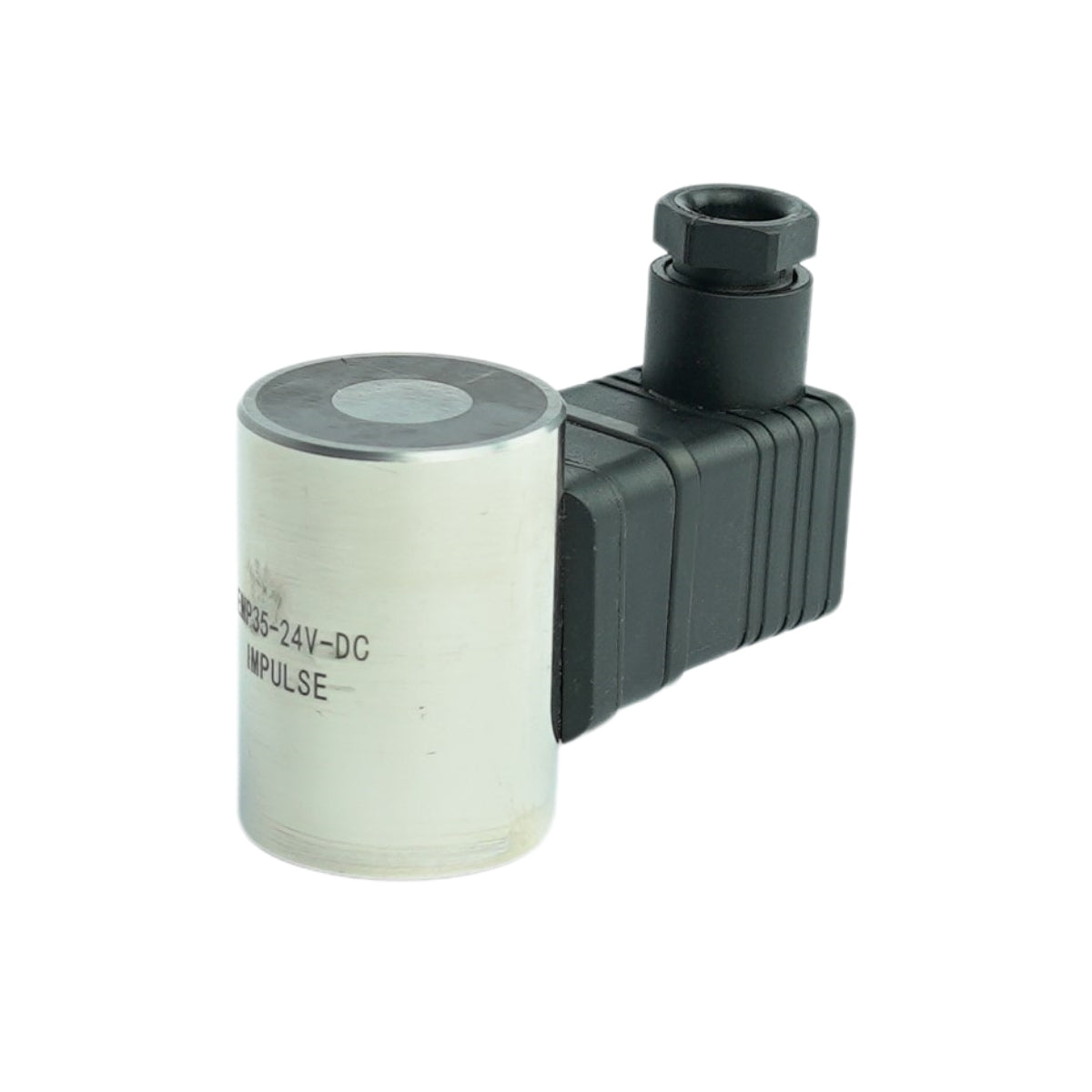

Eclipse Magnetics Energise-to-Release Electromagnets are electro-permanent magnetic assemblies designed to provide secure magnetic holding without continuous electrical power.

In their normal unpowered state, the magnets remain securely clamped. Electrical power is applied only when the magnetic hold needs to be released, making them suitable for controlled holding and fail-safe release applications.

The range is available in 35mm and 50mm diameter models, with both 24VDC and 240VAC versions available.

Typical applications include access control, security systems, fire door mechanisms, automation equipment, pick-and-place systems and other industrial holding applications.

Each magnet is designed to work with a recommended armature plate to achieve optimum magnetic performance.

Key Features

• Energise-to-release operation
• Secure magnetic holding when electrical power is removed
• Available in 24VDC and 240VAC versions
• 35mm and 50mm diameter models available
• Typical holding forces of 250N and 500N depending on model
• Bright nickel-plated finish with machined holding face
• IP54 rated
• S2 short-time duty cycle

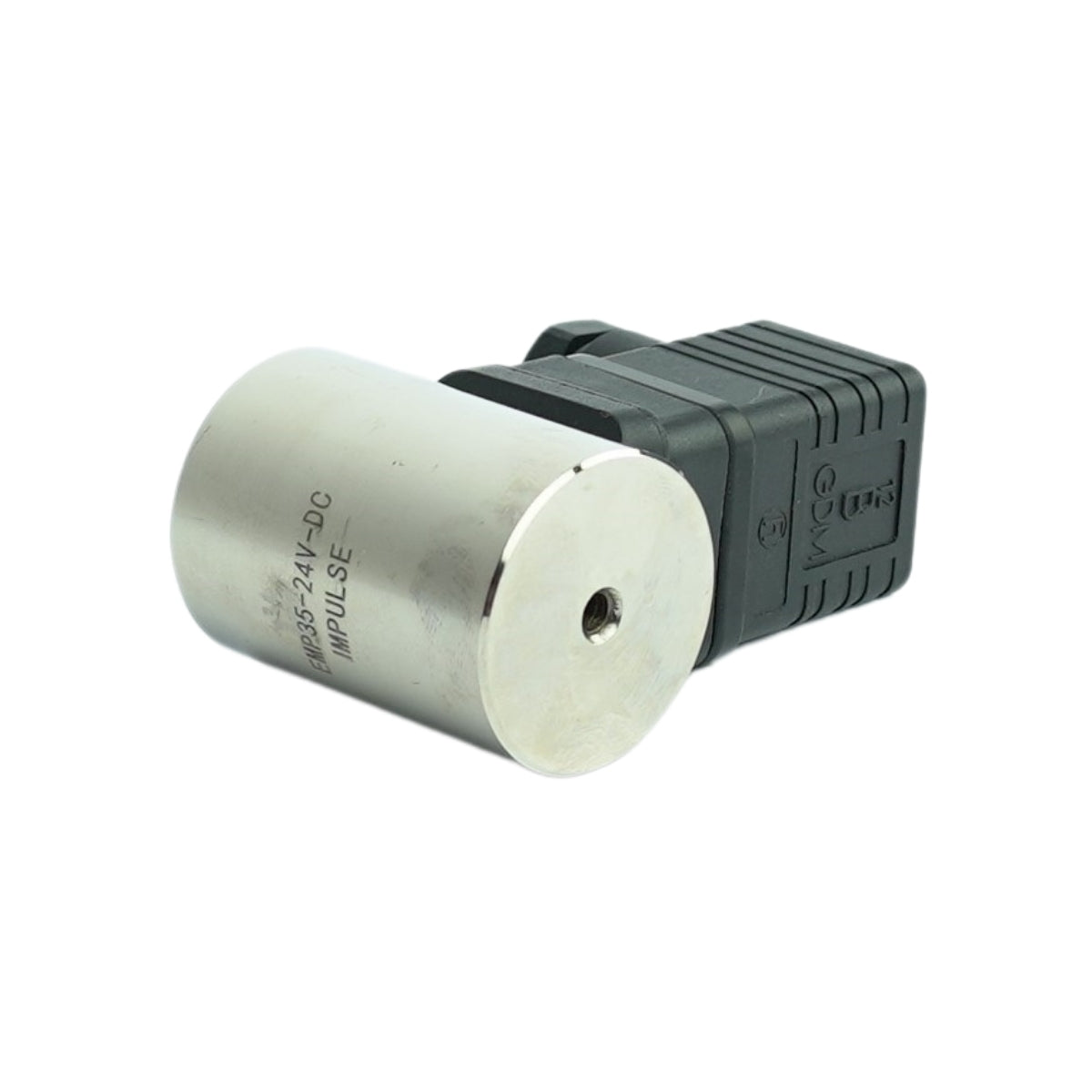

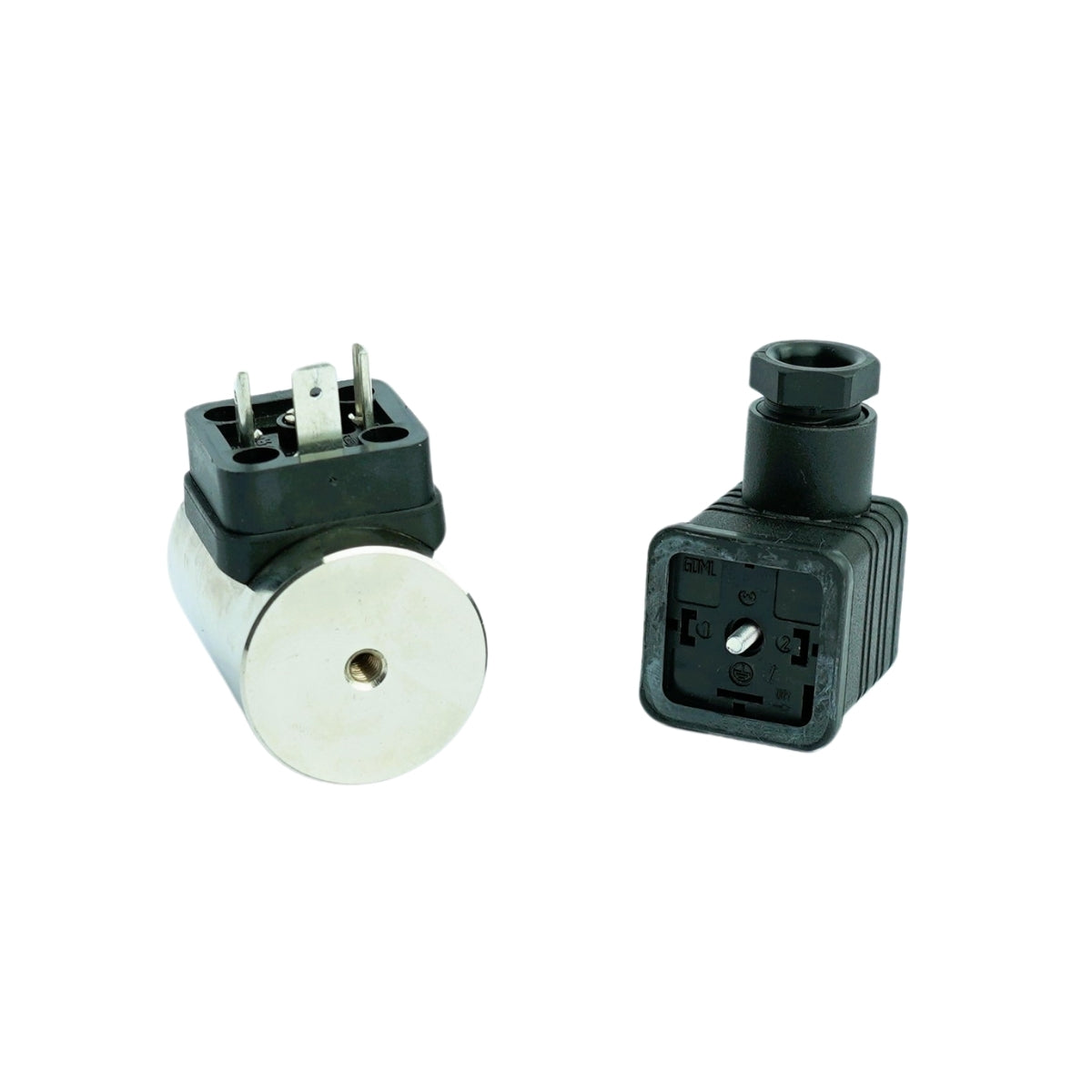

• Rear M5 threaded mounting point
• Recommended armature plates available for optimum holding performance

Technical Data

Finish: Bright nickel-plated with machined face
Rear Mounting: M5 coarse thread x 8mm deep
Ambient Temperature: 35°C

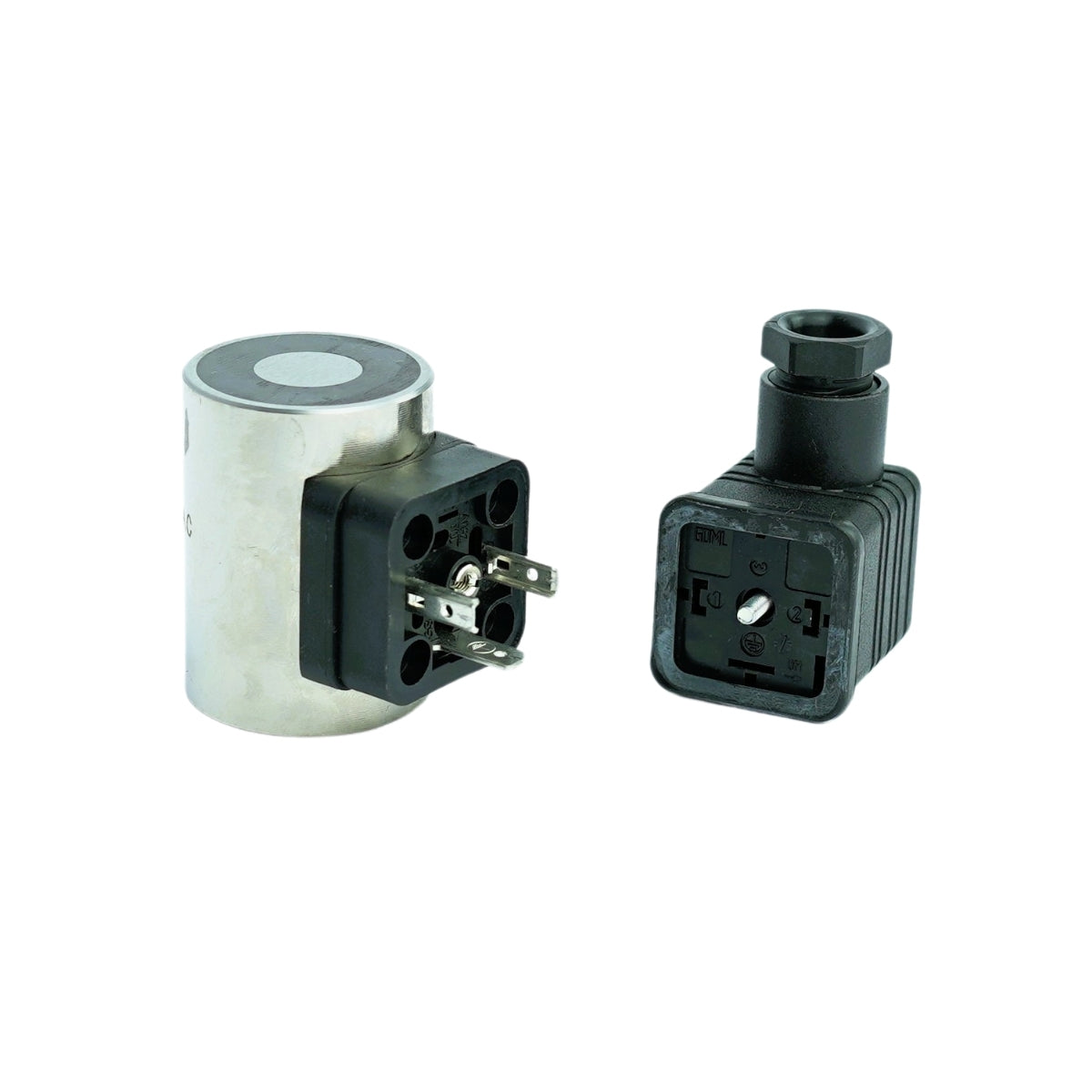

24VDC Connection: Hirschmann connector

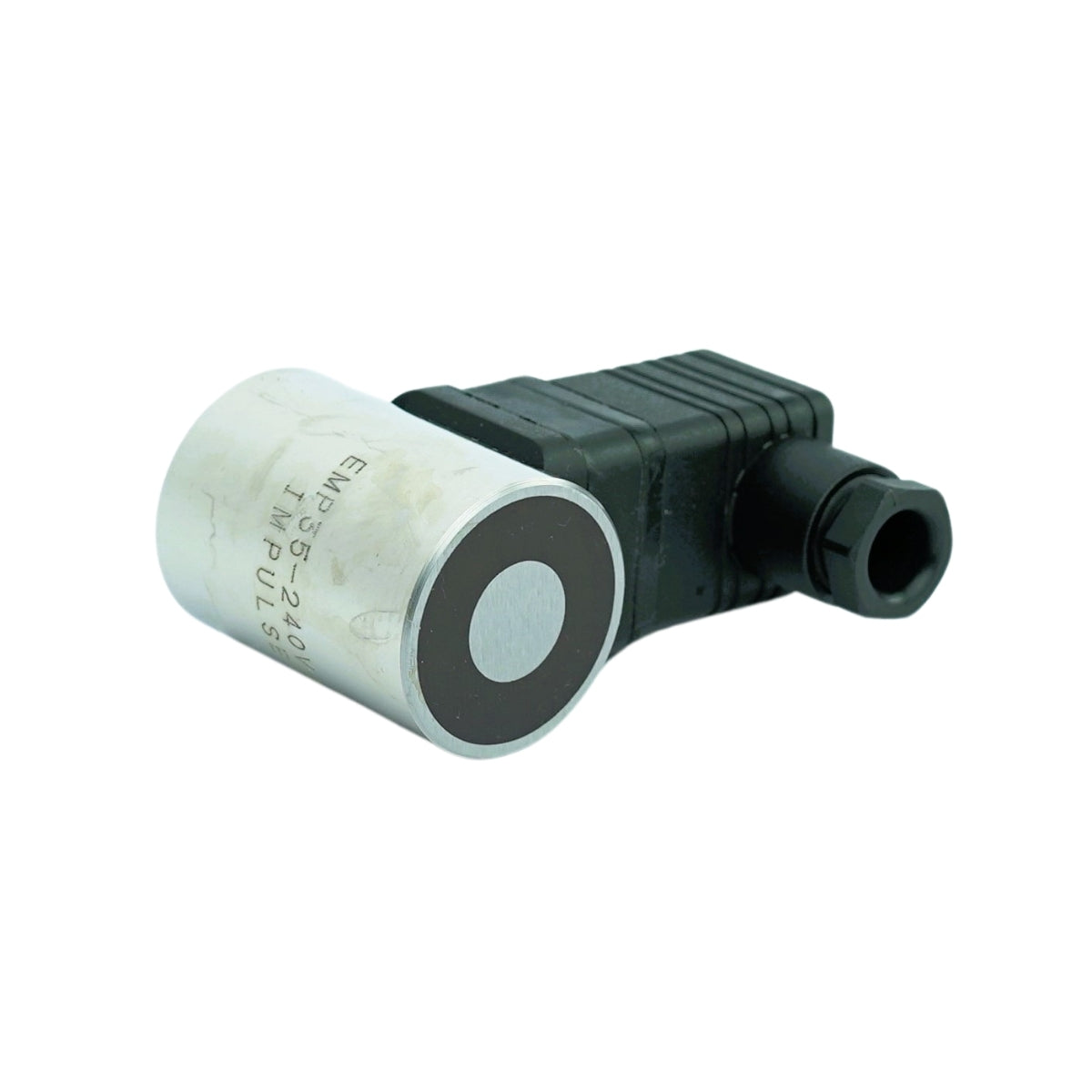

240VAC Connection: Hirschmann connector with rectifier

Recommended Armature Plates

Maximum holding force is achieved with full contact between the electromagnet and the recommended armature plate. Surface condition, alignment, material specification and air gap can reduce the achievable force.
