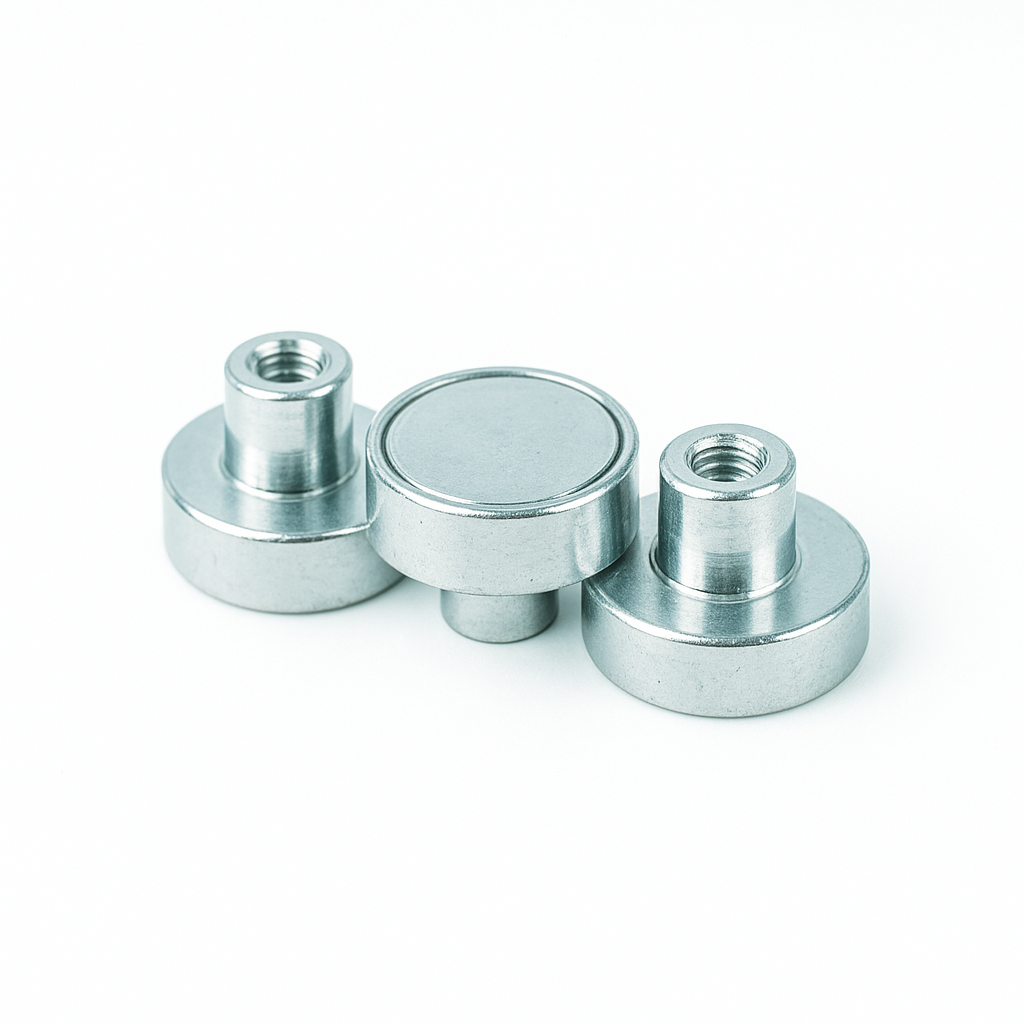

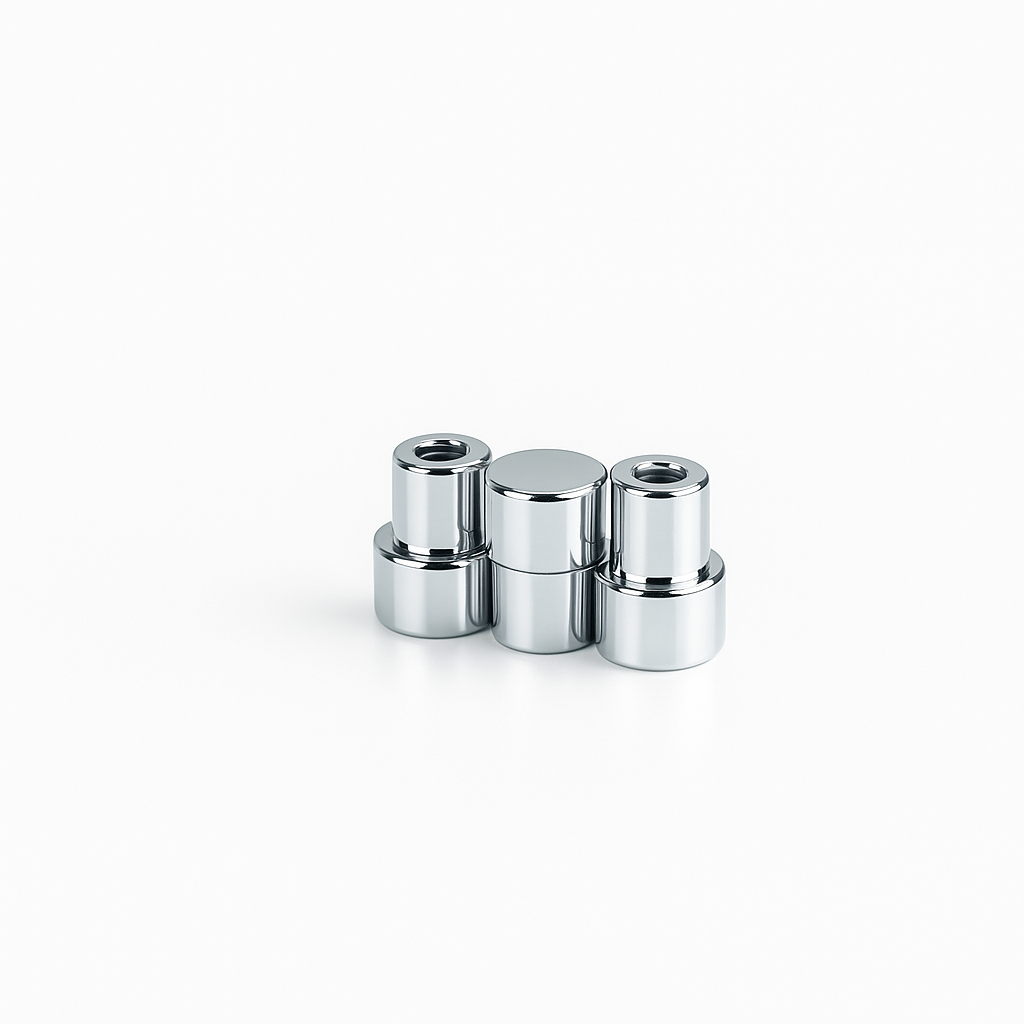

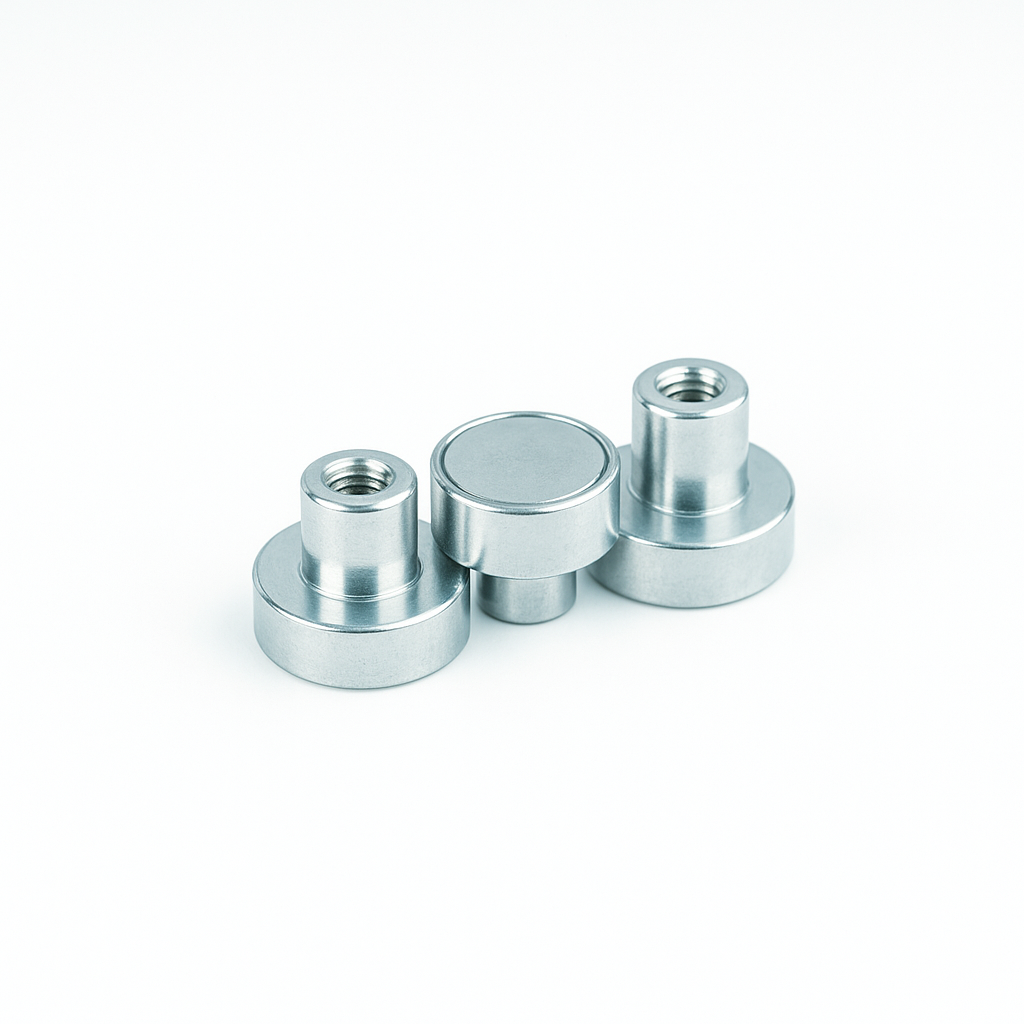

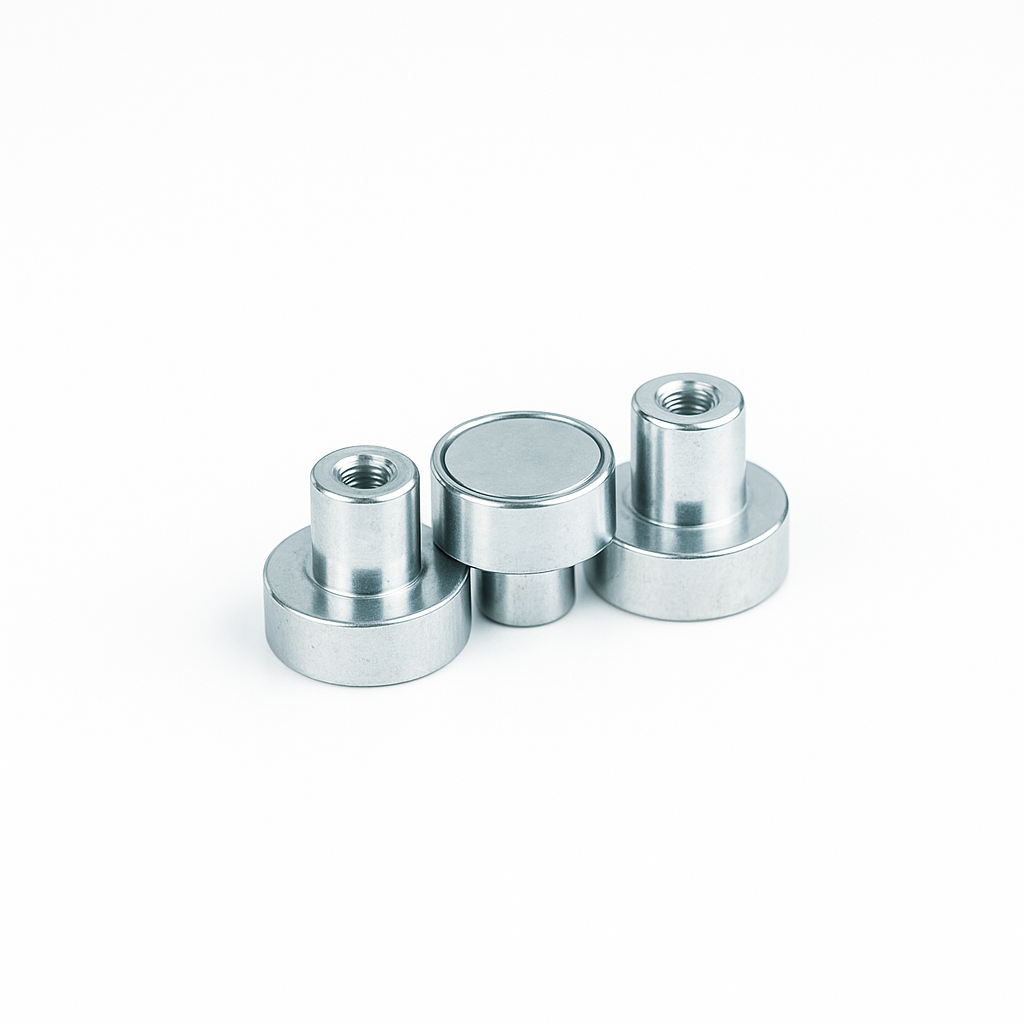

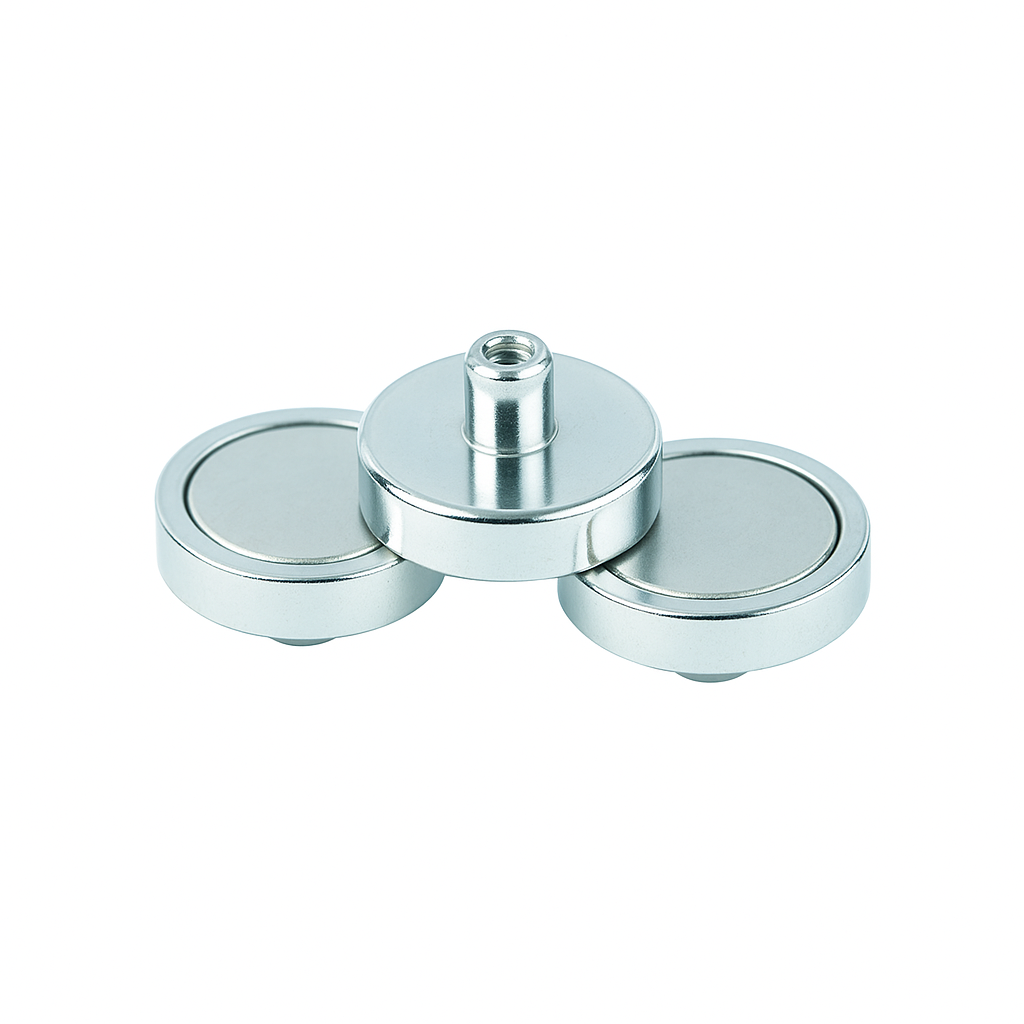

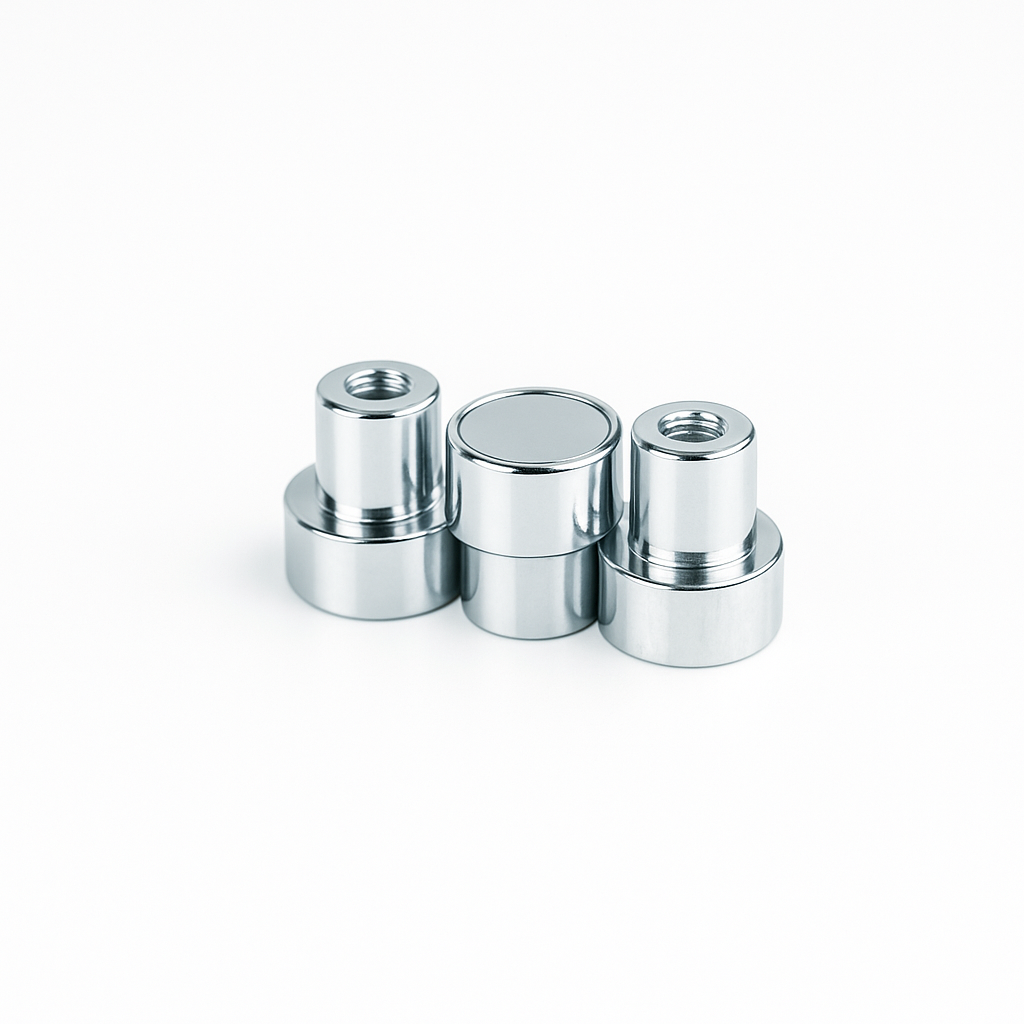

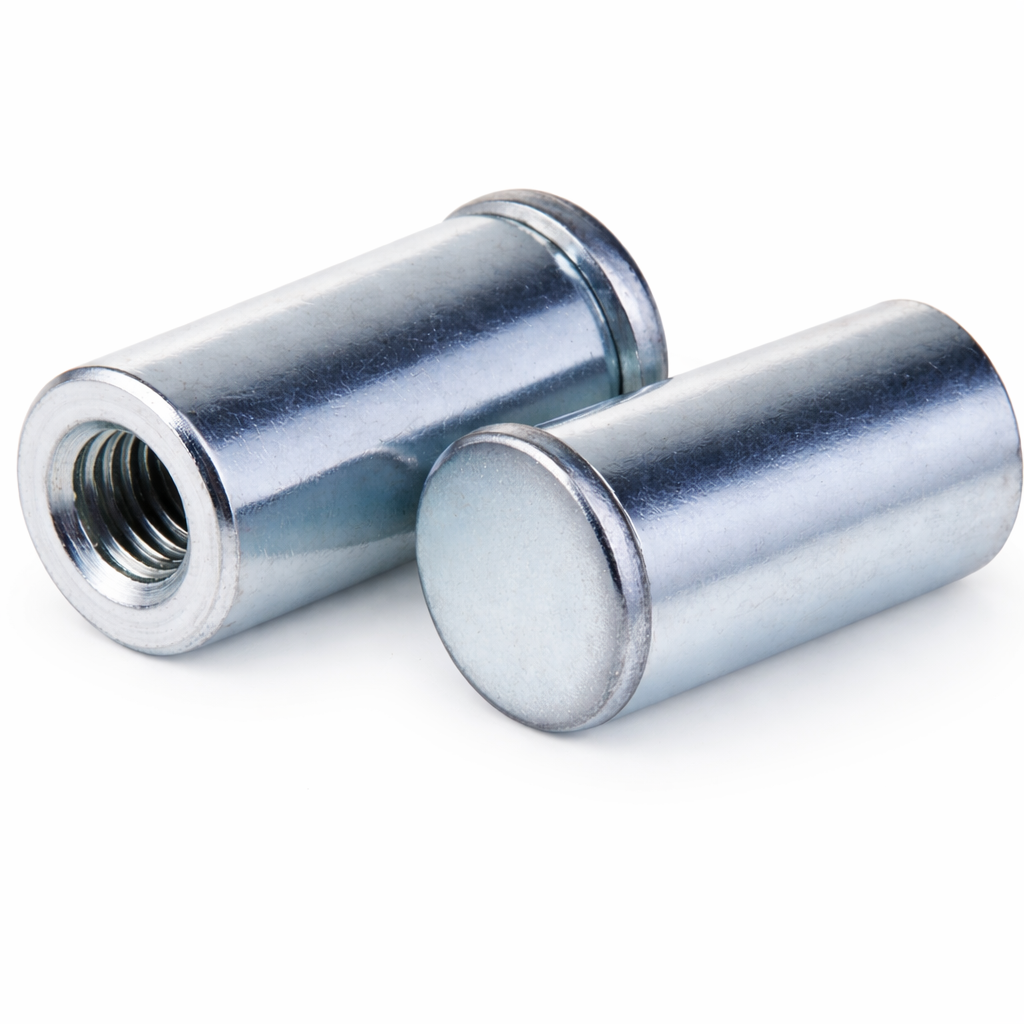

Eclipse Magnetics Neodymium (NdFeB) Shallow Pot Magnets with Internal Threaded Stud — also known as Female Threaded Stud Pot Magnets — are engineered for secure, high-strength mounting applications where reliability and versatility are essential. Each assembly features a powerful N35 grade Neodymium magnet encased within a corrosion-resistant zinc-plated mild steel cup, maximising pull strength by directing the magnetic field to one working face.
The integrated steel stud or boss contains an internally threaded hole, allowing for quick and secure attachment to external threaded components such as male threaded pot magnets or bolts. This design provides flexibility in installation and ensures a stable, high-torque connection, making it ideal for both industrial and commercial applications.
Compact yet extremely strong, Eclipse Magnetics Neodymium Pot Magnets with Internal Threaded Stud deliver dependable holding performance and easy installation across a wide range of fixtures, jigs, and mounting systems.
Key Features
-
High-strength Neodymium (NdFeB) core: delivers outstanding magnetic performance in a compact design
-
Internal threaded stud: allows easy connection with bolts or male threaded magnets for versatile use
-
Durable mild steel housing: enhances magnetic force and provides long-term durability
-
Corrosion-resistant finish: zinc-plated body ensures protection and longevity
-
Secure mounting: designed for high-torque, stable attachment even under demanding conditions
-
Temperature resistant: performs reliably up to 80°C
-
N35 grade material: ensures consistent, high-performance magnetic strength
Technical Data
|
Product Number
|
Diameter (mm)
|
Thickness (mm)
|
Total Height (mm)
|
Thread Size
|
Ferrule Outer Diameter (mm)
|
Weight (g)
|
Pull Force (kg)
|
|
E770NEO
|
6
|
4.5
|
11.5
|
M3
|
6
|
2.7
|
0.5
|
|
E771NEO
|
8
|
4.5
|
11.5
|
M3
|
6
|
3.5
|
1.3
|
|
E772NEO
|
10
|
4.5
|
11.5
|
M3
|
6
|
4.5
|
2.5
|
|
E773NEO
|
13
|
4.5
|
11.5
|
M3
|
6
|
7.5
|
6
|
|

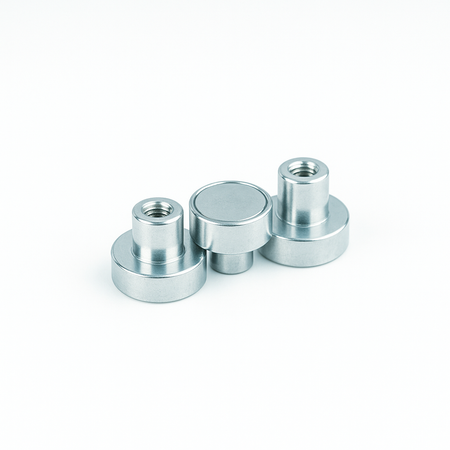

E774NEO
|
16
|
4.5
|
11.5
|
M4
|
8
|
13.2
|
9.5
|
|
E775NEO
|
20
|
6
|
13
|
M4
|
8
|
16.5
|
14
|
|
E776NEO
|
25
|
7
|
14
|
M4
|
8
|
34
|
20
|
|

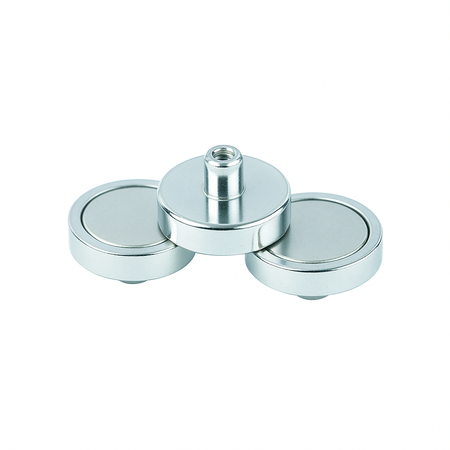

E777NEO
|
32
|
7
|
15.5
|
M5
|
10
|
48
|
35
|
