Black Neodymium Shallow Pot Magnets | Ø16mm–60mm | 6kg–115kg Pull Force

Eclipse Magnetics Black Neodymium Shallow Pot Magnets are compact, high-strength magnetic mounting solutions designed for applications where powerful holding force is required in a discreet, low-profile format.

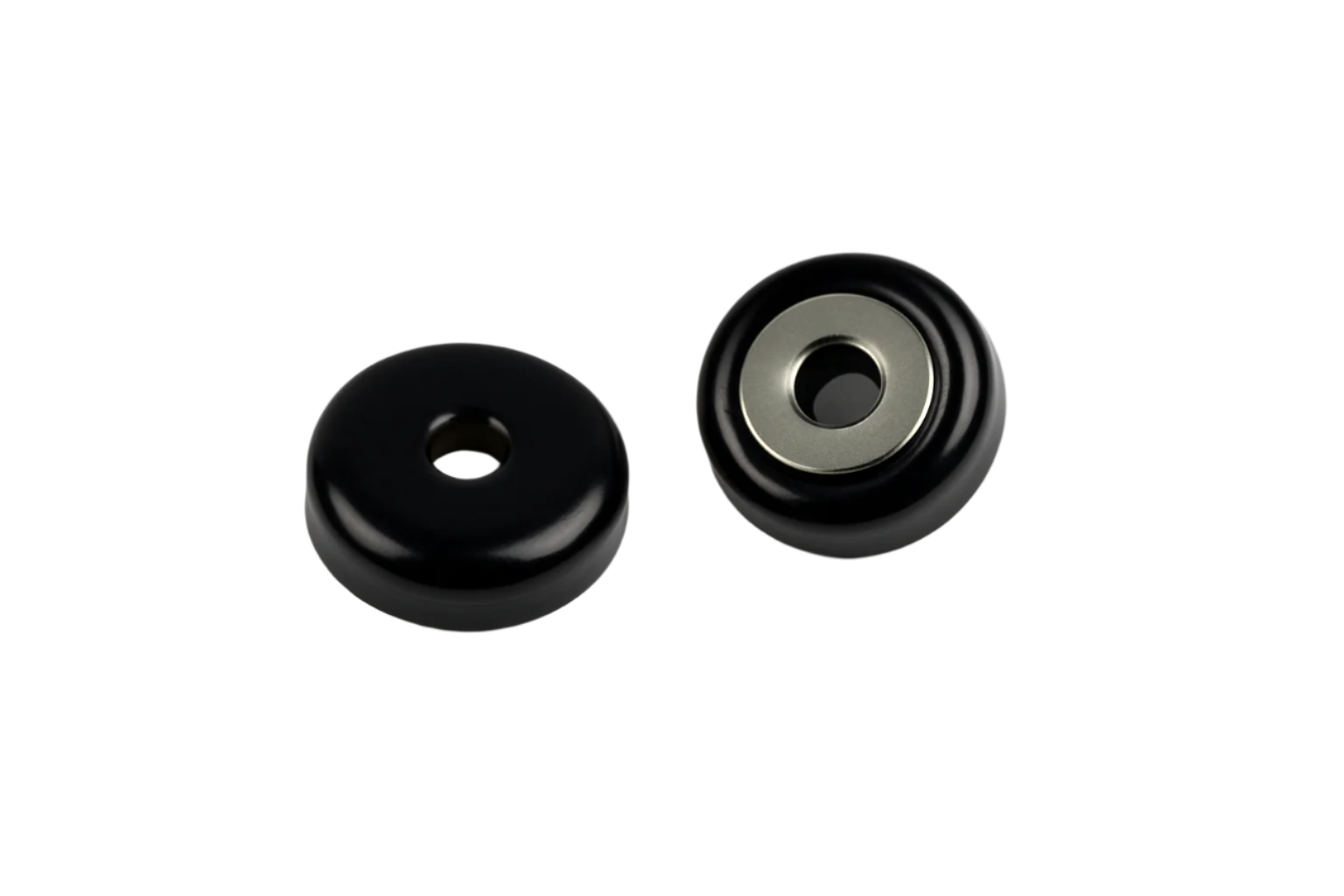

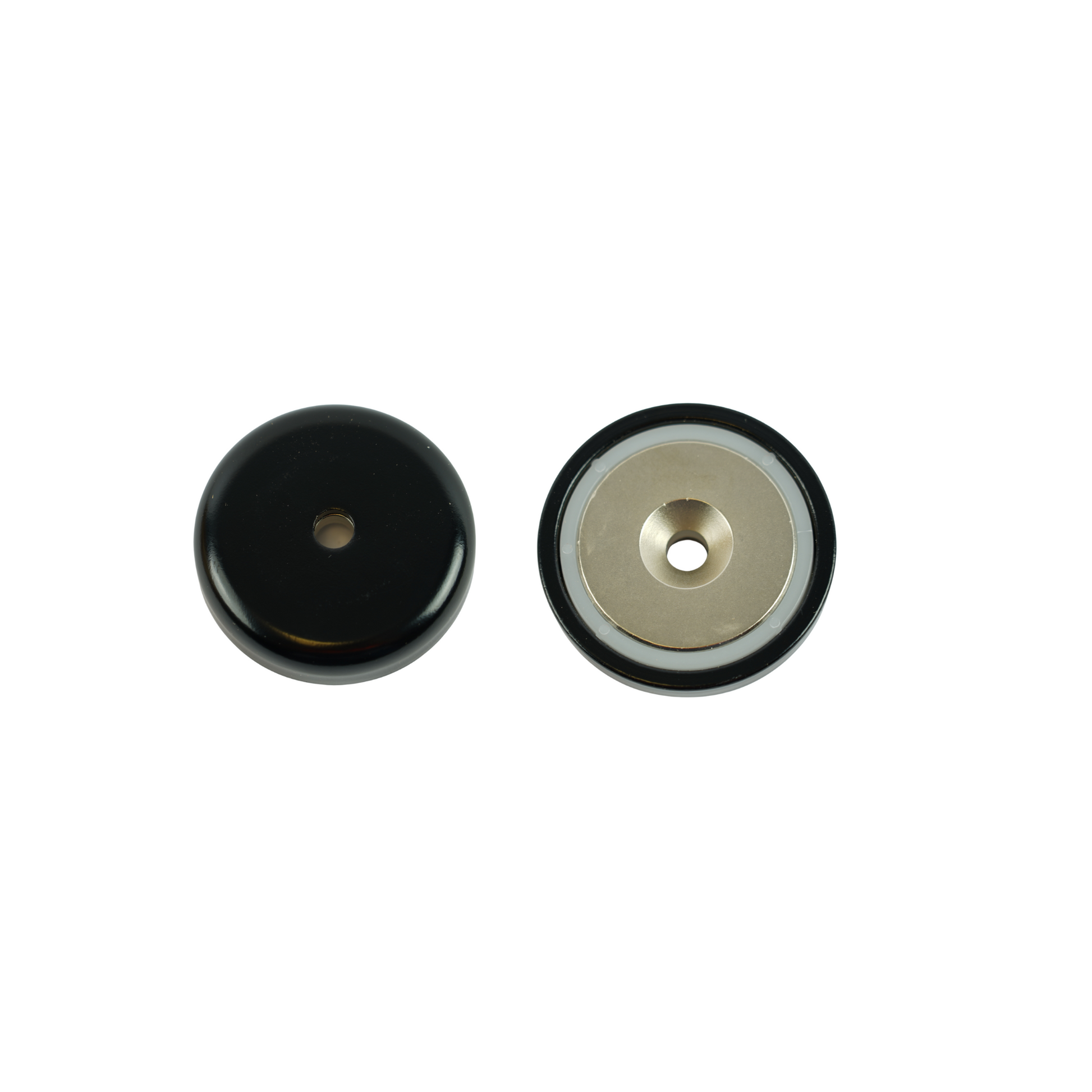

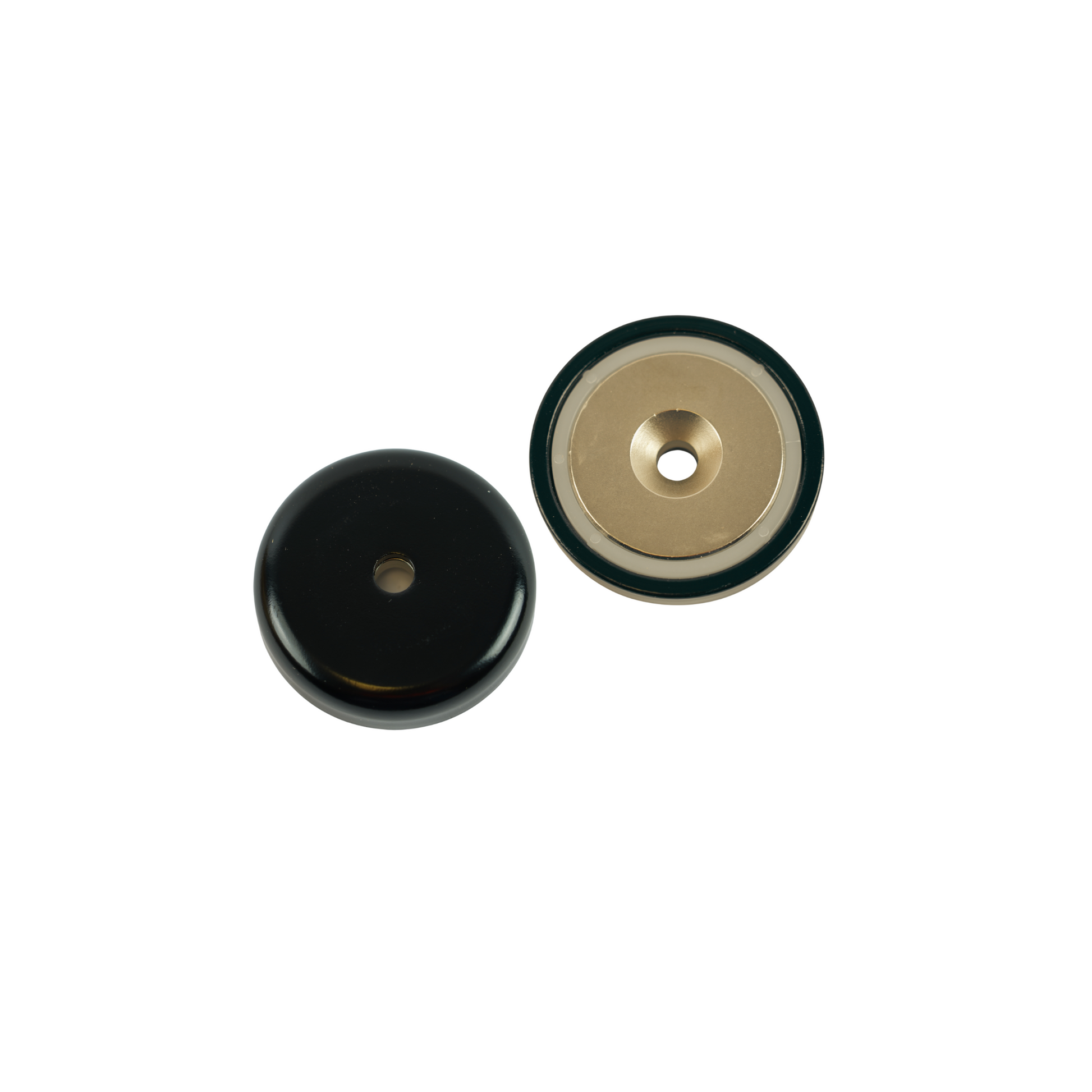

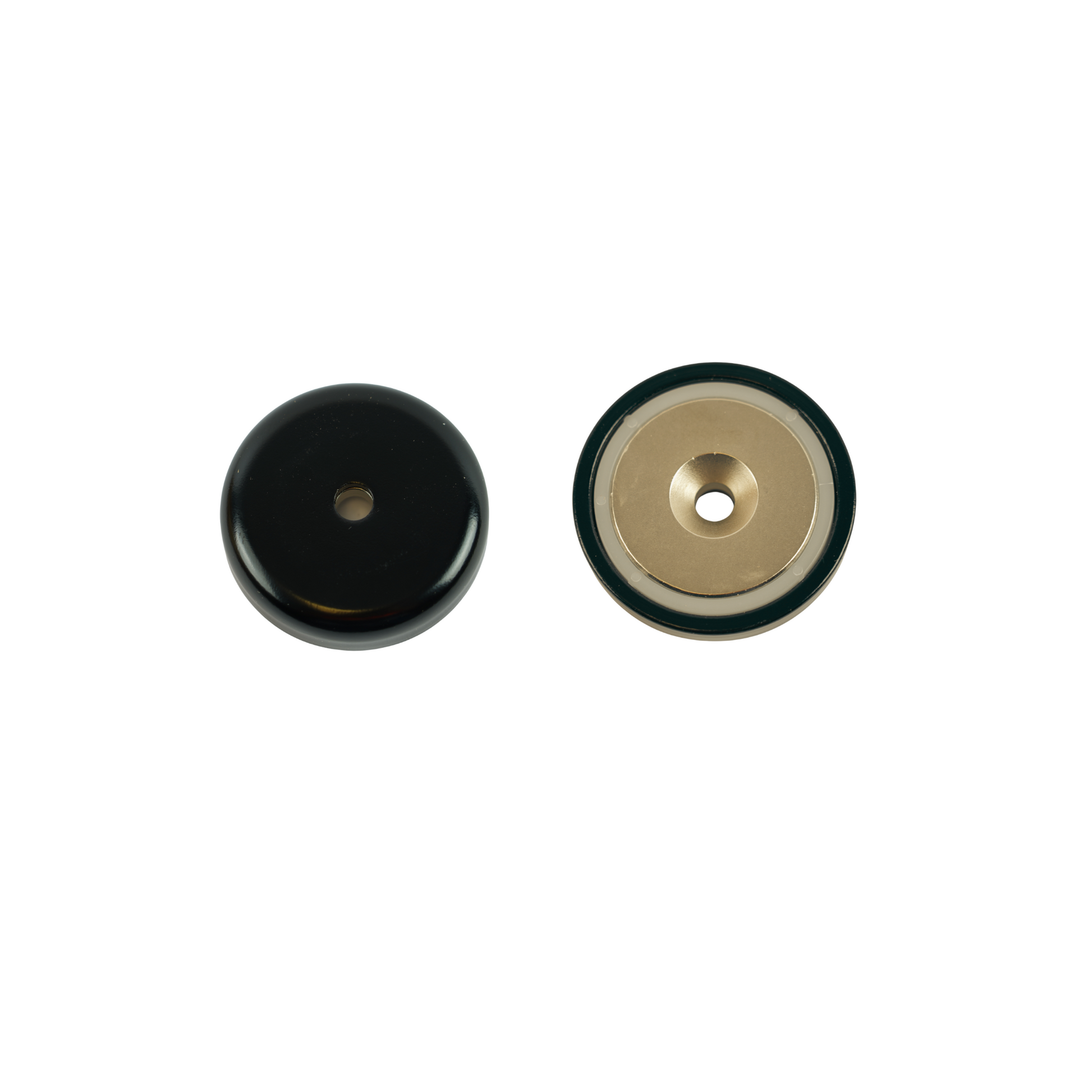

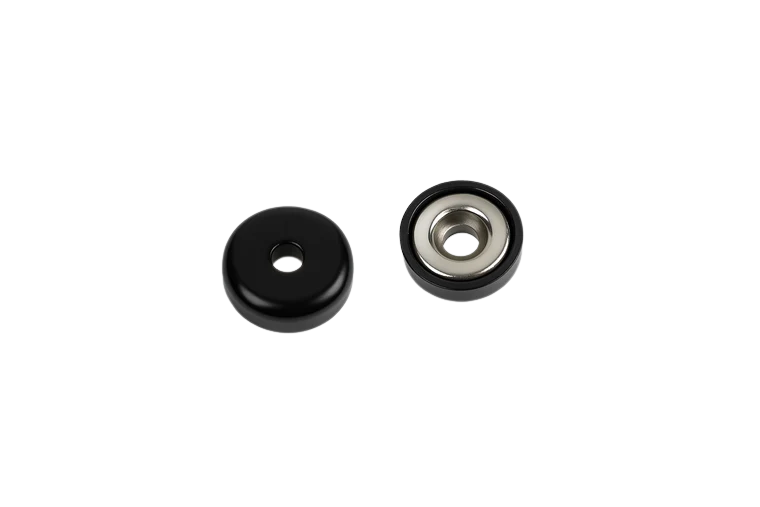

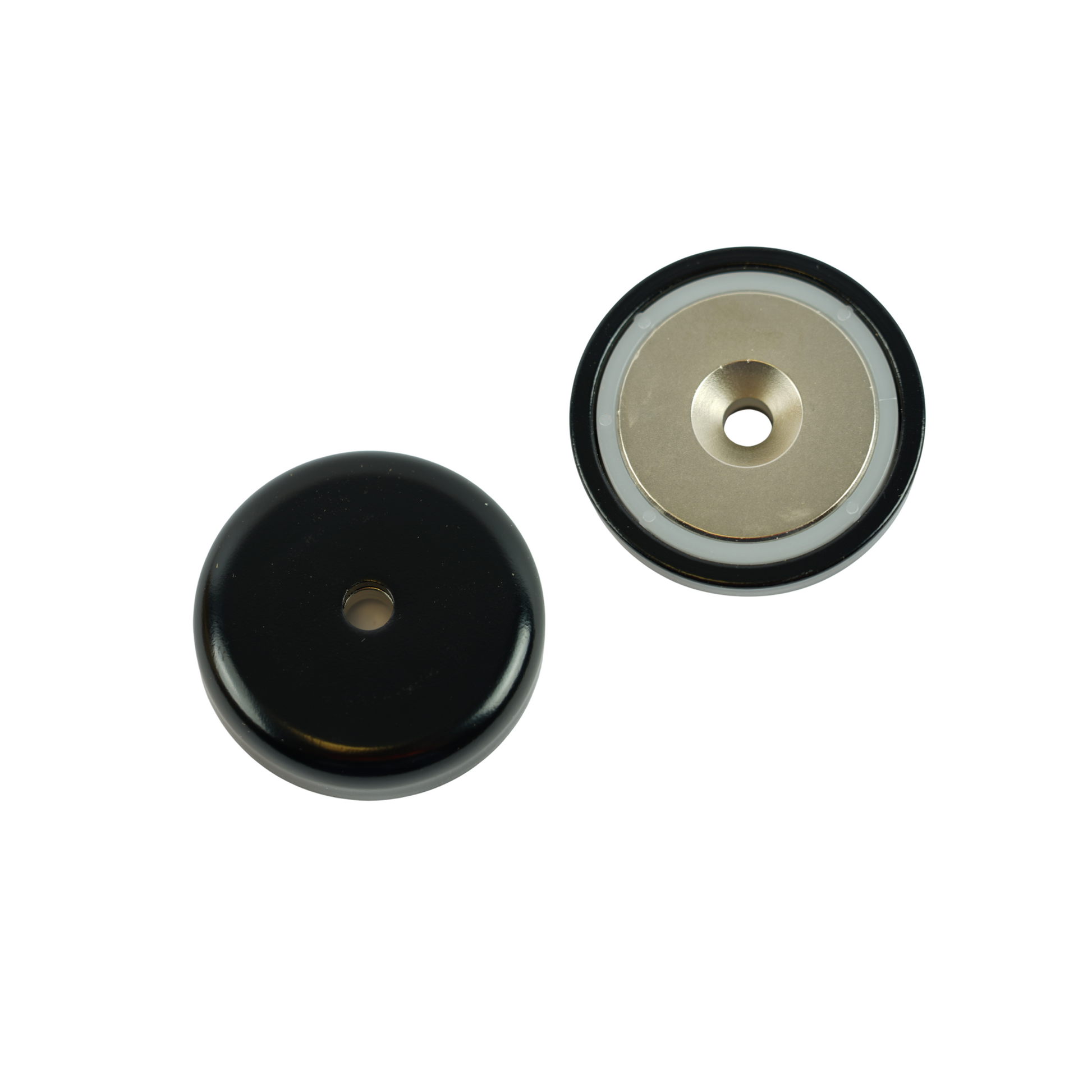

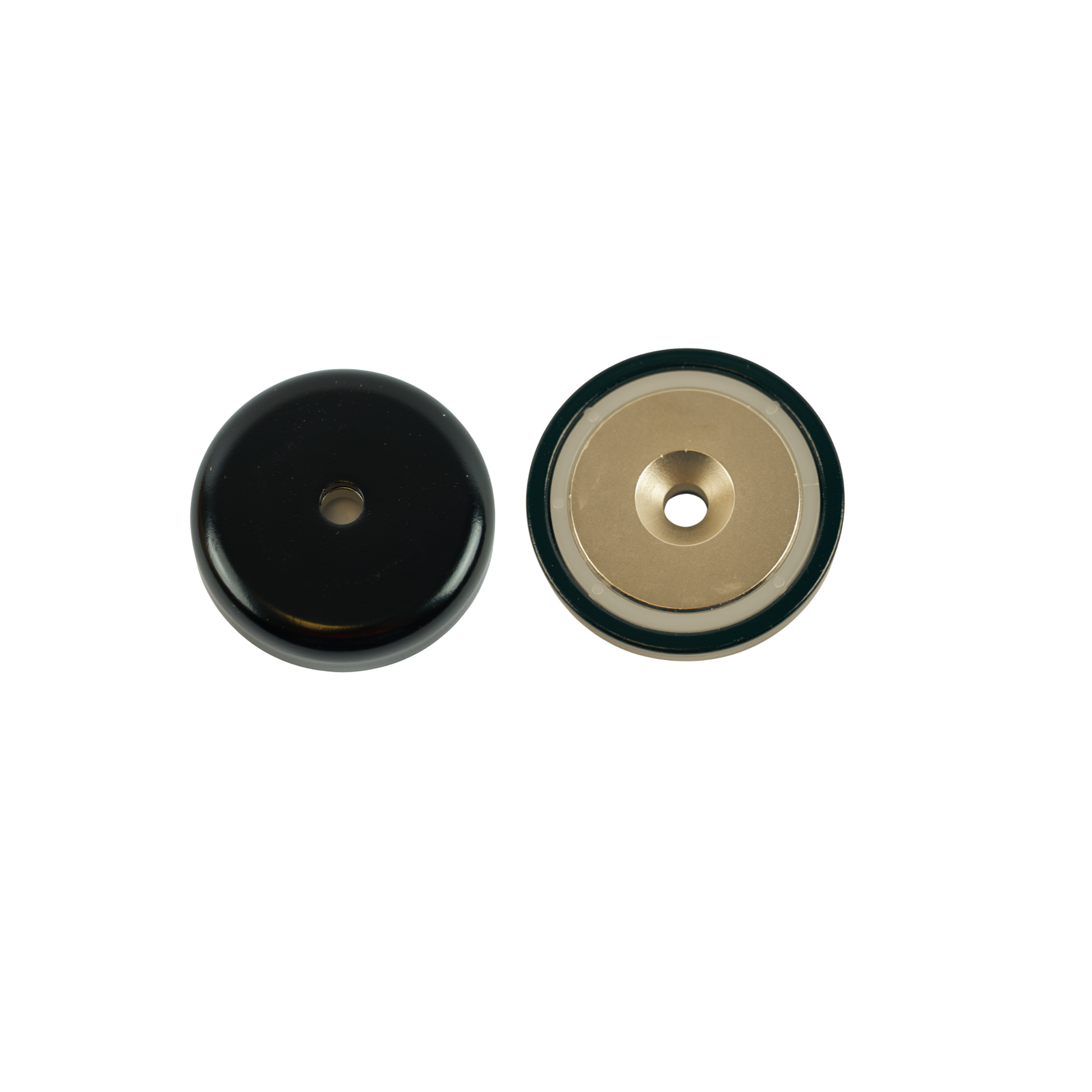

Each magnet features a high-performance neodymium core housed within a robust steel pot, helping to concentrate the magnetic field through the working face while also protecting the magnet from mechanical damage.

The range includes seven sizes from 16mm to 60mm diameter, with pull forces ranging from 6kg up to 115kg. This provides options for everything from lightweight mounting and display applications through to stronger industrial fixing and fixture requirements.

A central countersunk fixing hole allows each magnet to be securely mounted using a suitable screw, creating a clean and flush installation. Screw sizes range from M3 to M8 depending on the model.

The durable black protective coating provides additional corrosion resistance while giving the magnet a subtle finish that is particularly well suited to signs, display panels, furniture fittings, access panels and installations where appearance is important.

Key Features

• High-strength neodymium magnetic core for powerful holding performance
• Seven sizes from 16mm to 60mm diameter
• Pull-force options from 6kg up to 115kg
• Compact shallow-pot design for low-profile installations
• Steel pot helps concentrate the magnetic field and protects the magnet
• Central countersunk fixing hole for secure, flush mounting
• M3 to M8 screw options depending on magnet size
• Durable black protective coating for added corrosion resistance
• Discreet finish suitable for dark or contemporary installations
• Ideal for signs, display panels, furniture fittings and access panels
• Suitable for fixtures, mounting systems and general industrial applications
