Neodymium Shallow Pot Magnets with Countersunk Hole | Ø10mm–48mm | 1.3kg–87kg Pull Force

Eclipse Magnetics Neodymium Shallow Pot Magnets with Countersunk Hole are high-strength magnetic assemblies designed for secure screw fixing where powerful holding performance is required in a compact, low-profile format.

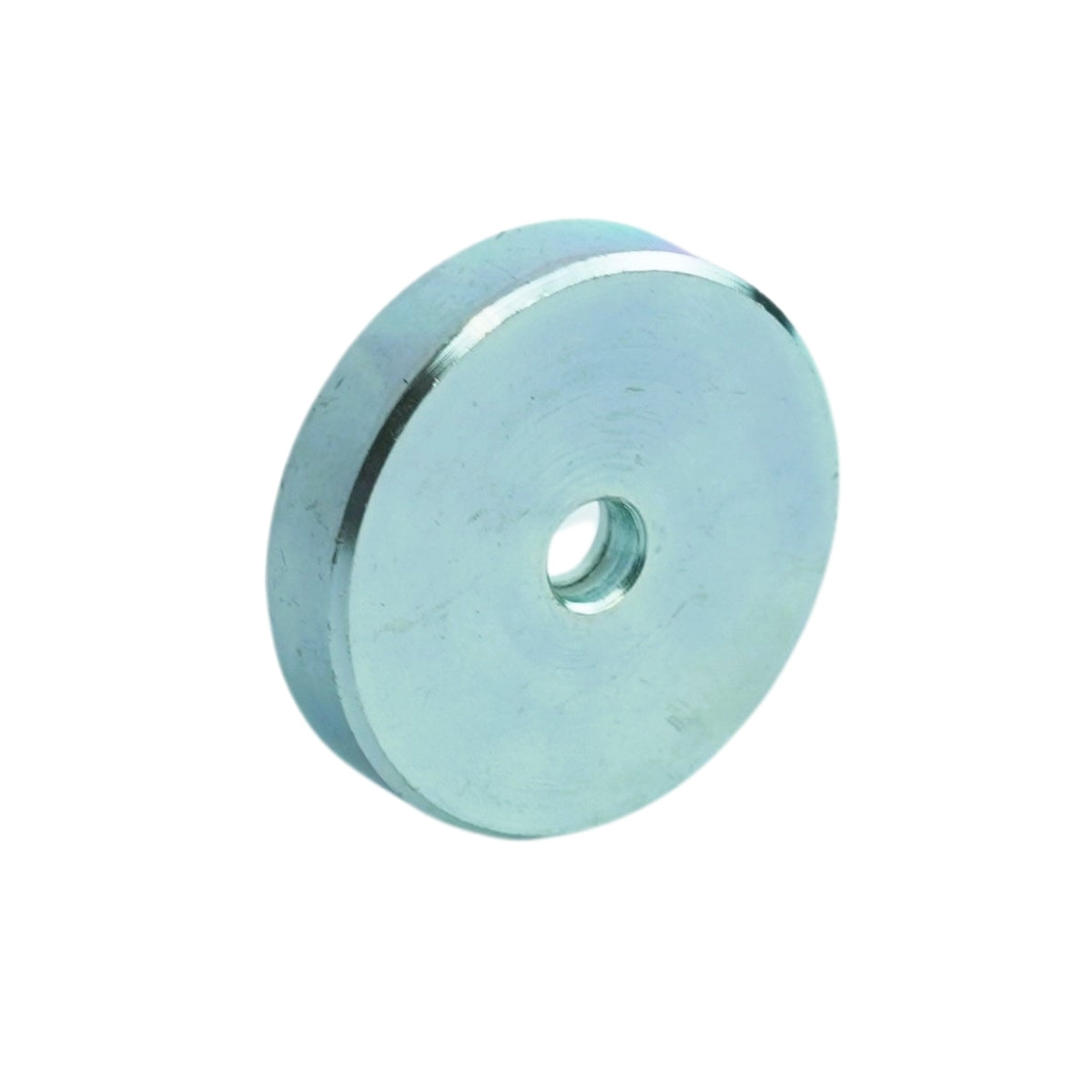

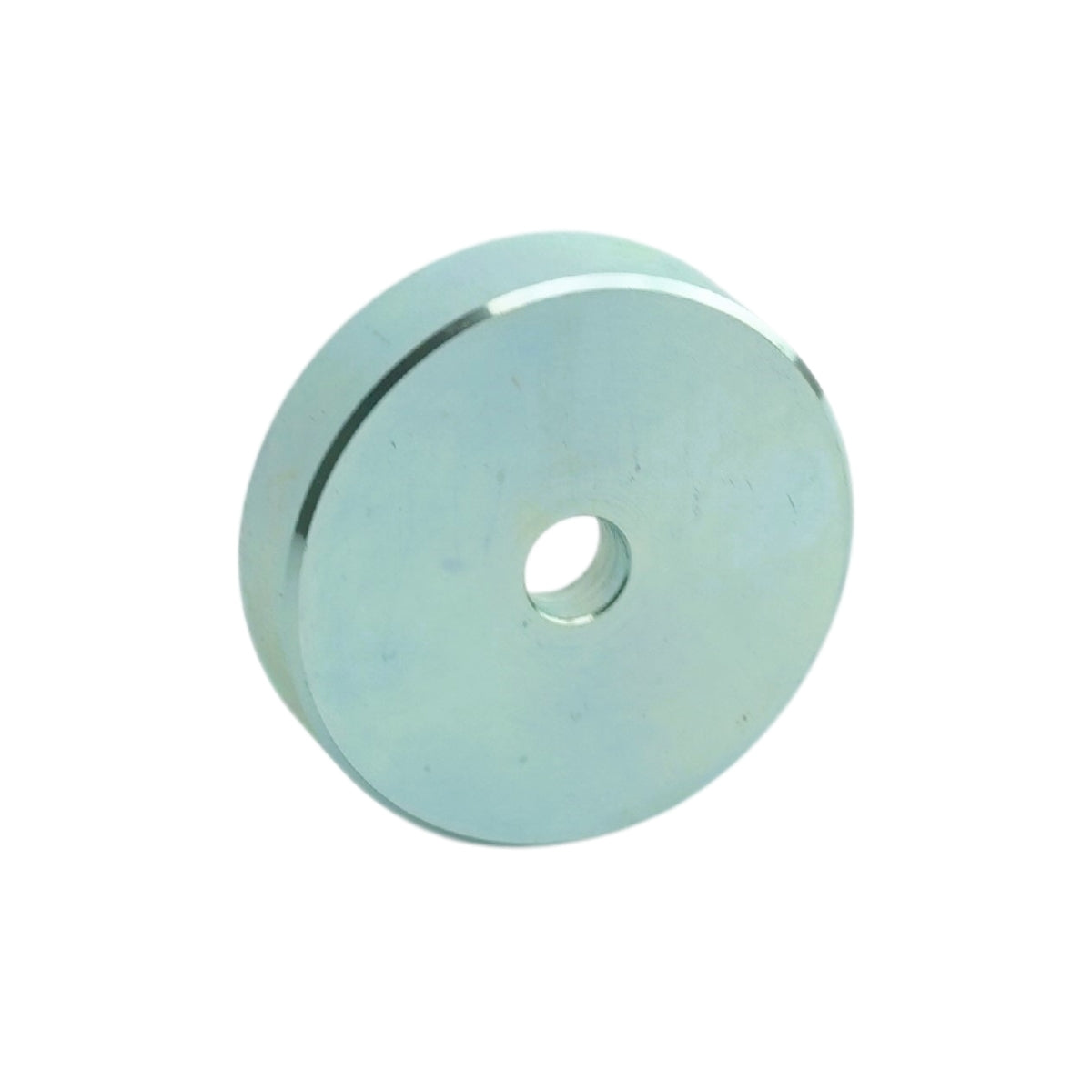

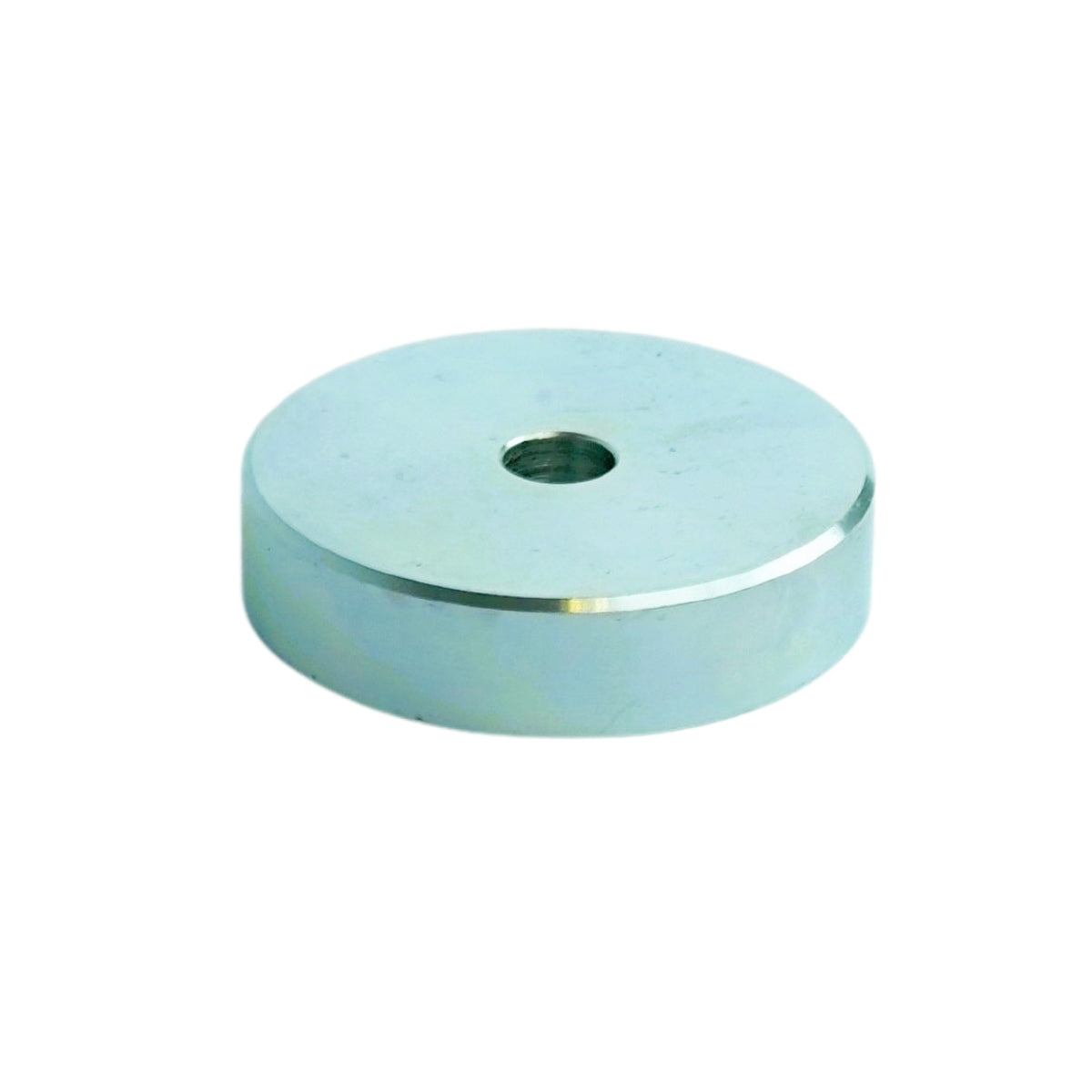

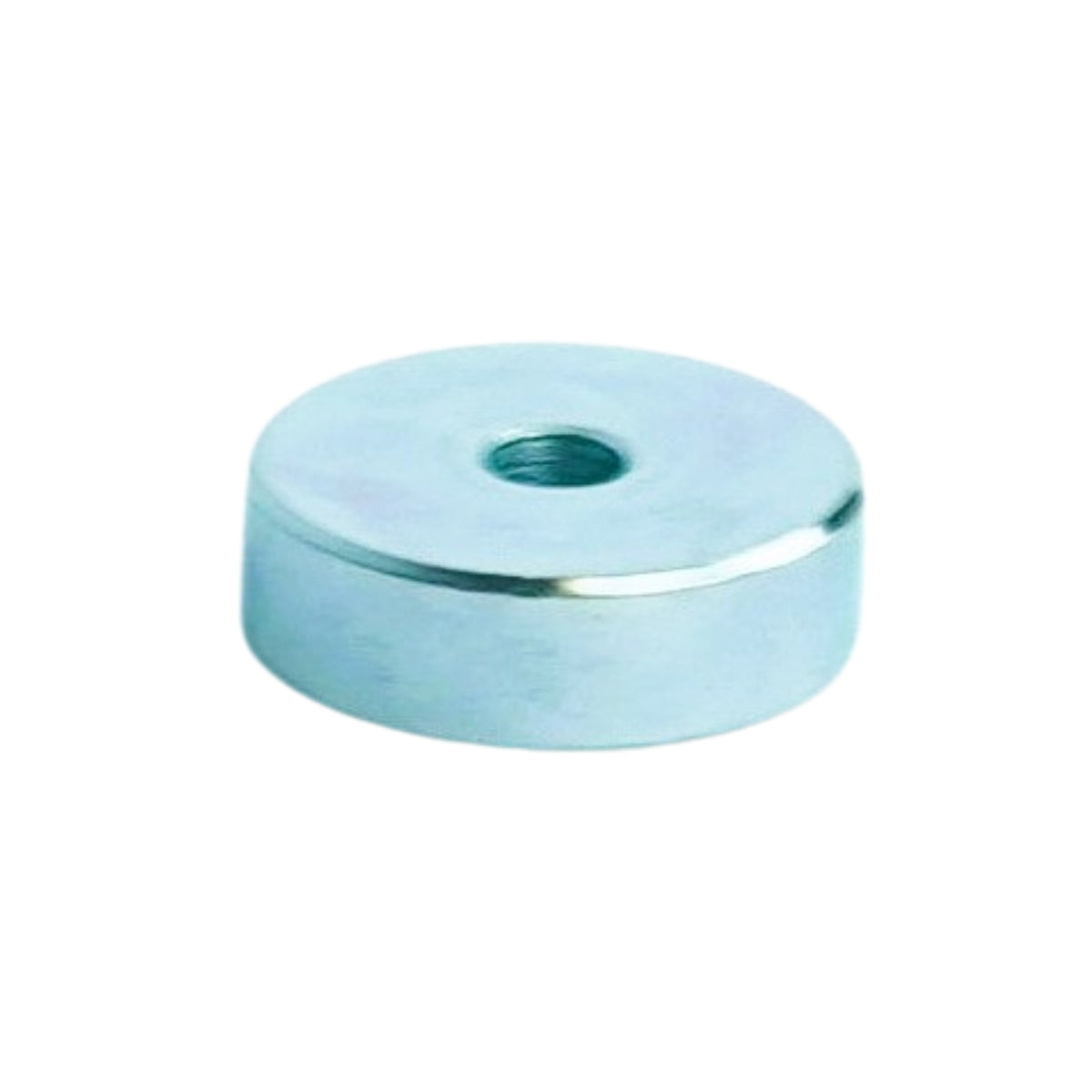

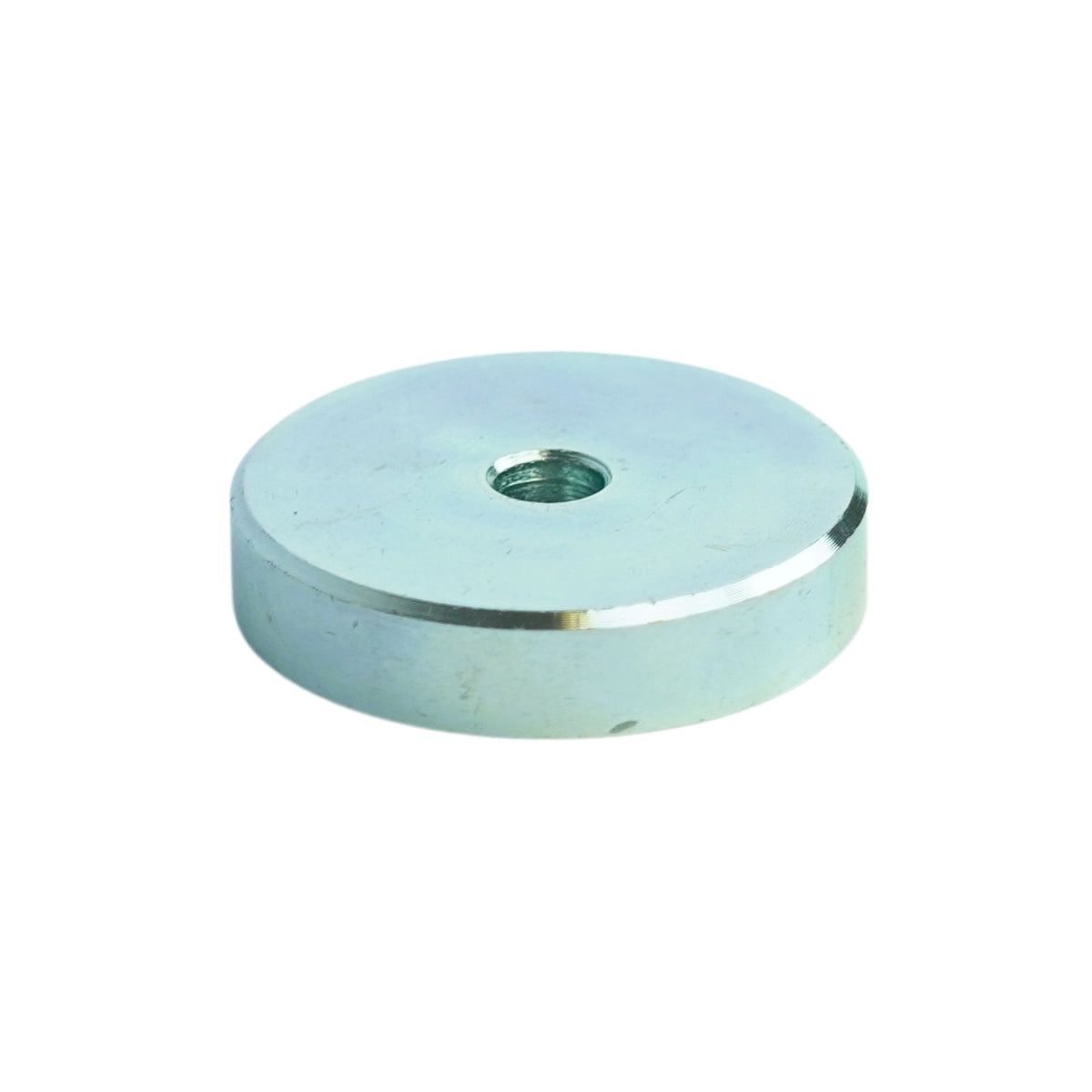

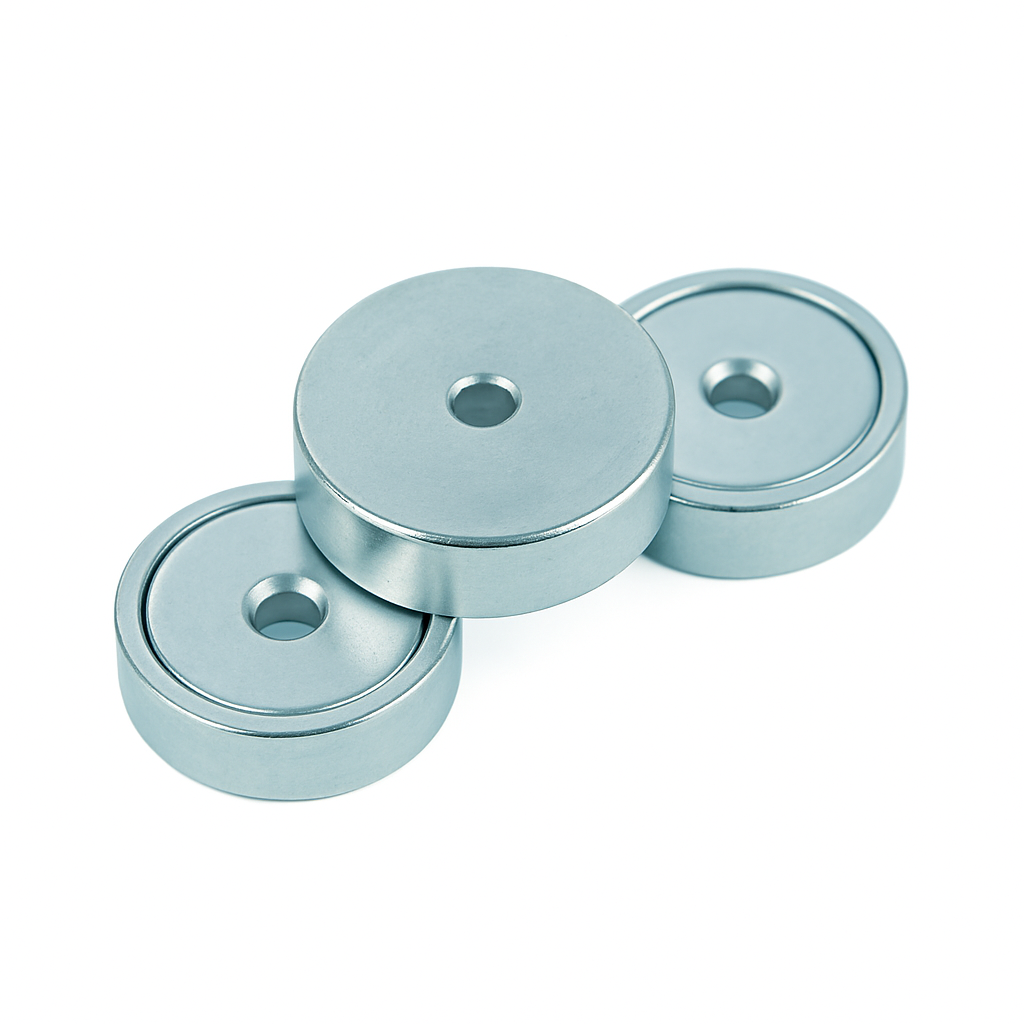

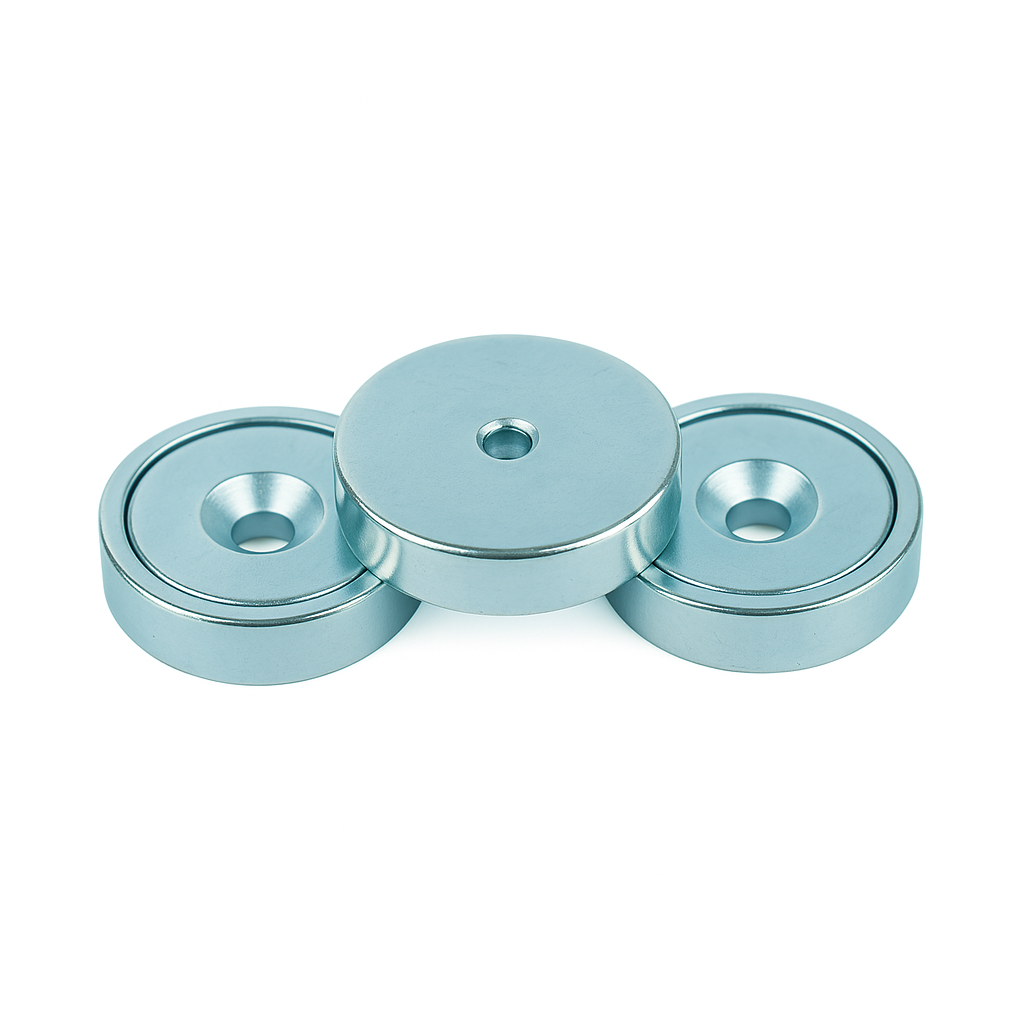

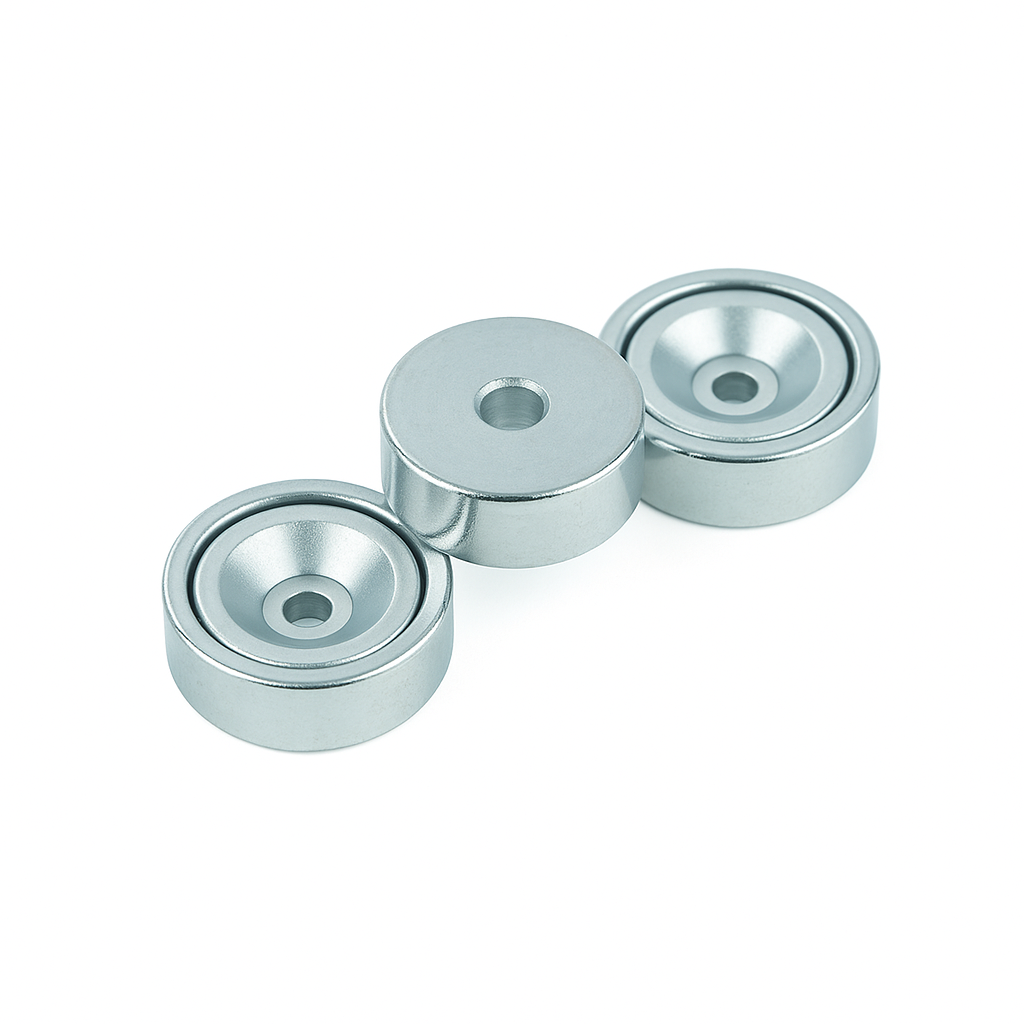

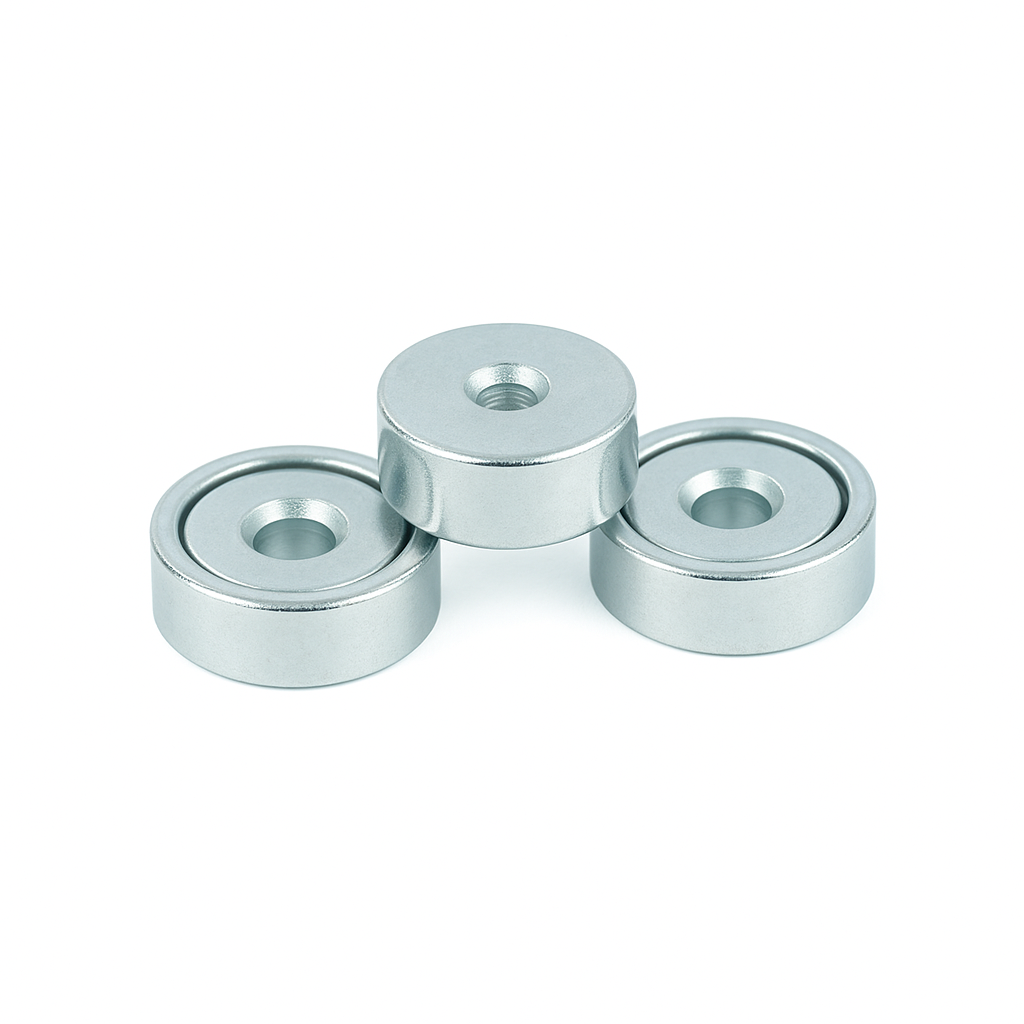

Each magnet features a high-performance Neodymium (NdFeB) magnetic core housed within a zinc-plated steel pot. The steel casing helps concentrate the magnetic field through the working face while also providing additional mechanical protection for the magnet.

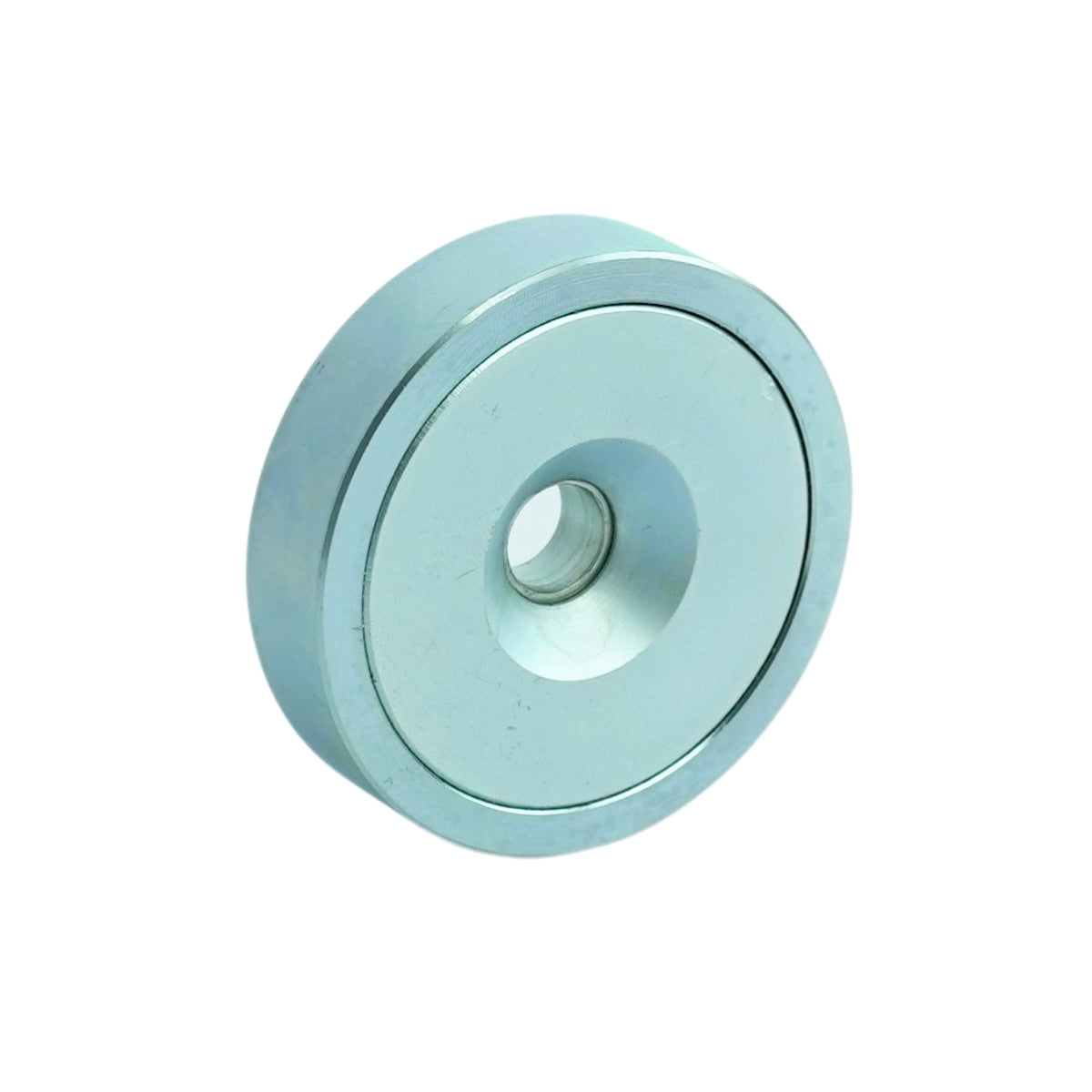

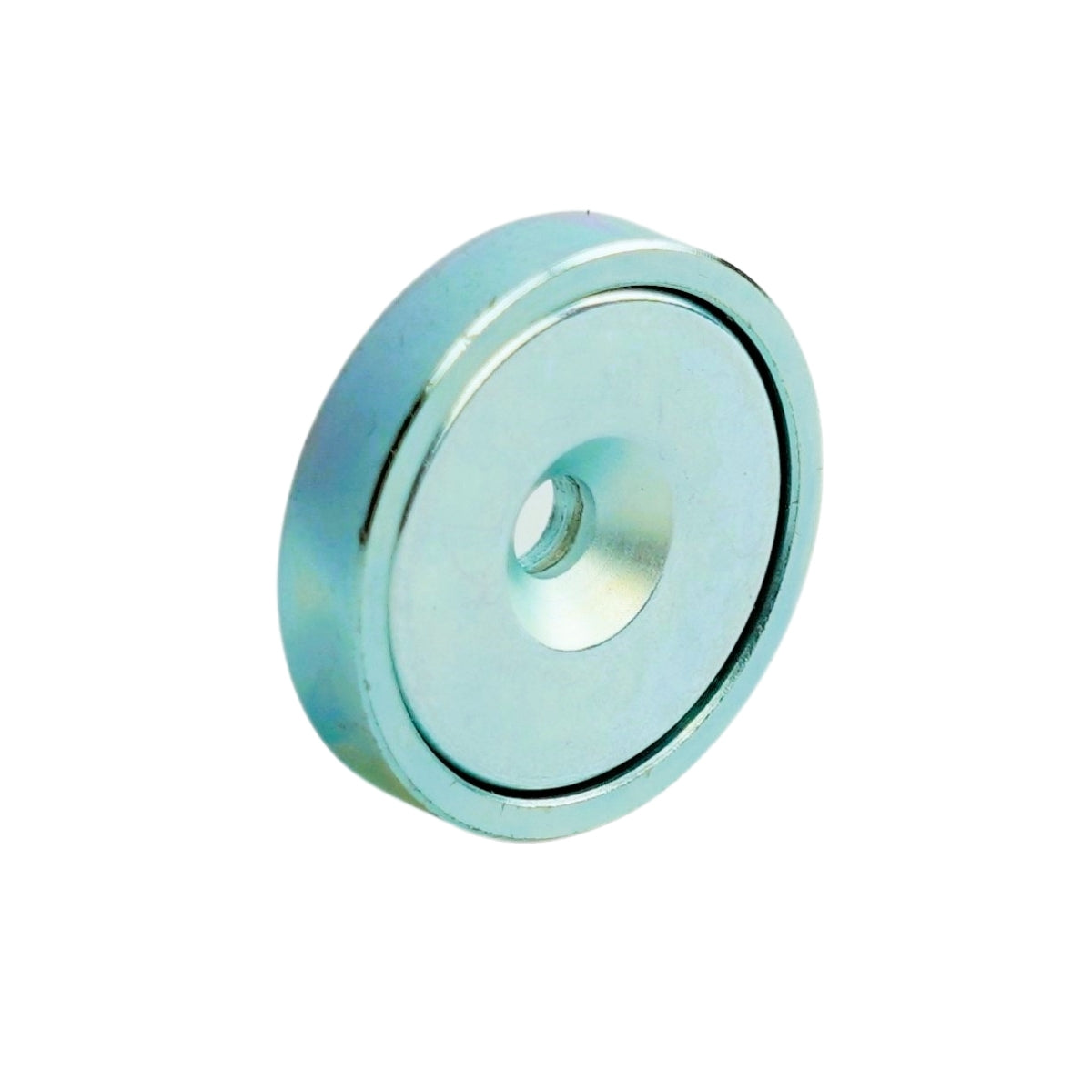

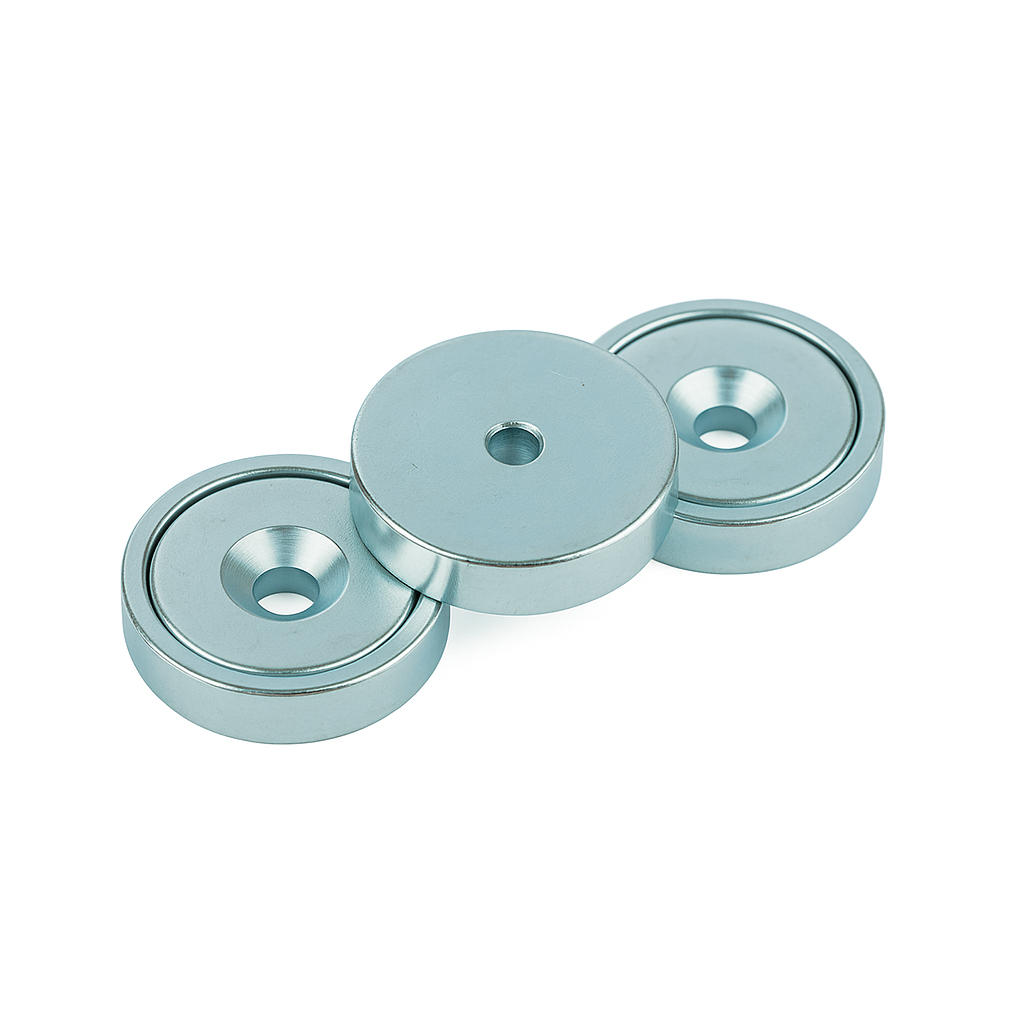

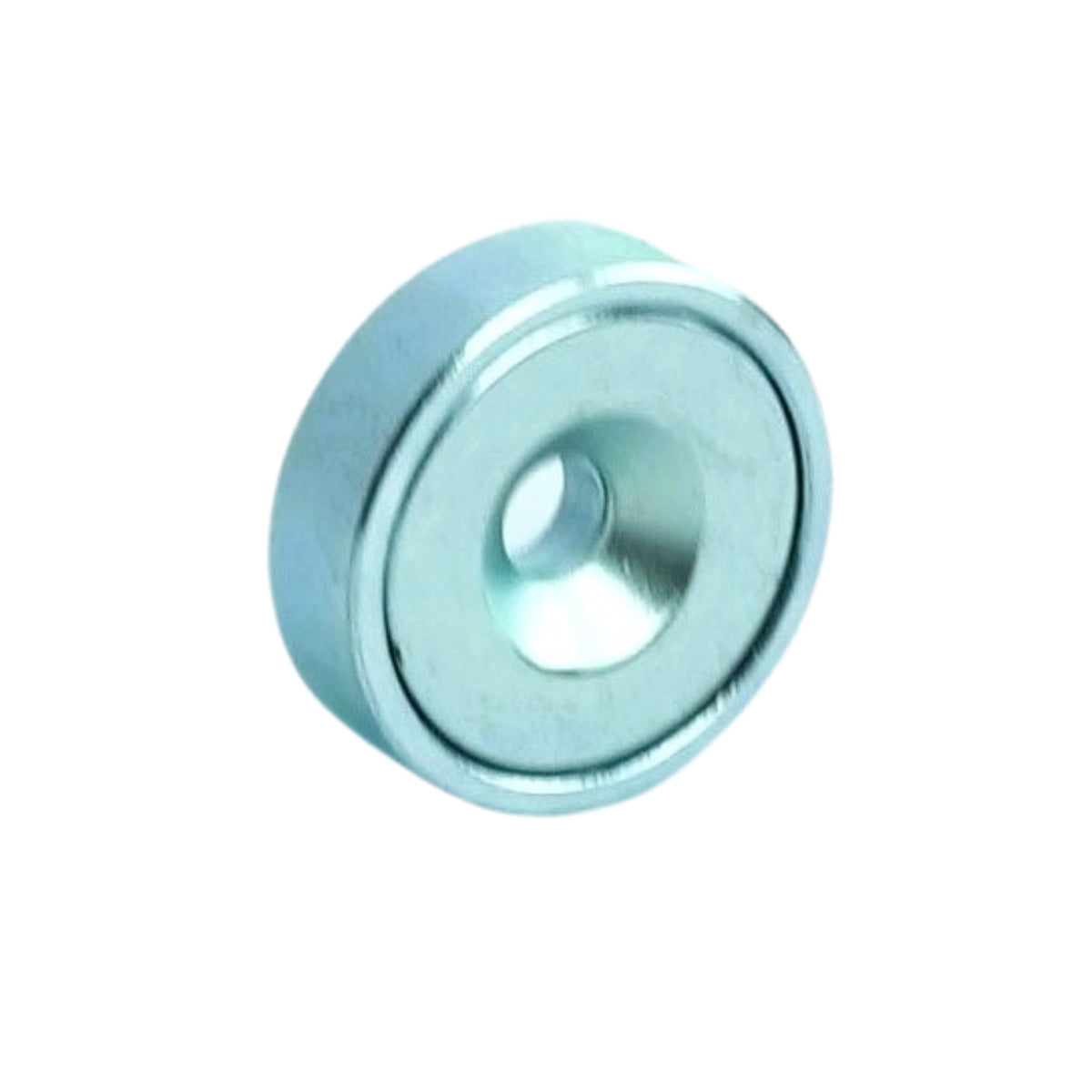

A central countersunk fixing hole allows a suitable screw head to sit neatly within the magnet, helping to create a clean and secure installation with minimal protrusion. This makes the range particularly useful for closures, fixtures, brackets, displays and other installations where space is limited.

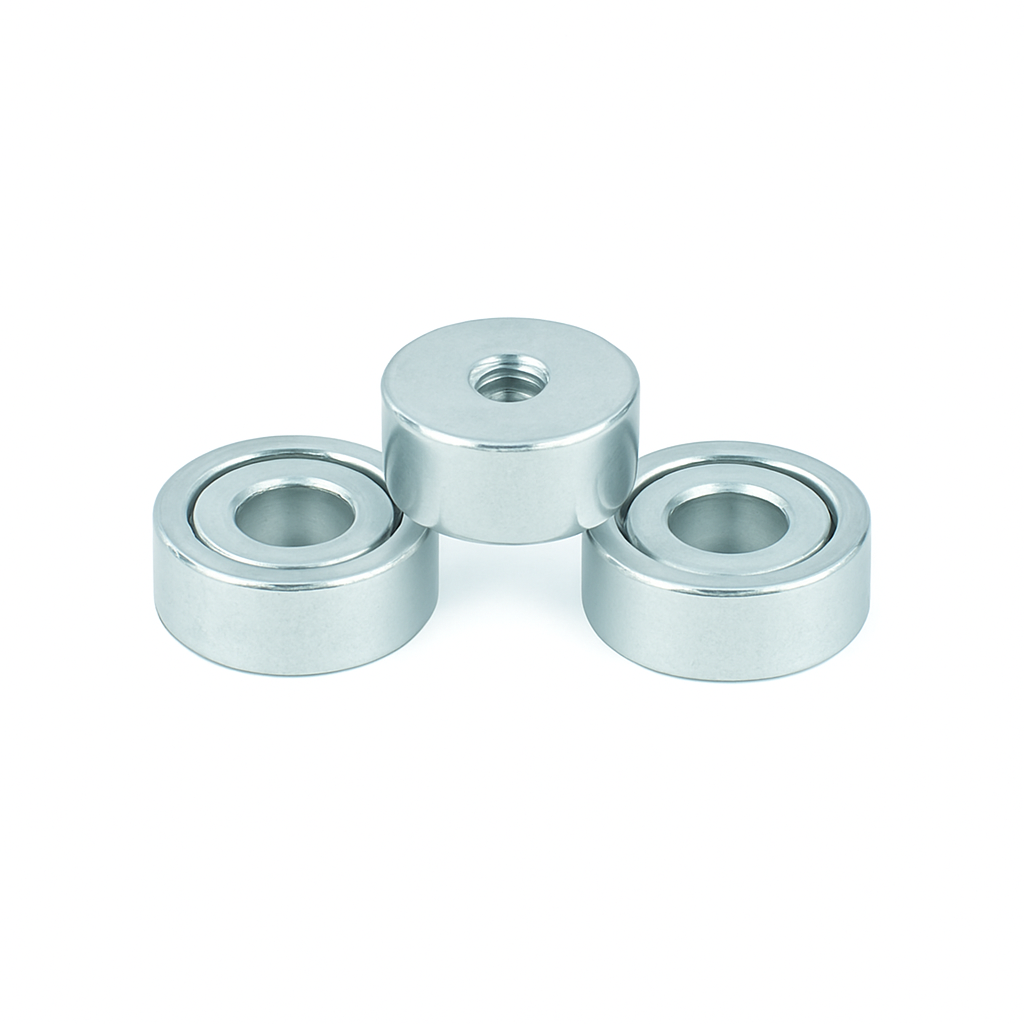

Eight sizes are available from 10mm to 48mm diameter, with pull forces ranging from 1.3kg up to 87kg. Screw head sizes range from M2.5 to M8 depending on the selected model, allowing the magnet to be matched more closely to the required mounting arrangement.

Their combination of compact dimensions and strong magnetic performance makes these countersunk pot magnets suitable for cabinet and access-panel closures, signage, point-of-sale displays, removable brackets, jigs, stops and general industrial mounting applications.

The neodymium magnetic core provides high holding strength relative to its size, with reliable operation at temperatures up to 80°C.

Key Features

• High-strength Neodymium (NdFeB) magnetic core
• Zinc-plated steel pot helps concentrate the magnetic field through the working face
• Central countersunk hole for neat and secure screw fixing
• Eight models available from 10mm to 48mm diameter
• Pull forces ranging from 1.3kg up to 87kg
• Screw head sizes from M2.5 to M8 depending on model
• Compact shallow-pot design for restricted installation spaces
• Suitable for cabinet doors, access panels and enclosure closures
• Ideal for signage, displays, brackets, jigs and positioning fixtures
• Reusable magnetic fixing solution for industrial, retail and general mounting applications
• Maximum operating temperature of 80°C

Technical Data

* Pull force values are based on ideal contact with a thick, clean mild steel surface. Actual holding performance may vary depending on material type, material thickness, surface condition and air gaps.
