Eclipse Magnetics Neodymium Deep Pot Magnets with Threaded Hole are high-strength magnetic assemblies engineered for demanding holding, clamping, and attachment applications. The deep pot design intensifies the magnetic field at the base, providing maximum pull force and stability even in challenging environments.
Each magnet features a powerful Neodymium (NdFeB) core encased within a durable steel shell, offering mechanical protection and enhanced concentration of magnetic strength. The central threaded hole allows for quick and secure integration into jigs, fixtures, or mounting systems — ideal for industrial use where precision and reliability are essential.
Compact, durable, and exceptionally strong for their size, Eclipse Magnetics Neodymium Deep Pots with Threaded Hole deliver superior magnetic performance across a wide range of manufacturing, assembly, and clamping applications.
Key Features
-
High-performance Neodymium (NdFeB) core: provides exceptional magnetic strength
-
Durable steel casing: deep pot construction focuses magnetic field for maximum pull force
-
Threaded fixing hole: allows secure mounting and easy integration into assemblies
-
Compact, efficient design: delivers high holding power relative to size
-
Versatile performance: ideal for holding, clamping, and lifting applications
Technical Data
|
Product Code
|
Diameter (mm)
|
Height (mm)
|
Thread
Size
|
Pull Force (kg)
|
Net Weight (kg)
|
|

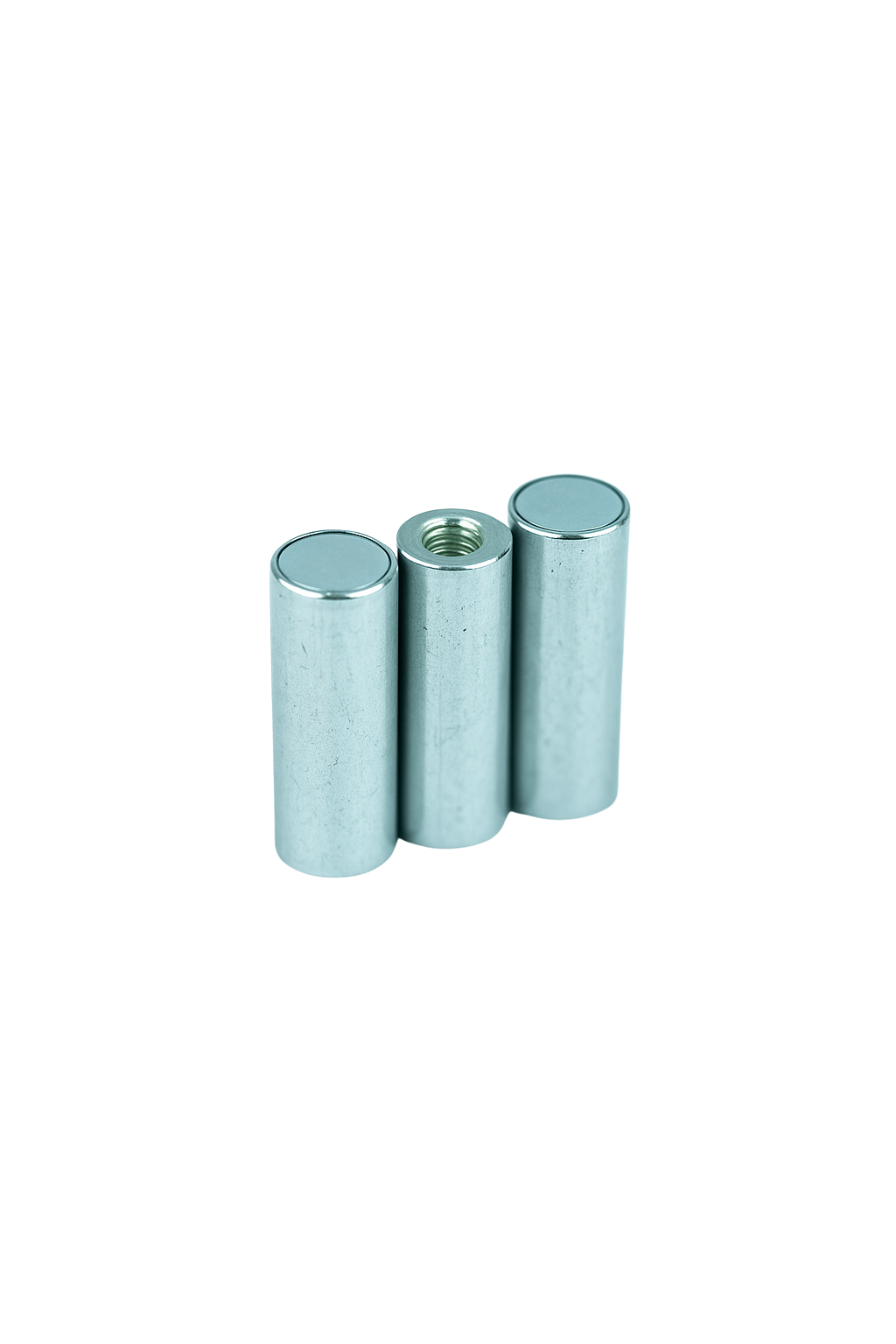

E740NEO
|
6
|
20
|
M3
|
0.6
|
0.005
|
|

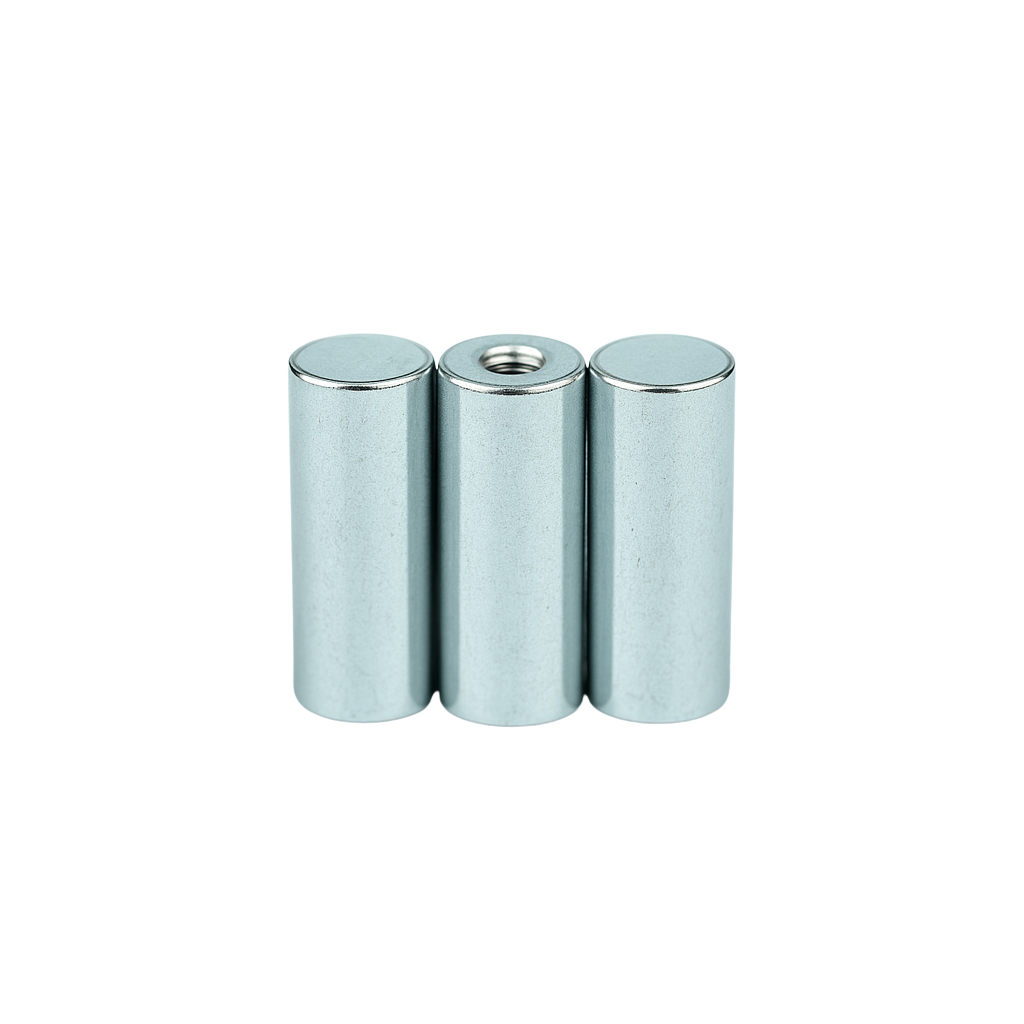

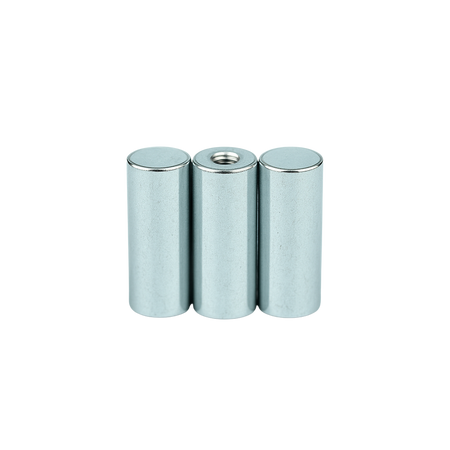

E741NEO
|
8
|
20
|
M3
|
1.2
|
0.016
|
|

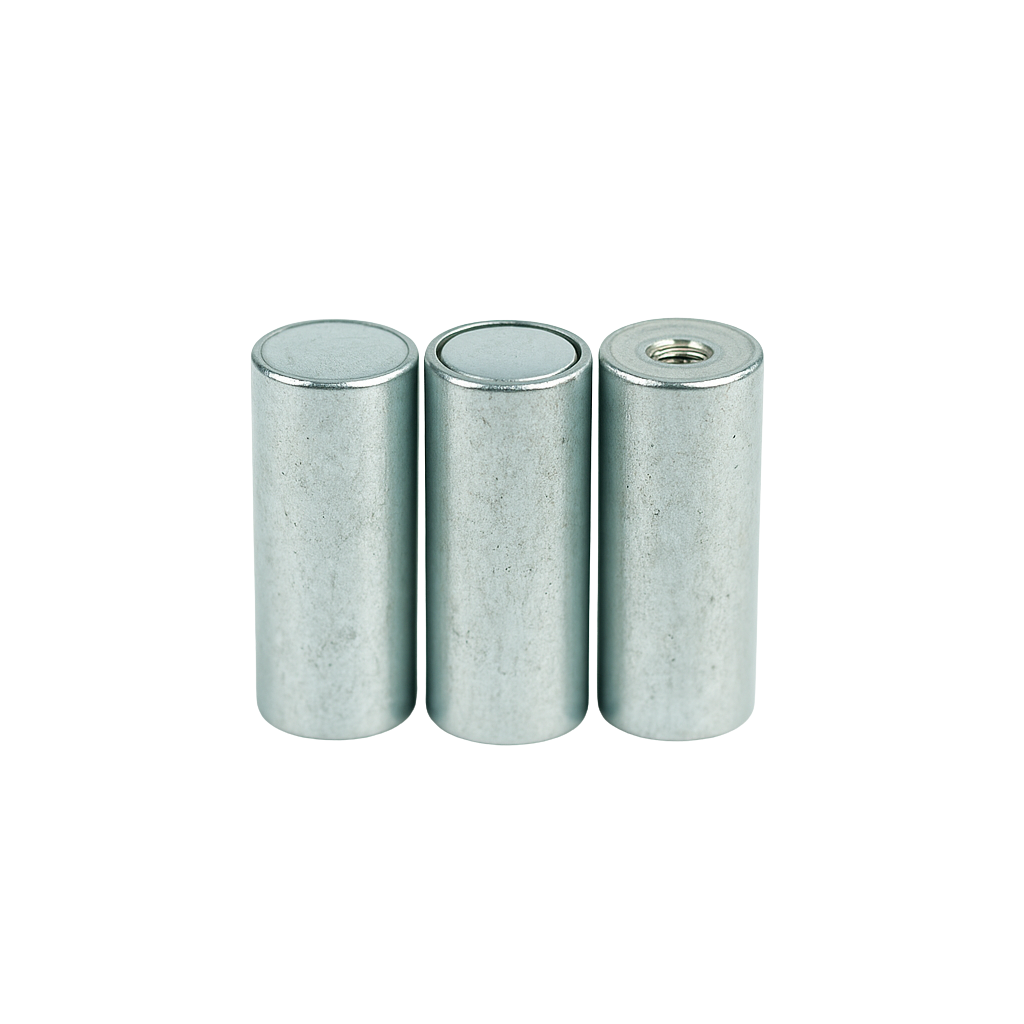

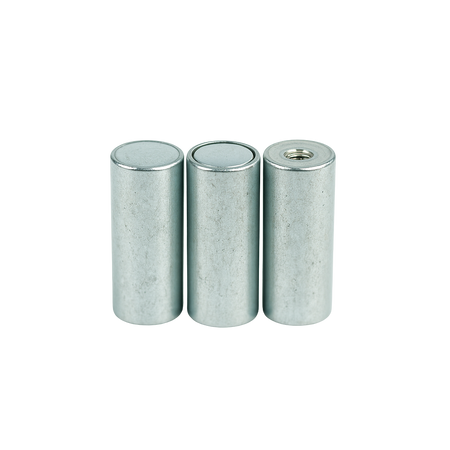

E742NEO
|
10
|
20
|
M4
|
2.4
|
0.013
|
|

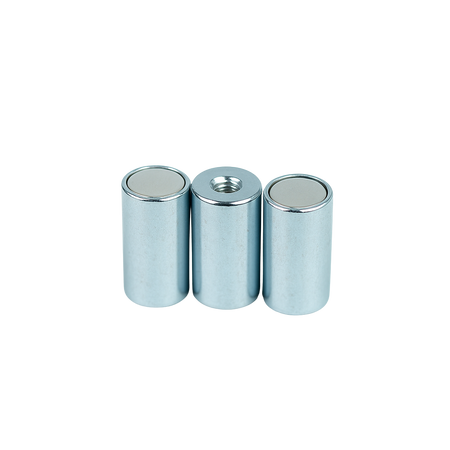

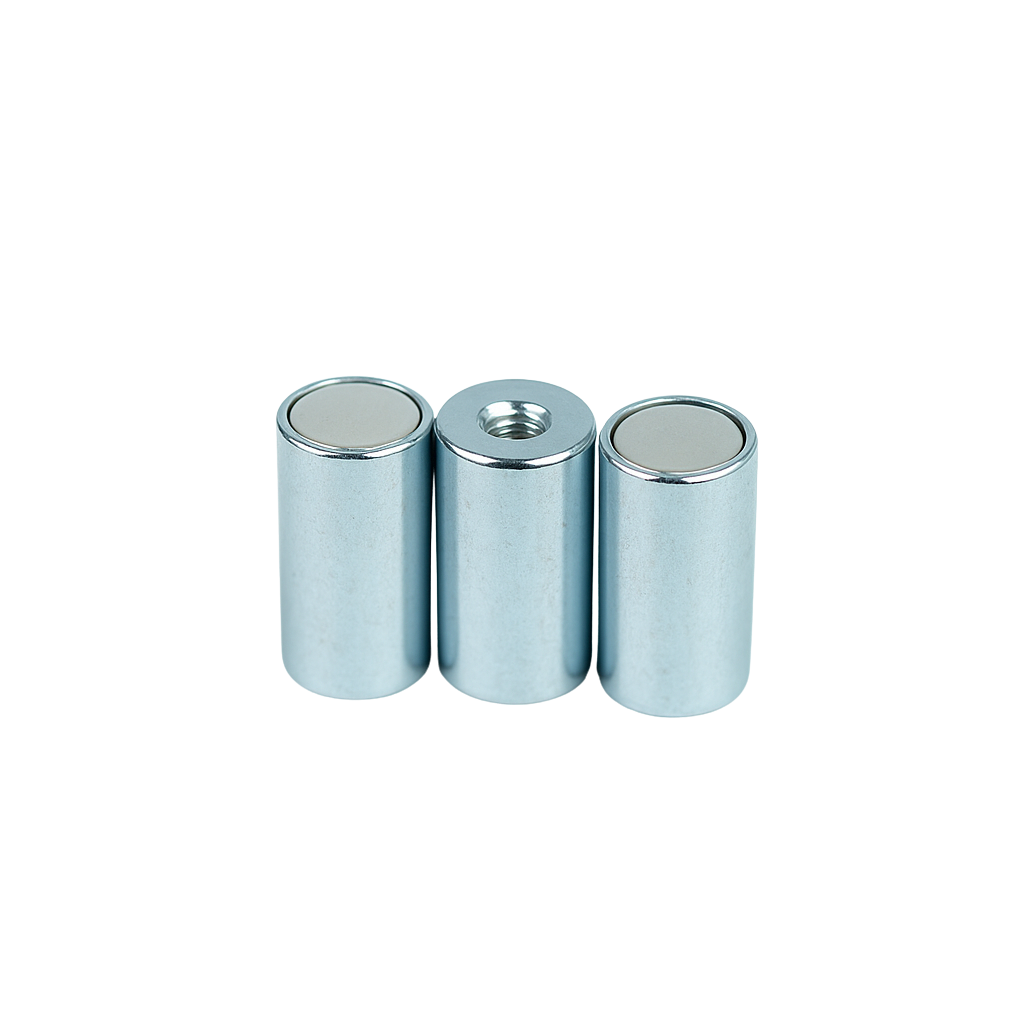

E743NEO
|
13
|
20
|
M4
|
6
|
0.019
|
|

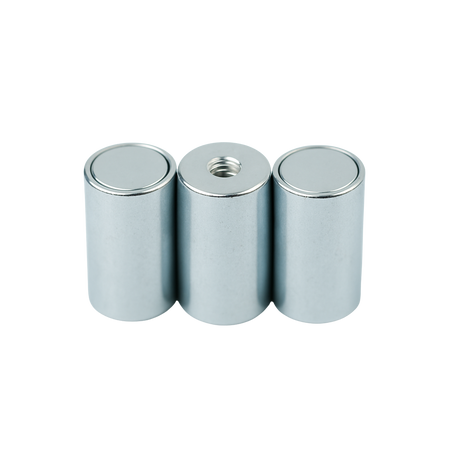

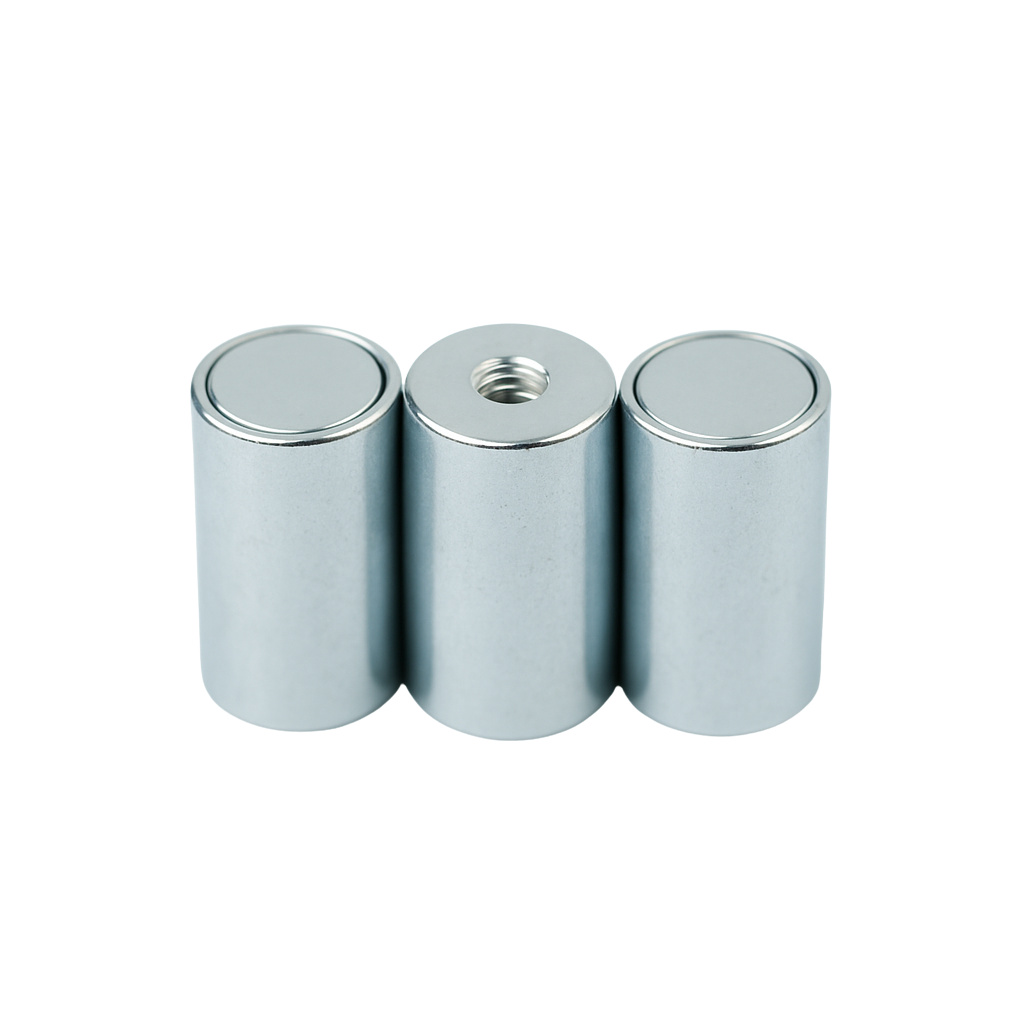

E744NEO
|
16
|
20
|
M4
|
9
|
0.034
|
|

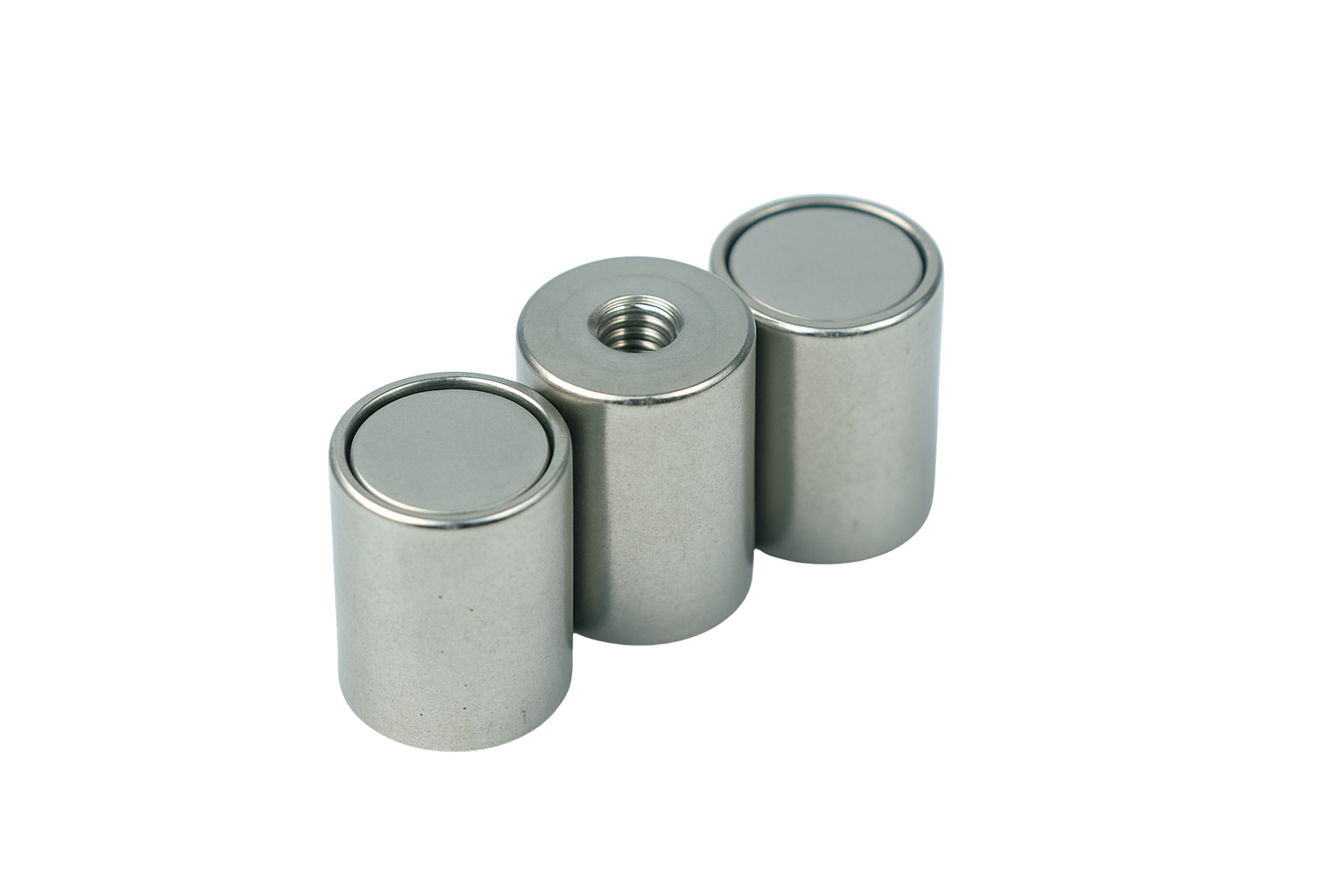

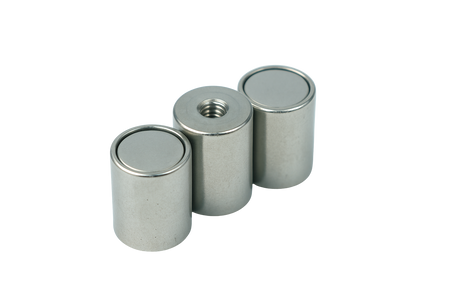

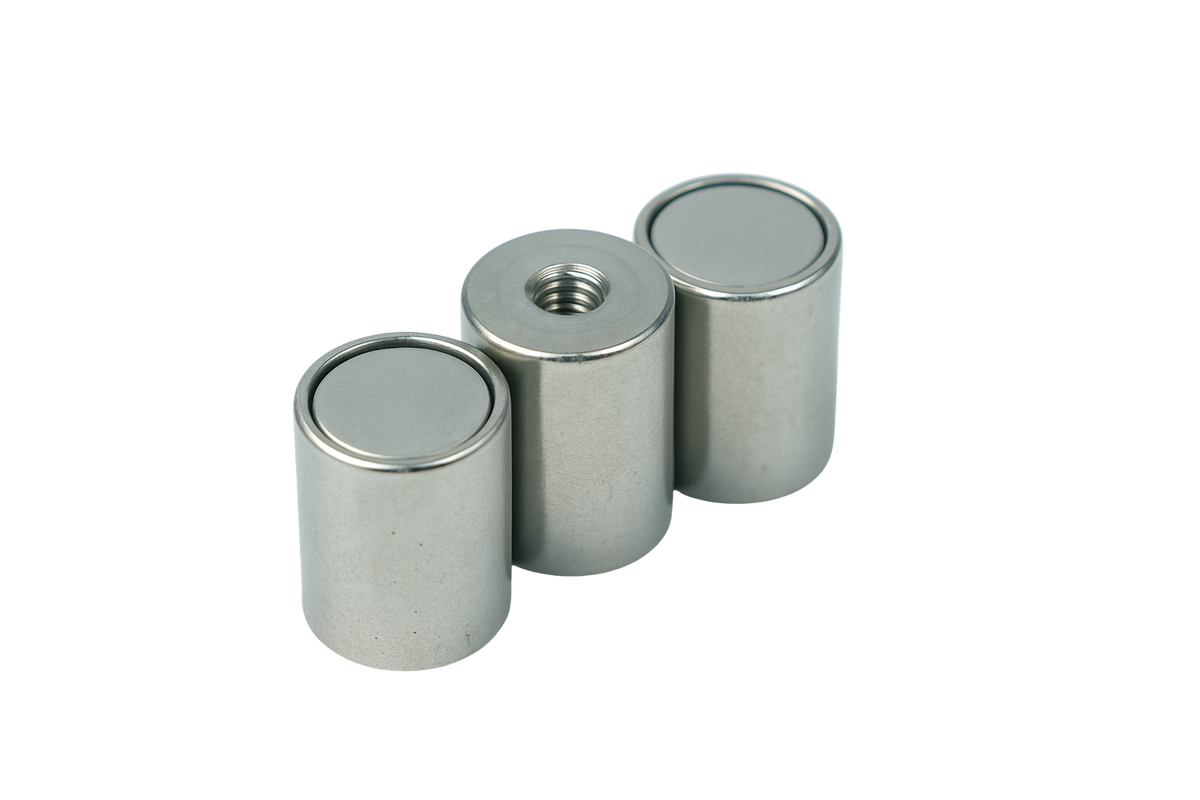

E745NEO
|
20
|
25
|
M6
|
13.5
|
0.066
|
|

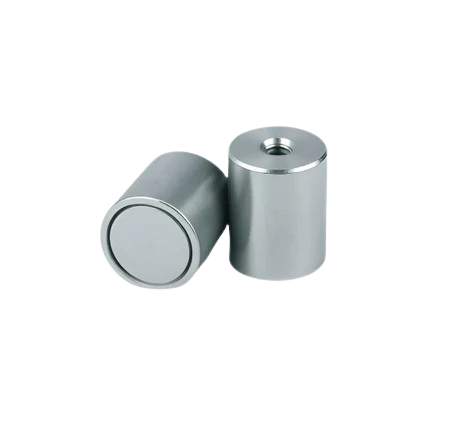

E746NEO
|
25
|
35
|
M6
|
19
|
0.136
|
|

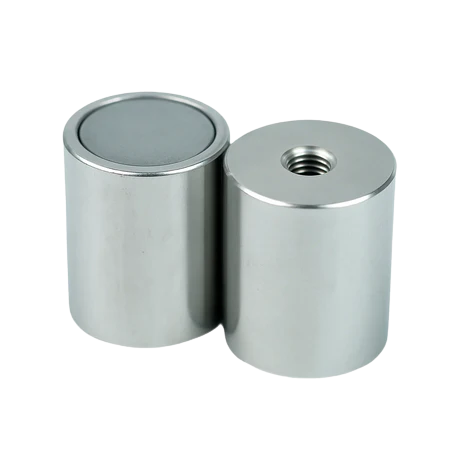

E747NEO
|
32
|
40
|
M8
|
34
|
0.263
|
