Alnico Deep Pot Magnets with Threaded Hole | Ø6mm–45mm | Up to 30kg Pull Force

Eclipse Magnetics Alnico Deep Pot Magnets with Threaded Hole are compact, high-temperature permanent magnetic assemblies designed for secure holding, gripping, positioning and fixture applications.

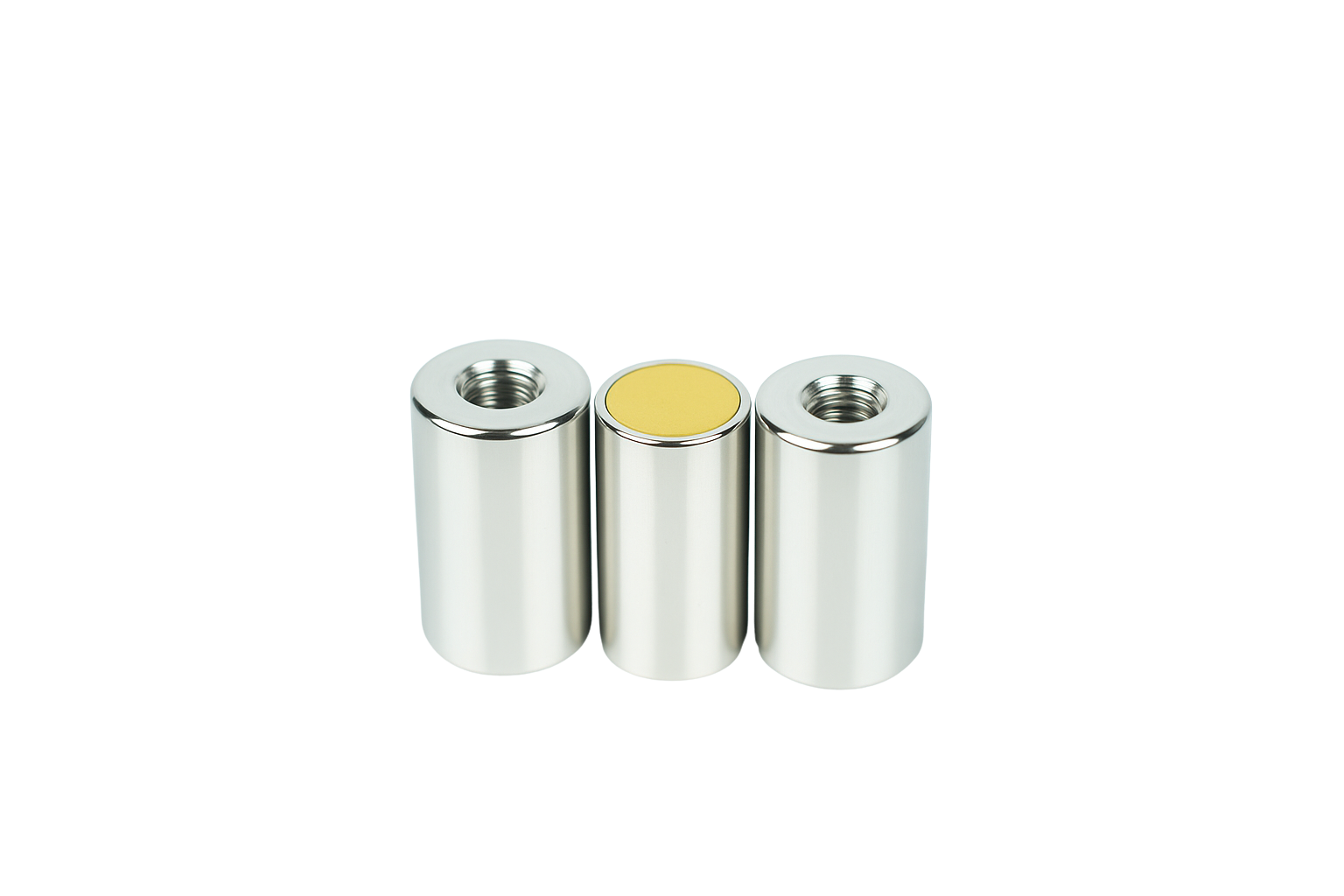

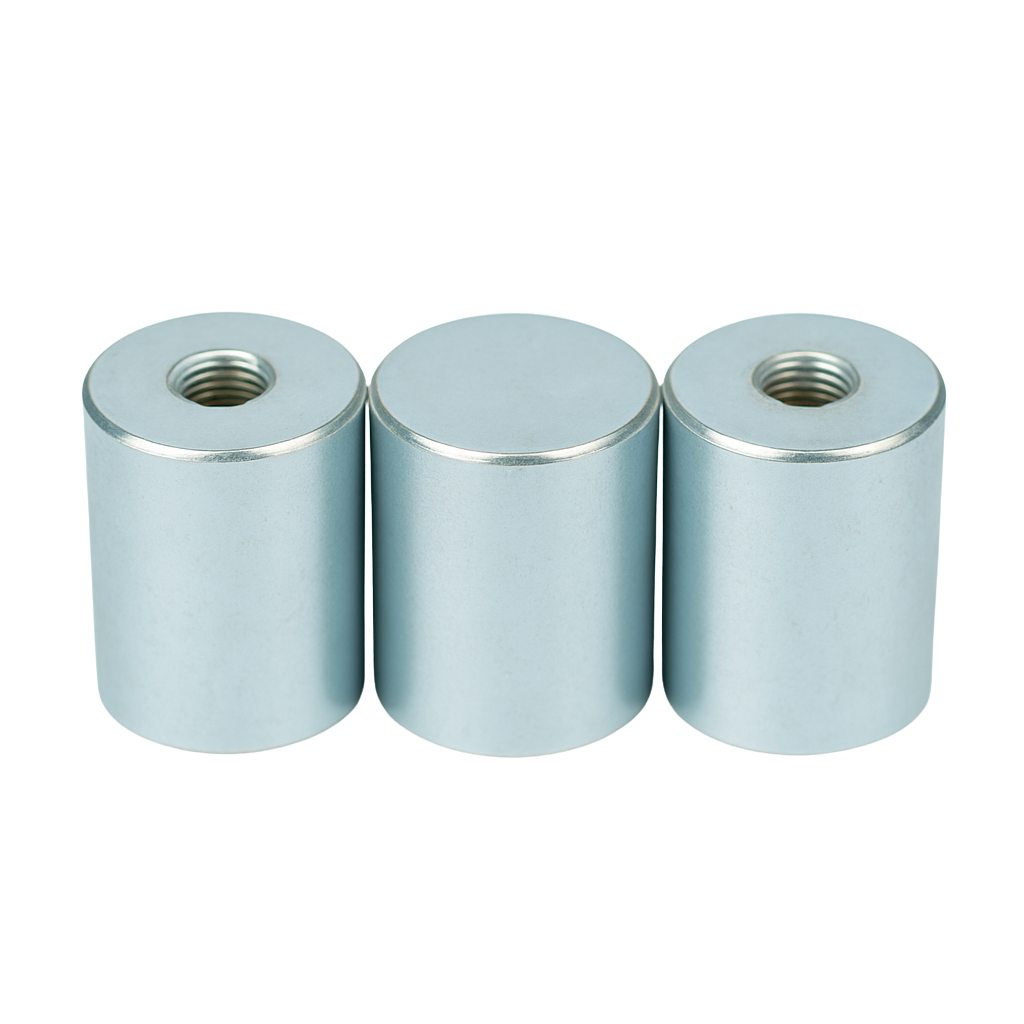

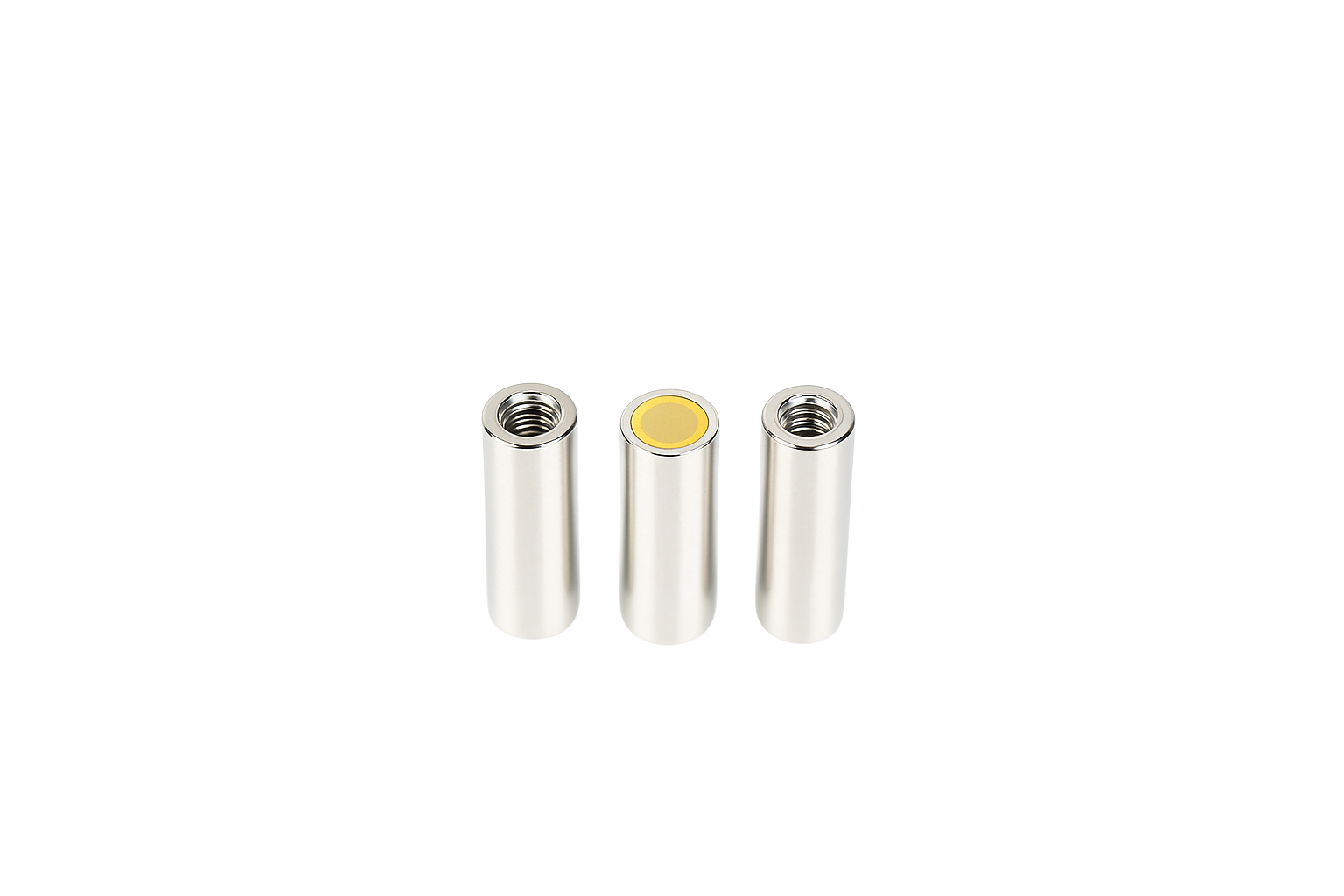

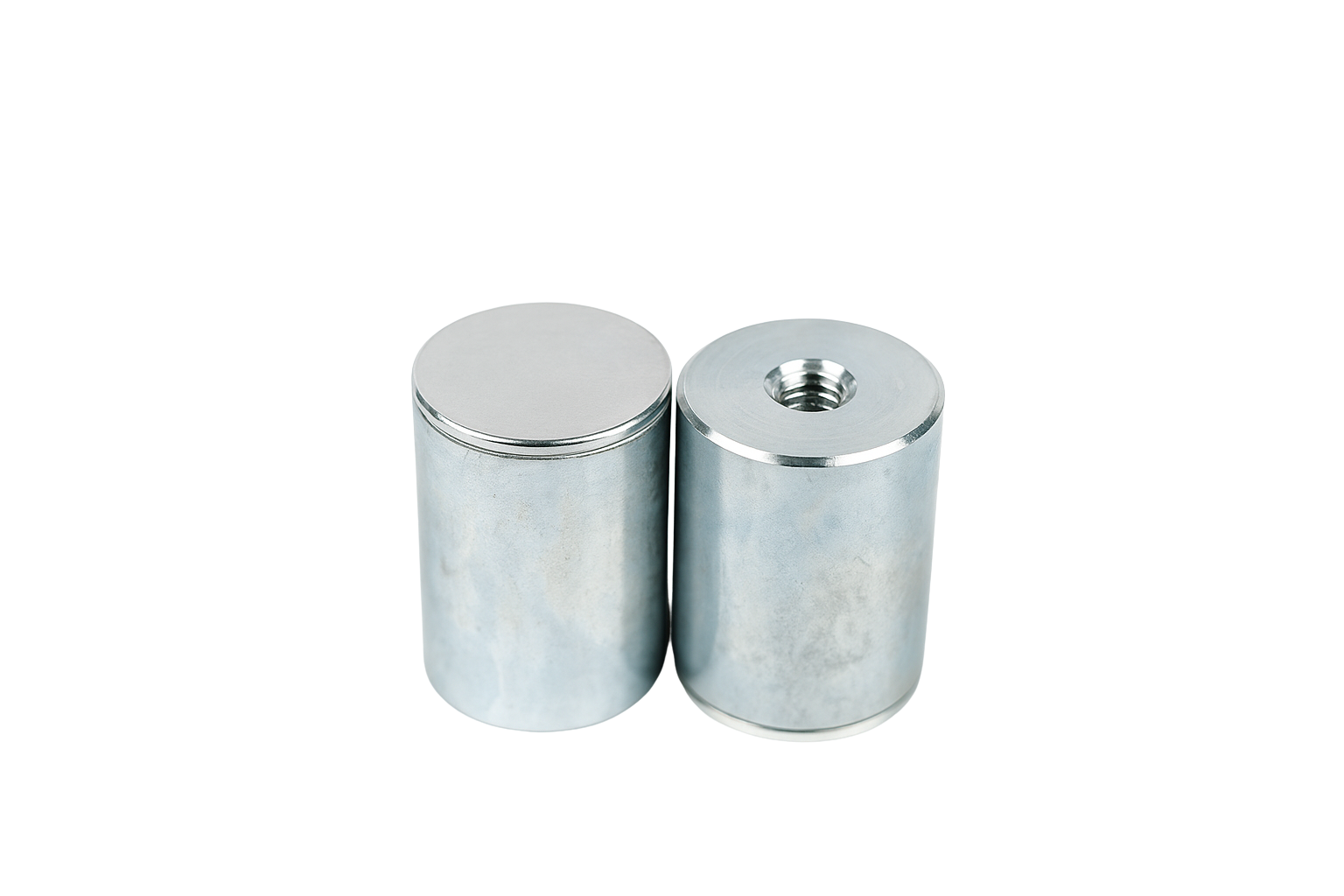

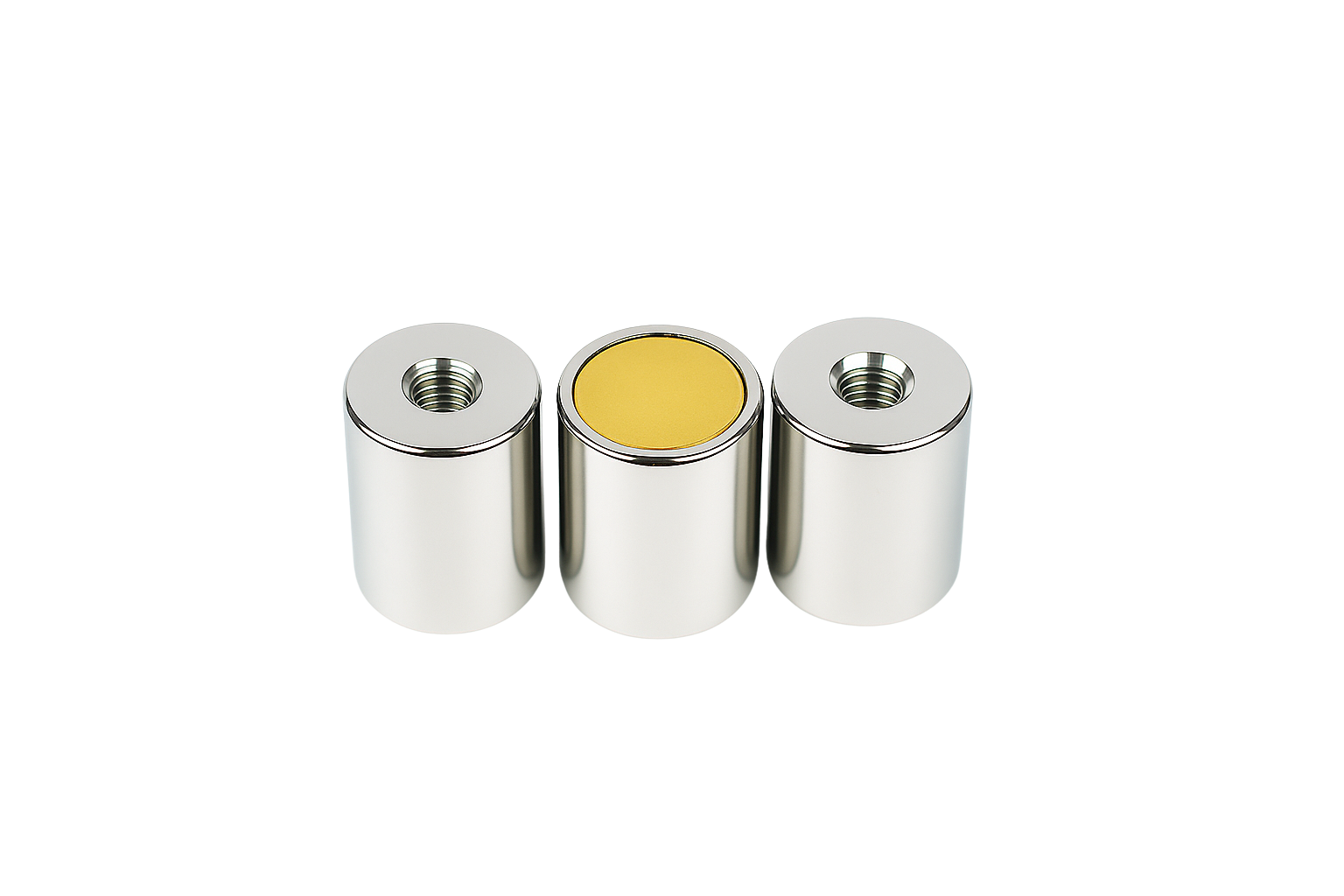

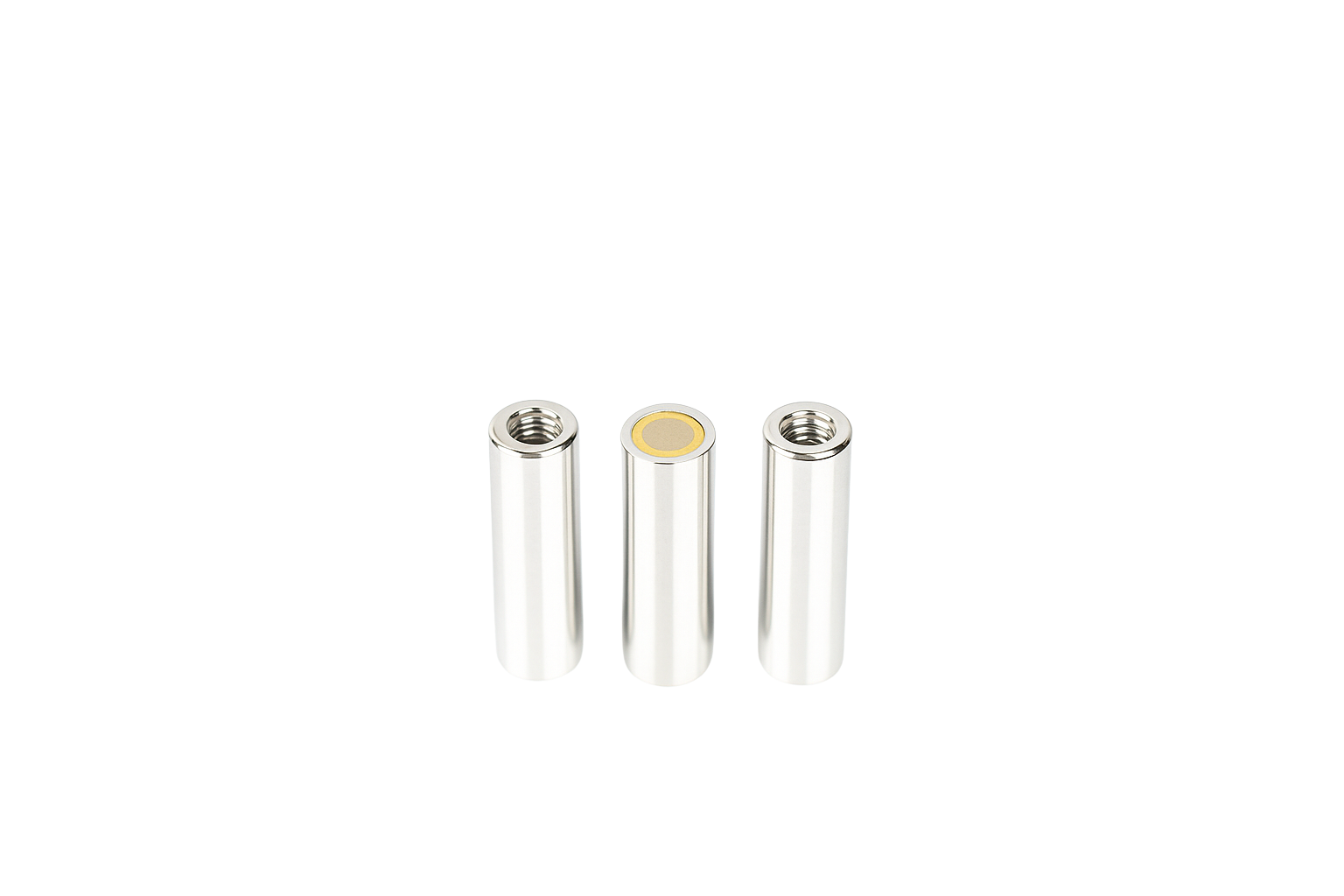

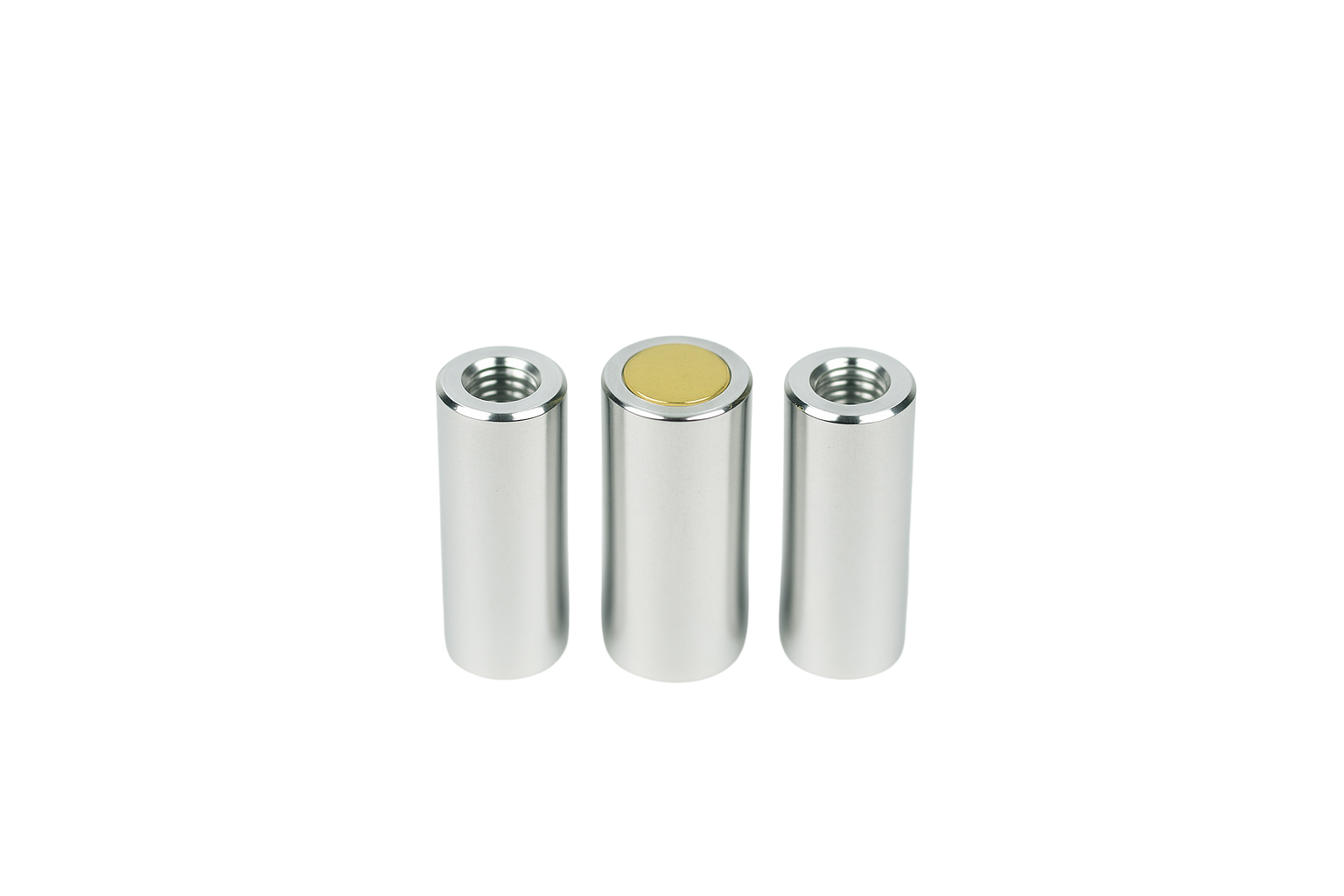

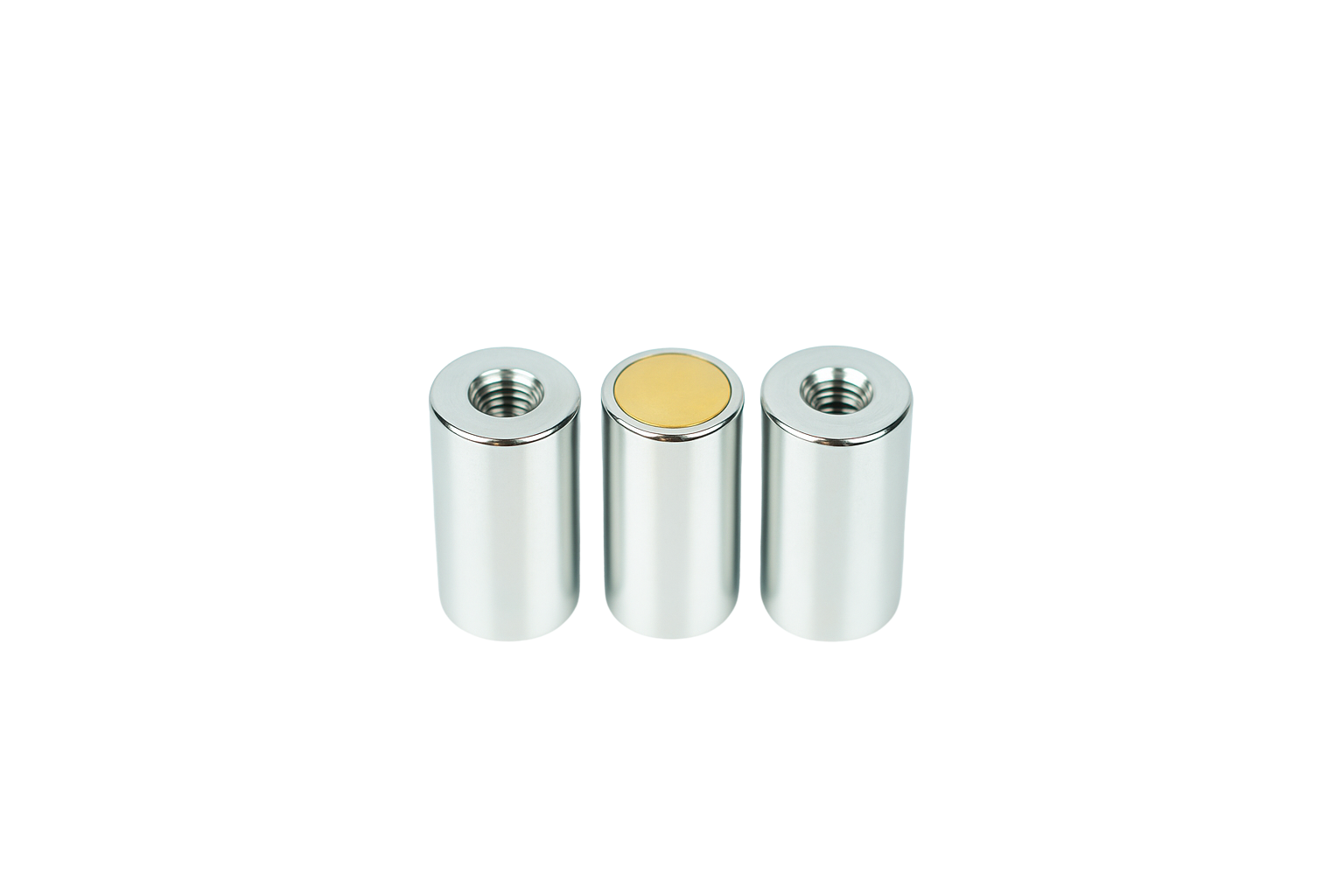

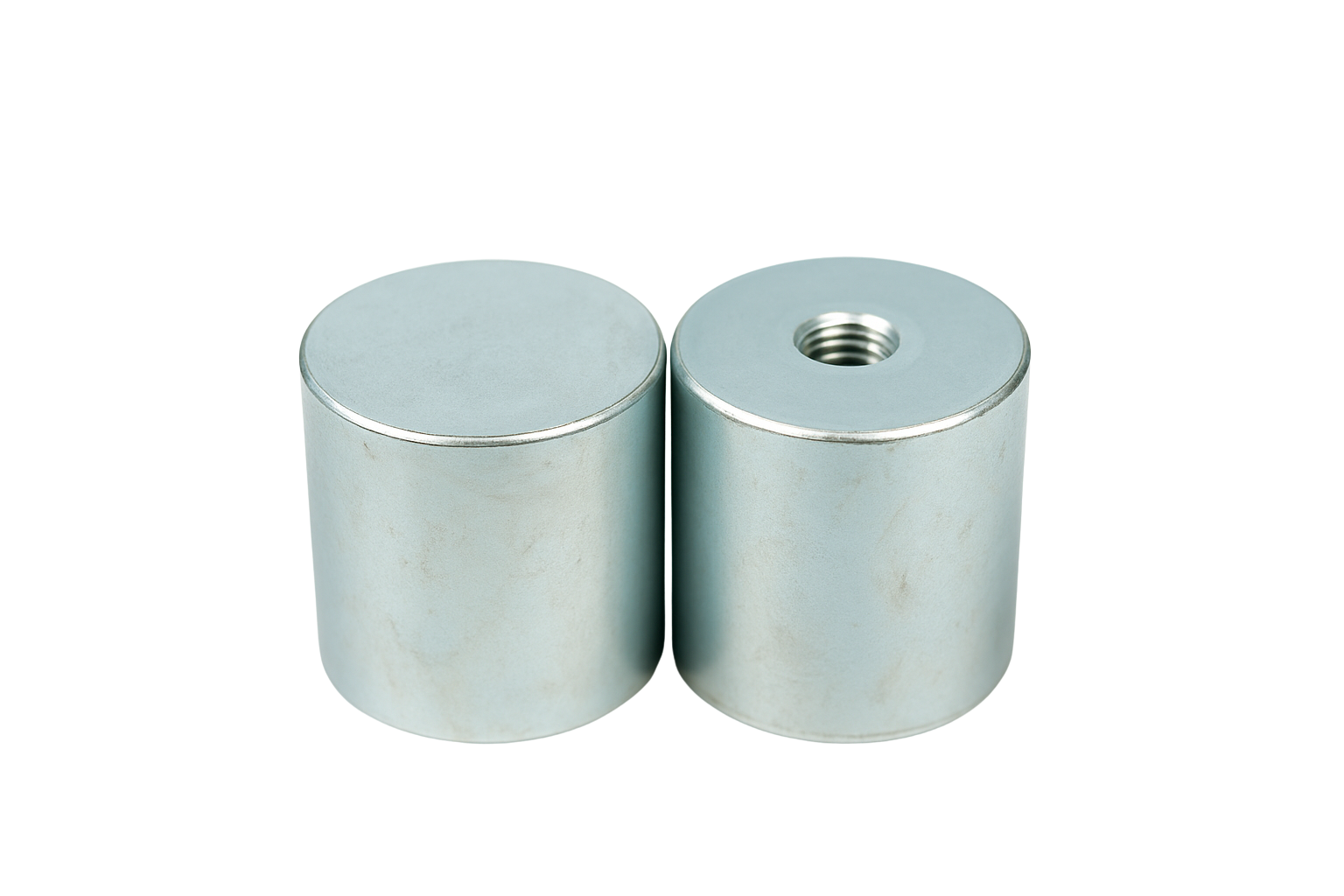

Each magnet features an Alnico magnetic core housed within a mild steel pot with a brass spacer, helping to concentrate the magnetic field through the working face for efficient holding performance. The central threaded hole provides a simple and secure method of mounting the magnet to fixtures, jigs, tooling and machine assemblies.

The range is available in nine sizes from 6mm to 45mm diameter, with threaded mounting options from M3 to M10 and pull forces ranging from 0.2kg up to 30kg. This provides a broad choice of compact and higher-strength options for different mounting, holding and assembly requirements.

With operating capability up to 220°C and a zinc-plated body for added corrosion and wear protection, these Alnico deep pot magnets are well suited to fabrication, welding, assembly and industrial applications where reliable magnetic performance and secure mechanical mounting are required.

Key Features

• High-quality Alnico magnetic core for stable long-term performance
• Available in nine diameters from 6mm to 45mm
• Pull-force options ranging from 0.2kg to 30kg
• Threaded mounting options from M3 to M10
• High-temperature performance up to 220°C
• Mild steel pot with brass spacer helps concentrate the magnetic field
• Central threaded hole allows secure attachment to fixtures, jigs and assemblies
• Zinc-plated body provides additional corrosion and wear protection
• Excellent holding-force-to-size ratio for compact installations
• Ideal for gripping, positioning, fixture holding and assembly applications
• Suitable for fabrication, welding, tooling and industrial environments

Technical Data
