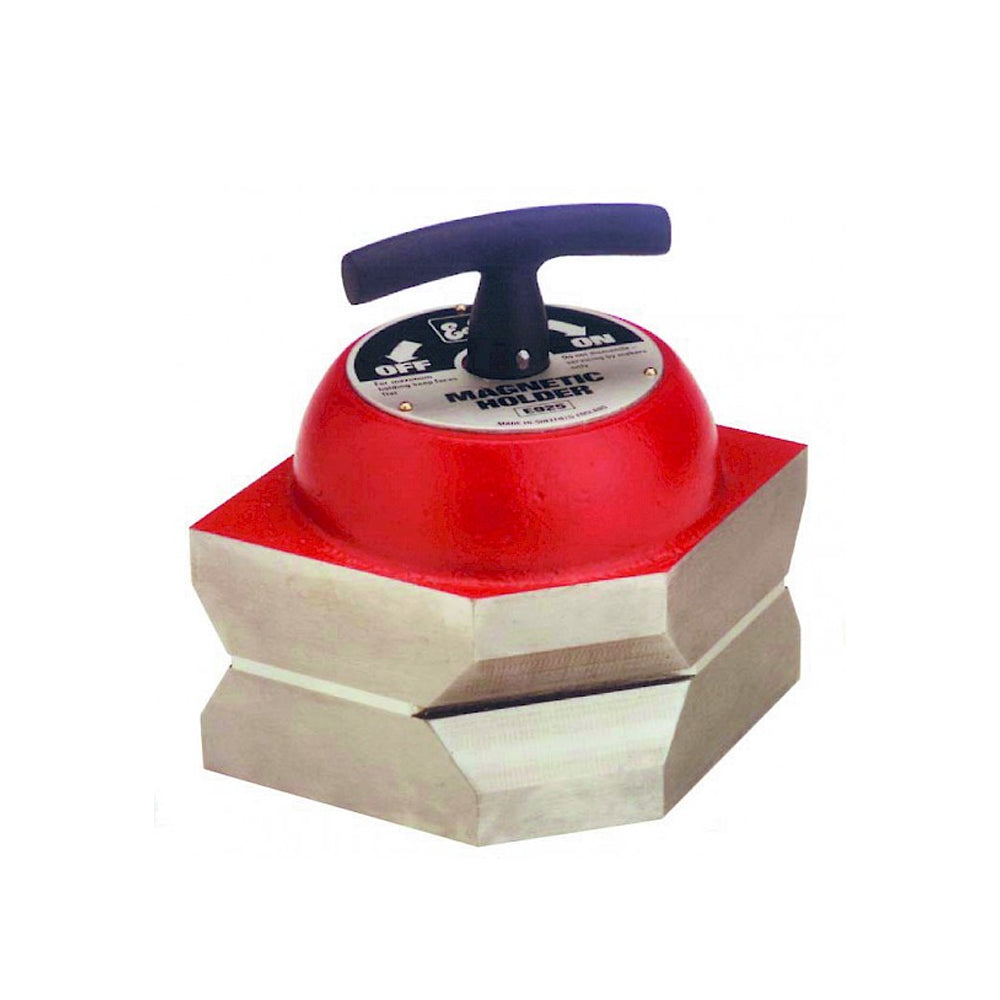

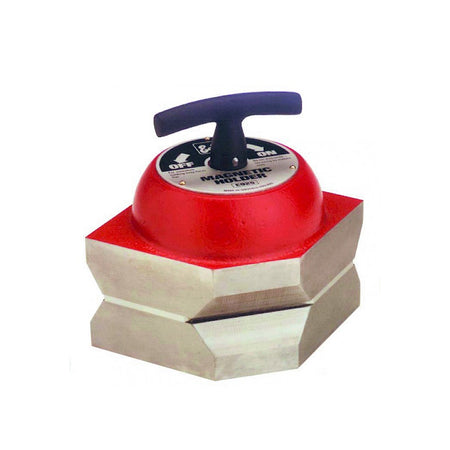

The Eclipse Magnetics Weld Holder (E925) provides rigid, high-performance support for welding and weld preparation of flat, round or tube ferrous components. With up to 100 kg pull-force and six magnetic faces configured for 45°, 90° and 135° angle clamping, it enables fast, precise positioning and secure hold of work-pieces. The built-in on/off switch allows accurate setup before full engagement.
Key Features
- Up to 100 kg pull force for strong, reliable magnetic holding.
- Six magnetic faces enabling angle positions of 45°, 90° and 135° for flexible clamping.
- On/off switch for partial engagement during accurate component positioning.
- Suitable for flat or round ferrous components—tube, angle or plate.
Typical Applications
- Jigging and aligning steel sheets or round tubing for welding preparation.
- Clamping metalwork at precise angles (45°, 90°, 135°) during fabrication or structural assembly.
- Holding components securely for tack-welding in production or workshop environments.
- Use in welding bays, metal-fabrication shops and repair facilities where fast set-up and release are required.
Technical Data
| Product Number |
Length (mm) |
Width (mm) |
Height (mm) |
Weight (kg) |
Pull Force (kg) |
| E925 |
108 |
108 |
140 |
5.67 |
100 |
Note: Pull force rating is based on ideal contact with 10 mm thick mild steel plate—actual holding performance may vary depending on material thickness, surface finish, and air gap.
