V Block Precision Workholding Tool for Machining, Inspection and Layout Applications

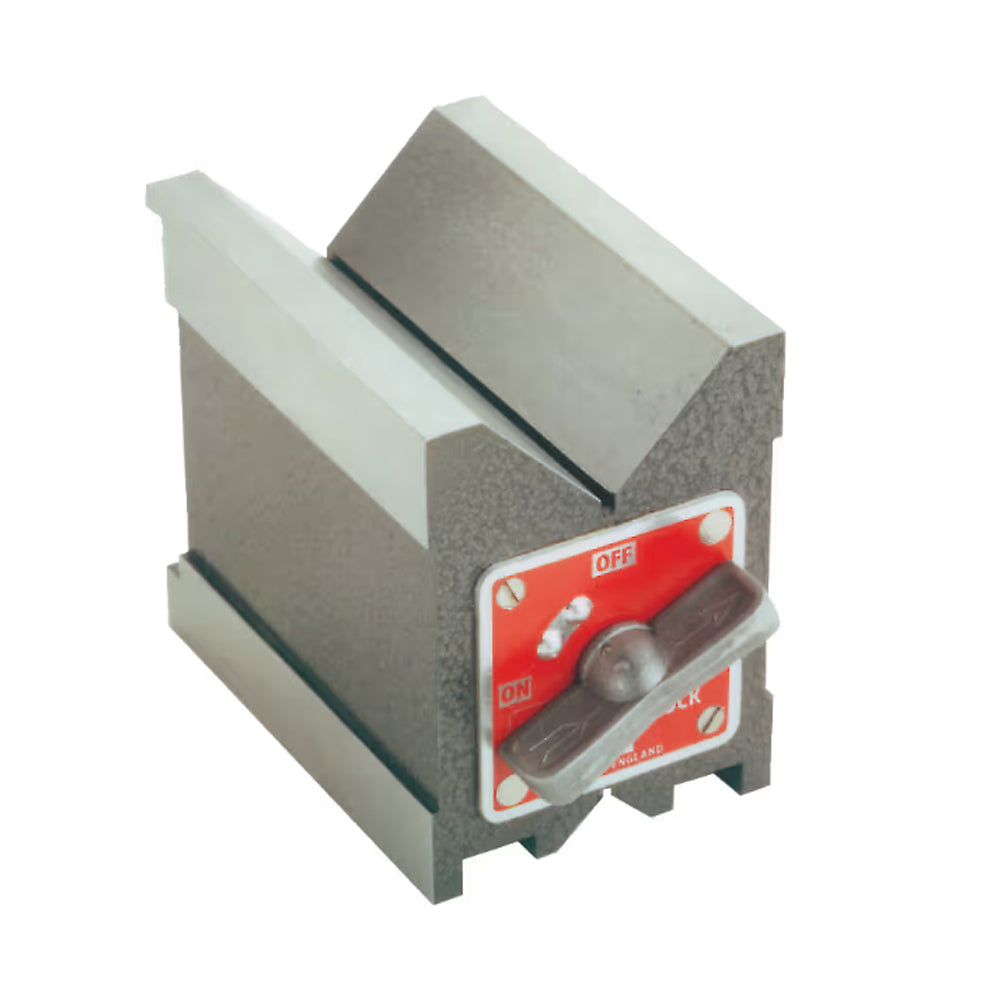

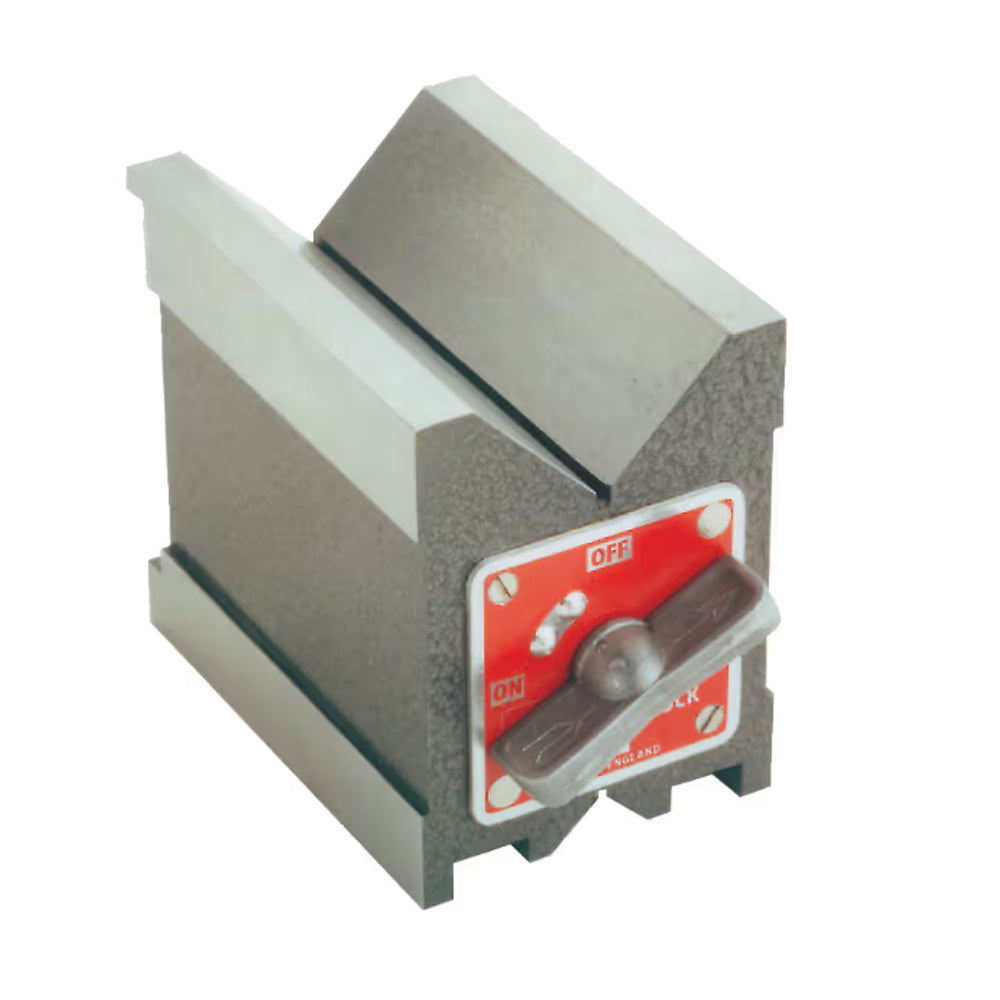

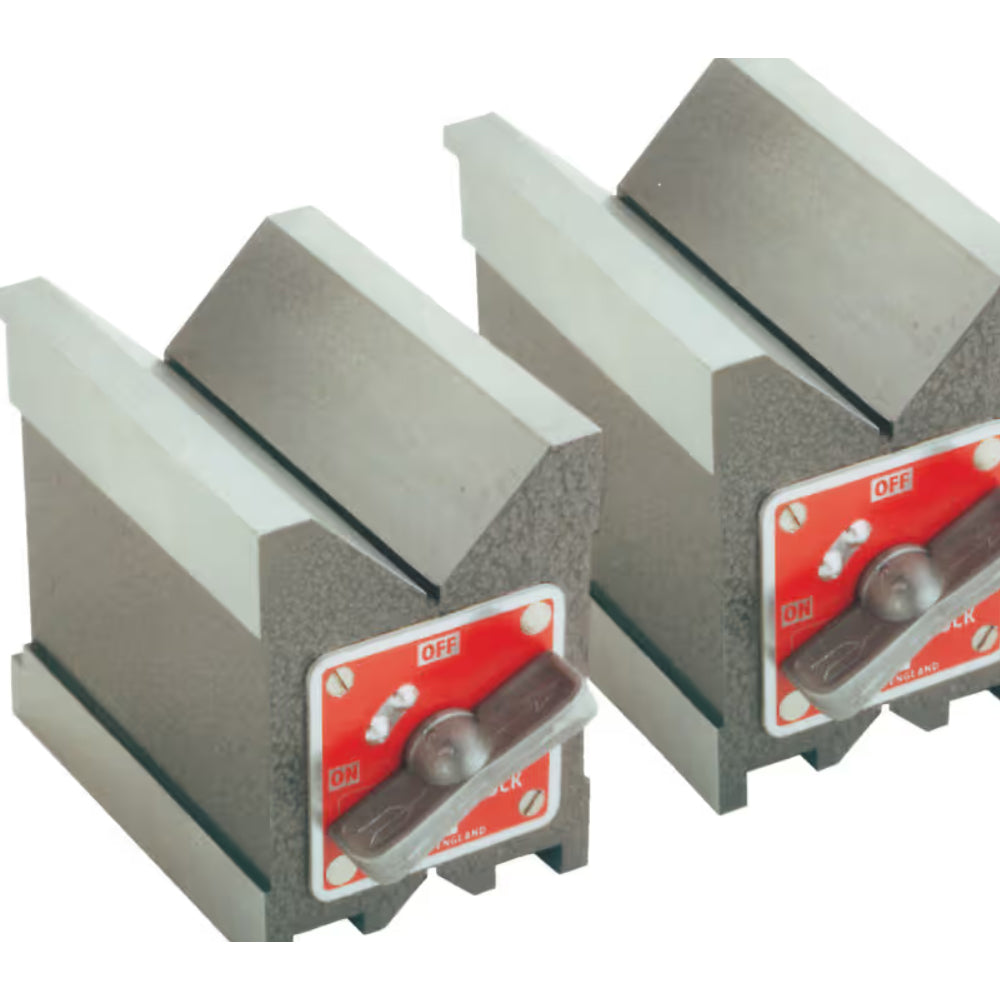

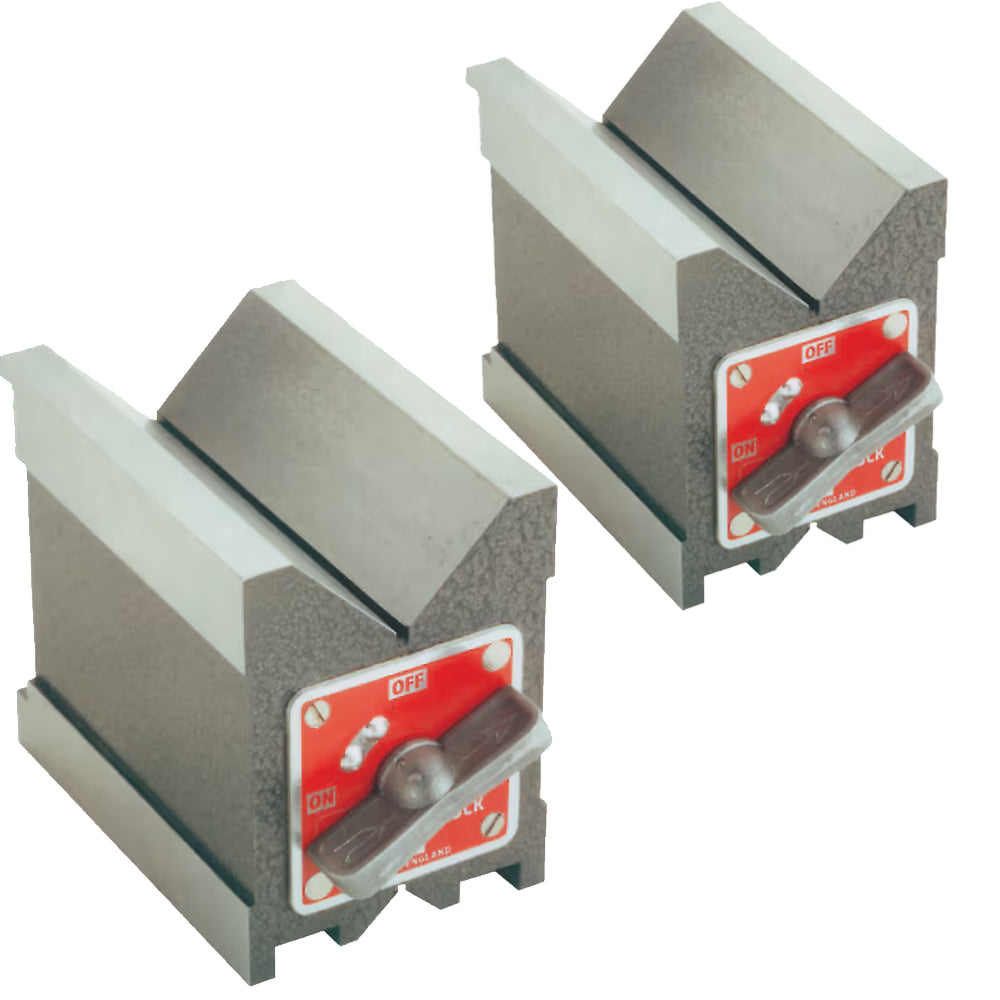

The Eclipse Magnetics Magnetic V Blocks provide a fast, accurate and secure method for holding cylindrical or complex ferrous work-pieces during marking, spark erosion, grinding, measurement or machining operations. They feature both the V-groove and the base face as magnetic, with a simple toggle switch to energise or de-energise the block. The design allows use on its base surface, on its side, or on its end for maximum flexibility.

Key Features

• Dual-magnetic faces (V­-groove and base) deliver reliable clamping of cylindrical parts and irregular shapes.
• Toggle switch for easy engage/release of magnetic field.
• Versatile orientation: use on base, side or end for flexible positioning.
• High precision holding with very low tolerance variation.

Typical Applications

• Clamping cylindrical work-pieces for measurement, grinding or spark erosion.
• Holding irregular or curved steel shapes during machining or inspection.
• Versatile fixturing in workshops, toolrooms or inspection labs.

Technical Data
