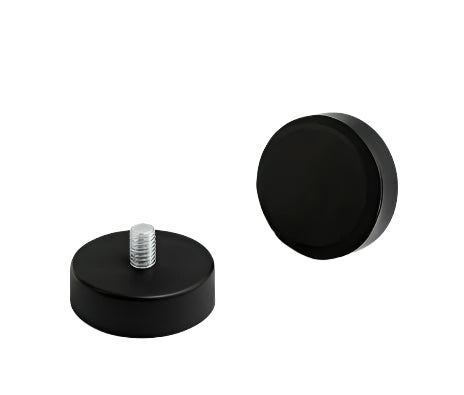

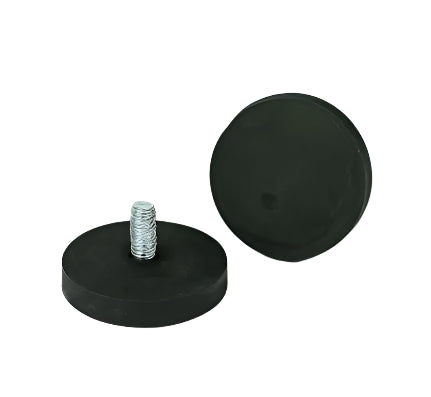

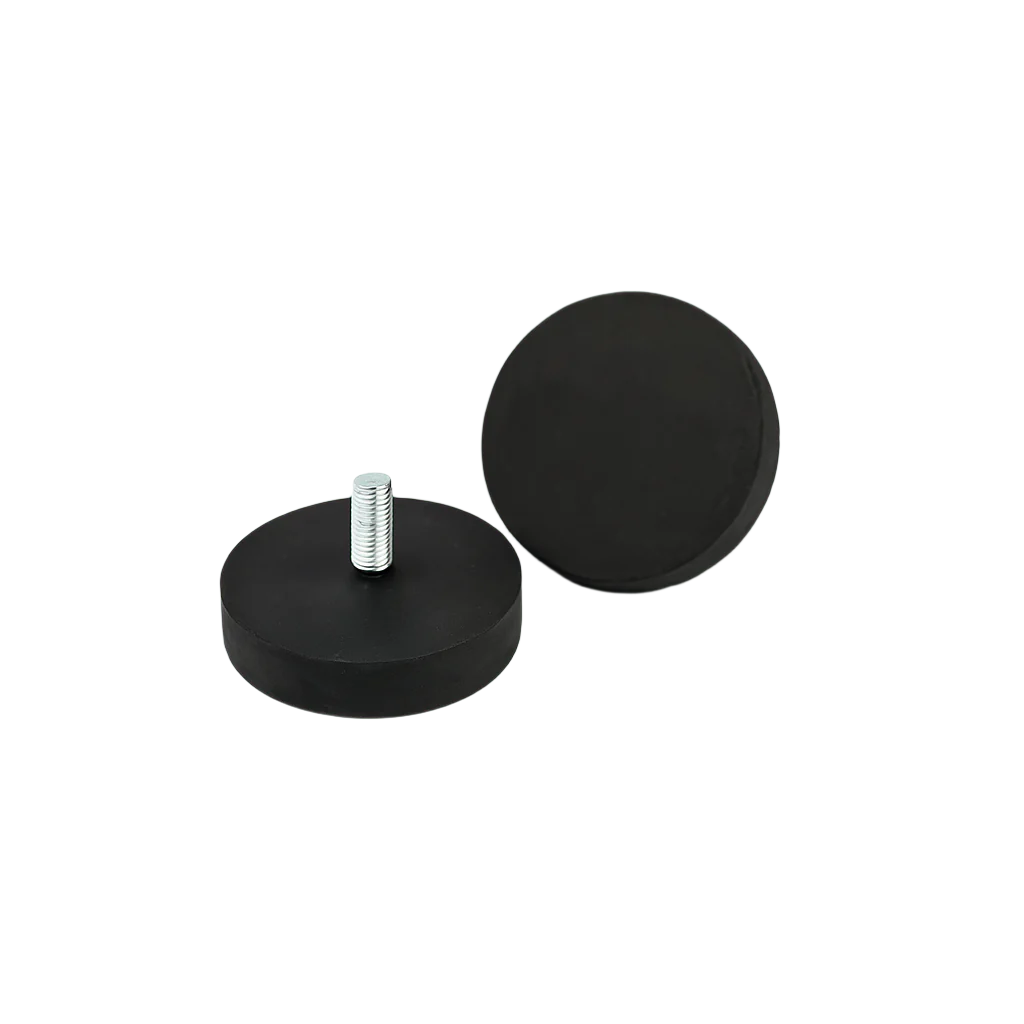

Eclipse Magnetics Rubber Covered Neodymium Pot Magnets with Internal Threaded Neck combine high magnetic strength with surface-safe performance, making them ideal for applications where surface integrity is critical. Each magnet features a powerful Neodymium (NdFeB) core encased in a Santoprene rubber coating, providing scratch-free clamping and enhanced friction resistance for secure holding on delicate or painted surfaces.
The internal threaded neck design allows for easy and secure mounting to fixtures, brackets, or assemblies, supporting both vertical and horizontal installations. The durable rubber coating not only protects sensitive surfaces such as lacquered metals but also increases slip resistance, improving reliability in shear applications.
Compact, strong, and surface-friendly, Eclipse Magnetics Rubber Covered Neodymium Pot Magnets with Internal Threaded Neck offer a high-performance solution for industrial, retail, and precision mounting setups.
Key Features
-
Santoprene rubber coating: provides scratch-free contact and enhanced friction
-
High-strength Neodymium (NdFeB) magnet: delivers superior holding force
-
Excellent shear resistance: ensures stability under side loads
-
Surface-safe design: protects painted, lacquered, or polished finishes
-
Internal threaded neck: enables quick and secure mounting
-
Maximum operating temperature: performs reliably up to 60°C
Technical Data
|
Product Number
|
Diameter (mm)
|
Thickness (mm)
|
Overall Height (mm)
|
Thread Length (mm)
|
Thread Size
|
Holding Force
|
|
E851
|
22
|
6
|
12.5
|
6.5
|
M4
|
5
|
|
E853
|
43
|
6
|
21
|
15
|
M6
|
8.5
|
|
E854
|
66
|
8.5
|
23.5
|
15
|
M8
|
18
|
|

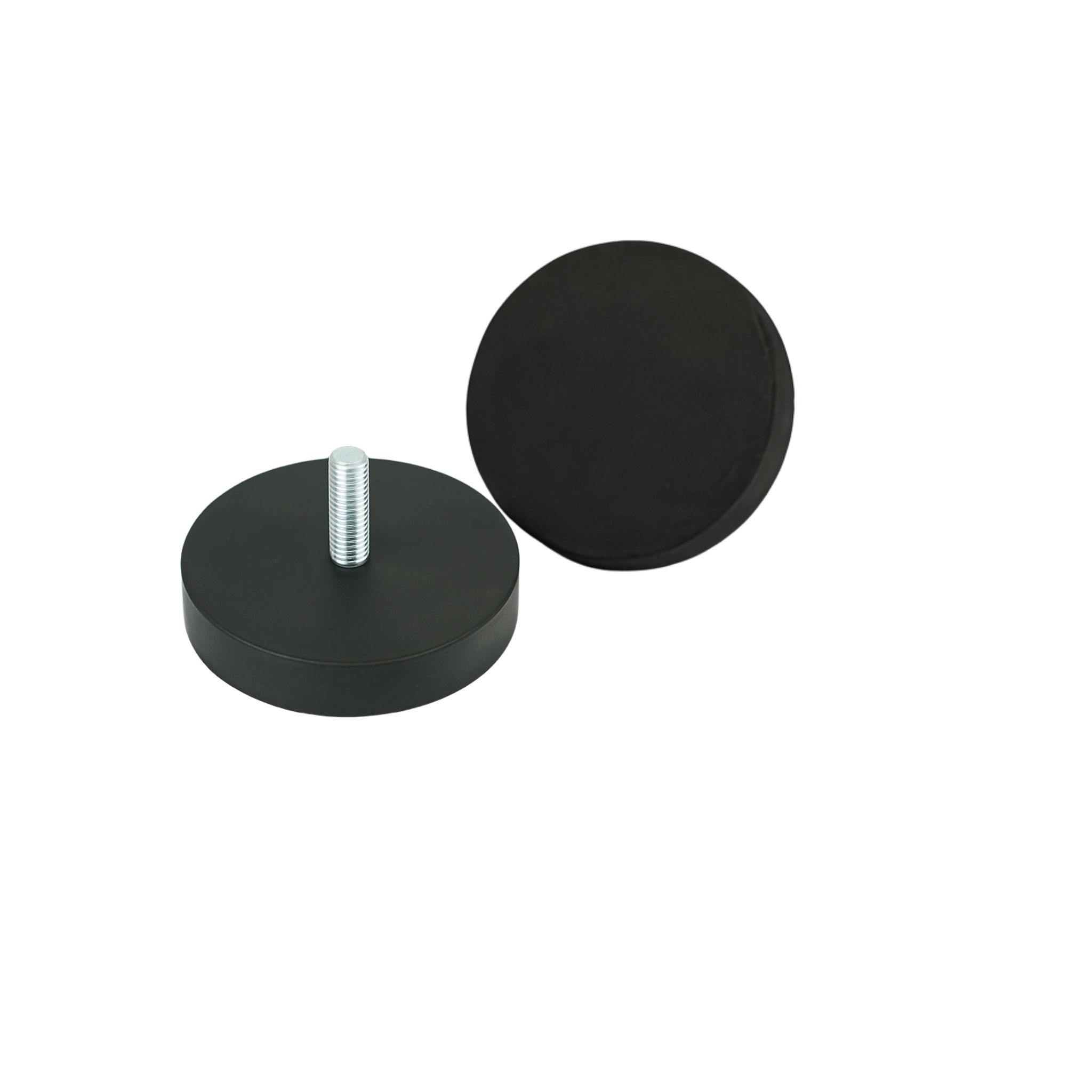

E855
|
88
|
8.5
|
23.5
|
15
|
M8
|
42
|
