Quick Holding Clamp Switchable
Quick Holding Clamp Switchable
Couldn't load pickup availability
Description
Switchable magnetic welding clamps offer a faster, more accurate way to position and secure metal components during welding or fabrication. These clamps are designed for quick setup and precise alignment on square tubing, flat, or angled stock. A key advantage is the fine adjustment feature, which allows you to achieve pinpoint accuracy before fully engaging the magnetic hold.
Unlike traditional corner or angle clamps, these magnetic versions allow for quick-release after welding, saving time and reducing repositioning hassle. They're perfect for tack welding applications and are available in two sizes to suit different project requirements.
Typical Applications

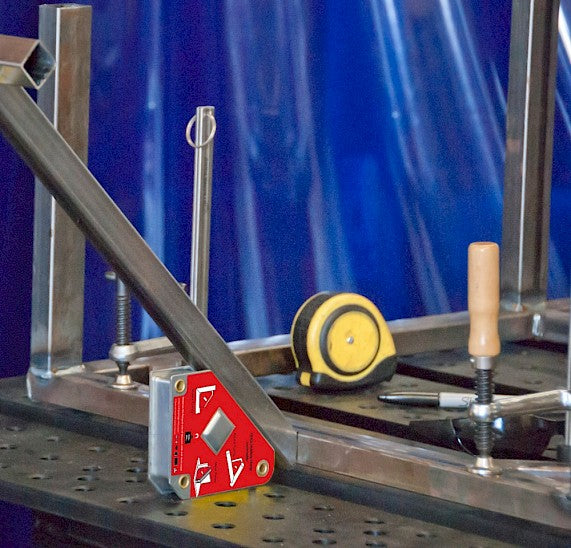

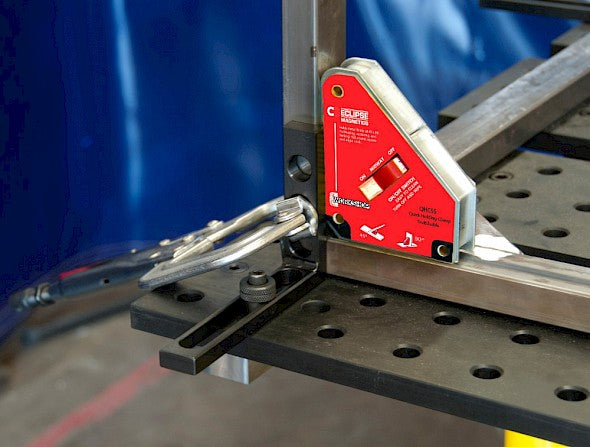

- Tack welding and fabrication setup
- Positioning flat, round, or angled steel stock
- Replacing traditional clamps for repetitive welding tasks
- Use in manufacturing, workshops, and repair settings
Key Features

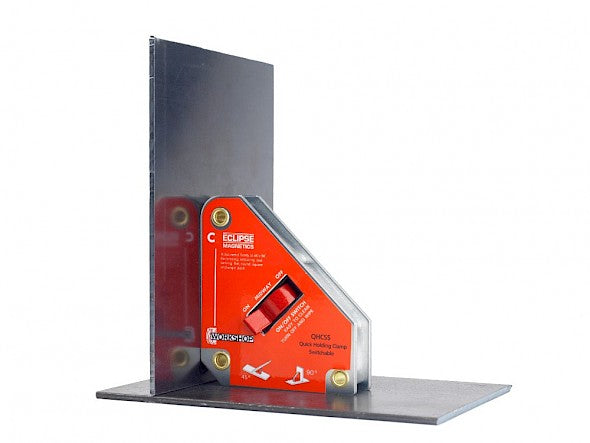

- Fast and easy way to hold steel at 45° and 90° angles
- Easy to switch on and off, with mid-point fine adjustment
- Ideal for round and square tubing, angle, and flat stock
- High pull forces provide safe, secure hold

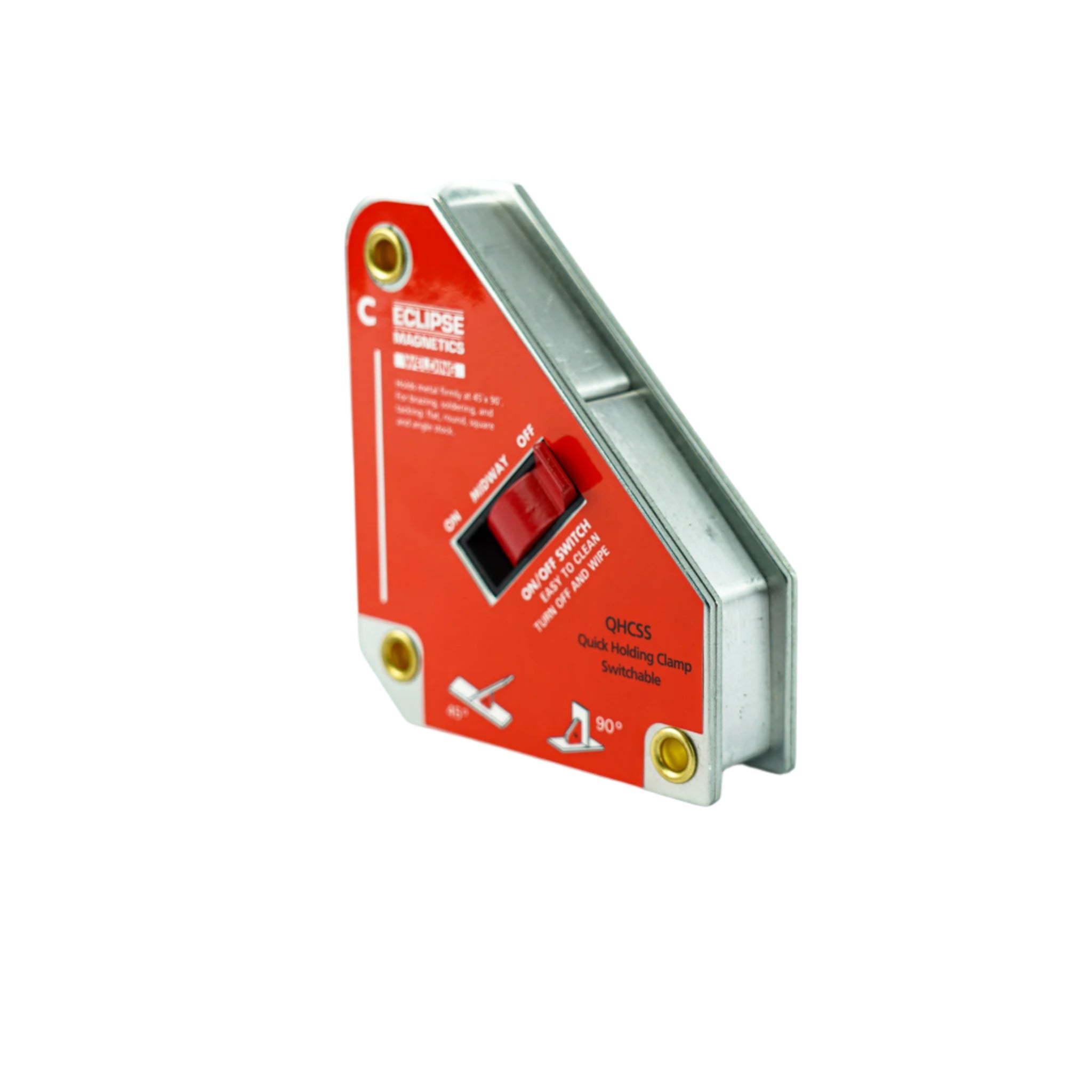

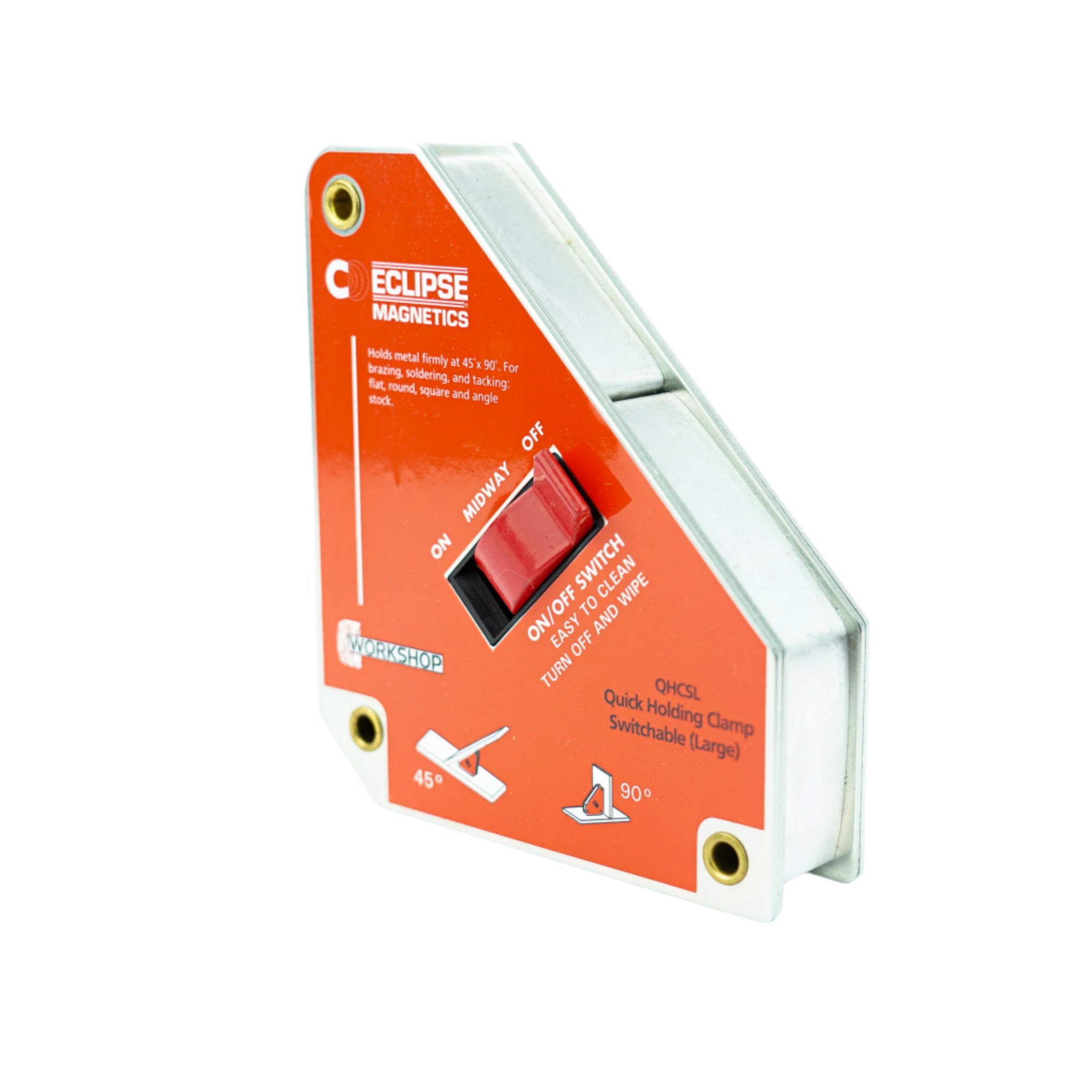

- Available in two sizes: QHCSS and QHCSL
- Quick-fit alternative to traditional angle and corner clamps
Technical Data
|
Product Number |
Angles |
Dimensions (mm) |
Weight |
Pull Force* |
|
QHCSS |
45° , 90° |
111 x 95 x 29 |
0.7 |
40 |
|
QHCSL |
45° , 90° |
152 x 130 x 35 |
1.4 |
75 |
*Magnetic force is based on the longer side of the magnet with 10mm thick steel.
Learn More
Switchable magnetic welding clamps streamline the welding process by eliminating the guesswork in part positioning. These clamps make it easier to align components with accuracy and repeatability, reducing setup time and improving weld quality. Whether you’re working with square tubes, angle iron, or flat stock, these clamps offer a reliable, easy-to-use solution for modern welding workflows.
