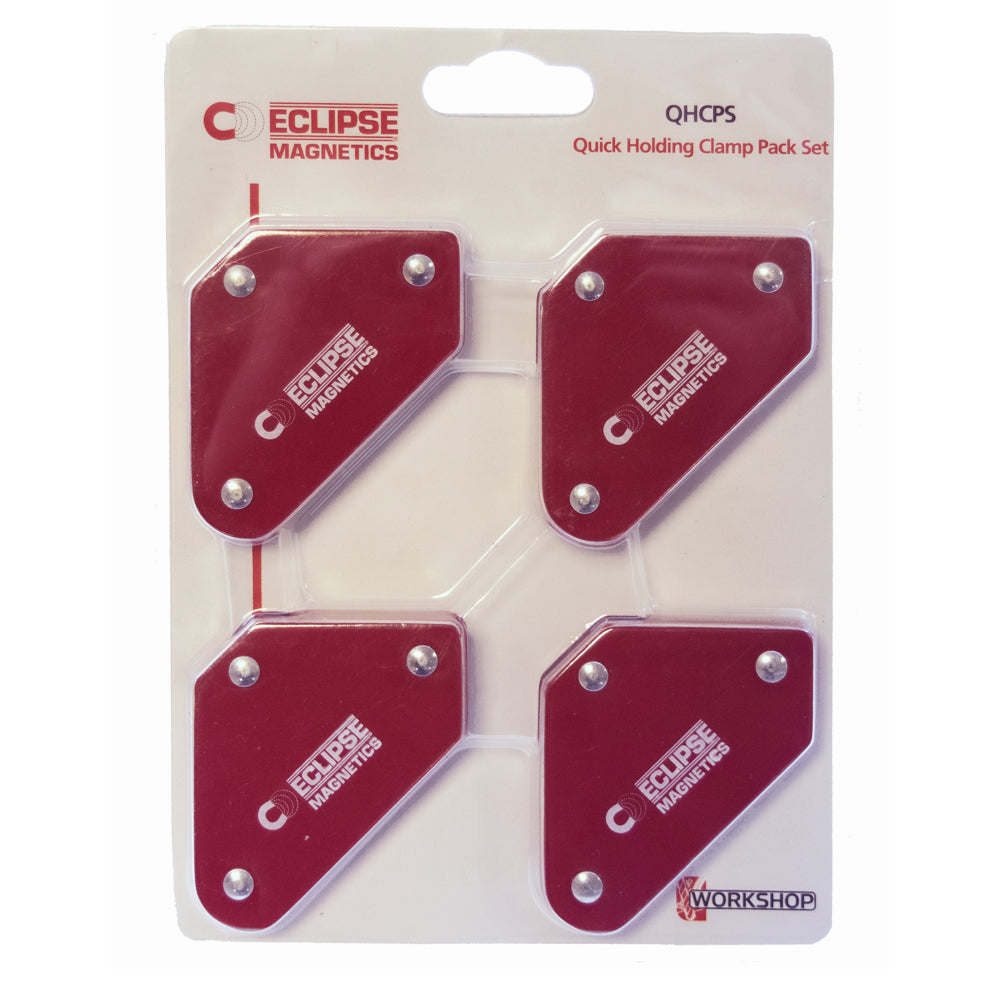

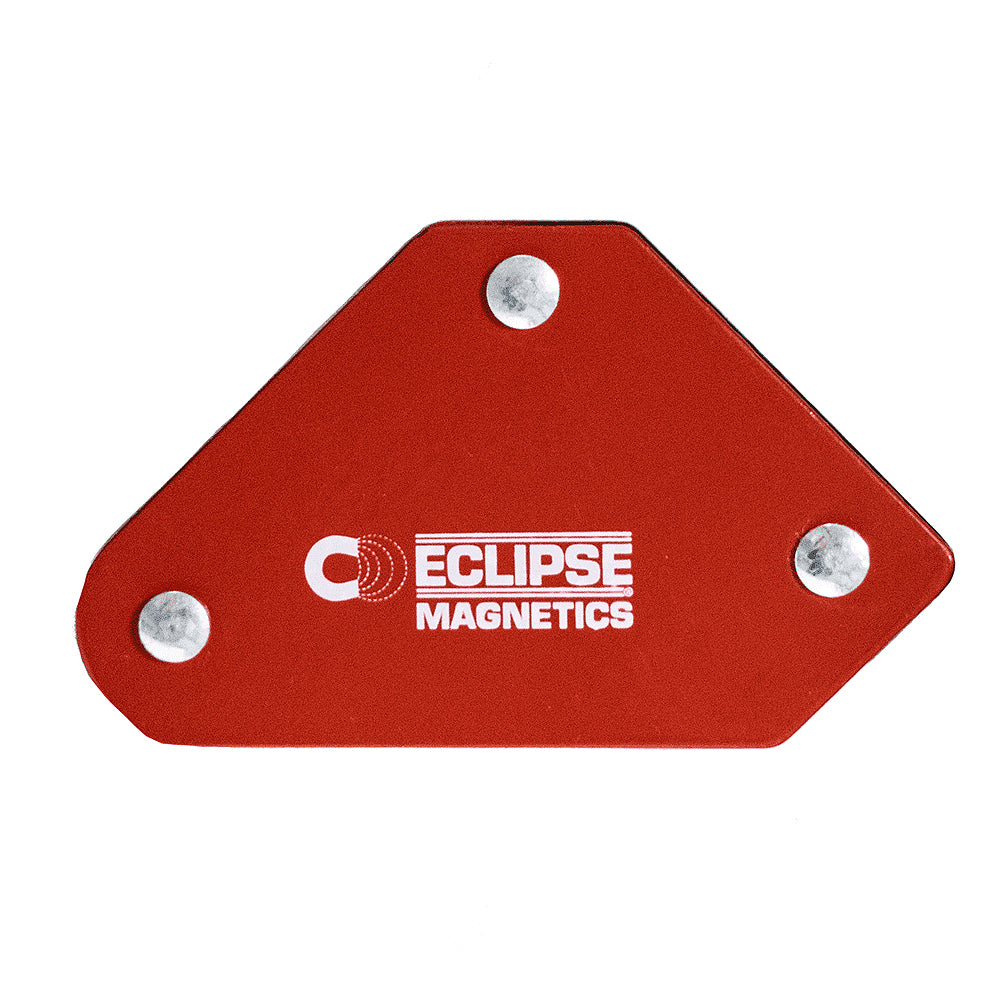

Eclipse Magnetics Quick Holding Clamps provide fast and reliable magnetic positioning of ferrous components at fixed angles for welding, fabrication, assembly and general workshop applications.
Each clamp supports five commonly used angles: 30°, 45°, 60°, 75° and 90°, making it easy to position steel sheet, tube and other ferrous workpieces during pre-weld setup and assembly.
Two models are available, offering pull forces of 10kg and 15kg. Both clamps share the same compact 100.5mm x 65.5mm format, with different body widths to suit different holding requirements.
The permanent magnetic design requires no external power and allows the clamps to be positioned quickly and reused repeatedly across fabrication, jigging and general workshop tasks.
For additional positioning solutions, explore our wider range of welding magnets.
| Product Number | Angles | Length (mm) | Height (mm) | Width (mm) | Weight (kg) | Pull Force (kg) |
|---|---|---|---|---|---|---|
| E951 | 30°, 45°, 60°, 75°, 90° | 100.5 | 65.5 | 12 | 0.3 | 10 |
| E953 | 30°, 45°, 60°, 75°, 90° | 100.5 | 65.5 | 20 | 0.4 | 15 |
