Eclipse Magnetics

Neodymium Shallow Pot Magnets

Sale Sold out
Regular price £1.26 GBP
Regular price Sale price £1.26 GBP
Shipping calculated at checkout.
Size

Description

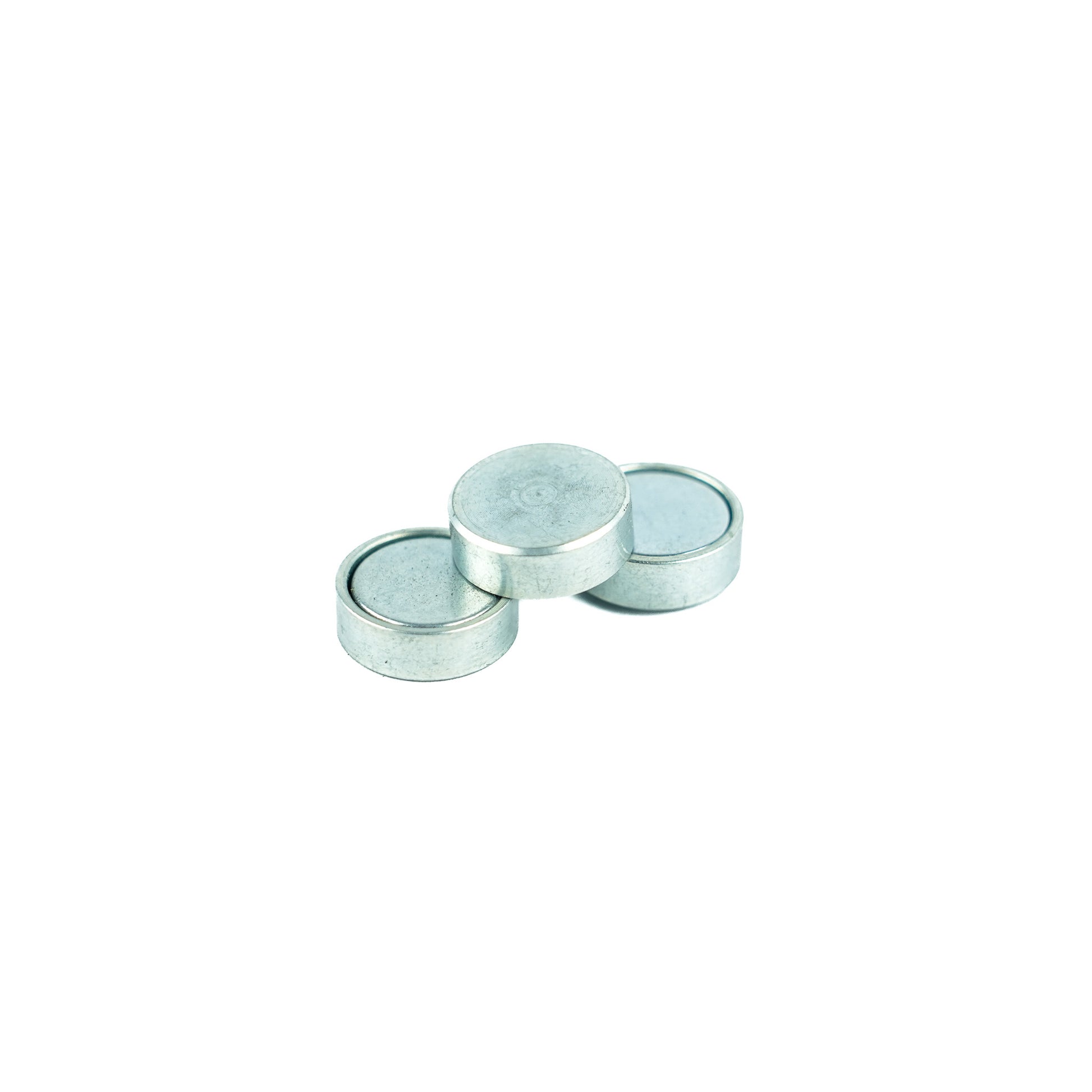

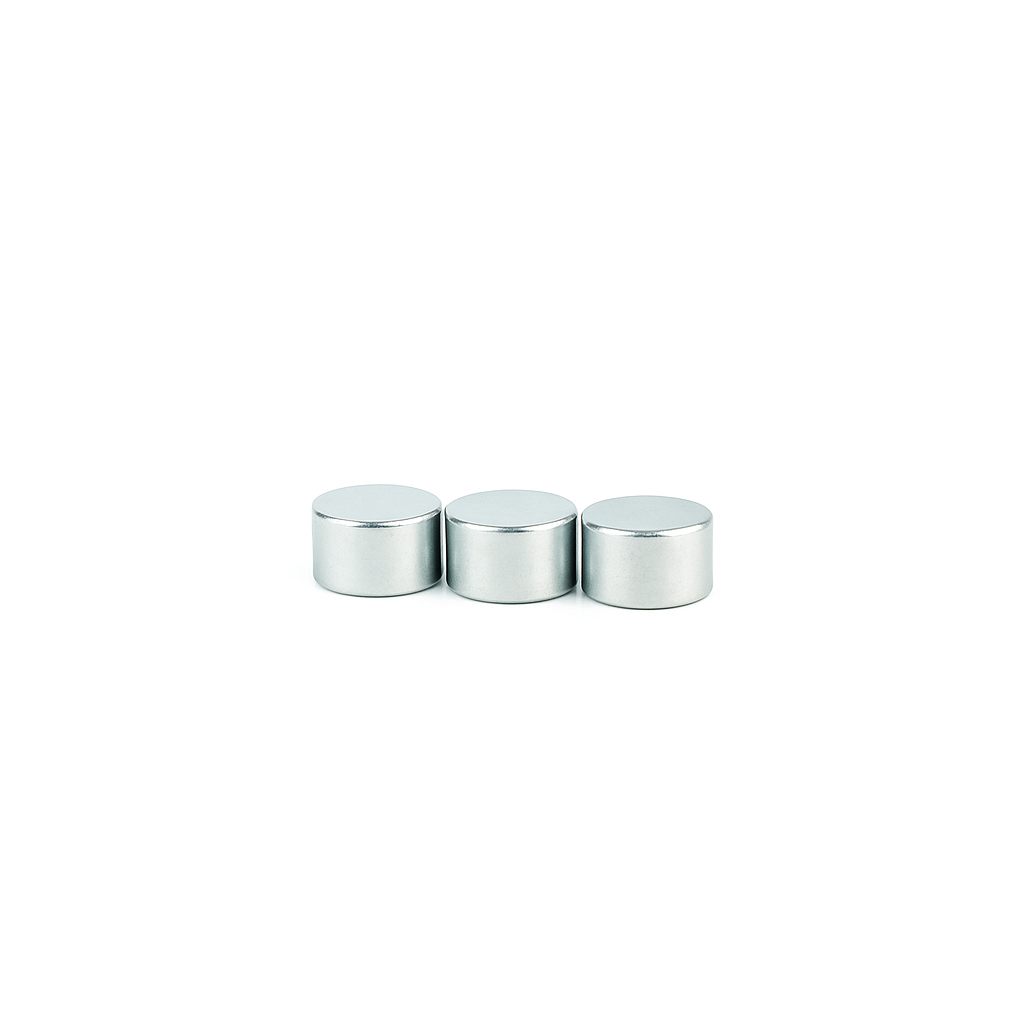

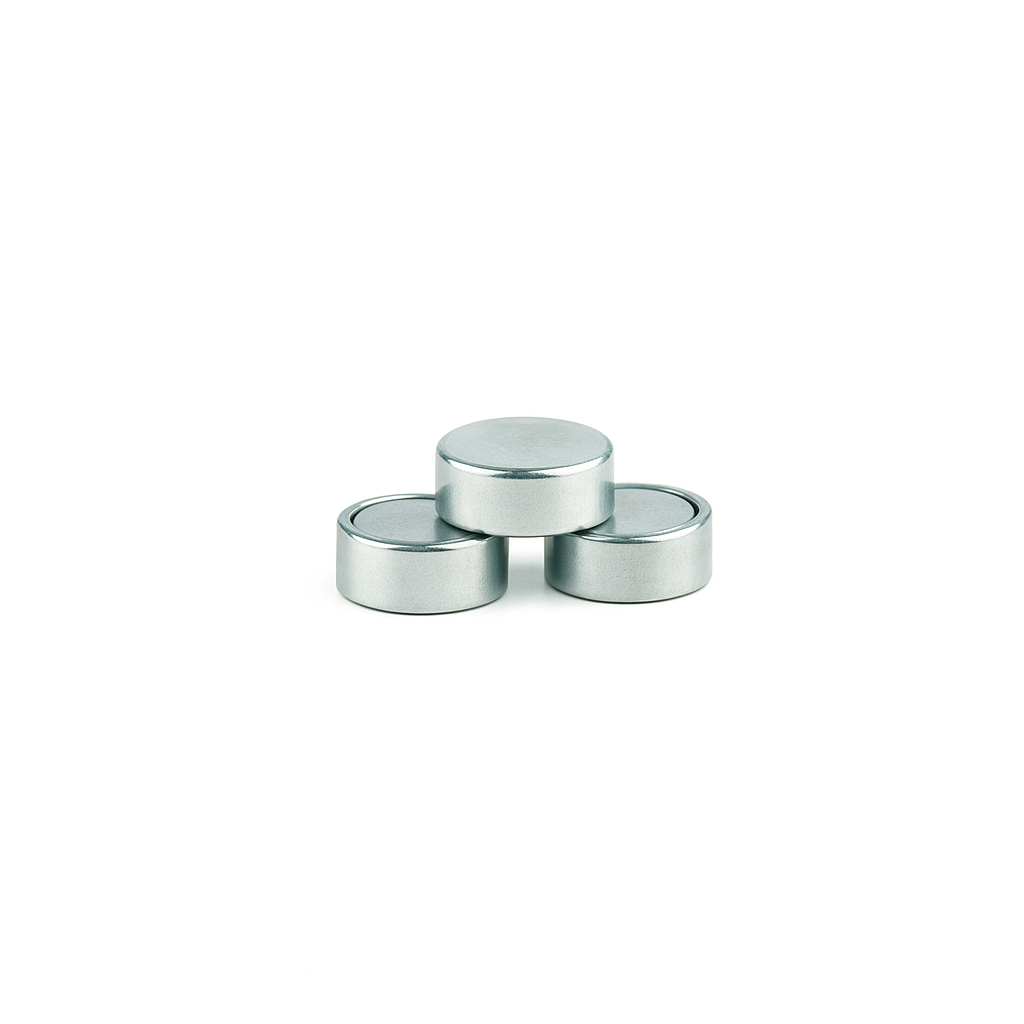

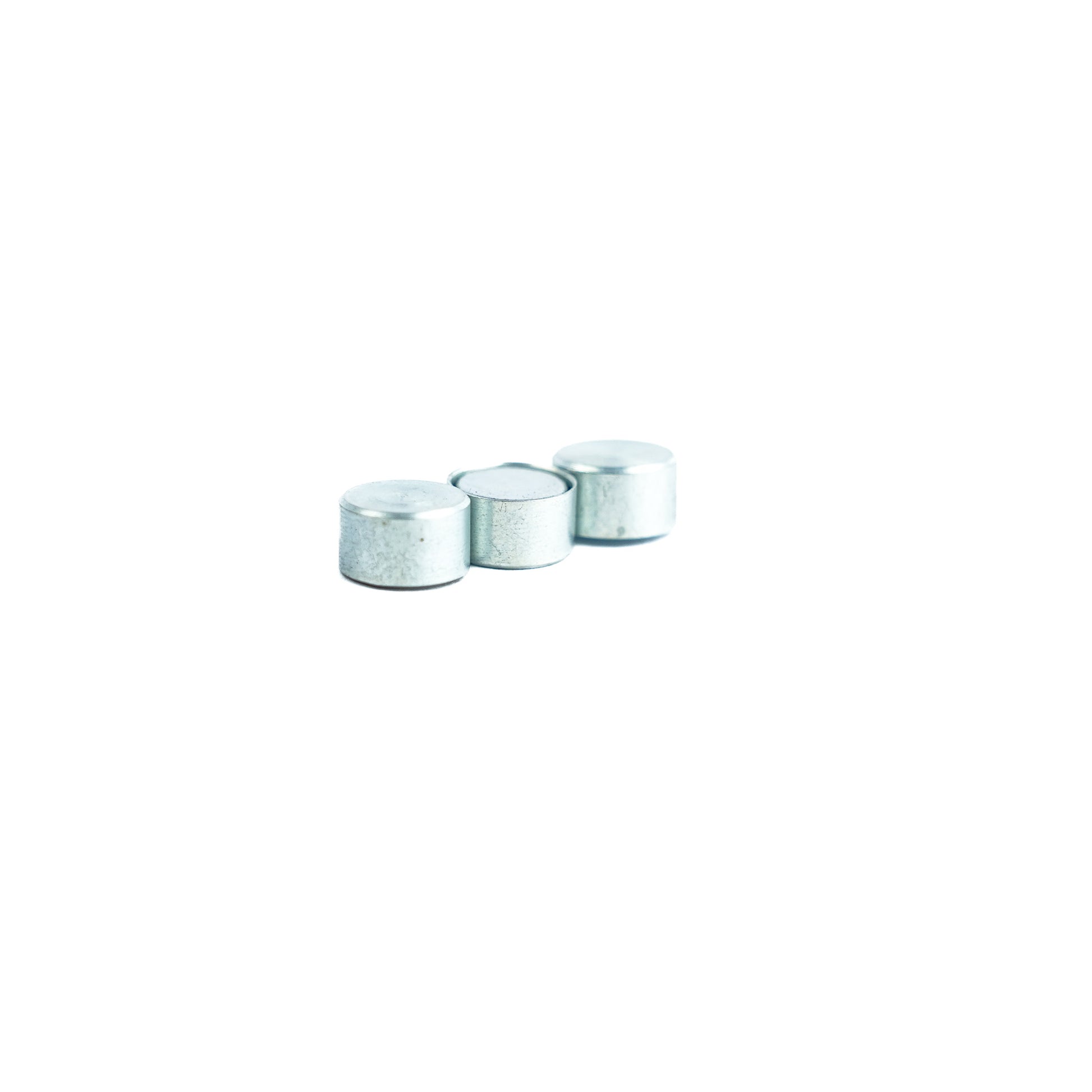

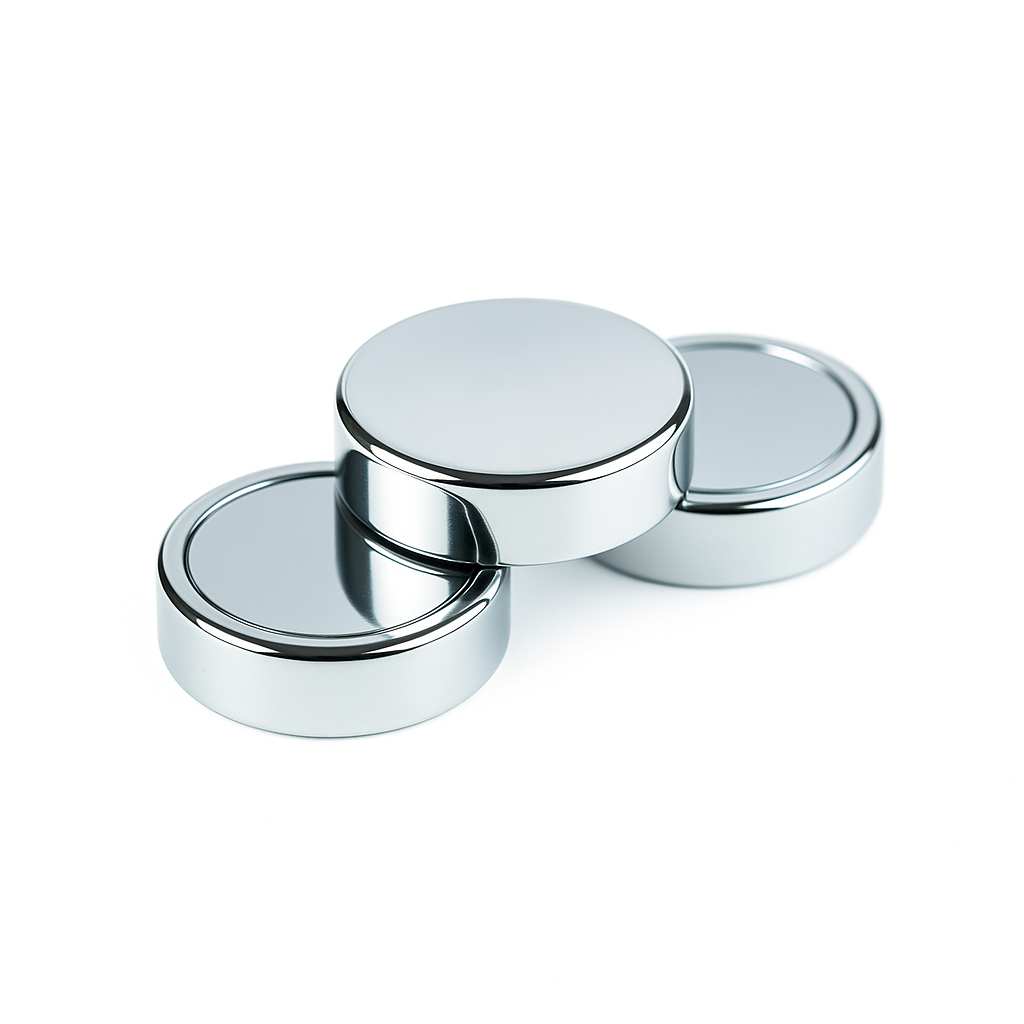

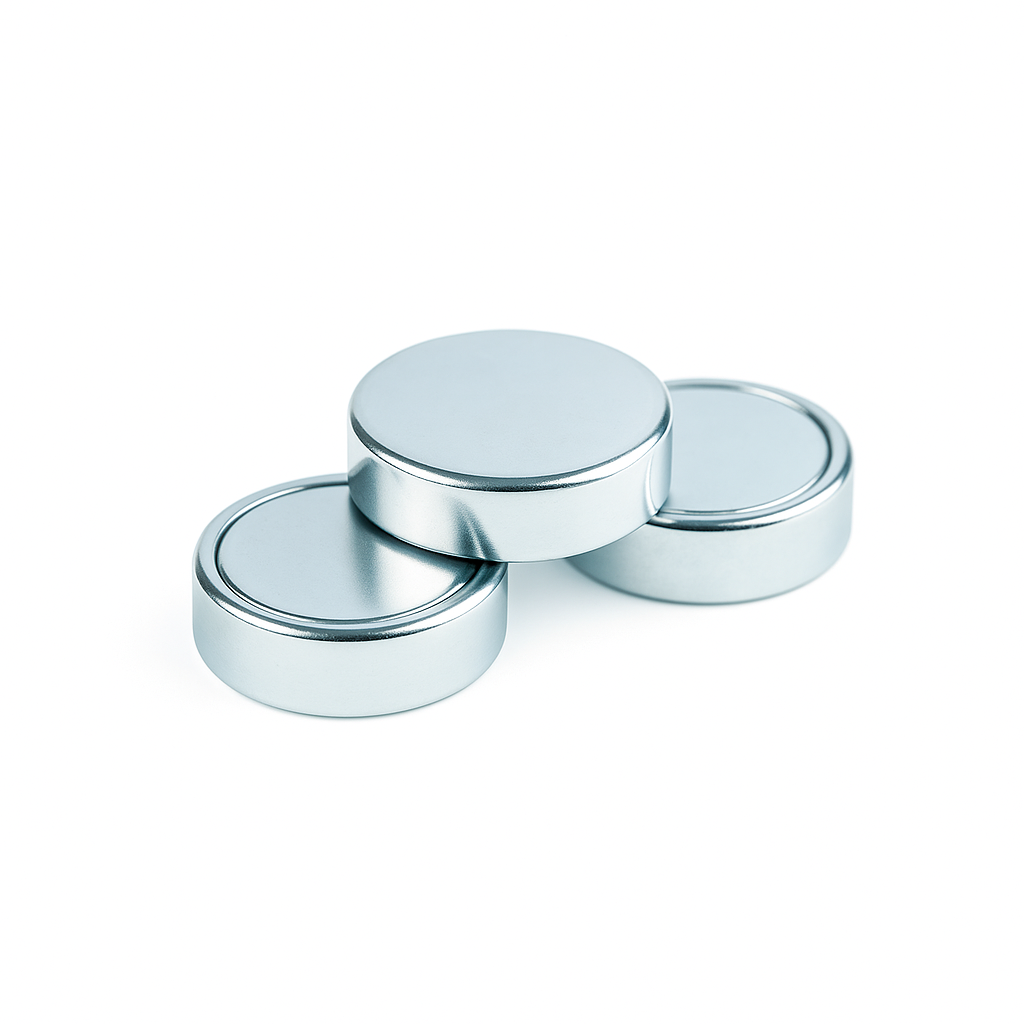

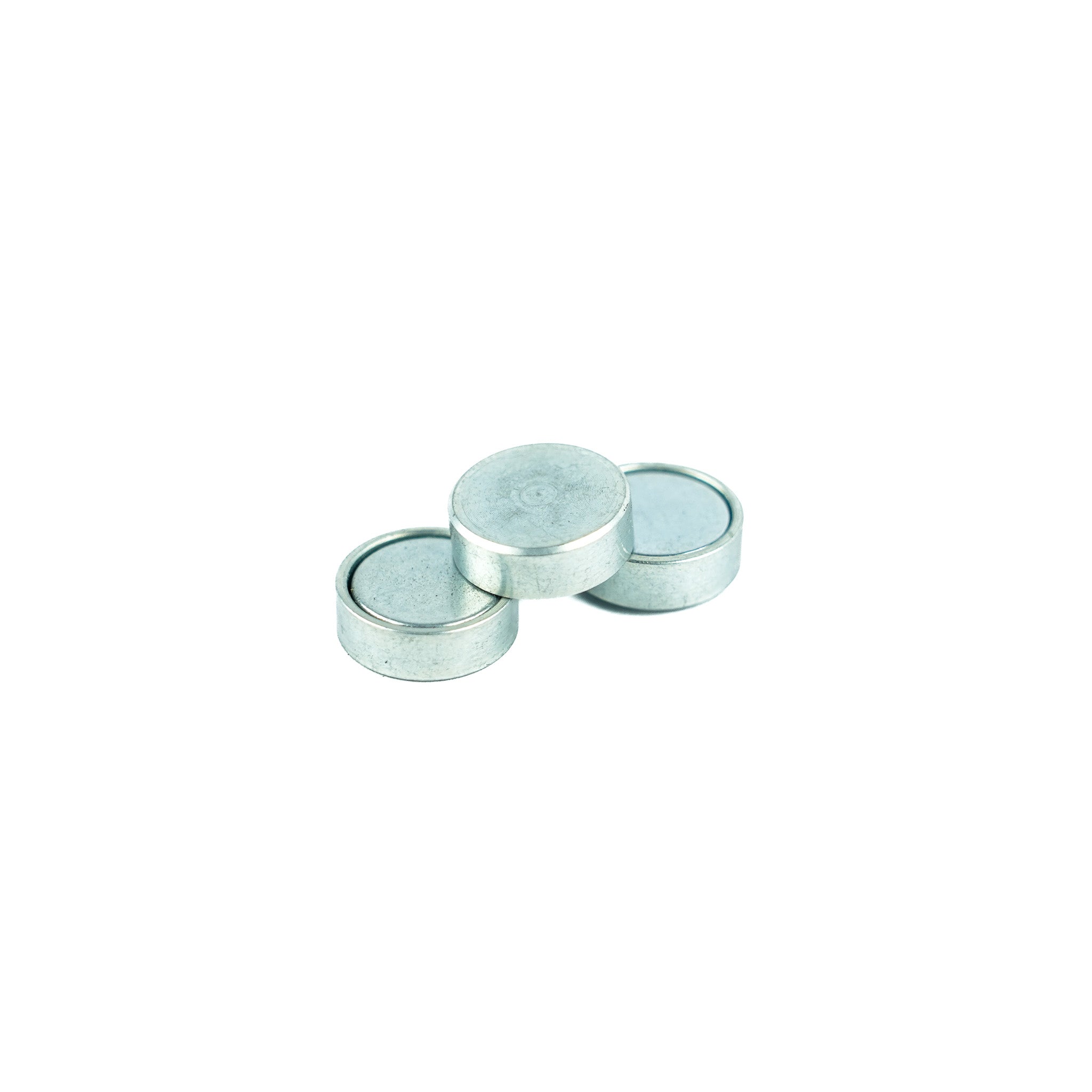

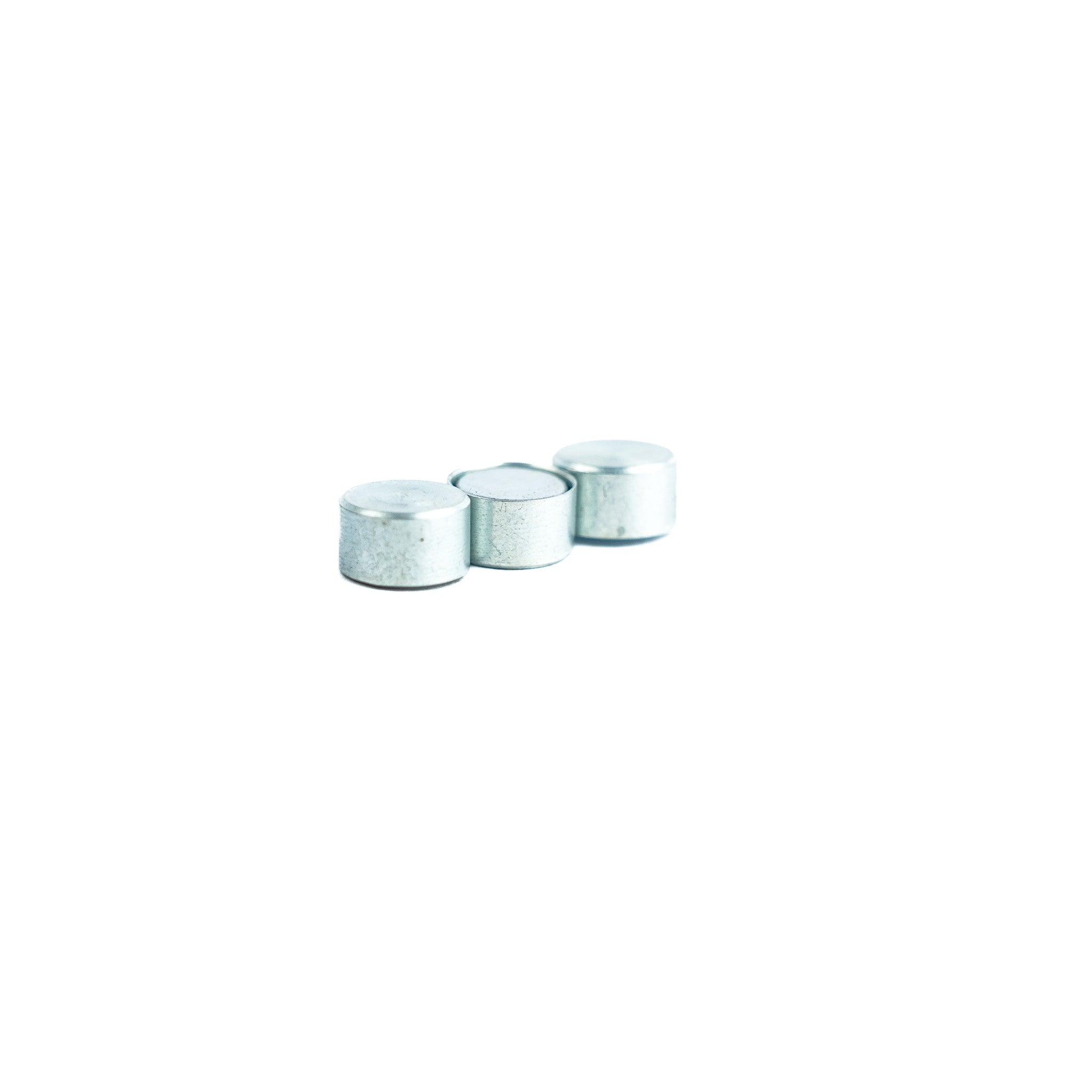

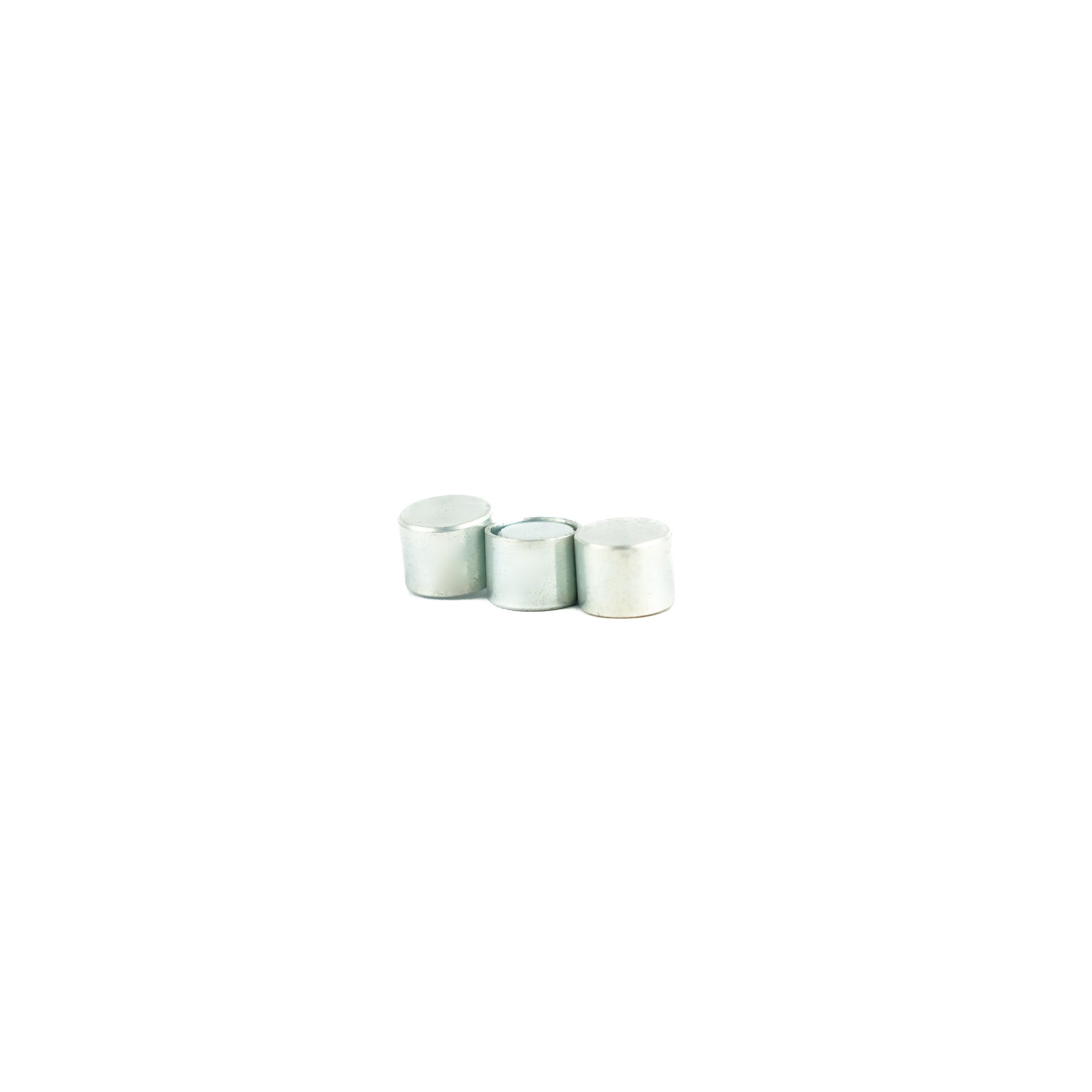

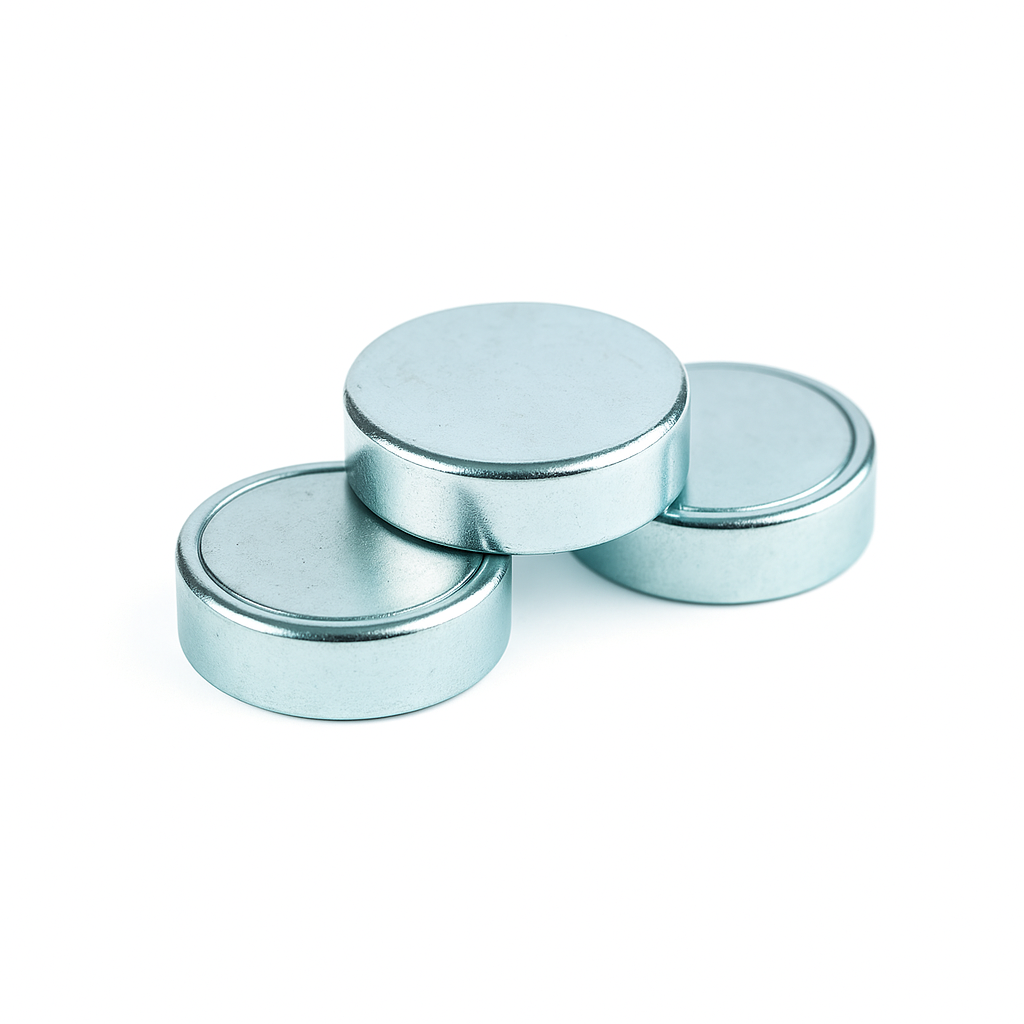

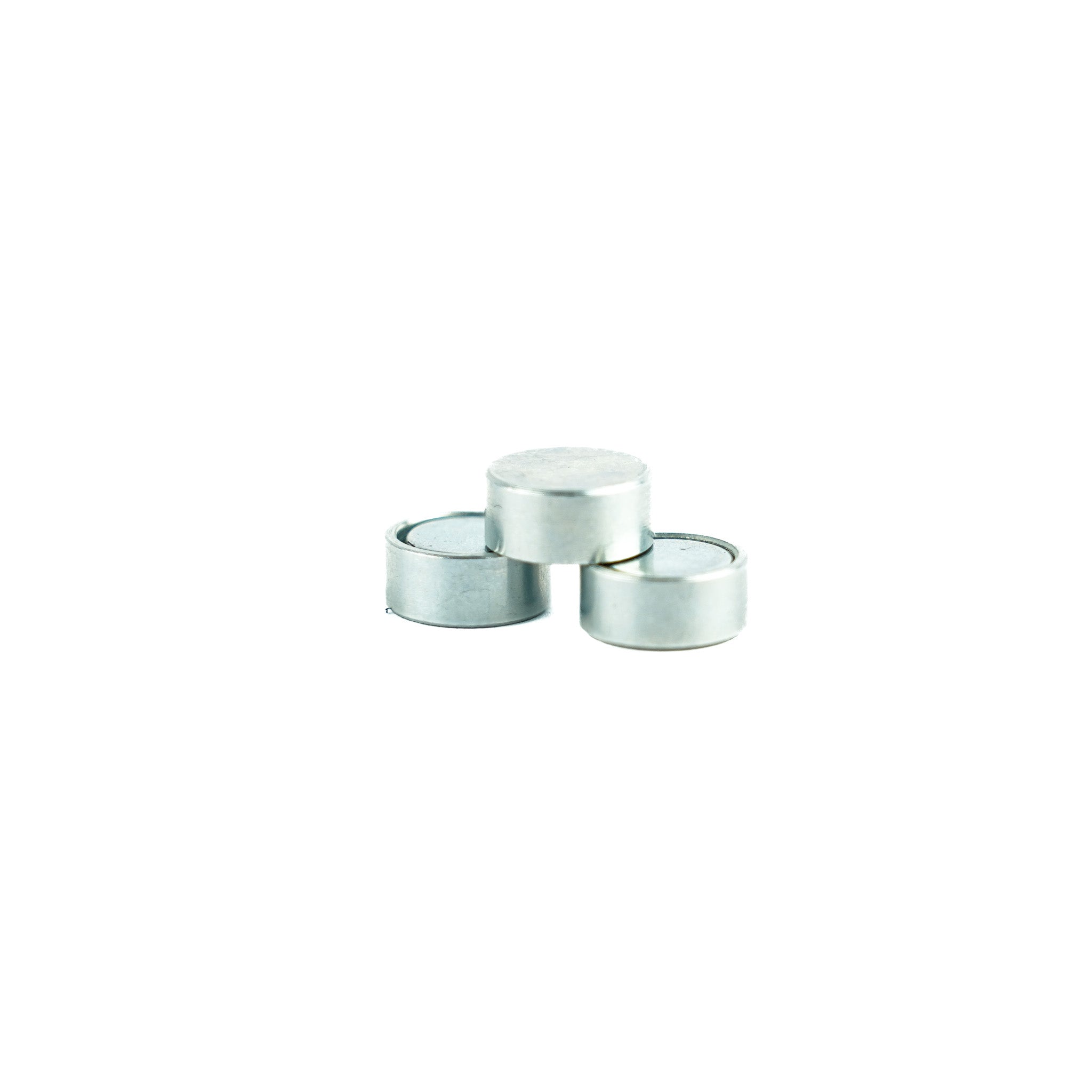

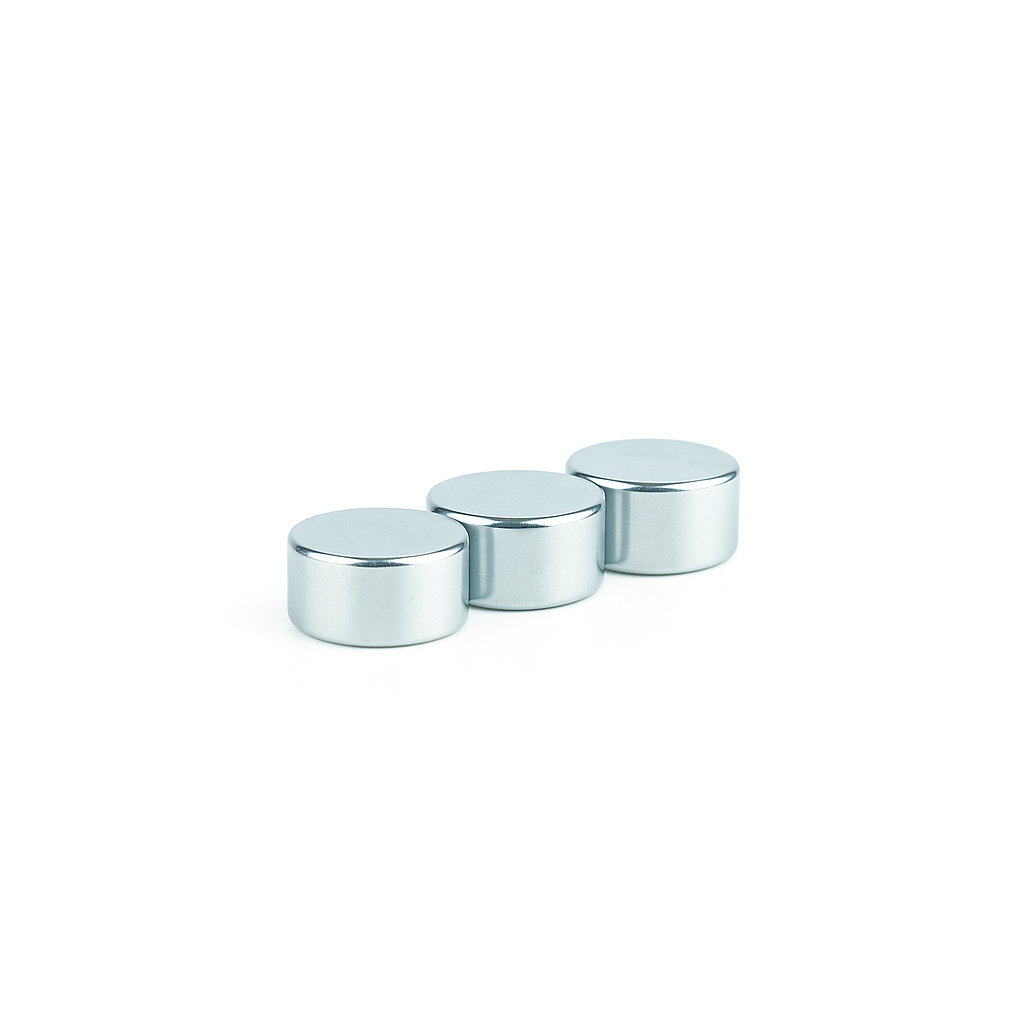

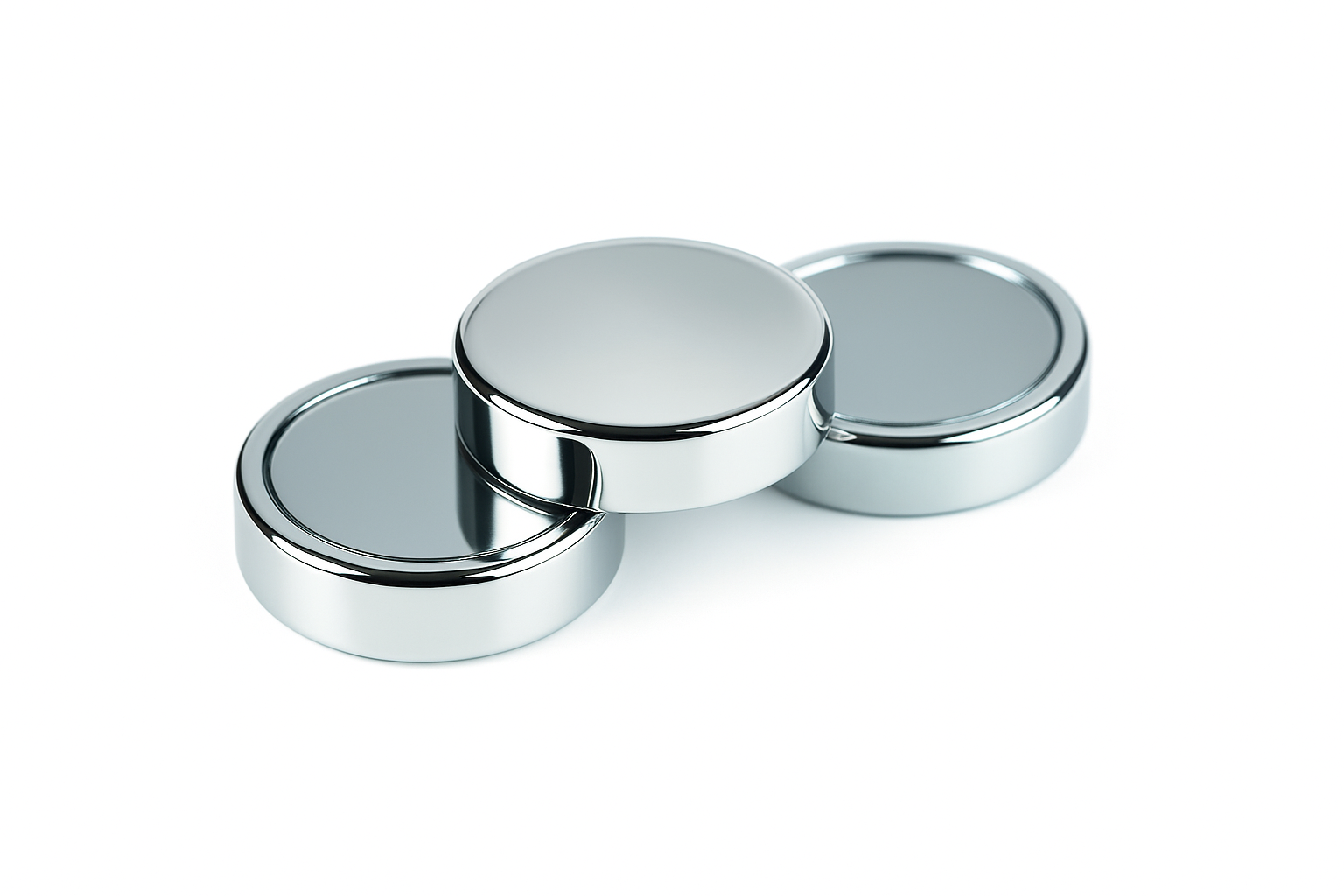

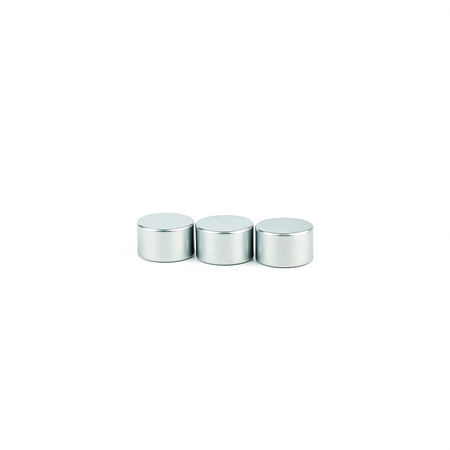

These blind ended Neodymium (NdFeB) shallow pot magnets consist of a high-performance neodymium disc magnet encased in a mild steel shell. With no fixing holes or threads, they are designed for press-fit installation in applications where a clean, concealed fit is required. The zinc-plated body enhances corrosion resistance, and the compact design offers strong holding force in height-restricted or embedded applications.

Bulk order discounts available - enquire here

Typical Application

• Press-fit assemblies
• Concealed magnetic clamping
• Flush-mounted fixtures
• Embedded components
• Permanent holding applications
• Compact mechanical assemblies


Key Features

• High-strength N35 grade nickel coated magnet core
• Blind-ended design with no holes or threads
• Zinc-plated mild steel casing for corrosion resistance
• Compact, low-profile construction
• Designed for press-fit installation
• 80°C maximum operating temperature
• Available in various diameters and pull forces

Technical Data

Part Number

Diameter (mm)

Thickness (mm)

Pull Force (kg)

Weight (kg)

E760NEO

6

4.5

0.5

0.001

E761NEO

8

4.5

1.3

0.002

E762NEO

10

4.5

2.5

0.004

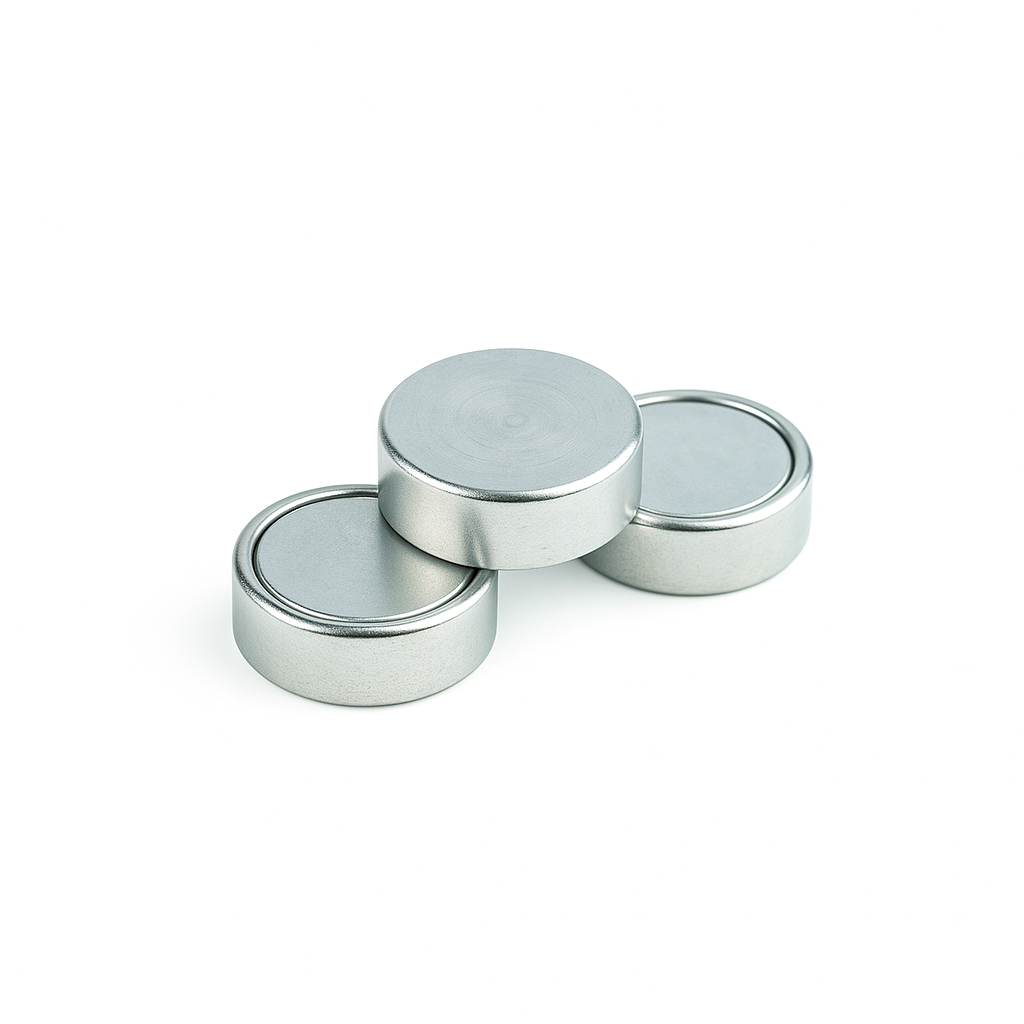

E763NEO

13

4.5

6

0.006

E764NEO

16

4.5

9.5

0.009

E765NEO

20

6

14

0.0019

E766NEO

25

7

20

0.0035

E767NEO

32

7

35

0.0056



Learn more about Neodymium Shallow Pots

Blind ended Neodymium (NdFeB) shallow pot magnets are compact magnetic assemblies designed for press-fit installation into applications where mechanical fixings are impractical. They consist of a high-strength neodymium disc magnet encased in a zinc-plated mild steel shell, providing both durability and corrosion resistance. The blind-ended design, lacking holes or threads, ensures a clean, concealed fit, making these magnets ideal for applications requiring a strong hold in a compact form factor, especially where the magnet is intended to remain in place without frequent removal.
