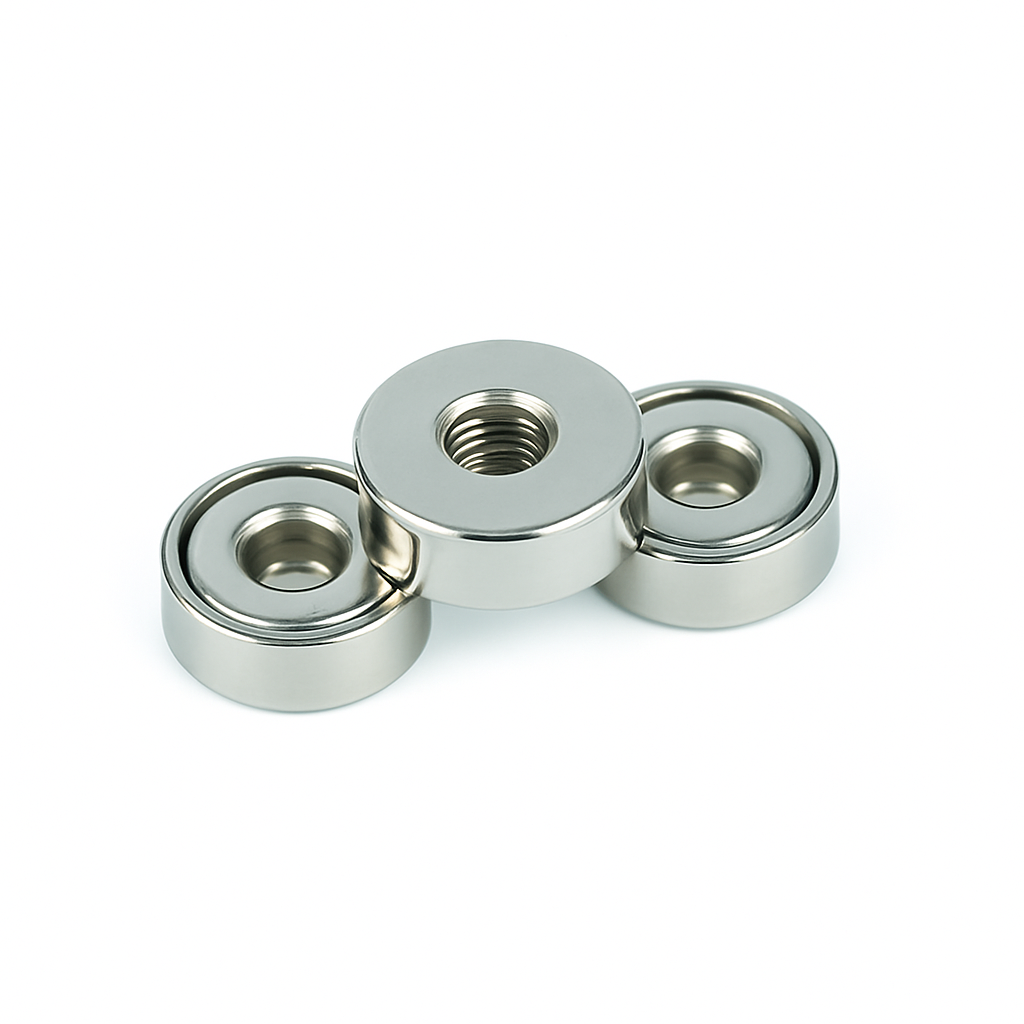

Neodymium Shallow Pot Magnets with Internal Thread | 10mm–40mm | Up to 39kg Pull Force

Eclipse Magnetics Neodymium Shallow Pot Magnets with Internal Thread provide a compact magnetic holding solution for applications where a secure threaded connection is required.

Each magnet uses a high-strength Neodymium (NdFeB) core housed within a zinc-plated steel body, helping concentrate the magnetic field at the working face while providing additional protection around the magnet.

The internal threaded mounting hole allows connection to suitable male-threaded components, accessories and fixtures, making the range suitable for integration into jigs, tools, lighting systems, display fittings and other magnetic assemblies.

Seven sizes are available from 10mm to 40mm diameter, with M3, M4, M5 and M6 thread options and pull forces ranging from 1kg to 39kg depending on the model.

The shallow pot format is well suited to recessed, flush and space-limited installations, with a maximum operating temperature of 80°C.

Key Features

• Neodymium shallow pot magnet with internal thread
• Zinc-plated steel casing
• Internal threaded mount for secure connection to male-threaded components

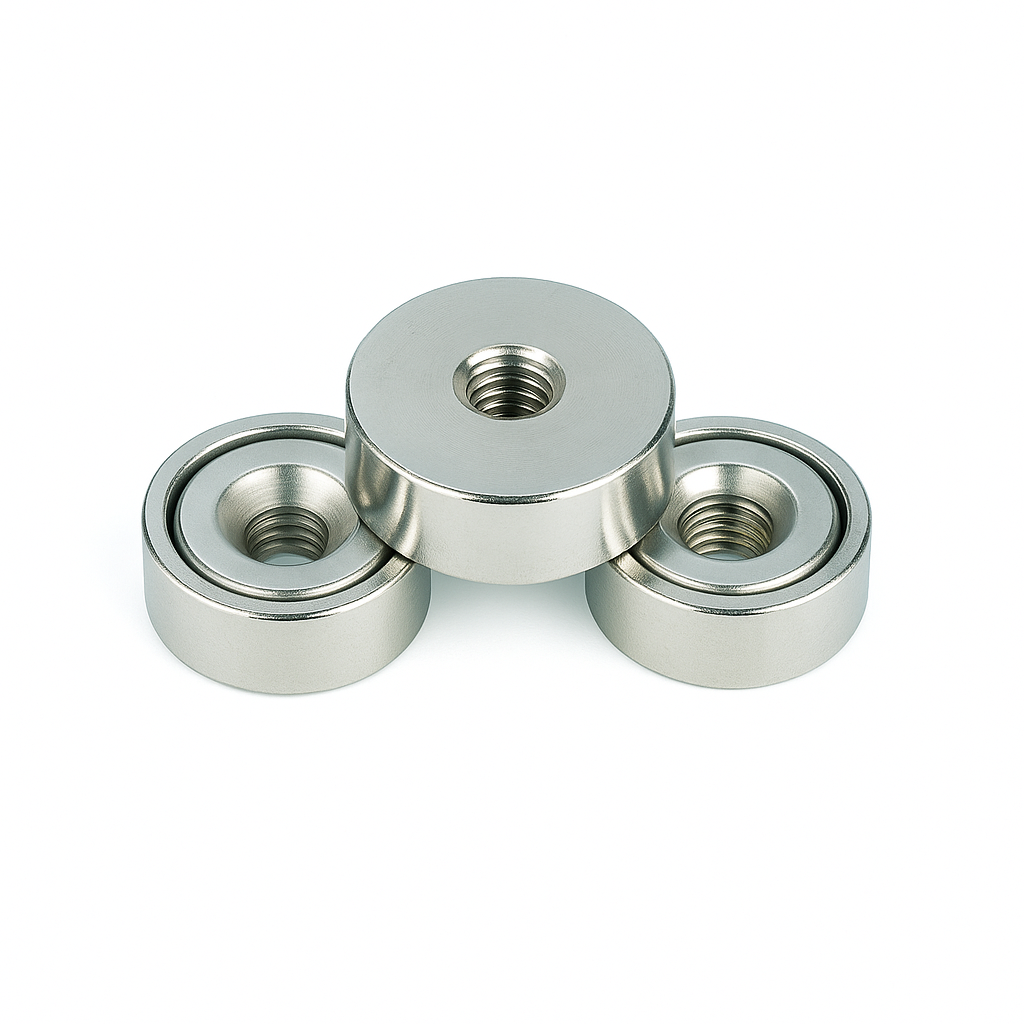

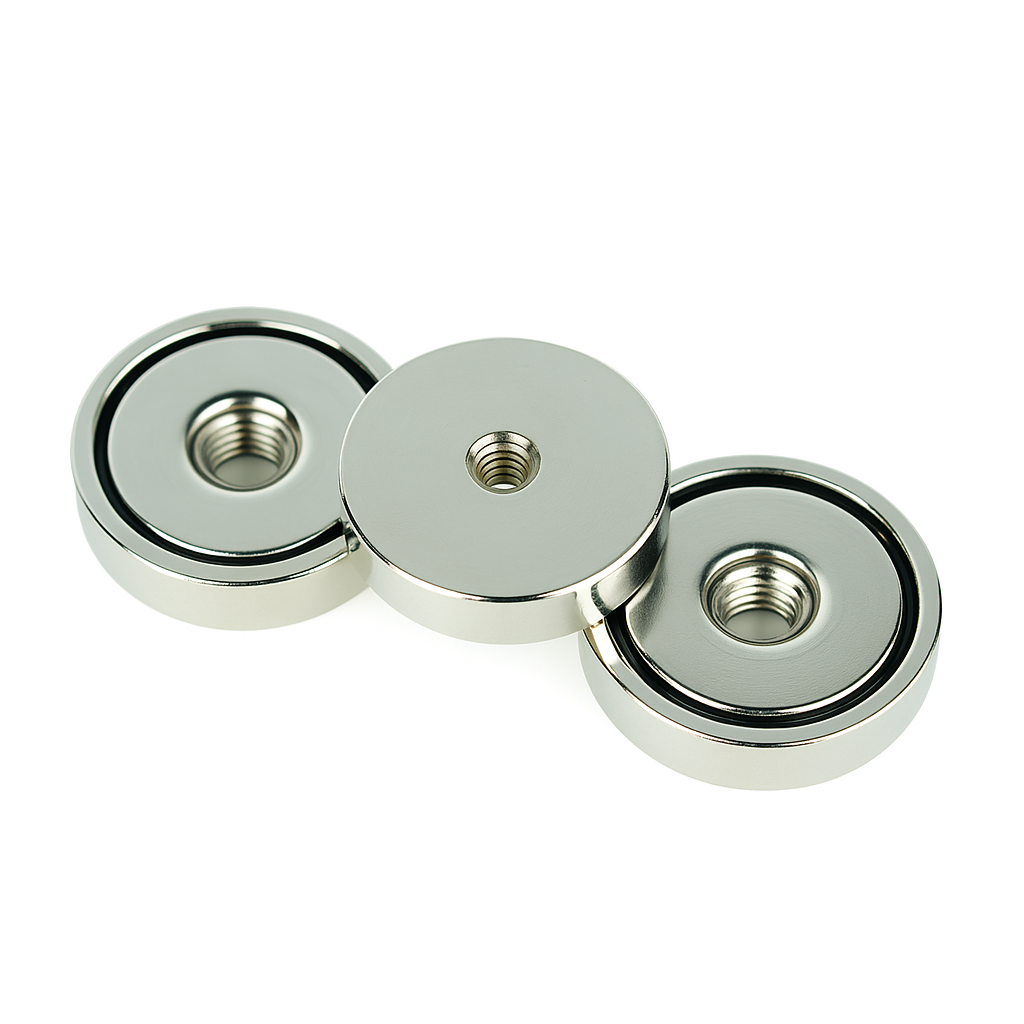

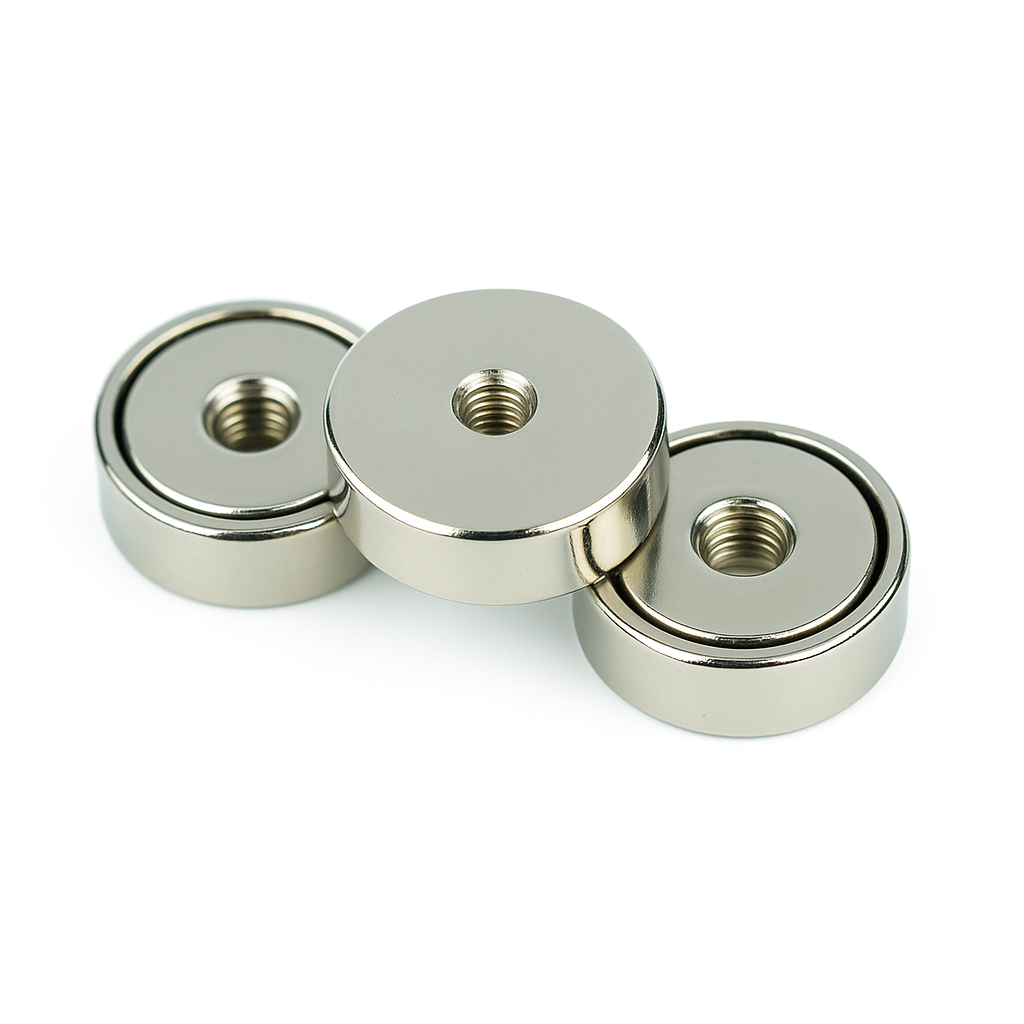

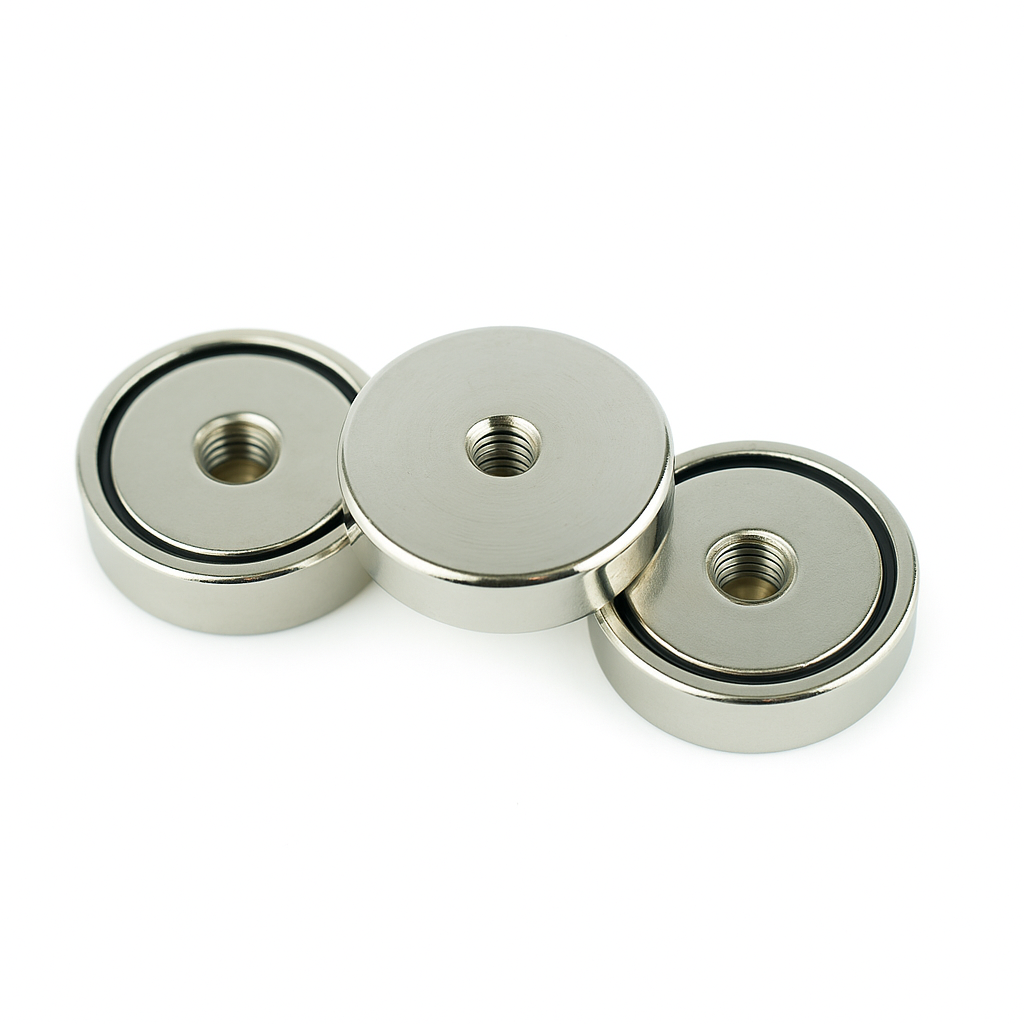

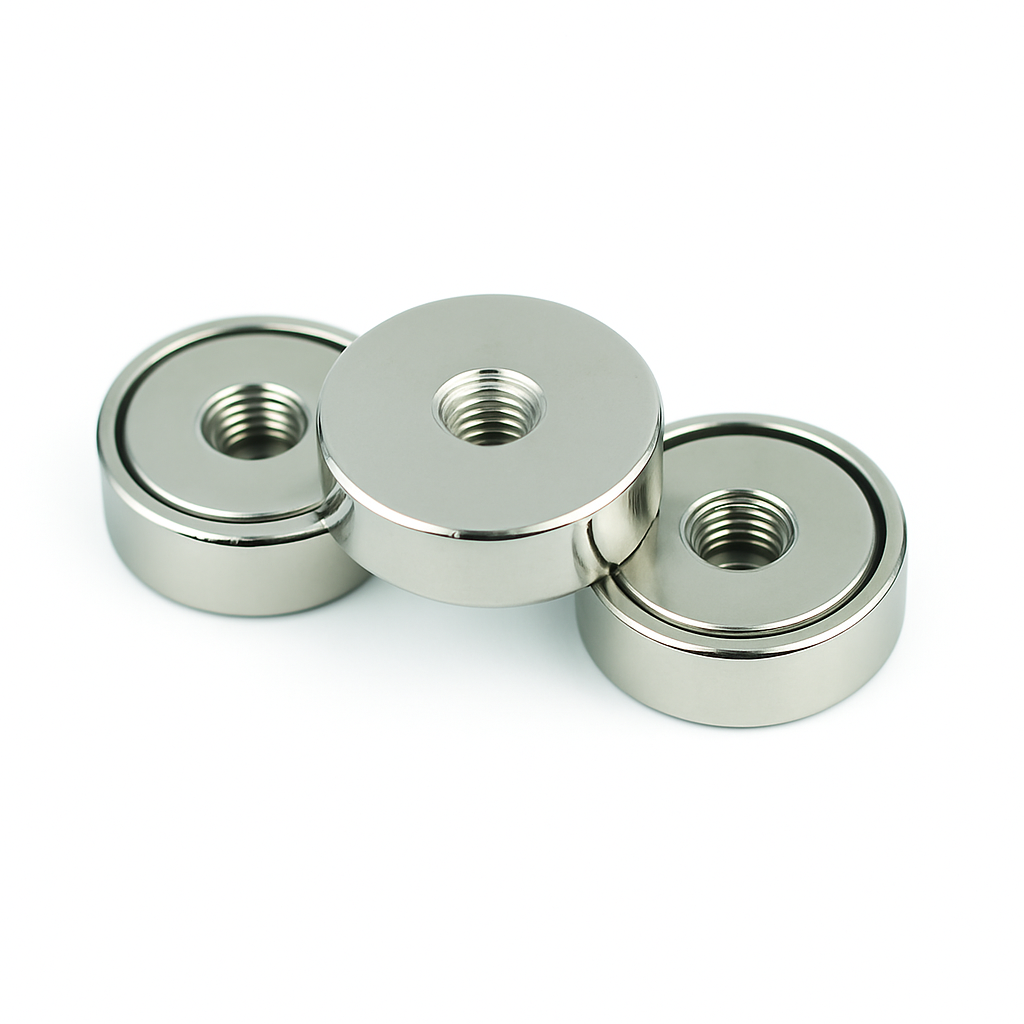

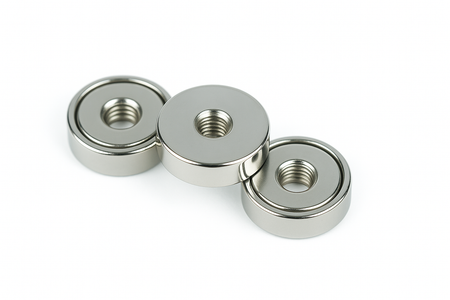

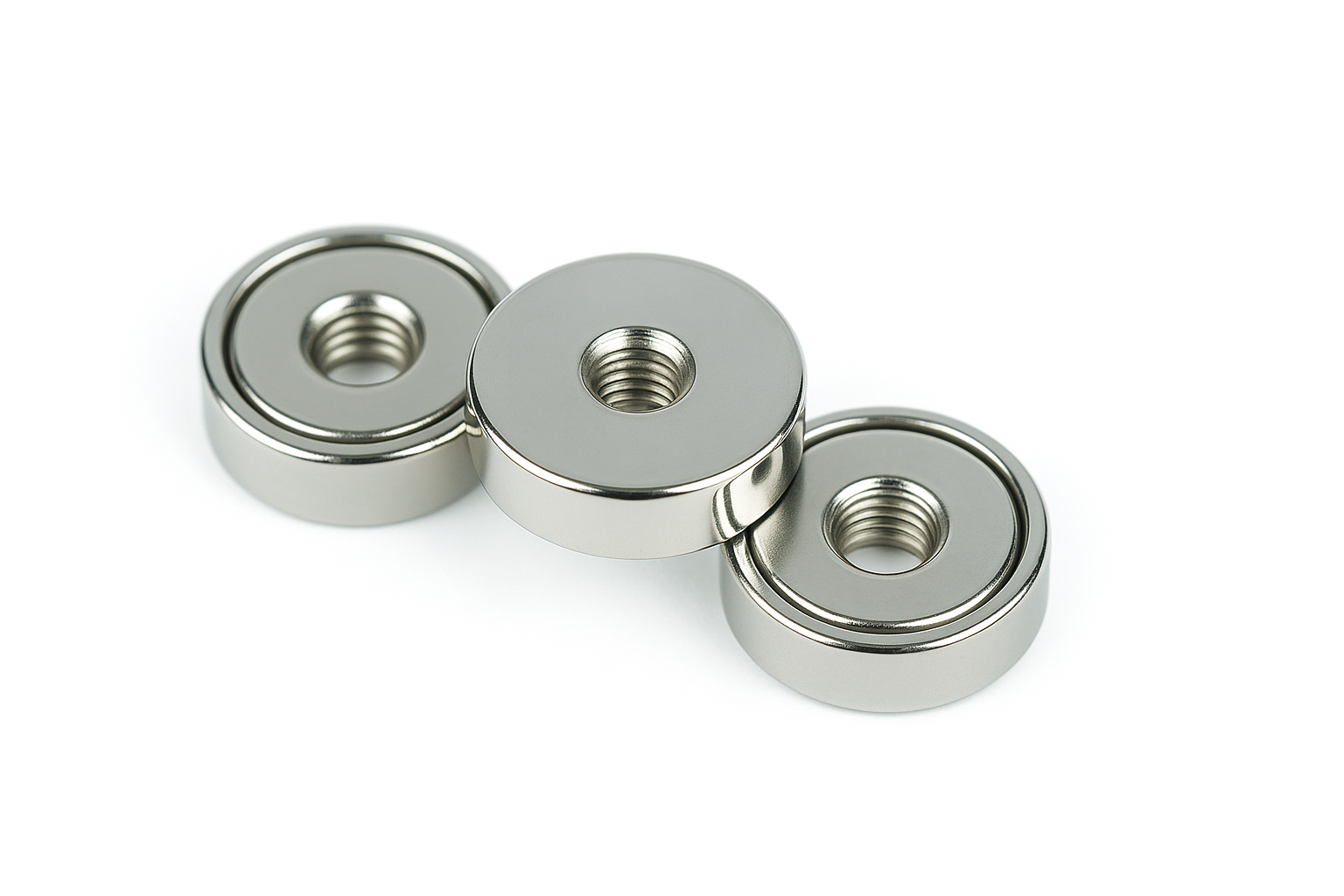

• Available in 10mm, 13mm, 16mm, 20mm, 25mm, 32mm and 40mm diameters
• M3, M4, M5 and M6 thread options depending on model
• Pull forces from 1kg to 39kg
• Suitable for jigs, tools, lighting systems, displays and custom assemblies
• Maximum operating temperature of 80°C

Technical Data
