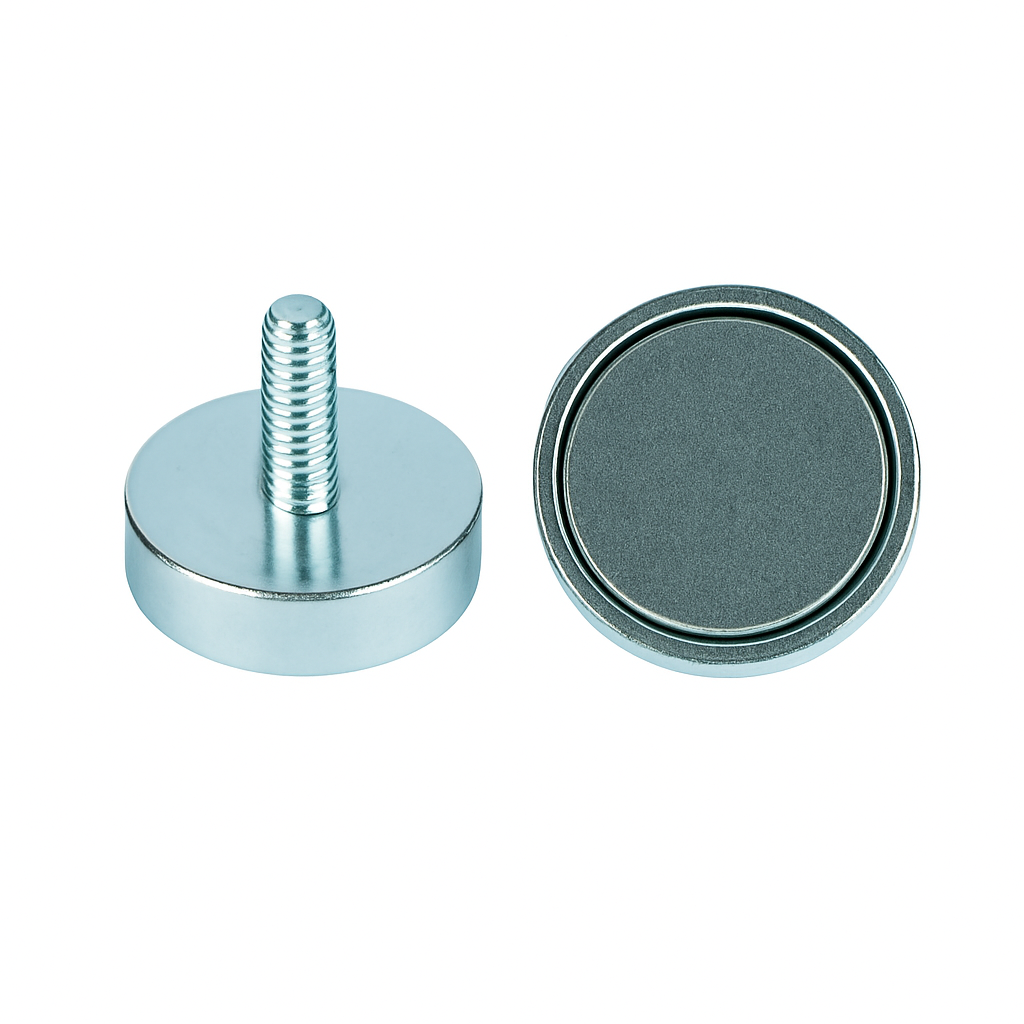

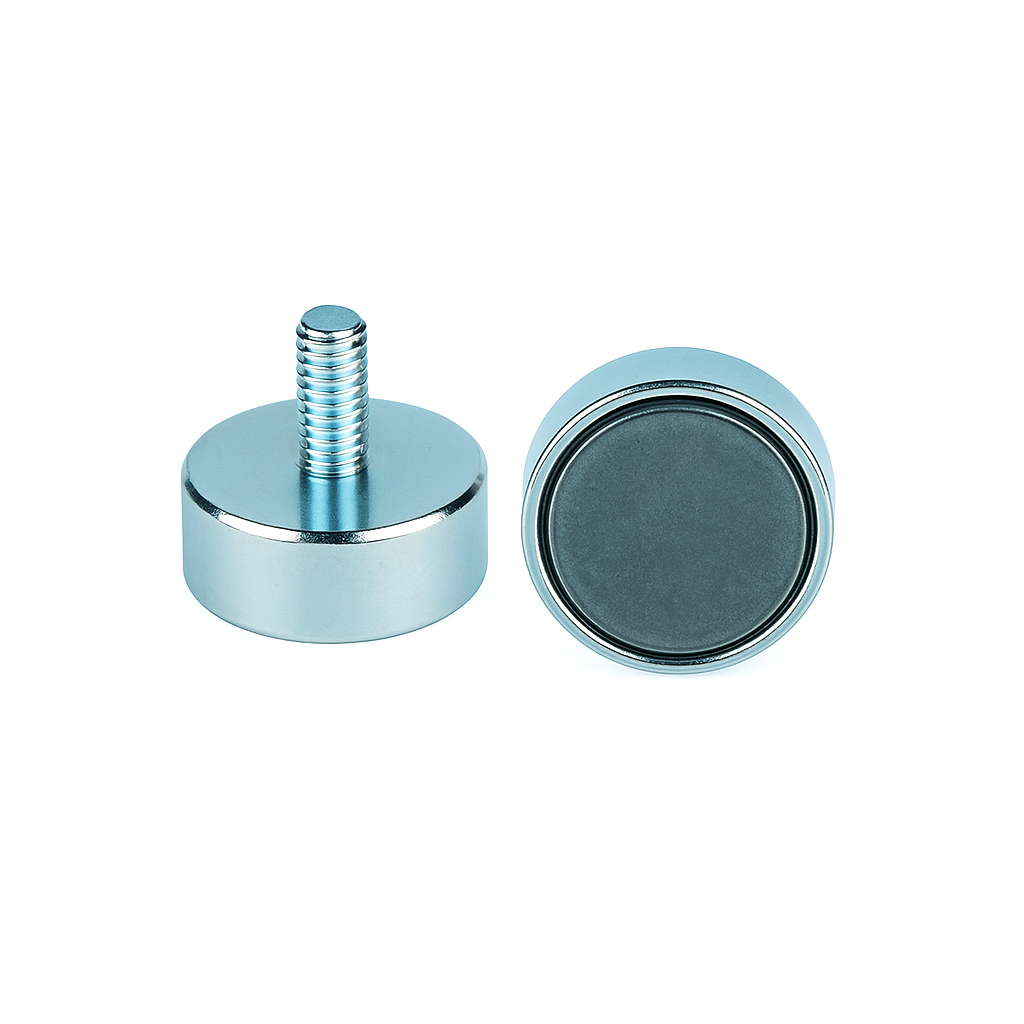

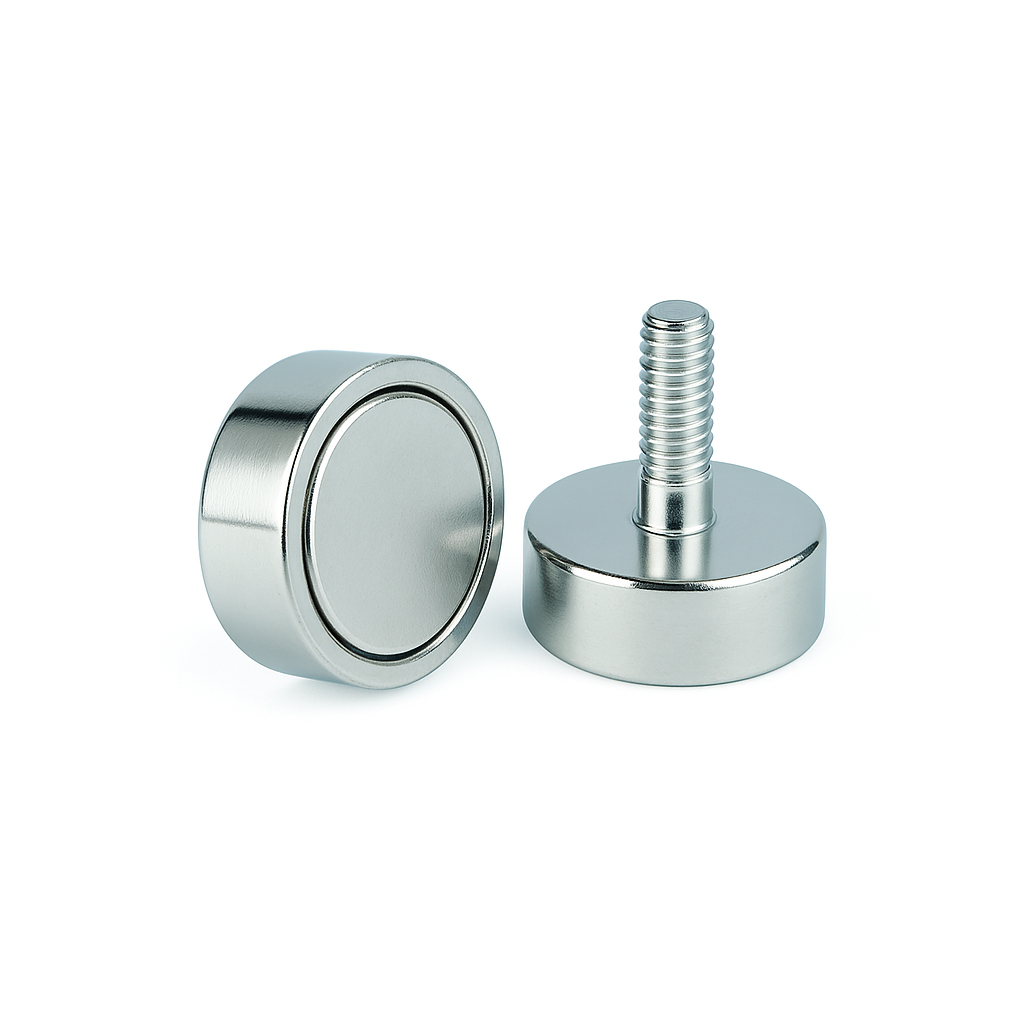

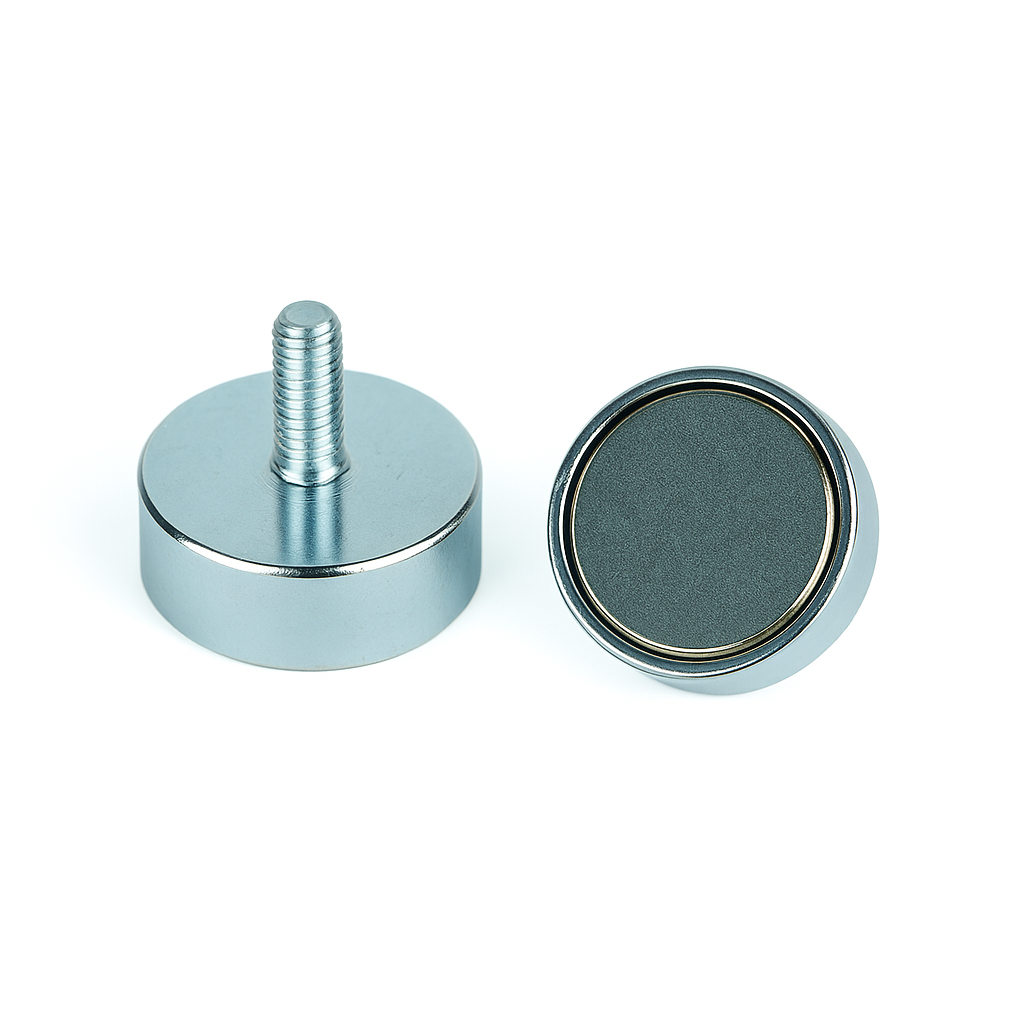

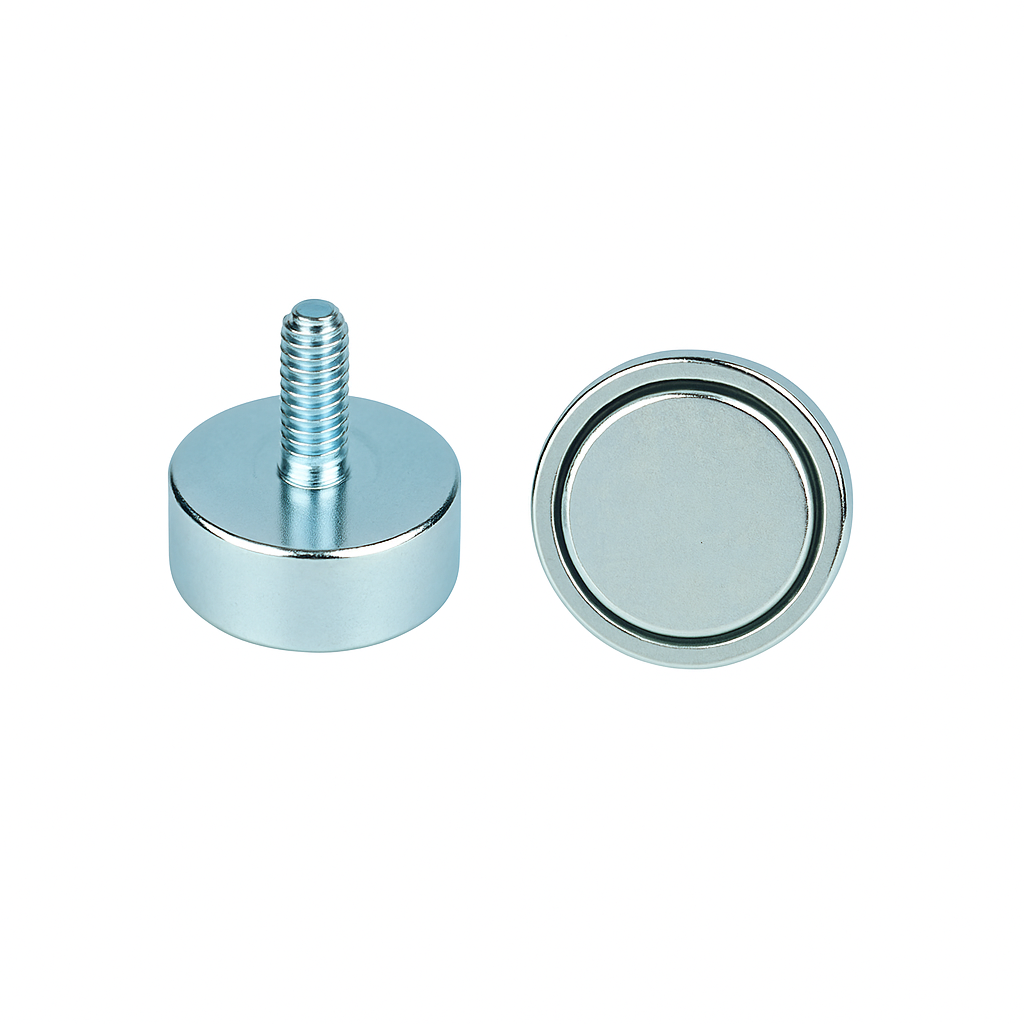

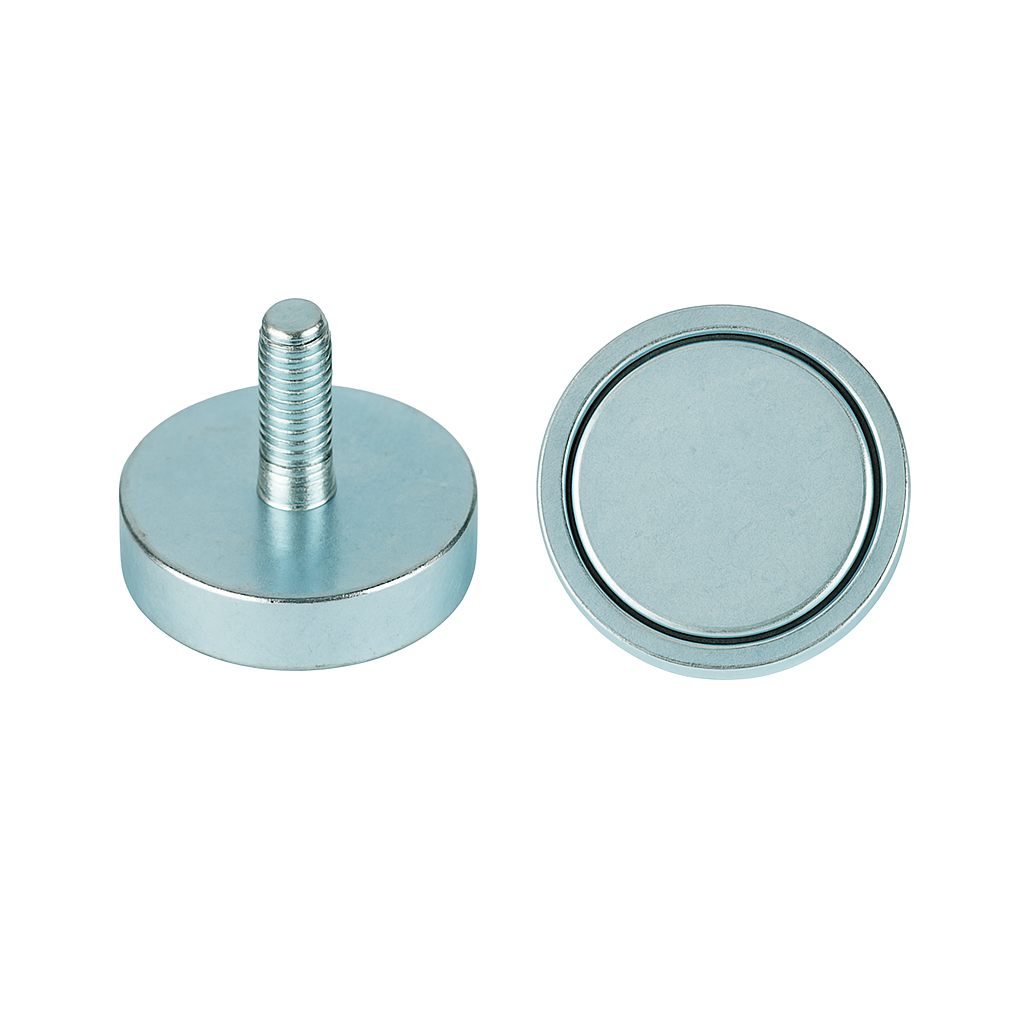

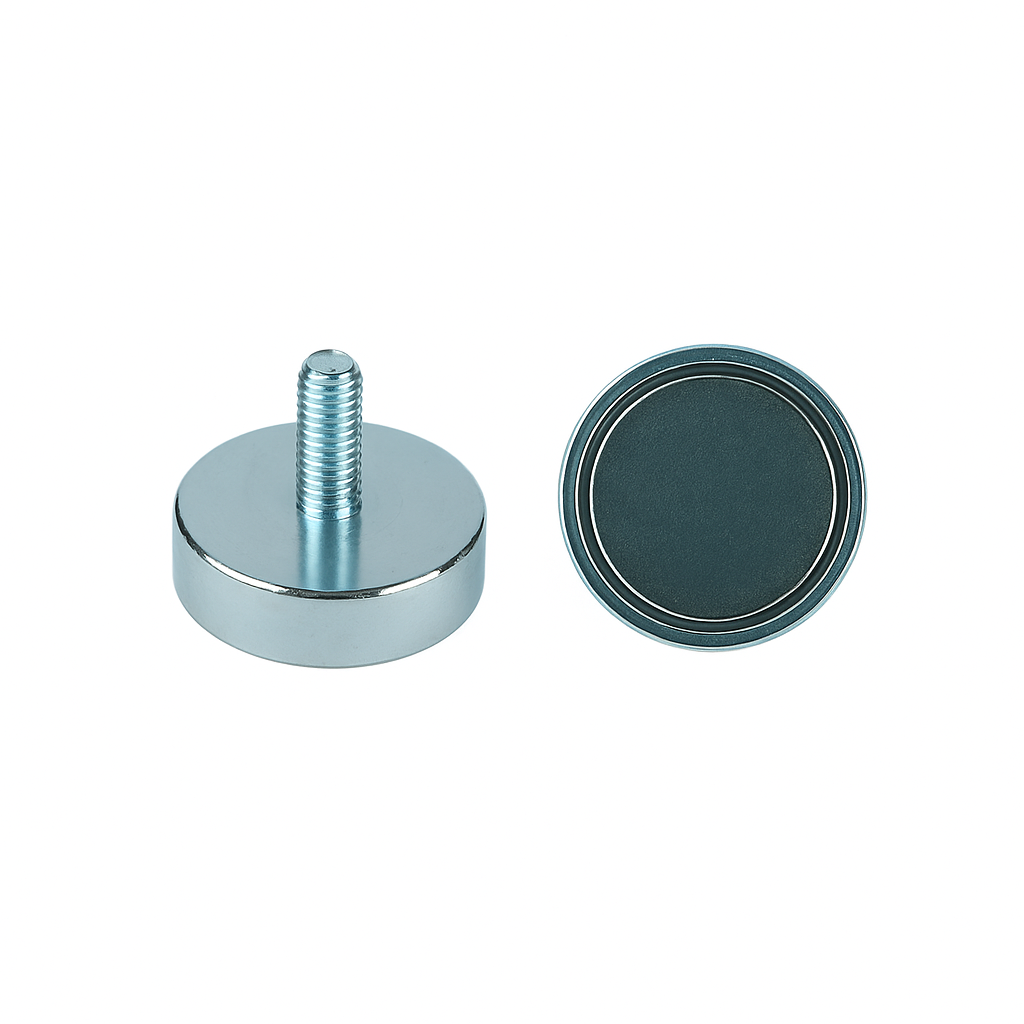

Eclipse Magnetics Neodymium (NdFeB) Shallow Pot Magnets with External Thread provide a strong, compact, and versatile magnetic holding solution ideal for attaching directly to female threaded components. Each magnet features a zinc-plated steel body and an external threaded stem, offering a secure and durable fixing method for a wide range of industrial, commercial, and engineering applications.
Available in diameters from 10 mm to 40 mm and thread sizes from M3 to M8, these magnets combine high performance with flexibility across multiple setups. The powerful Neodymium magnetic core delivers excellent holding strength relative to size, while the zinc-plated finish ensures reliable corrosion resistance for long-term use.
Compact and efficient, Eclipse Magnetics Neodymium Shallow Pots with External Thread are ideal for mounting, positioning, and holding tasks in sectors such as lighting, signage, shopfitting, and machinery assembly.
Key Features
-
High-strength Neodymium (NdFeB) magnet: provides exceptional holding force in a compact form
-
External threaded stem: enables quick and secure connection to female threaded fittings
-
Zinc-plated steel body: offers excellent corrosion protection and durability
-
Wide size range: available from 10 mm to 40 mm diameter with M3 to M8 thread sizes
-
Strong performance: pull forces up to 41 kg depending on size
-
Space-efficient design: shallow profile ideal for compact installations
-
High temperature tolerance: operates reliably up to 80°C
Technical Data
|
Product Code
|
Diameter (mm)
|
Thickness (mm)
|
Overall Height (mm)
|
Thread Size
|
Pull Force (kg)
|
Net Weight (kg)
|
|
E1050/NEO
|
10
|
4.5
|
11.5
|
M3
|
1
|
0.003
|
|
E1051/NEO
|
13
|
4.5
|
11.5
|
M3
|
2.5
|
0.007
|
|
E1052/NEO
|
16
|
4.5
|
13.5
|
M4
|
5
|
0.01
|
|
E1053/NEO
|
20
|
6
|
15.5
|
M4
|
7
|
0.02
|
|
E1054/NEO
|
25
|
7
|
16.5
|
M5
|
13.5
|
0.036
|
|
E1055/NEO
|
32
|
7
|
18.5
|
M6
|
25
|
0.06
|
|
E1056/NEO
|
40
|
8
|
20
|
M8
|
41
|
0.104
|
