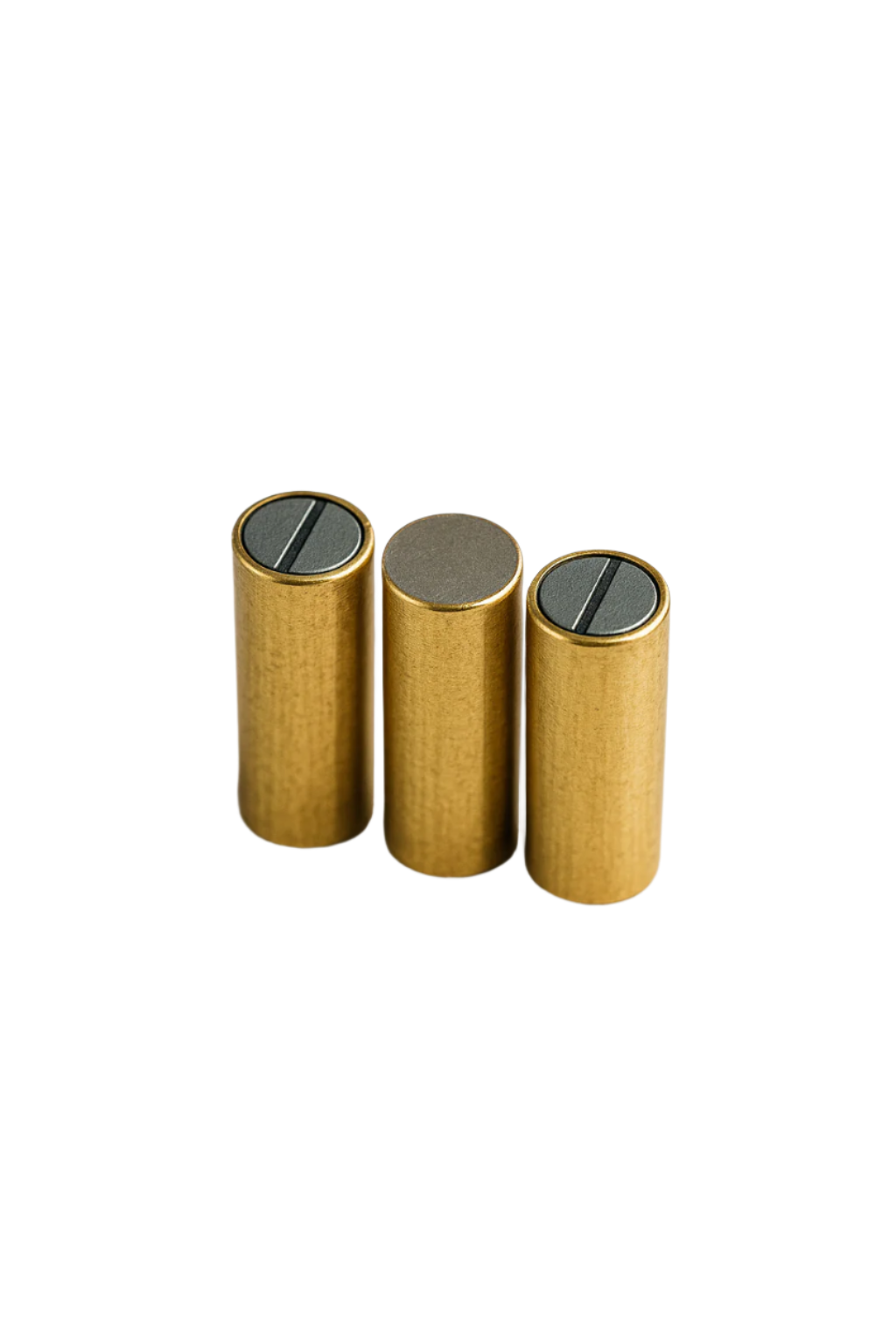

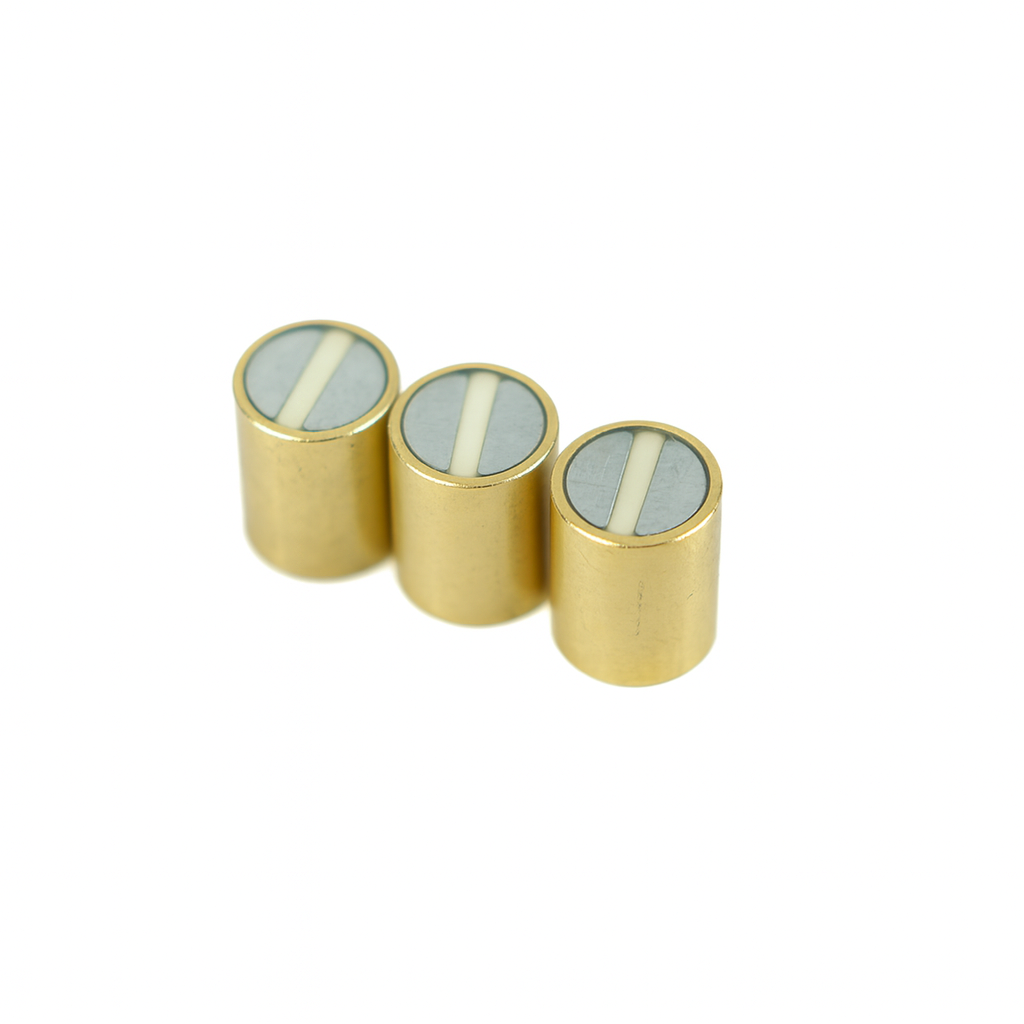

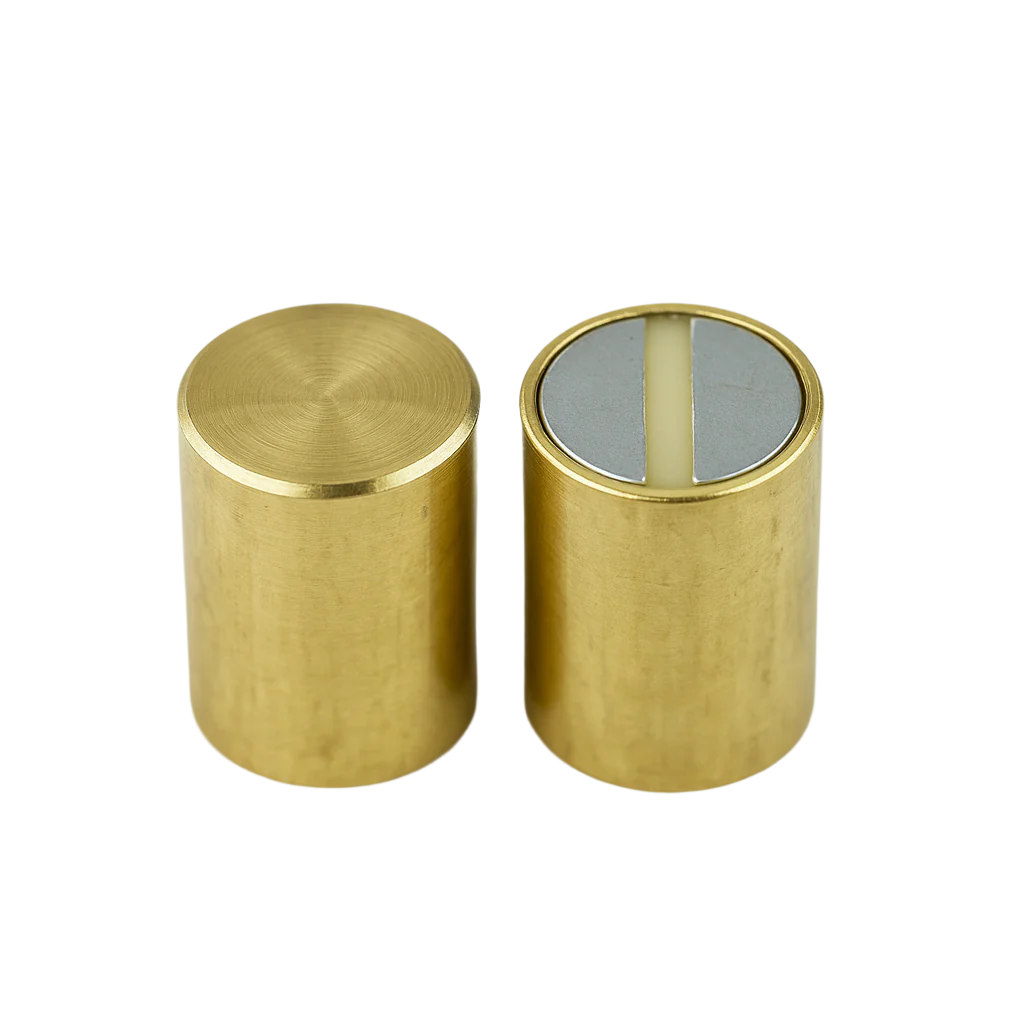

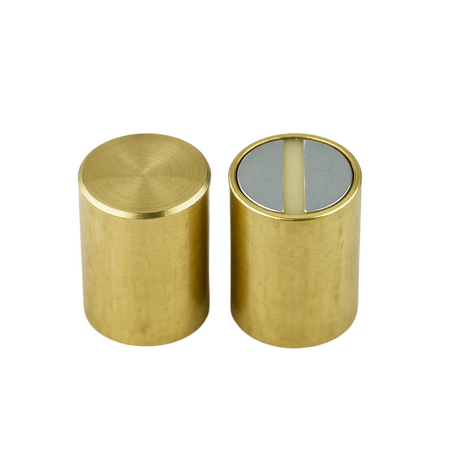

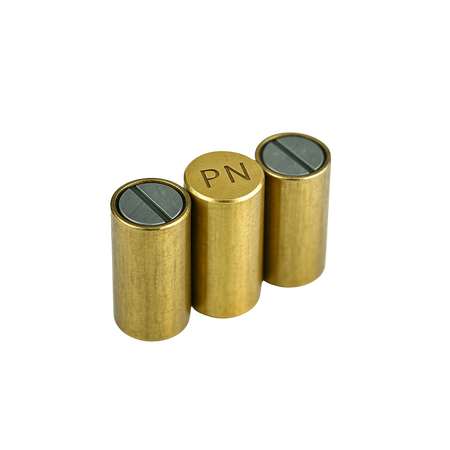

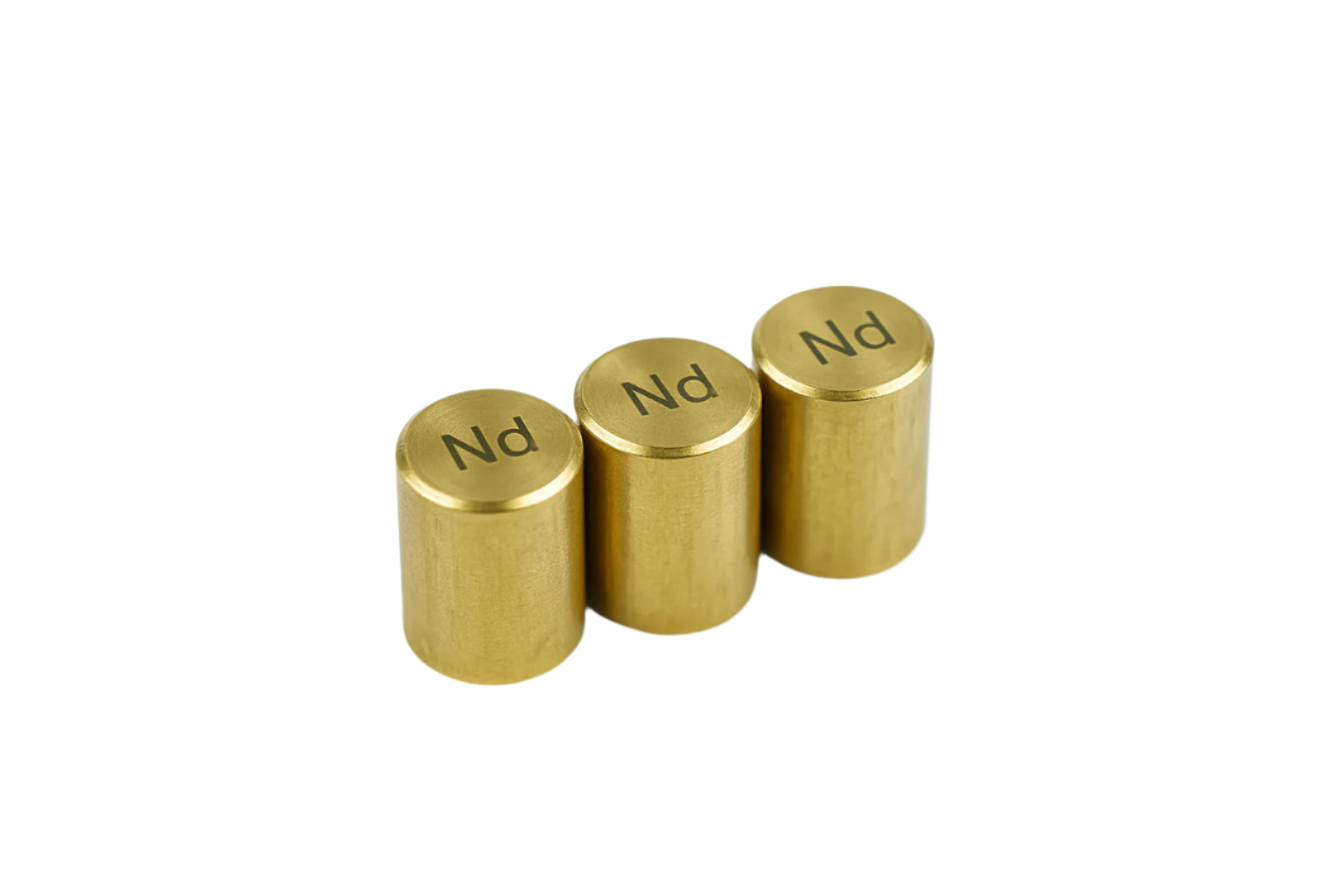

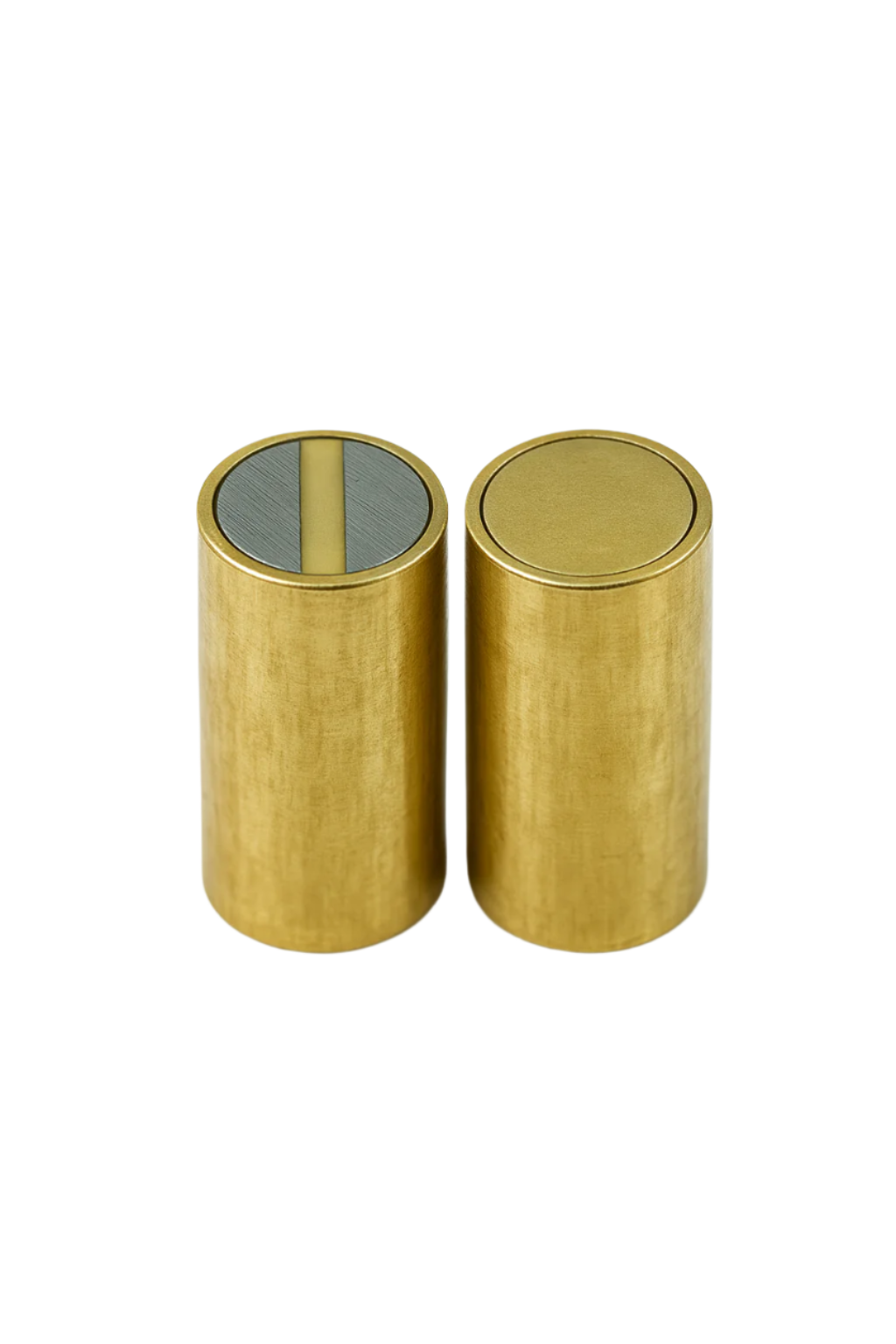

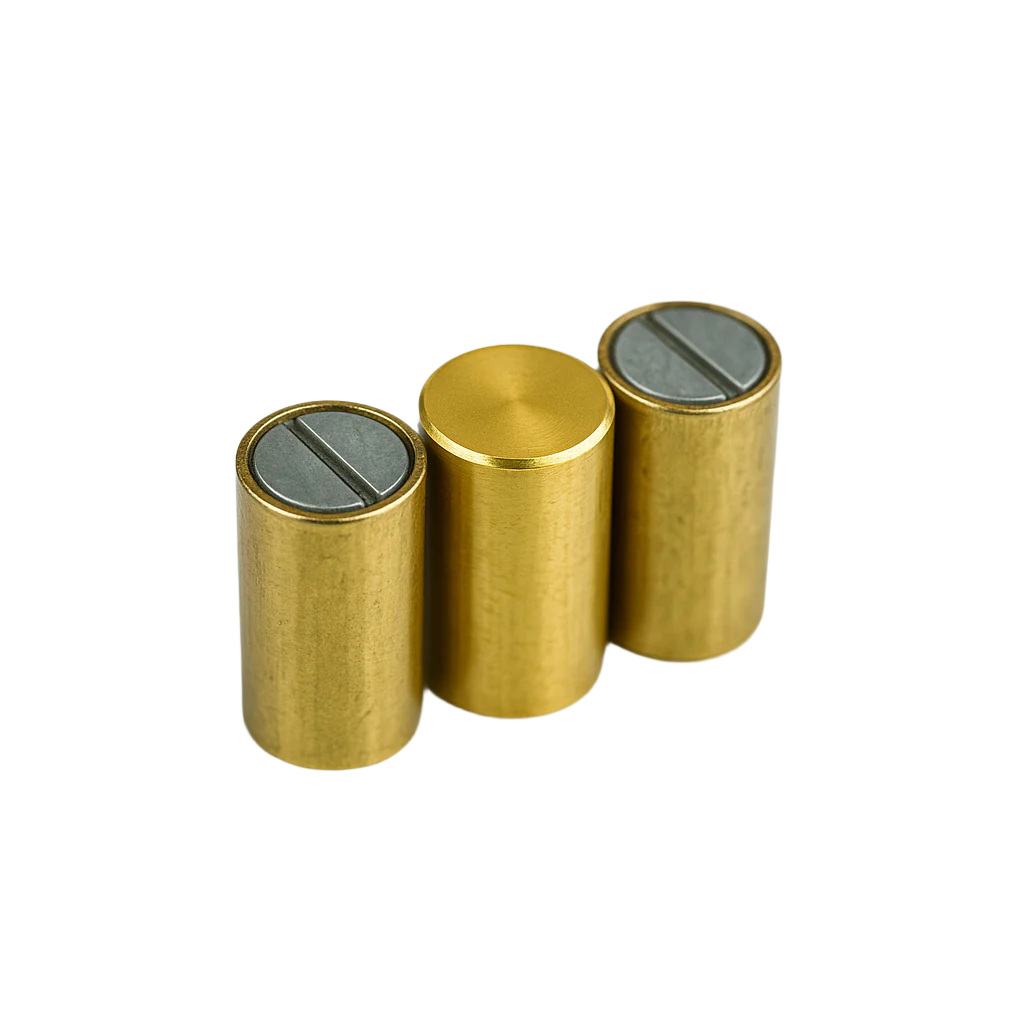

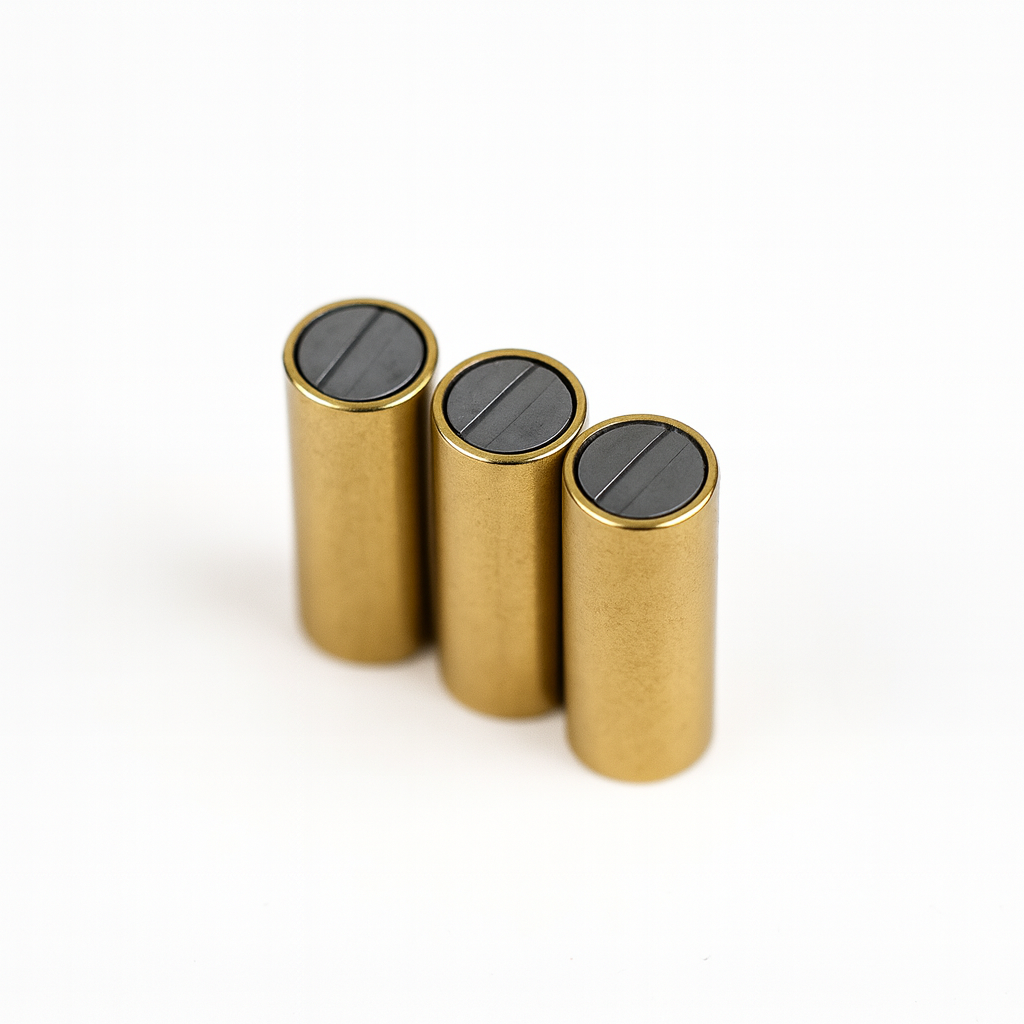

Eclipse Magnetics Neodymium Bi-Pole Deep Pot Magnets, also known as Twin Pole Blind-Ended Deep Pot Magnets, are high-performance magnetic assemblies engineered for precision applications requiring strong holding force within compact spaces.

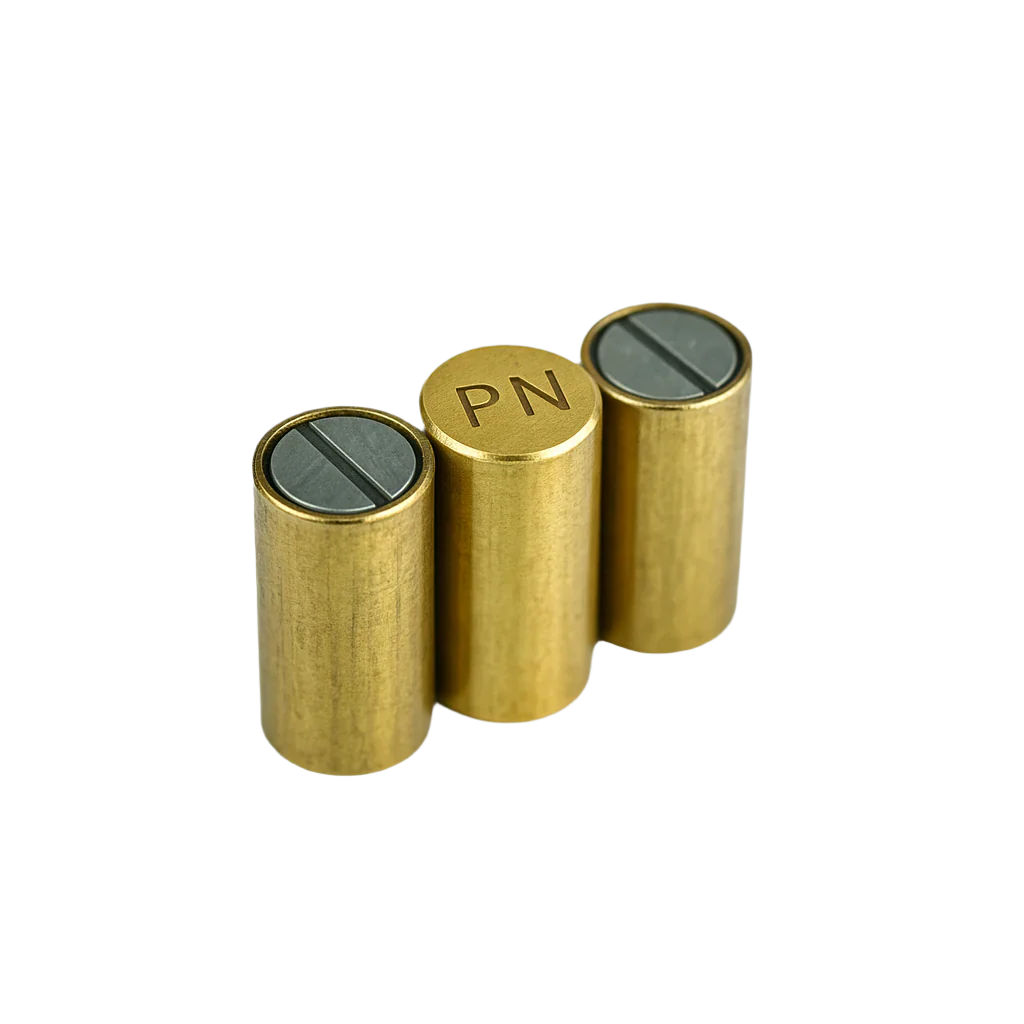

Each unit features a robust twin-pole design, comprising two mild steel pole pieces (circular segment-shaped) housed within a non-magnetic brass or aluminium casing. Sandwiched between the poles is a powerful Neodymium (NdFeB) magnet, which delivers exceptional magnetic strength and stability. This configuration provides superior magnetic direction and control, ensuring consistent holding performance even in tight or enclosed environments.
Ideal for use in precision assemblies, automation systems, and magnetic clamping setups, Eclipse Magnetics Neodymium Bi-Pole Deep Pots offer a compact, durable, and efficient solution for industrial holding, alignment, and positioning tasks.
Key Features
-
Twin-pole design: enhances magnetic strength, direction, and stability
-
Deep pot construction: increases magnetic depth for improved pull force
-
Non-magnetic casing: available in brass or aluminium for optimised magnetic efficiency
-
High-performance Neodymium (NdFeB) core: N35 grade, nickel-plated for durability
-
Precision tolerance: diameter ground to H6 tolerance for accurate fitting
-
Available options: blind-ended or threaded configurations to suit various applications
-
Temperature resistant: performs reliably up to 80°C
Technical Data
|
Product Number
|
Diameter (mm)
|
Height
(mm)
|
Weight
(kg)
|
Pull Force
(kg)
|
|
E750NEO
|
6
|
20
|
0.005
|
1
|
|
E751NEO
|
8
|
20
|
0.009
|
2.5
|
|
E752NEO
|
10
|
20
|
0.014
|
4.5
|
|
E753NEO
|
13
|
20
|
0.023
|
7
|
|
E754NEO
|
16
|
20
|
0.035
|
15
|
|
E755NEO
|
20
|
25
|
0.067
|
28
|
|
E756NEO
|
25
|
35
|
0.141
|
45
|
|
E757NEO
|
32
|
40
|
0.261
|
70
|
