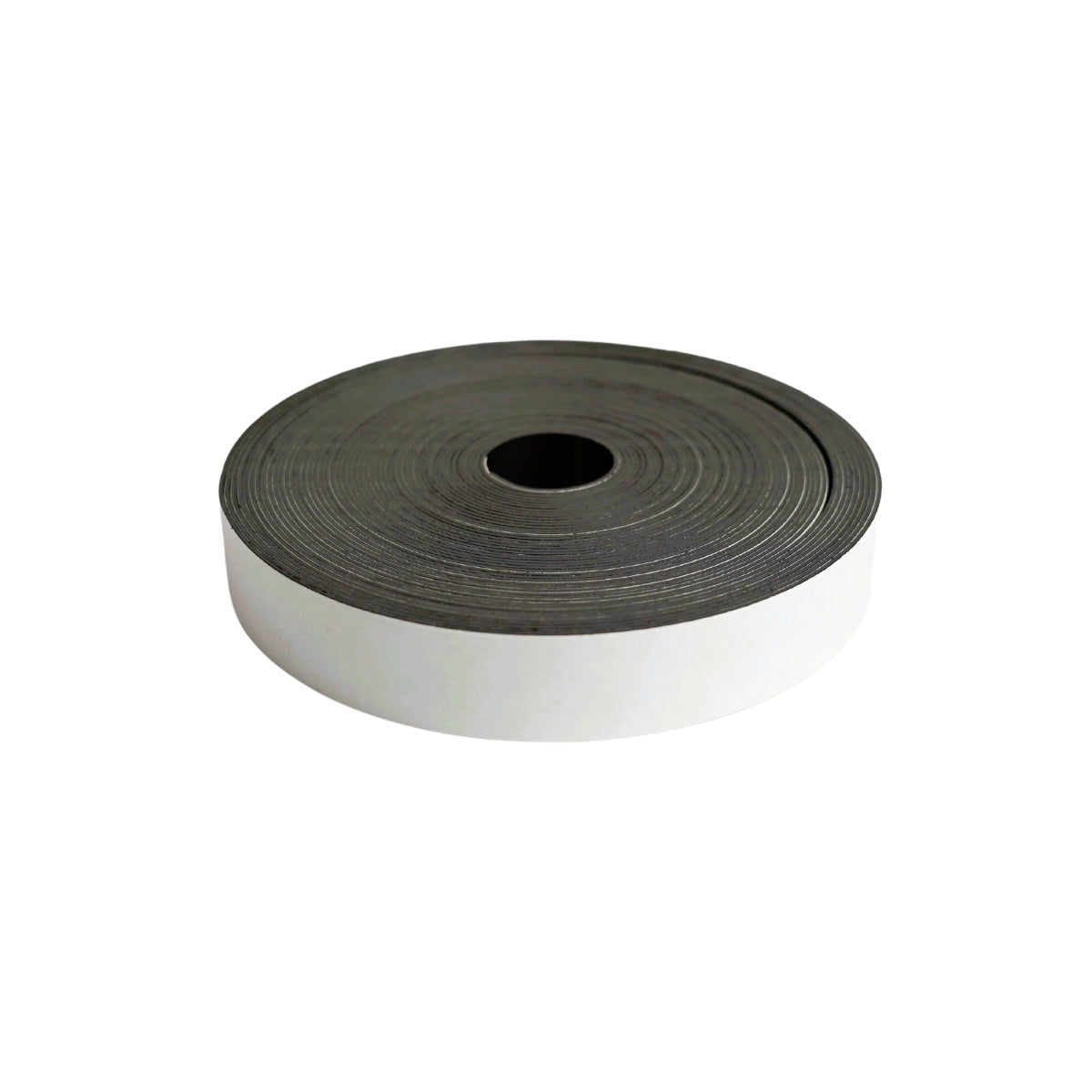

Eclipse Magnetics Self-Adhesive Magnetic Tape provides a flexible magnetic fixing solution for signage, displays, closures, labels and other light-duty holding applications.
Manufactured from strontium ferrite within a thermoplastic binder, the tape is magnetised on one face and supplied with a self-adhesive backing for straightforward installation onto suitable clean surfaces.
The tape can be cut to the required length, making it suitable for custom installations without the need for drilling or mechanical fixings. Depending on the model, widths range from 7.5mm to 25.4mm, thicknesses from 0.5mm to 1.5mm, and roll lengths from 1m to 30m.
Pull force varies by product from 28g/cm² to 55g/cm², allowing the range to suit different lightweight fixing and retention requirements.
Typical uses include mounting signage and display panels, creating removable closures, fixing lightweight labels or components to ferrous surfaces, and use in secondary glazing, flyscreen and insulation panel applications.
For more flexible magnetic fixing solutions, explore our wider range of flexible magnets.
| Product Number | Length (m) | Pull Force (g/cm²) | Pull Force (oz/ft²) | Thickness (mm) | Units per Pack | Weight (kg) | Width (mm) | Length (ft) | Width (in) | Thickness (in) |
|---|---|---|---|---|---|---|---|---|---|---|
| EM884-R | 1 | 28 | 917 | 0.5 | 1 | 0.027 | 13 | 3.3 | 0.511 | 0.02 |
| FM652 | 30 | 55 | 1802 | 1.5 | 1 | 1.7 | 10 | 100 | 0.393 | 0.06 |
| FM660 | 10 | 44 | 1441 | 0.75 | 1 | 0.24 | 7.5 | 32.8 | 0.295 | 0.03 |
| FM663 | 30 | 55 | 1802 | 1.5 | 1 | 2.1 | 12.7 | 100 | 0.5 | 0.06 |
| FM662 | 10 | 44 | 1441 | 0.75 | 1 | 0.63 | 20 | 32.8 | 0.787 | 0.03 |
| FM665 | 30 | 55 | 1802 | 1.5 | 1 | 4.2 | 25.4 | 100 | 1 | 0.06 |
| FM664 | 30 | 55 | 1802 | 1.5 | 1 | 3.3 | 20 | 100 | 0.787 | 0.06 |
