Eclipse Magnetics Flexible Magnetic Tape Rolls offer a versatile, cut-to-length solution for creating reusable and repositionable signage, displays, closures and mounting surfaces on ferrous substrates. Available in three thicknesses (3.6 mm, 4.6 mm and 6.4 mm) and a standard 10 metre length, these magnetic strips are magnetised on one face and supplied with a plain (non-adhesive) back so they can be fixed with adhesive or mechanical fasteners as required.
Made from extruded strontium-ferrite magnetic rubber, the tapes combine strong magnetic pull with flexibility — making them suitable for curved or irregular surfaces, sliding panels, or signage that may be frequently repositioned. The plain back form allows you to choose your preferred attachment method, and the material can be cut, drilled or shaped on site for custom applications.
Key Features
- 10 m roll-length primal magnetic tape — ready to cut to size
- Three available thicknesses: 3.6 mm, 4.6 mm and 6.4 mm to match holding, clearance and surface requirements
- One-face magnetisation: strip can cling onto ferrous surfaces or mate with other magnetic strips
- Plain back version allows you to select your own adhesive or screw mounting method
- Flexible, low-profile material ideal for custom shapes, curves or tight installations
- Maximum operating temperature up to 80 °C — suitable for many retail, display and workshop environments
Typical Applications
- Temporary or reusable signage and displays on steel cabinets, walls or panels
- Vehicle or trailer signage requiring removal without leaving adhesives behind
- Magnetic closures for doors, cabinets, access panels and POS fixtures
- Workshop or storage labelling where modular layout is required (e.g., racks, bins, shelving)
Technical Data
| Manufacturer Part No. |
Thickness |
Width |
Length |
Back Type |
Magnet on One Face |

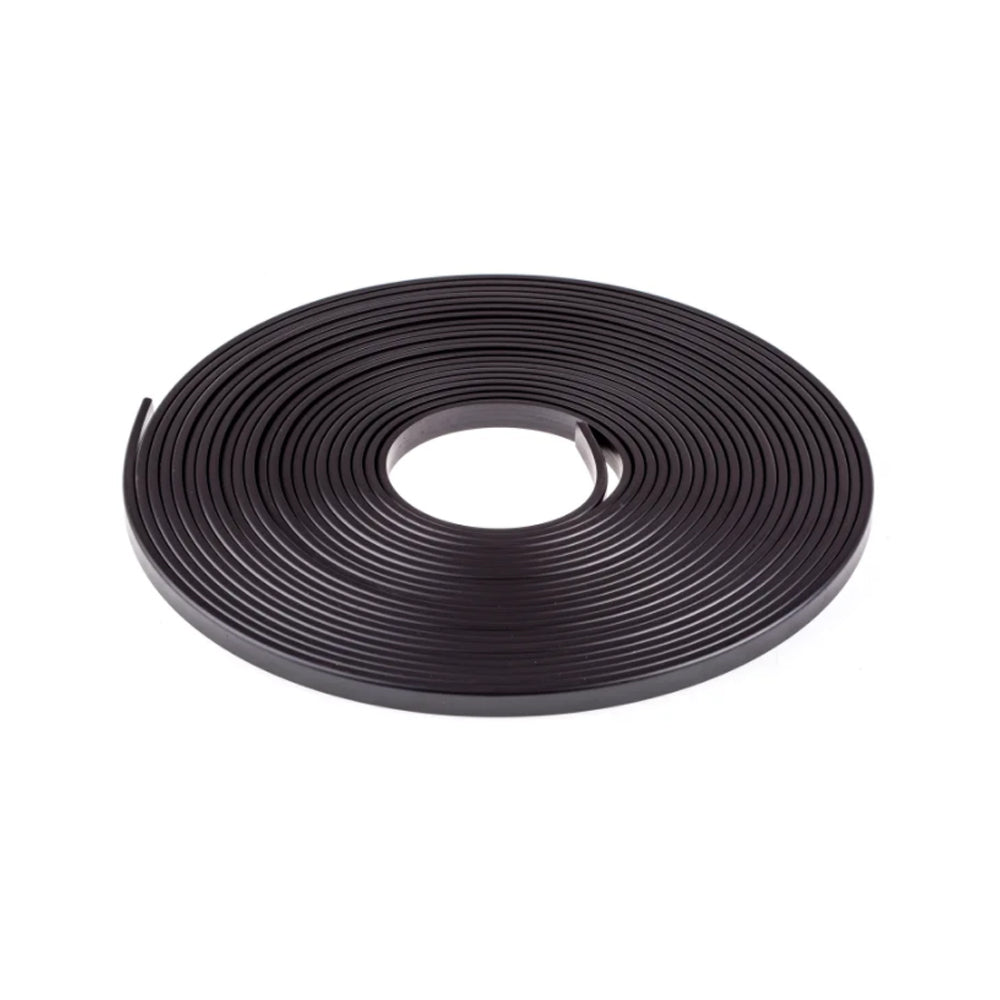

| FM670 |
3.6 mm |
9.5 mm |
10 m |
Plain |
Yes |

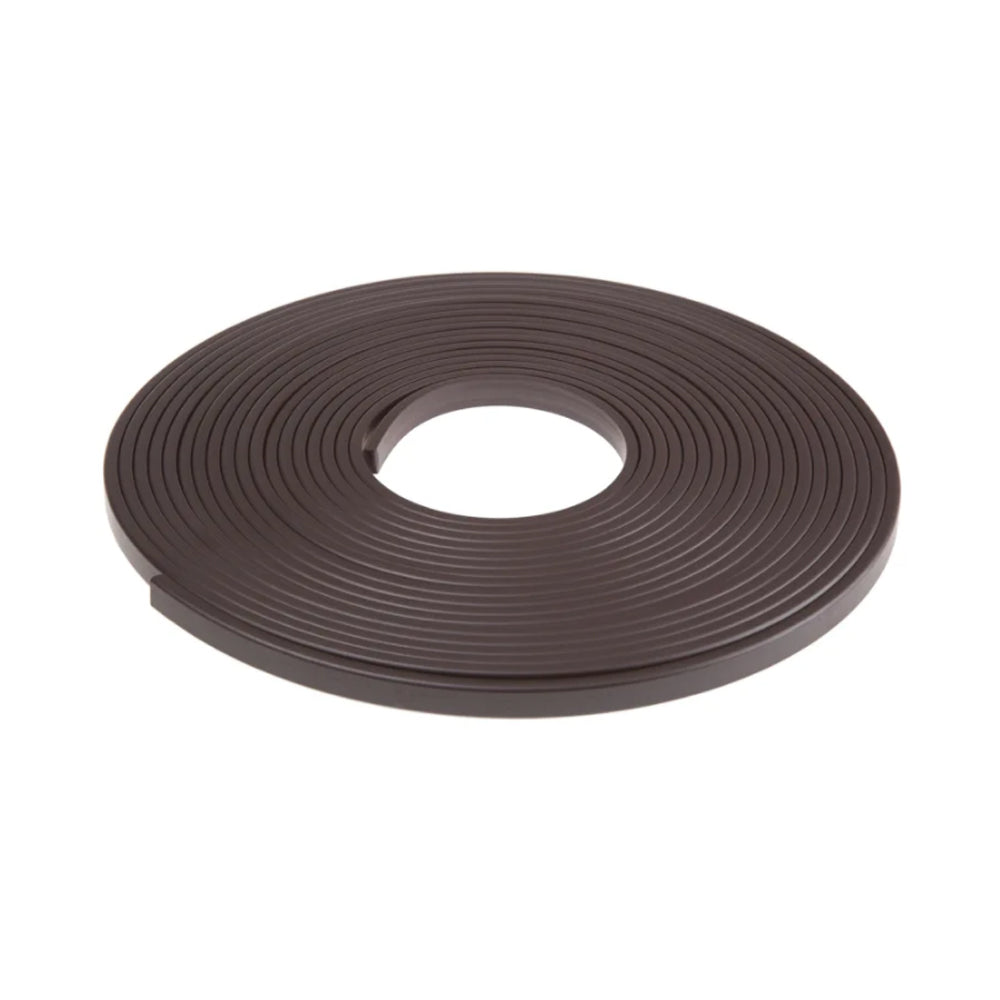

| FM671 |
4.6 mm |
11 mm |
10 m |
Plain |
Yes |

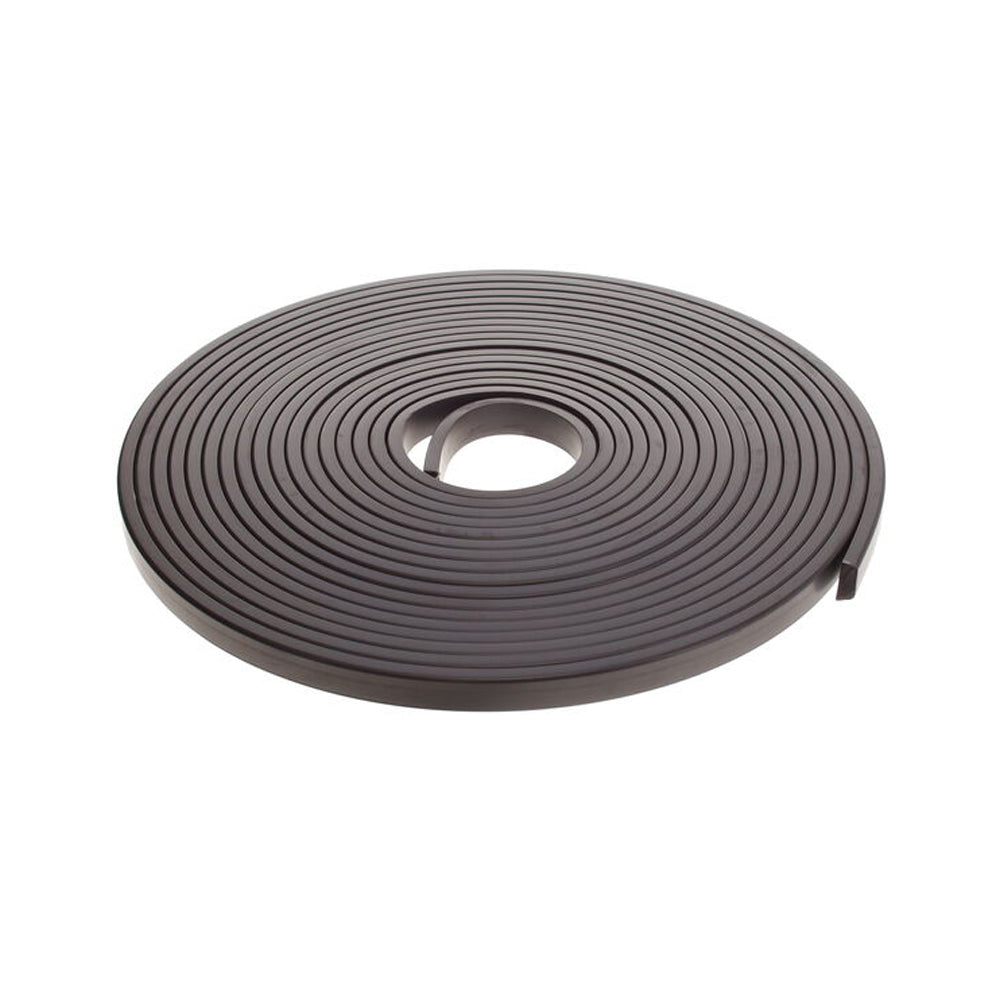

| FM672 |
6.4 mm |
15 mm |
10 m |
Plain |
Yes |
