Eclipse Magnetics Magnetic Sheets provide a versatile, flexible magnetic base ideal for signage, point-of-sale displays, vehicle graphics or any application requiring magnetic cling to ferrous surfaces. Made from strontium ferrite within a thermo-plastic binder, these sheets are magnetised on one face and deliver excellent performance up to an operating temperature of 80 °C.
Available in plain, gloss vinyl, or adhesive-backed finishes, these sheets can be cut with scissors or die-cut into shapes — perfect for printers, graphic installers or workshops.
Key Features
- Flexible magnetic sheet with one active magnetic face, bonding to steel or another magnetic sheet
- Maximum operating temperature: 80 °C — binder limits performance above this threshold
- Cut-to-size using scissors, craft knife or plotter for customised graphics
- Available finishes: plain, white gloss, adhesive-backed and dry-wipe options
- Roll widths of 620 mm and 1000 mm with lengths of 10 m, 15 m or 30 m depending on variant
Typical Applications
- Temporary or re-usable signage on steel cabinets, walls or vehicles
- Point-of-sale graphics, exhibition displays, retail fixture labelling
- Vehicle signage or magnetic banners that can be removed or repositioned without adhesives
- Workshop or retail surface labelling on steel shelving, cabinets or racking
Technical Data
| Product Number |
Finish |
Pull Force (g/cm²) |
Roll Length (m) |
Thickness (mm) |
Width (mm) |
Units / Pack |
| 060510A2 |
Plain |
28 |
30 |
0.50 |
620 |
1 |
| 060710A2 |
Plain |
44 |
30 |
0.75 |
620 |
1 |
| 060524A2 |
Gloss Vinyl White |
28 |
30 |
0.60 |
620 |
1 |
| 060724A2 |
Gloss Vinyl White |
44 |
30 |
0.85 |
620 |
1 |
| 060724X5 |
Gloss Vinyl White |
28 |
10 |
0.60 |
1000 |
1 |
| 060724X4 |
Gloss Vinyl White |
44 |
10 |
0.85 |
1000 |
1 |
| 060724D2 |
Gloss Vinyl White |
44 |
15 |
0.85 |
620 |
1 |
| 060711A2 |
Adhesive Backed |
44 |
30 |
0.80 |
620 |
1 |

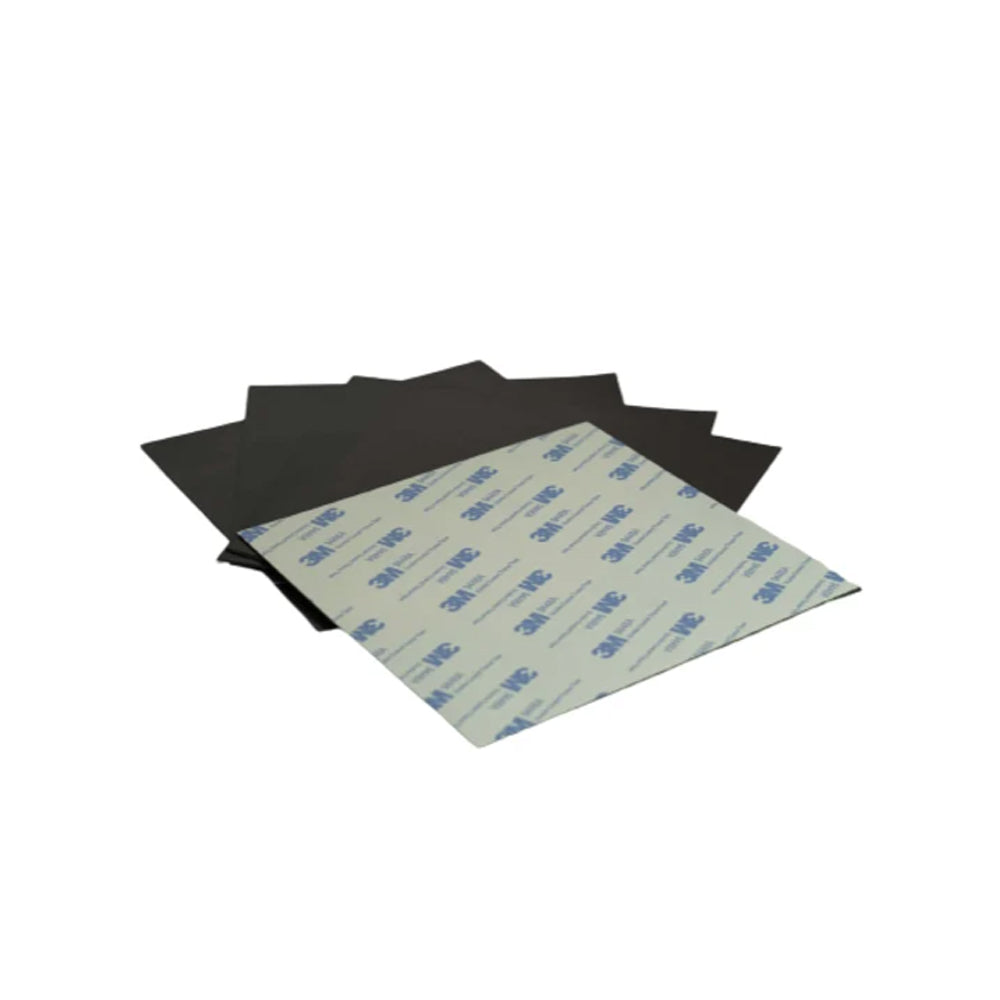

| FM650 |
Adhesive Backed |
44 |
0.15 |
0.75 |
150 |
5 |
