Magnetic Sampling Probe | 9,000 Gauss | N45 Neodymium | Up to 300mm Standard

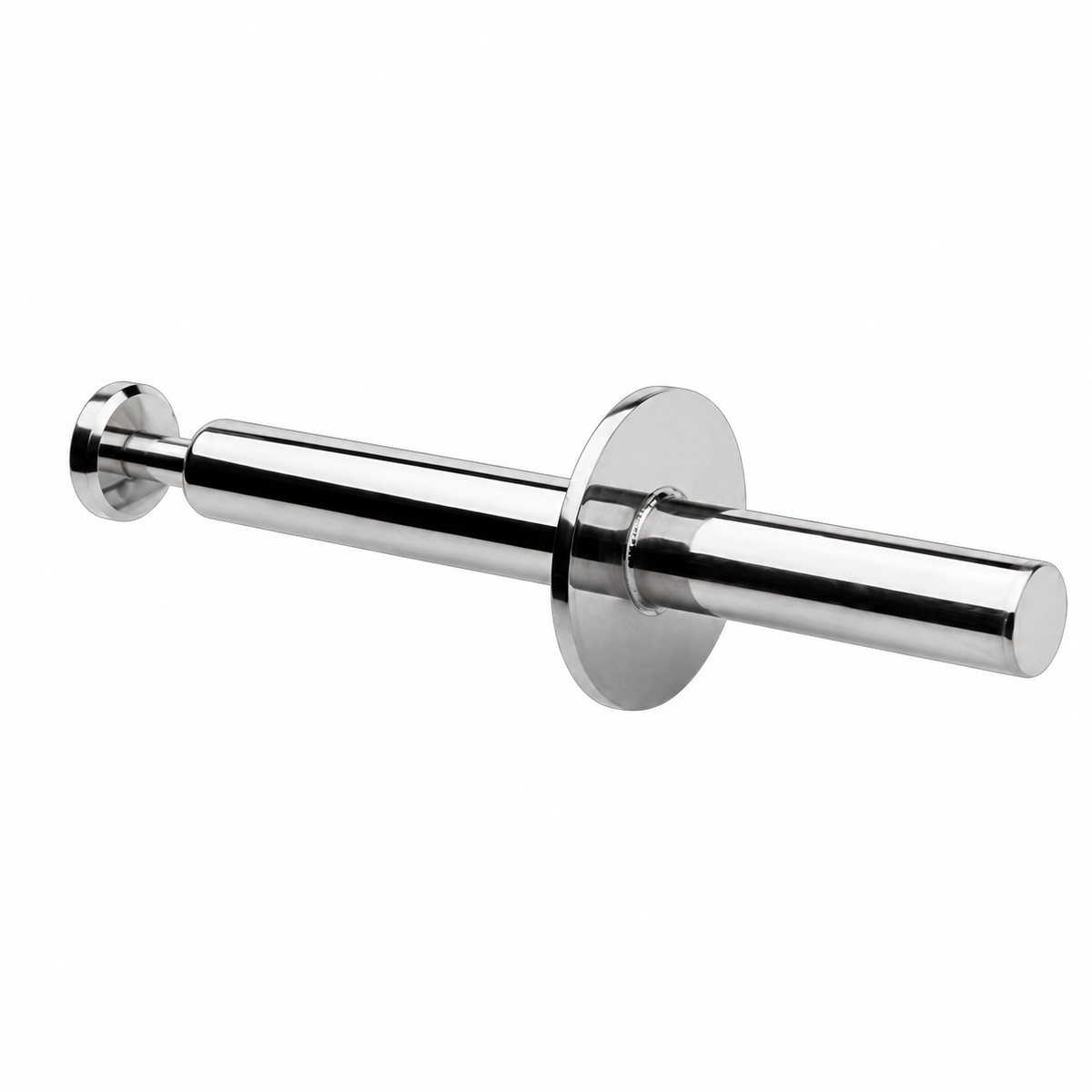

Eclipse Magnetics Magnetic Sampling Probe is designed for fast and reliable inspection of powders, granulates and liquids for ferrous and para-magnetic contamination during quality control and process checks.

The high-intensity probe is particularly suited to goods inward inspection, pre-despatch checks and batch testing at critical control points throughout a production process. It can also be used at existing sampling points where routine contamination checks are required.

The probe uses an N45 rare earth neodymium magnetic system providing 9,000 Gauss magnetic performance at the tube surface, helping attract and concentrate fine contamination so that it can be easily identified and assessed.

Manufactured from 316 grade stainless steel with a polished 0.6μm surface finish, the sampling probe is suitable for use across a wide range of process environments where hygiene, durability and contamination control are important.

Cleaning is straightforward. Once removed from the sampling area, the rear handle is pulled backwards while holding the probe body, releasing collected contamination for disposal or further analysis.

Standard models are available with 100mm, 200mm and 300mm magnetic lengths. Pharmaceutical specification, higher-temperature versions and magnet lengths up to 500mm are also available.

Please note: This item is made to order. Please allow 3–5 working days for dispatch.

Download the full Magnetic Sampling Probe datasheet

For additional contamination control solutions, explore our wider range of magnetic separation systems and industrial magnetic separators .

Key Features

• High-intensity magnetic sampling probe for contamination inspection
• Suitable for powders, granulates and liquids
• Designed for goods inward, pre-despatch and process-line batch testing
• 9,000 Gauss magnetic performance at the tube surface
• N45 rare earth neodymium magnetic system
• 316 grade stainless steel tubing and components
• Polished 0.6μm surface finish
• Easy-clean manual release mechanism
• Helps identify the presence of ferrous and para-magnetic contamination
• Suitable for existing sampling points
• Standard operating temperature range from -20°C to +90°C
• Standard magnetic lengths of 100mm, 200mm and 300mm
• Pharmaceutical specification and higher-temperature versions available
• Magnet lengths up to 500mm available as an option
• Test certificate included
