Magnetic Pick-Up Wand | 395mm & 900mm Reach | 6.35kg Pull Force

Eclipse Magnetics Magnetic Pick-Up Wands provide a practical way to collect ferrous offcuts, filings, chips and swarf from work surfaces, machinery and process areas.

Using permanent magnetic technology, the wand attracts iron and steel debris without requiring an electrical supply. It can also be used within suitable fluids and powders where ferrous contamination needs to be checked or removed.

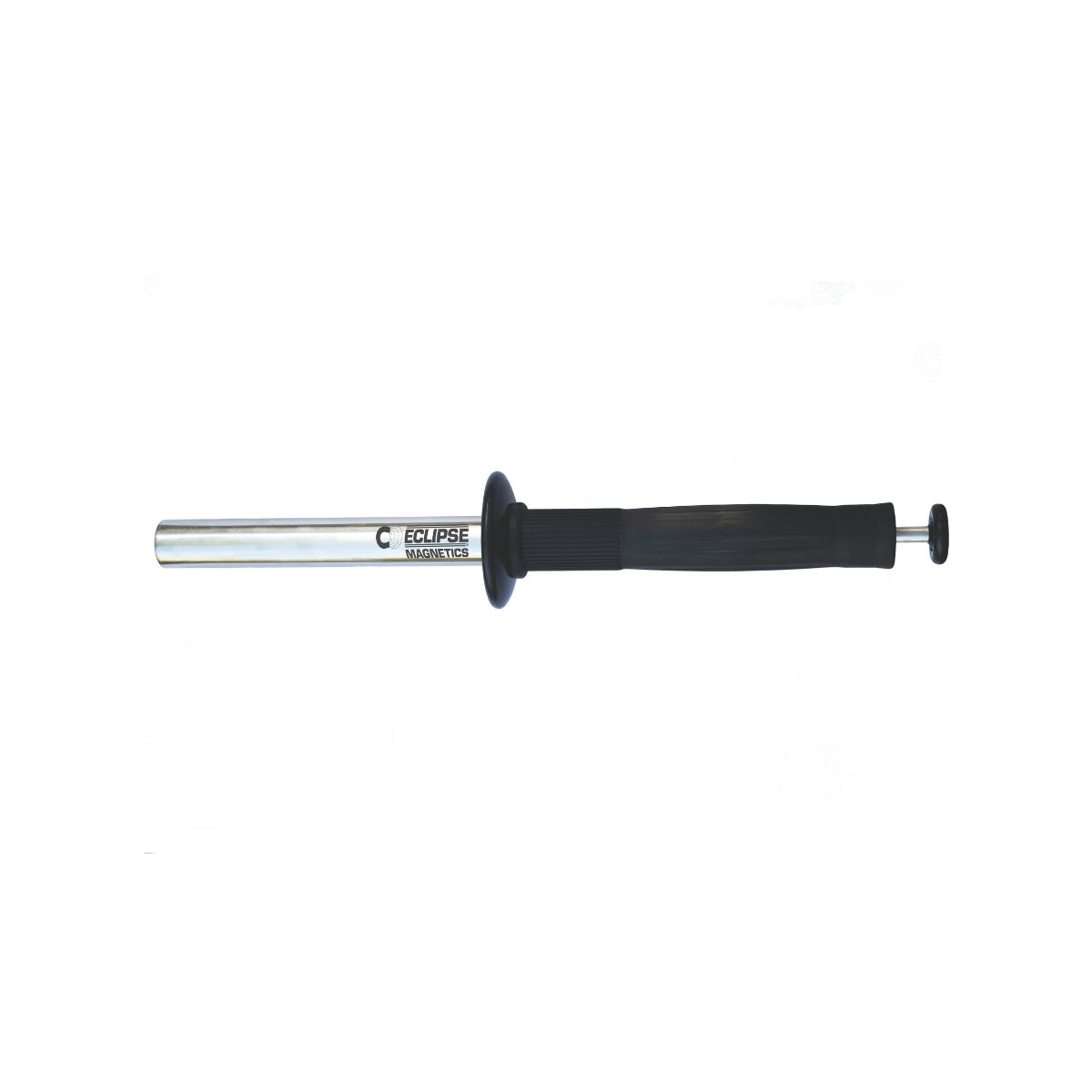

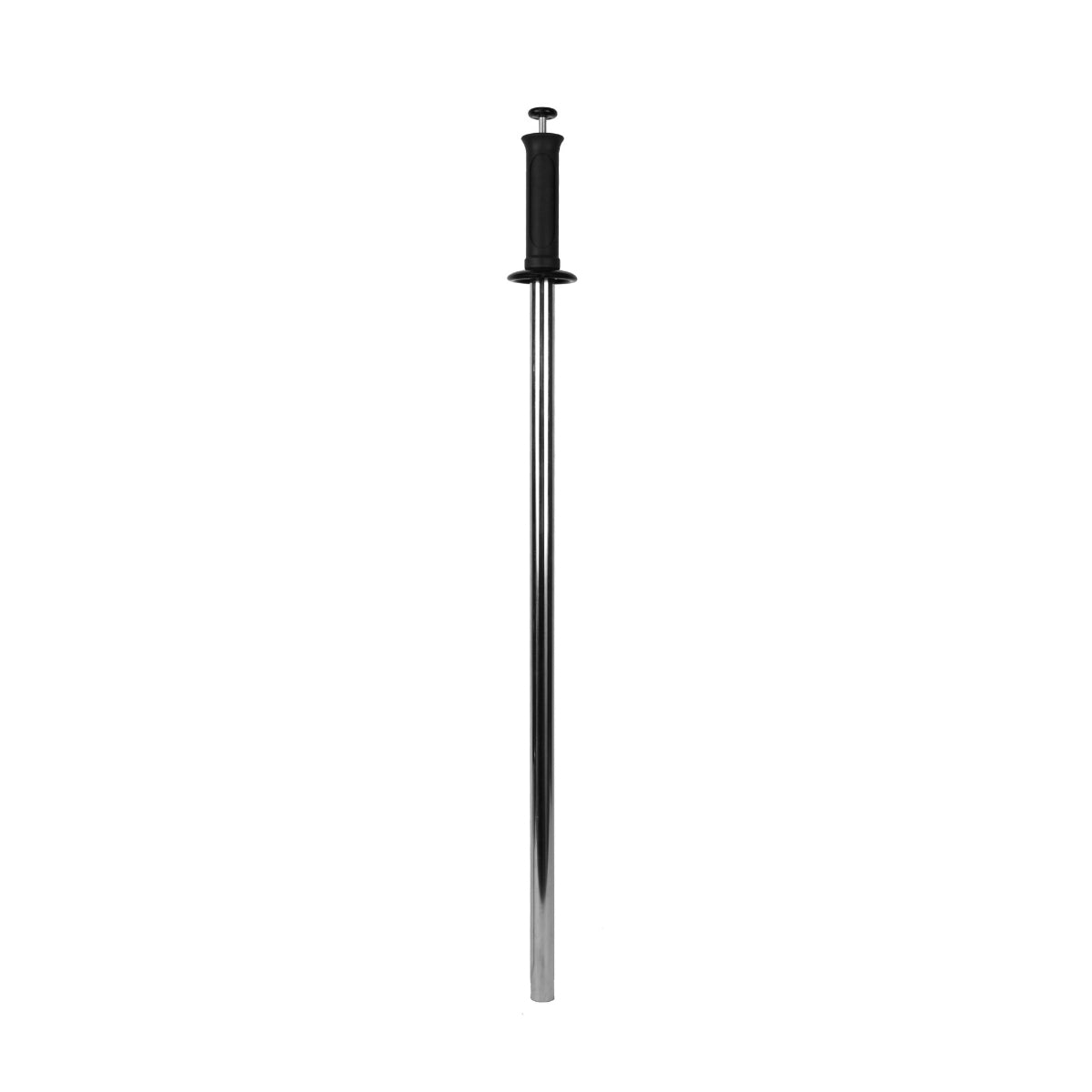

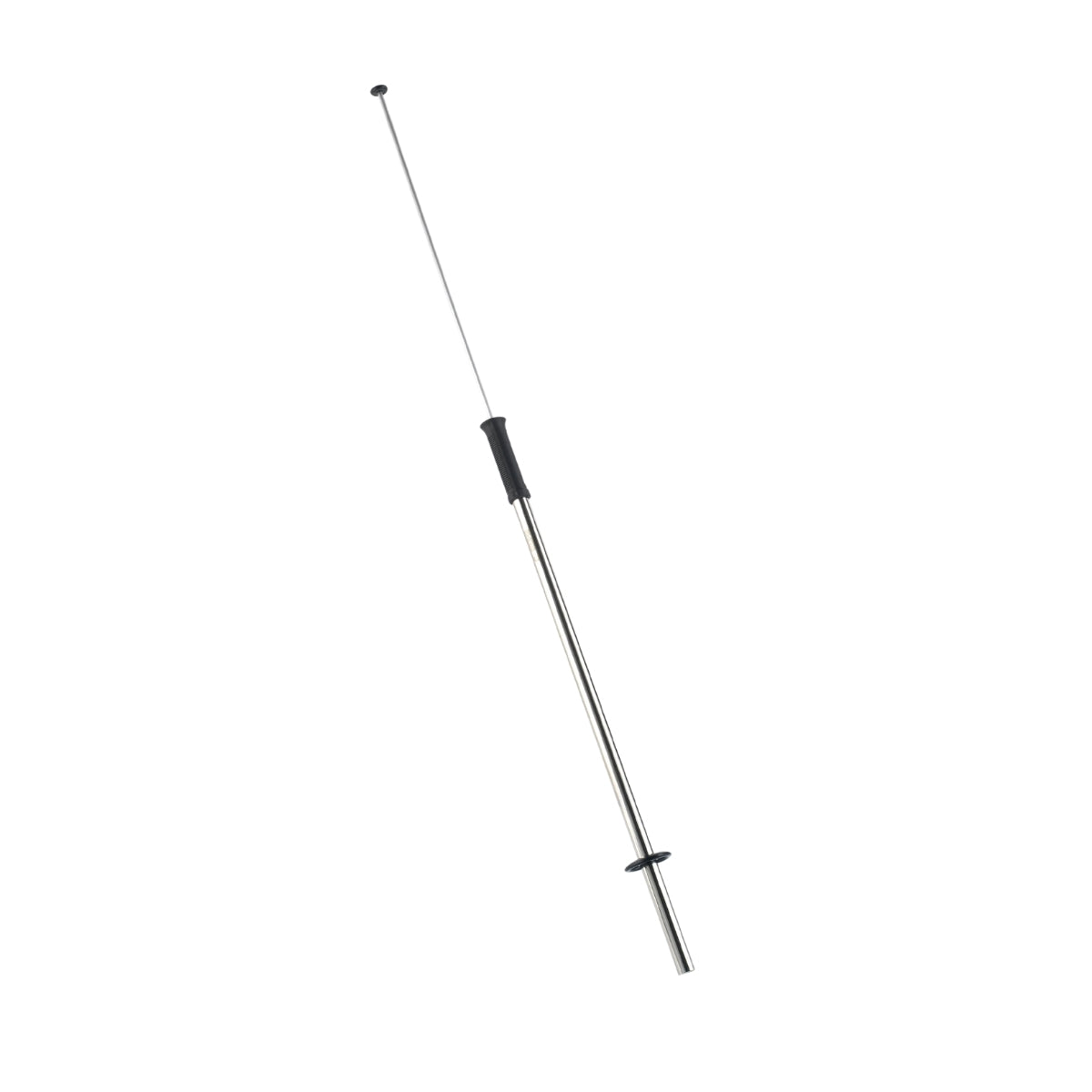

Two versions are available. The MW400 has a capture length of 395mm, while the longer MW900 extends to 900mm for reaching into deeper or more difficult-to-access areas such as tanks, containers and drums.

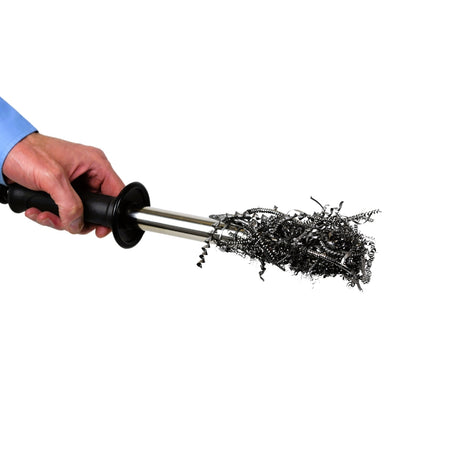

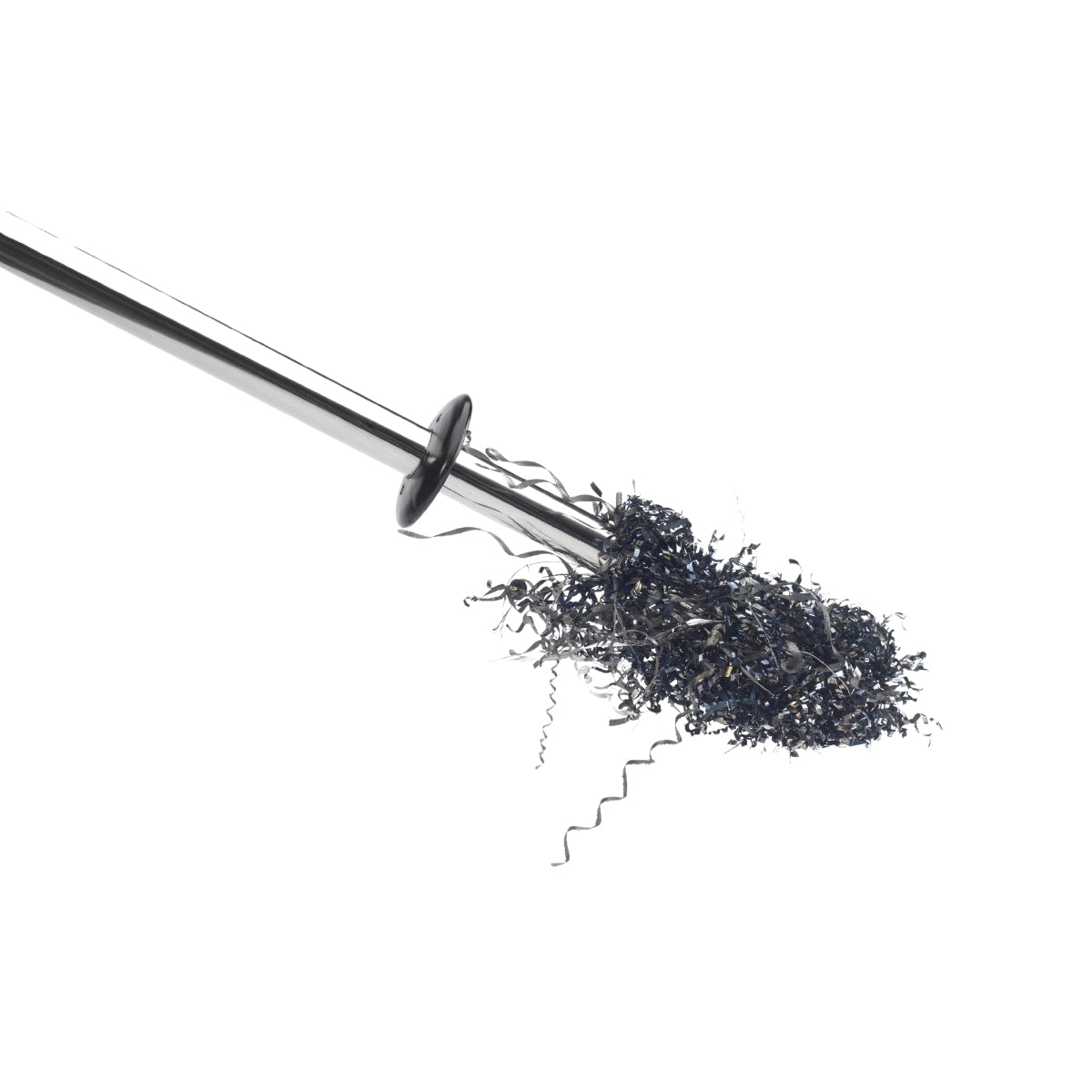

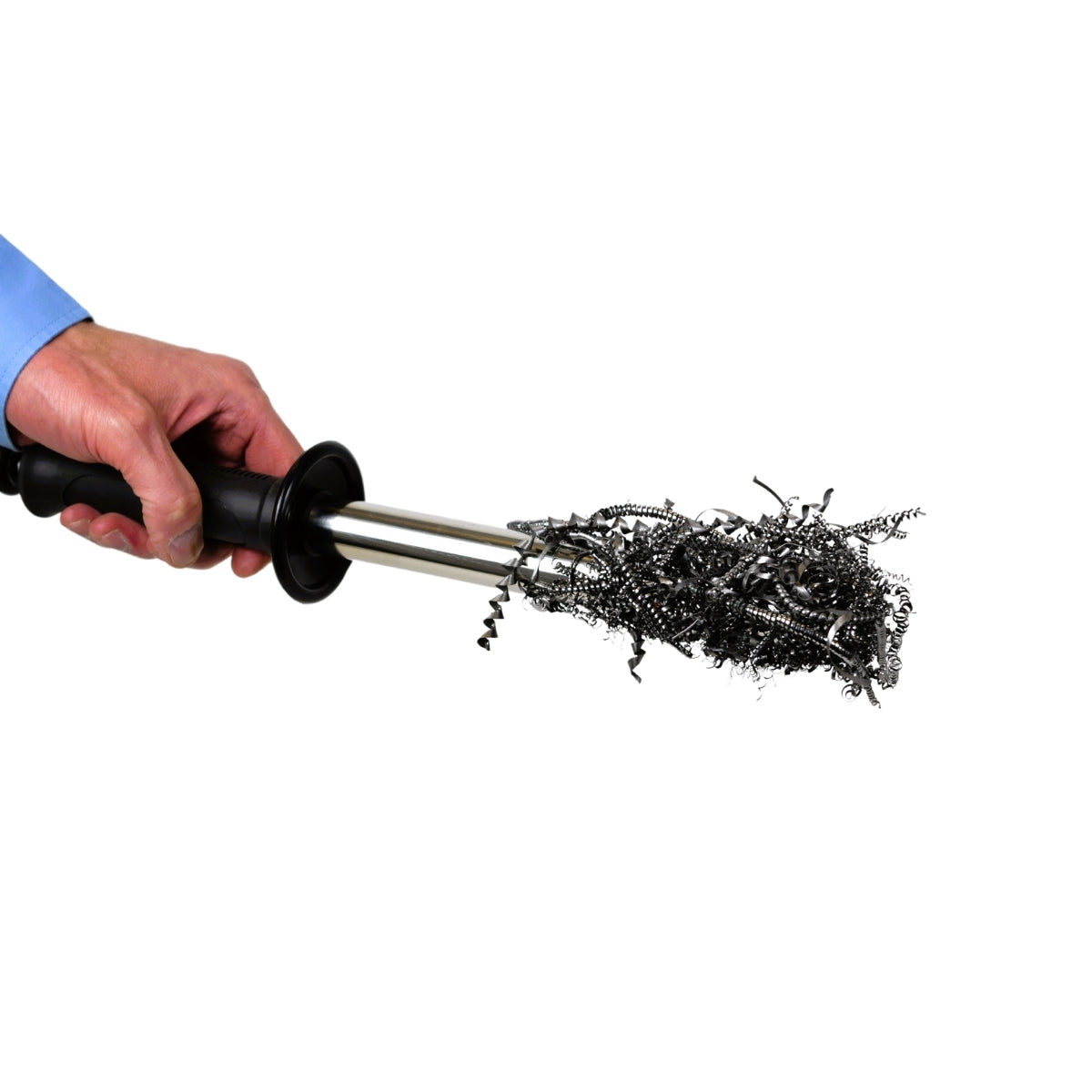

Both models have a 25.4mm diameter and a pull force of 6.35kg. A quick-release cleaning mechanism allows collected material to be discharged without the user needing to handle sharp or contaminated fragments directly.

These wands are suitable for workshops, CNC areas, maintenance environments and production facilities where regular removal of ferrous debris is required.

For additional magnetic recovery and pick-up solutions, explore our wider range of retrieval magnets and magnetic pick-up tools.

Key Features

• Permanent magnetic pick-up wand for collecting ferrous debris
• Available in 395mm and 900mm capture lengths
• 25.4mm diameter across both models
• 6.35kg pull force
• Quick-release mechanism for easier cleaning and disposal
• Suitable for collecting filings, chips, swarf and small ferrous offcuts
• Can be used in suitable fluids and powders
• Long-reach MW900 version for deeper containers and hard-to-access areas
• Suitable for workshop, CNC, maintenance and production environments
