Eclipse Magnetics Switchable Magnetic Bases with Toggle Switch provide a versatile and secure magnetic mounting solution for jigs, fixings, inspection devices, and precision equipment. Designed for easy engagement and release, each base uses a simple toggle switch to activate or deactivate the magnetic hold instantly — allowing quick positioning and safe handling.
The magnetic base is active on three faces, enabling attachment to flat or curved ferrous surfaces for flexible use in workshops, inspection setups, and quality control environments. Despite its compact size, the unit delivers high magnetic holding performance — with pull forces up to 130kg on the E905WF/130 model.
Each base features a female threaded mounting hole compatible with M6, M8, or M10 fittings, depending on model size, providing compatibility with a wide range of tools and fixtures. Engineered for accuracy and reliability, Eclipse Magnetics Switchable Magnetic Bases are the ideal choice for precision alignment, testing, and mounting applications.
Key Features
-
Switchable magnetic system: simple toggle switch enables instant on/off control
-
High holding power: up to 130 kg pull force (E905WF/130 model)
-
Magnetic on three faces: provides flexible mounting on flat or curved ferrous surfaces
-
Compact and versatile: ideal for use with jigs, tools, and inspection or lighting equipment
-
Female threaded hole: compatible with M6, M8, or M10 accessories depending on model
-
Precision design: ensures stability and accuracy for workshop or testing environments
Technical Data
|
Product Number
|
Length (mm)
|
Width
(mm)
|
Height
(mm)
|
Connection thread
|
Overall Weight
(kg)
|
Diameter of clamp hole (mm)
|
|

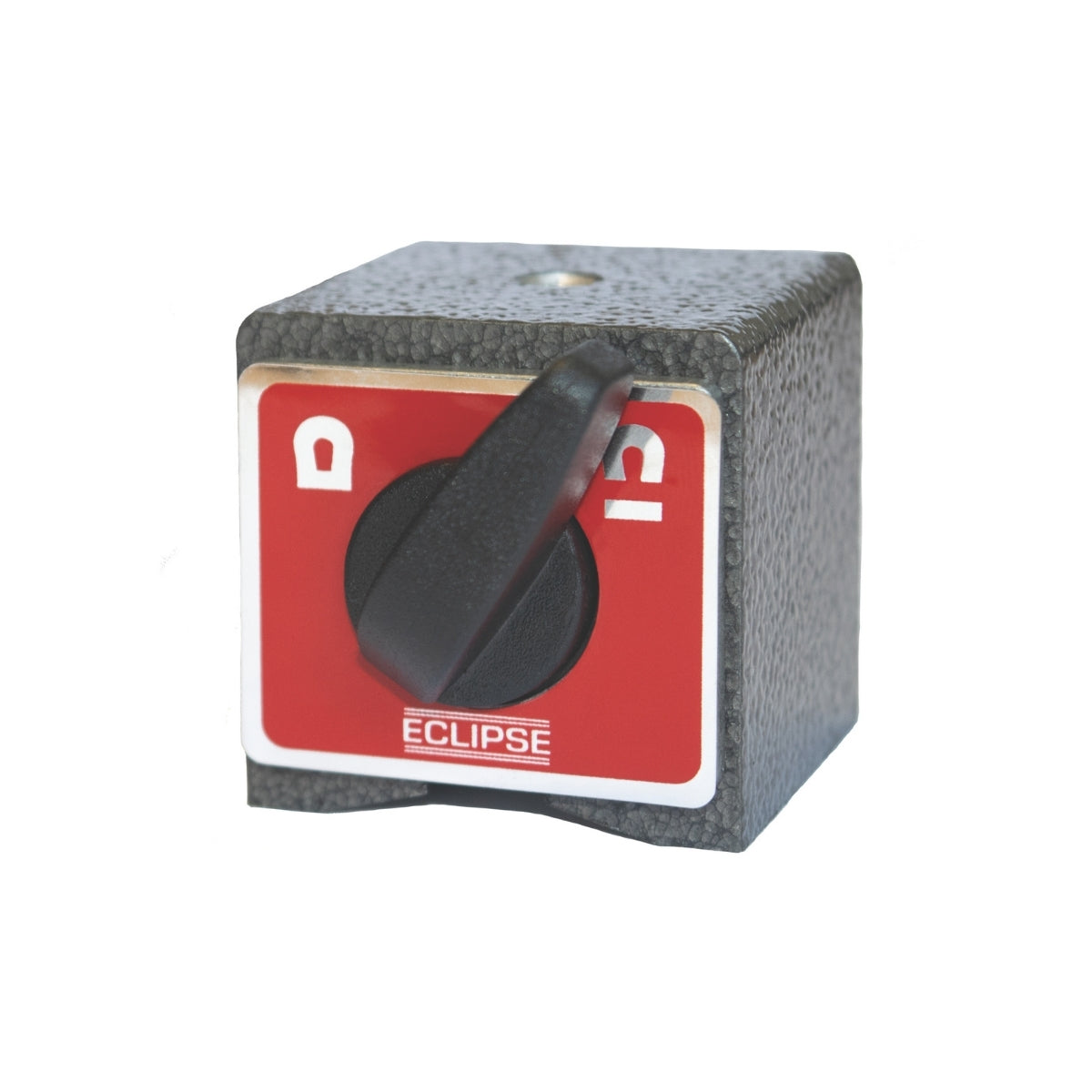

E905WF/50
|
40
|
40
|
40
|
M6
|
0.41
|
50
|
|
E905WF
|
65
|
50
|
55
|
M8
|
0.97
|
80
|
|
E905WF/100
|
75
|
50
|
55
|
M8
|
1.2
|
100
|
|

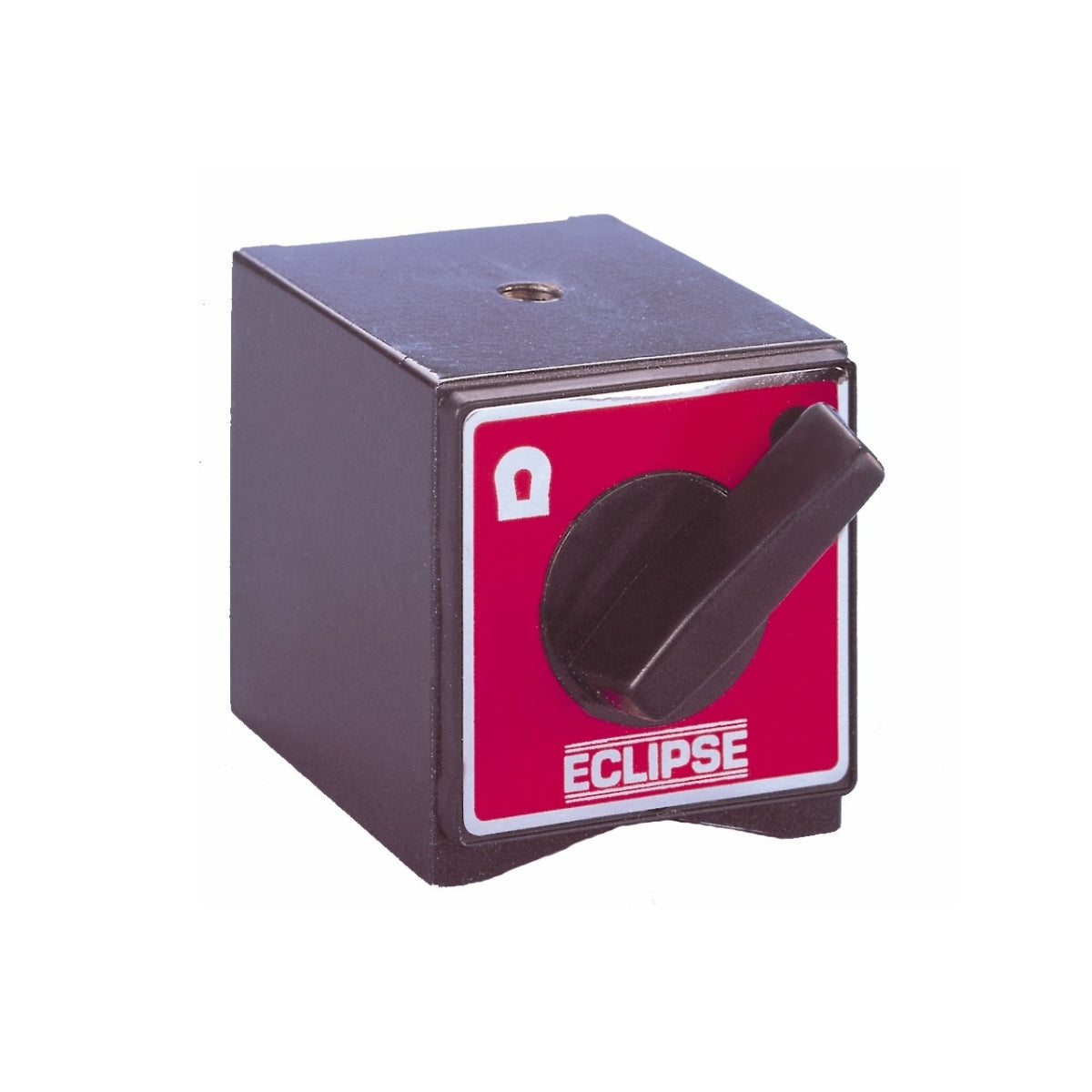

E905WF/130
|
117
|
50
|
55
|
M10
|
1.9
|
130
|
