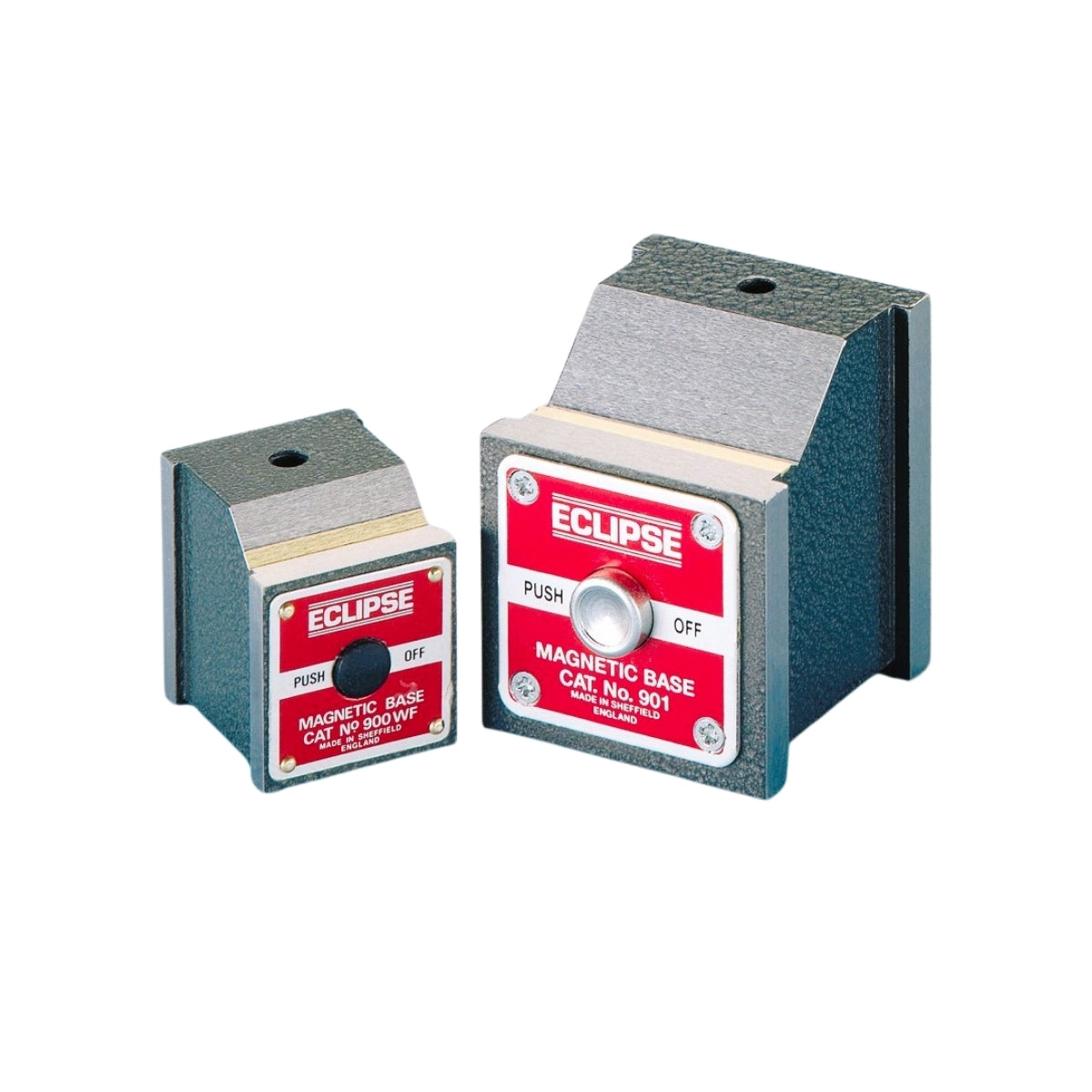

Eclipse Magnetics Switchable Magnetic Bases with Push Button Switch offer a versatile, compact, and reliable mounting solution for jigs, fixings, inspection tools, and precision equipment. Designed for maximum convenience, the push button engage-and-release mechanism allows instant magnetic activation or deactivation, providing fast setup and easy repositioning.
Each base is magnetic on four faces, enabling secure attachment to both flat and curved ferrous surfaces for maximum flexibility in use. Featuring high-intensity Neodymium magnets, this base delivers exceptional holding power — up to 80 kg on the E901WF model — despite its compact footprint.
Ideal for workshops, inspection stations, and quality control environments, these bases provide a rigid, stable platform for mounting tools, lighting, or measurement devices. Each unit includes an M8 female threaded hole, allowing quick connection to compatible accessories and fixtures.
Key Features
-
Push button switching: enables instant on/off magnetic control with a single press
-
High holding force: up to 80 kg pull force (E901WF model)
-
Magnetic on four faces: provides secure holding on multiple surface orientations
-
Compact and durable design: ideal for workshops, inspection, and quality testing applications
-
High-intensity magnets: deliver strong and consistent holding performance
-
M8 female threaded hole: allows easy attachment to compatible jigs, fixtures, and accessories
Technical Data
|
Product Number
|
Length (mm)
|
Width (mm)
|
Height (mm)
|
Connection thread
|
Overall Weight
(kg)
|
Diameter of clamp hole
(mm)
|
|
E900WF
|
48
|
40
|
52
|
M8
|
0.56
|
30
|
|
E901WF
|
64
|
64
|
76
|
M8
|
1.7
|
80
|
