Eclipse Magnetics Switchable Magnetic Base with Mechanical Fitment Arm provides a secure, precise, and adjustable mounting solution for measuring instruments, inspection tools, and precision components. This robust assembly combines a powerful switchable magnetic base with a multi-positional mechanical fitment arm, allowing users to position and lock components with exceptional accuracy and stability.
Available in two models with 50 kg or 130 kg pull force, the magnetic base offers dependable holding strength on both flat and curved ferrous surfaces. The toggle switch mechanism provides instant magnetic engagement or release for quick setup and repositioning.
The unit also includes an M6 or M10 thread connection (model dependent), allowing the fitment arm to be detached or replaced with alternative accessories. Designed for durability and precision, the Eclipse Magnetics Magnetic Base with Mechanical Fitment Arm is ideal for inspection stations, workshops, and quality control environments where reliable alignment and adjustability are essential.
Key Features
-
Integrated mechanical fitment arm: provides multi-positional adjustment for precise tool alignment
-
Switchable magnetic base: easy on/off control using a toggle switch
-
High holding force: 50 kg or 130 kg pull strength depending on model
-
Versatile mounting: attaches securely to flat or curved ferrous surfaces
-
Threaded connection: M6 / M10 (model dependent) for easy accessory interchange
-
Adjustable arm extension: up to 162 mm for flexible positioning
-
Durable and stable design: ideal for measuring, inspection, and workshop use
Technical Data
|
Product Number
|
Max. fitment extension (mm)
|
Connection size
|
Overall Weight
(kg)
|
Base Pull Force
(kg)
|
Diameter of fitment cmap hole
(mm)
|
|

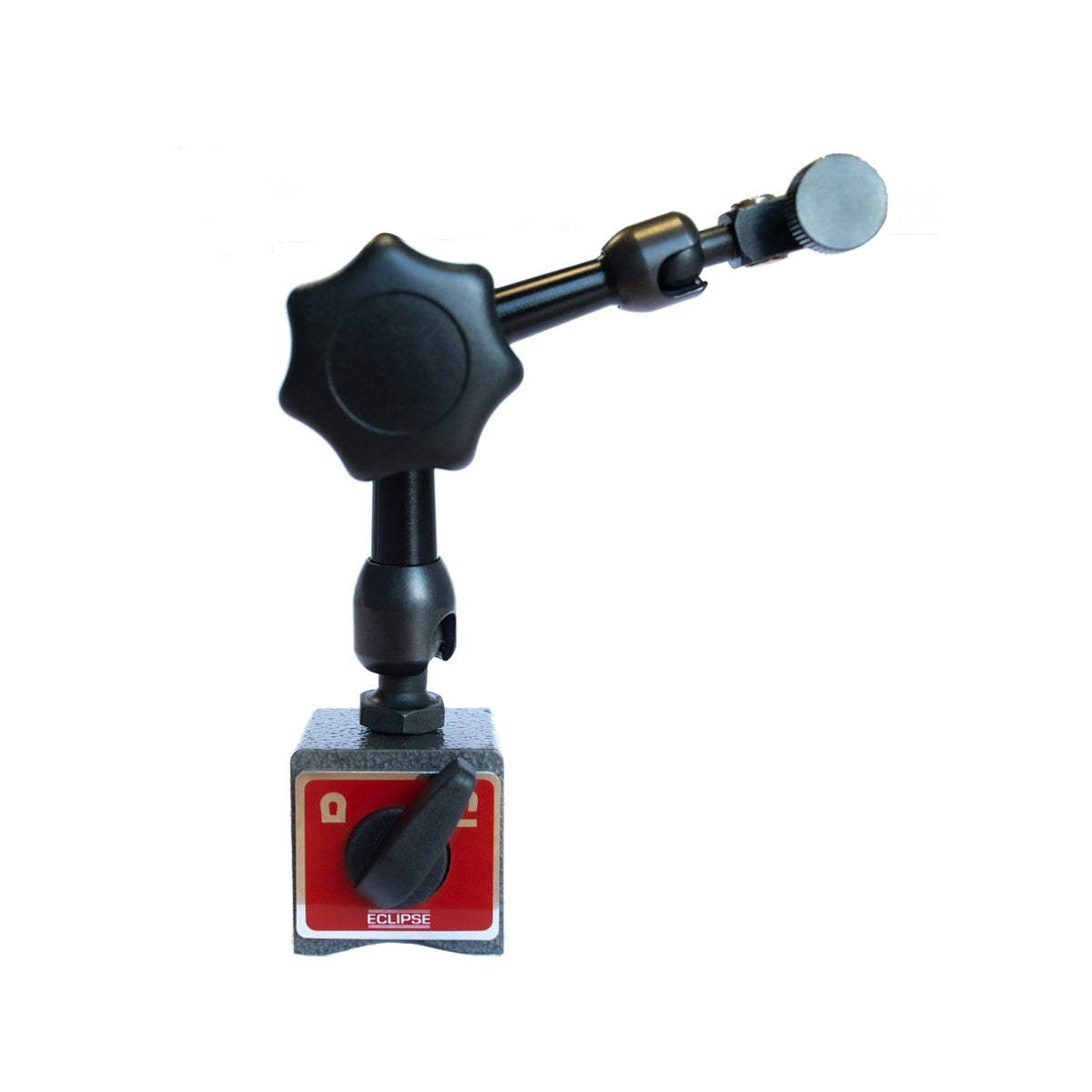

E910S
|
162
|
M6
|
0.69
|
50
|
6.0/8.0 Dovetail with sleeve
|
|

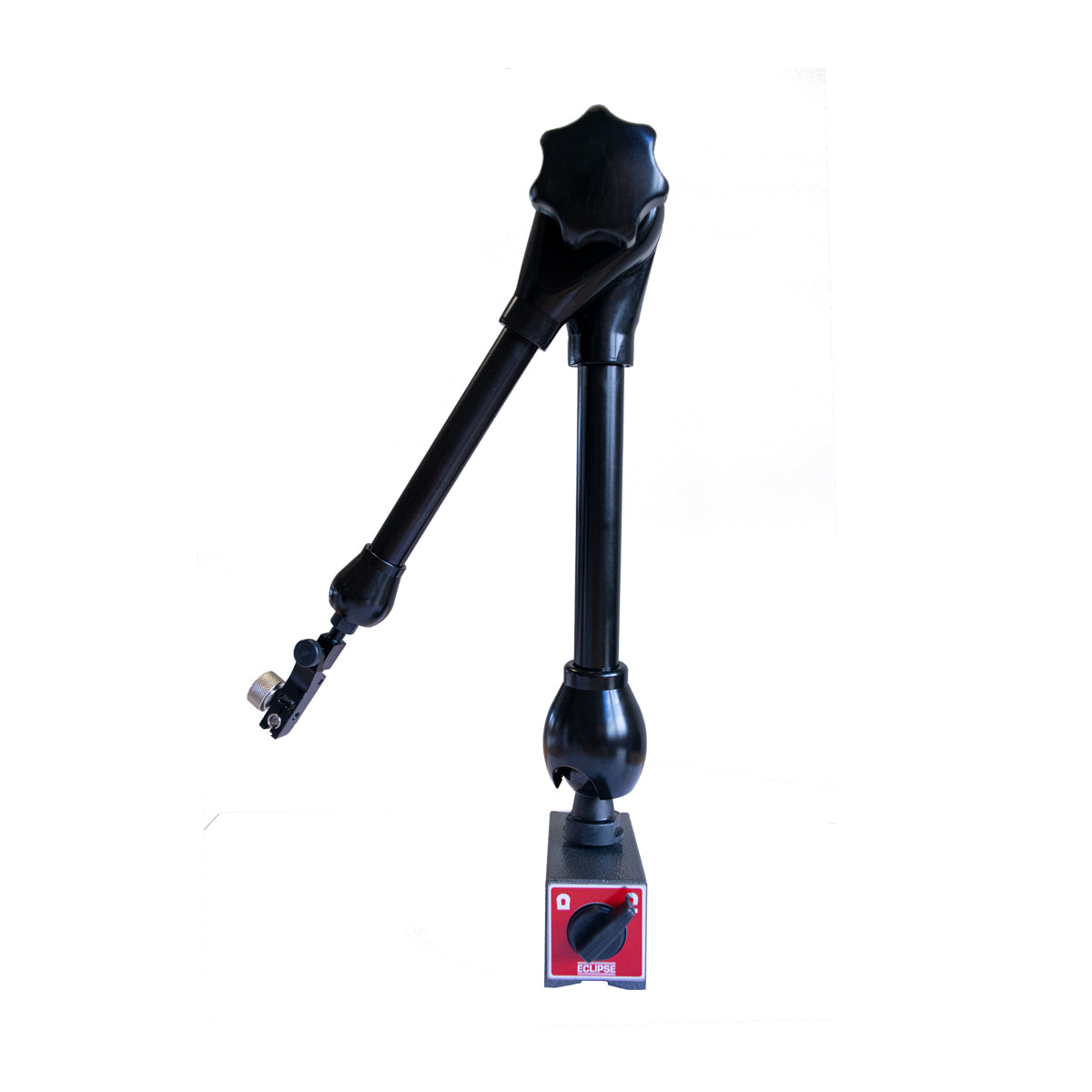

E910L
|
650
|
M10
|
1.34
|
130
|
6.0/8.0 Dovetail with sleeve
|
