Eclipse Magnetics Heavy-Duty Switchable Magnetic Base Assembly with Fine Adjustment offers a robust, precise, and versatile mounting solution for measuring instruments, lighting systems, and other ancillary equipment. This assembly combines a powerful switchable magnetic base with an adjustable, heavy-duty fitment arm, delivering exceptional stability and accuracy for workshop and inspection use.
The magnetic base provides an 80 kg holding force, ensuring secure attachment to flat or curved ferrous surfaces, while the fine adjustment crossbar enables precise alignment for measurement or positioning tasks. Operation is simple and efficient via either a push-button or toggle on/off switch, allowing instant magnetic control for quick setup or repositioning.
The fitment arm connects via an M8 threaded joint, allowing easy attachment or removal as needed. Designed for durability, precision, and ease of use, the Eclipse Magnetics Heavy-Duty Magnetic Base Assembly is an essential tool for inspection stations, workshops, and precision engineering applications.
Key Features
-
Switchable magnetic base: 80 kg holding force for secure and reliable attachment
-
Heavy-duty adjustable fitment arm: provides precise positioning and stability
-
Fine adjustment crossbar: ideal for precision measuring and alignment tasks
-
Instant magnetic control: operated by either a push-button or toggle switch
-
Threaded M8 connection: allows quick attachment or detachment of the fitment arm
-
Compatible with ancillary tools: perfect for lighting, gauges, and measuring devices
-
Durable construction: built for long-term use in workshop and inspection environments
Technical Data
|
Product Number
|
Pillar Height (mm)
|
Crossbar Length (mm)
|
On / Off Switch Type
|
Connection
(kg)
|
Base Pull Force (kg)
|
Overall Weight (kg)
|
Diameter of fitment cmap hole (mm)
|
|

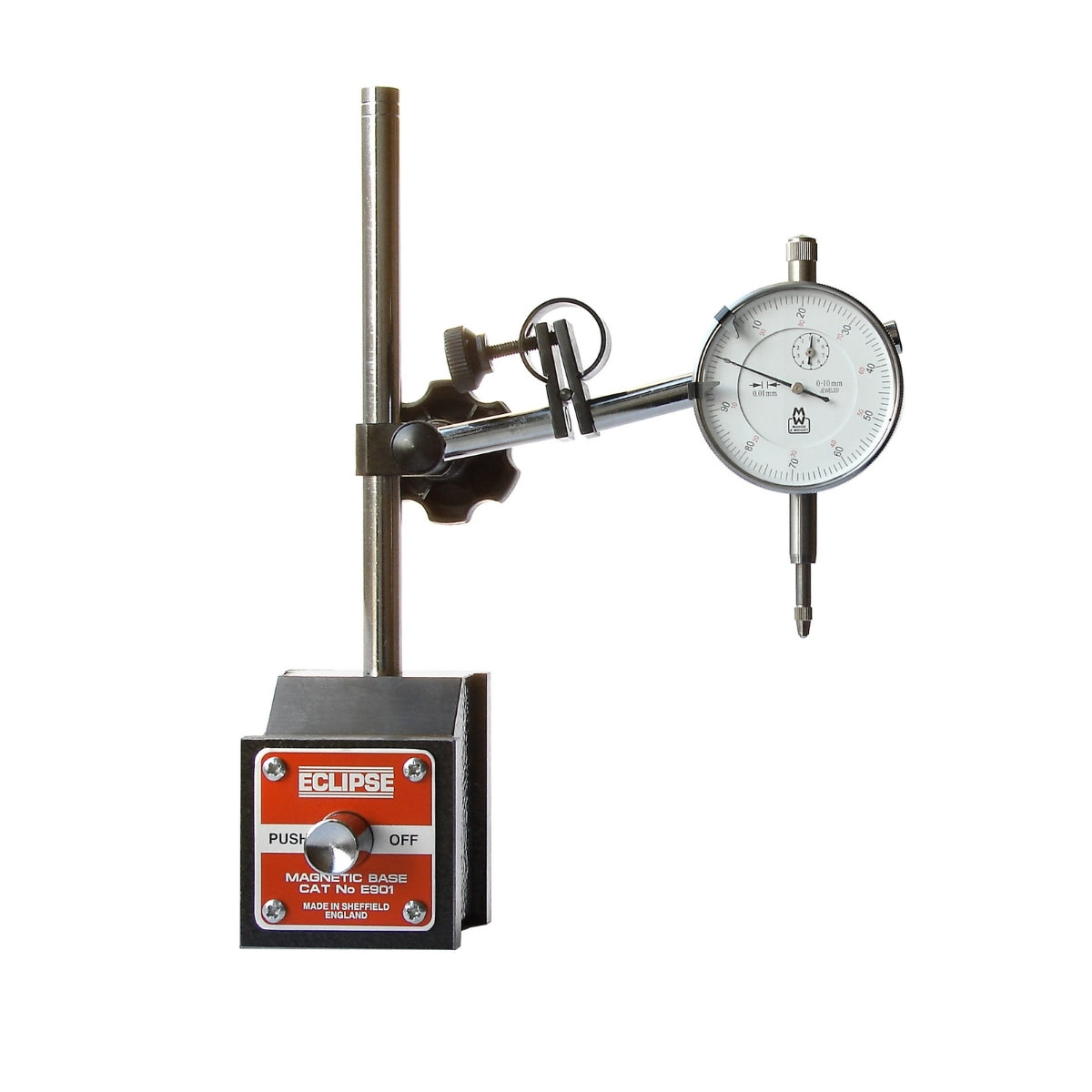

E901
|
175
|
165
|
Push button
|
M8
|
80
|
2.24
|
4.5/8.0 (with sleeve)
|
|

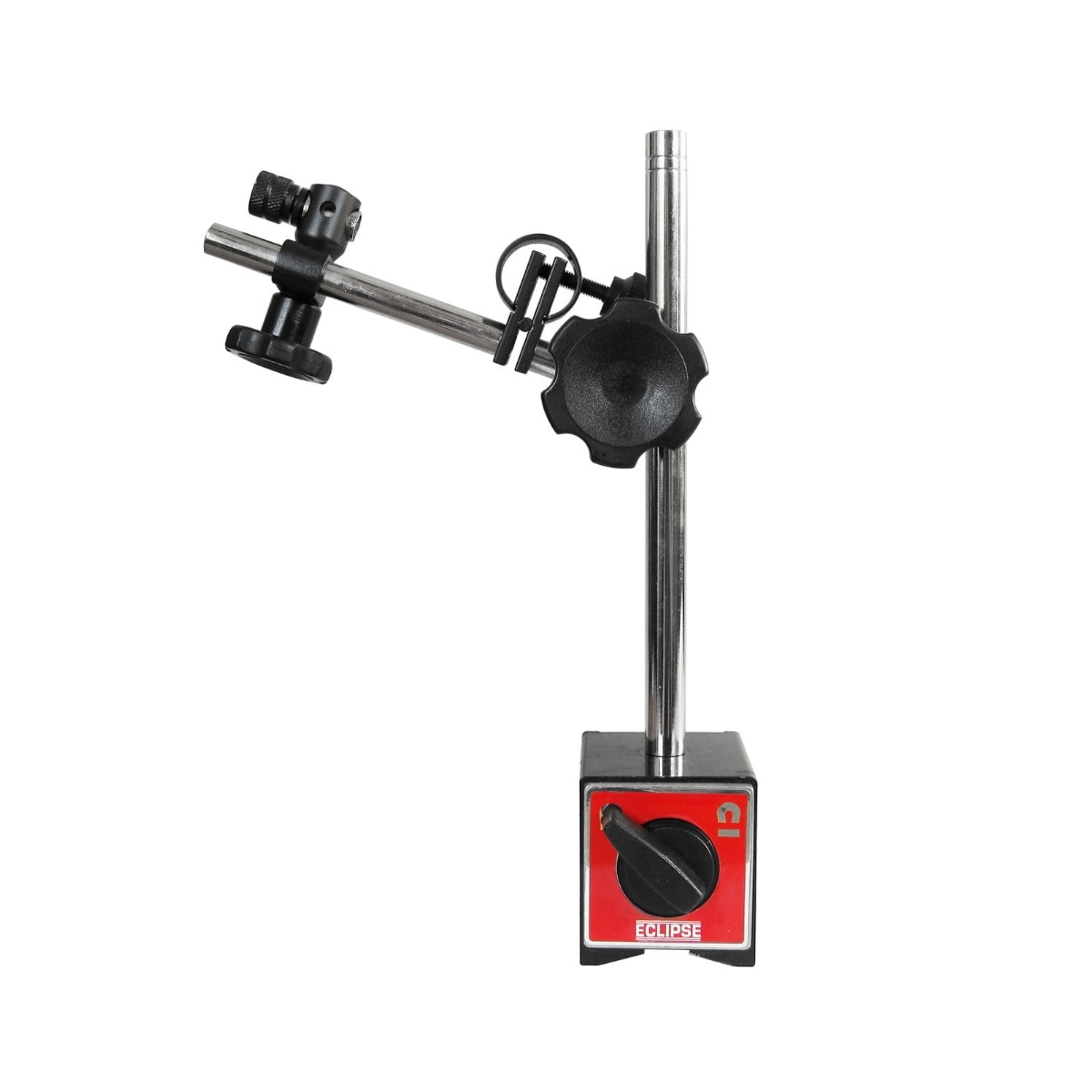

E906
|
175
|
165
|
Toggle switch
|
M8
|
80
|
1.5
|
4.5/8.0 (with sleeve)
|
