Switchable Magnetic Base with Multi-Positional Fitment Arm | 30kg & 80kg Pull Force

Eclipse Magnetics Switchable Magnetic Base Assemblies with Multi-Positional Fitment Arm provide a secure and adjustable mounting solution for measuring instruments, lighting systems and other compatible workshop accessories.

Each assembly combines a switchable magnetic base with an adjustable fitment arm, allowing equipment to be positioned securely on suitable flat or curved ferrous surfaces. The magnetic base can be switched on or off for quick setup, release and repositioning.

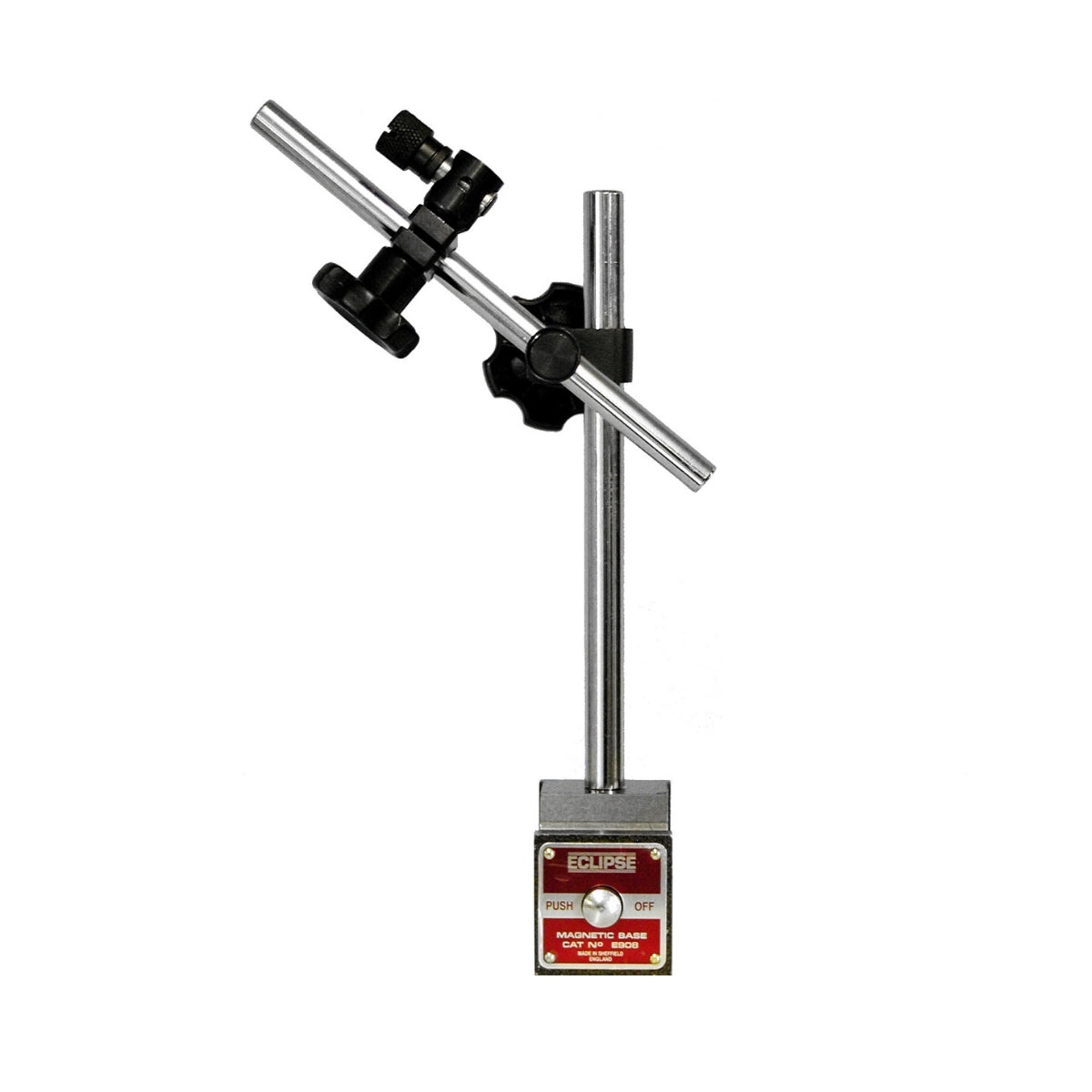

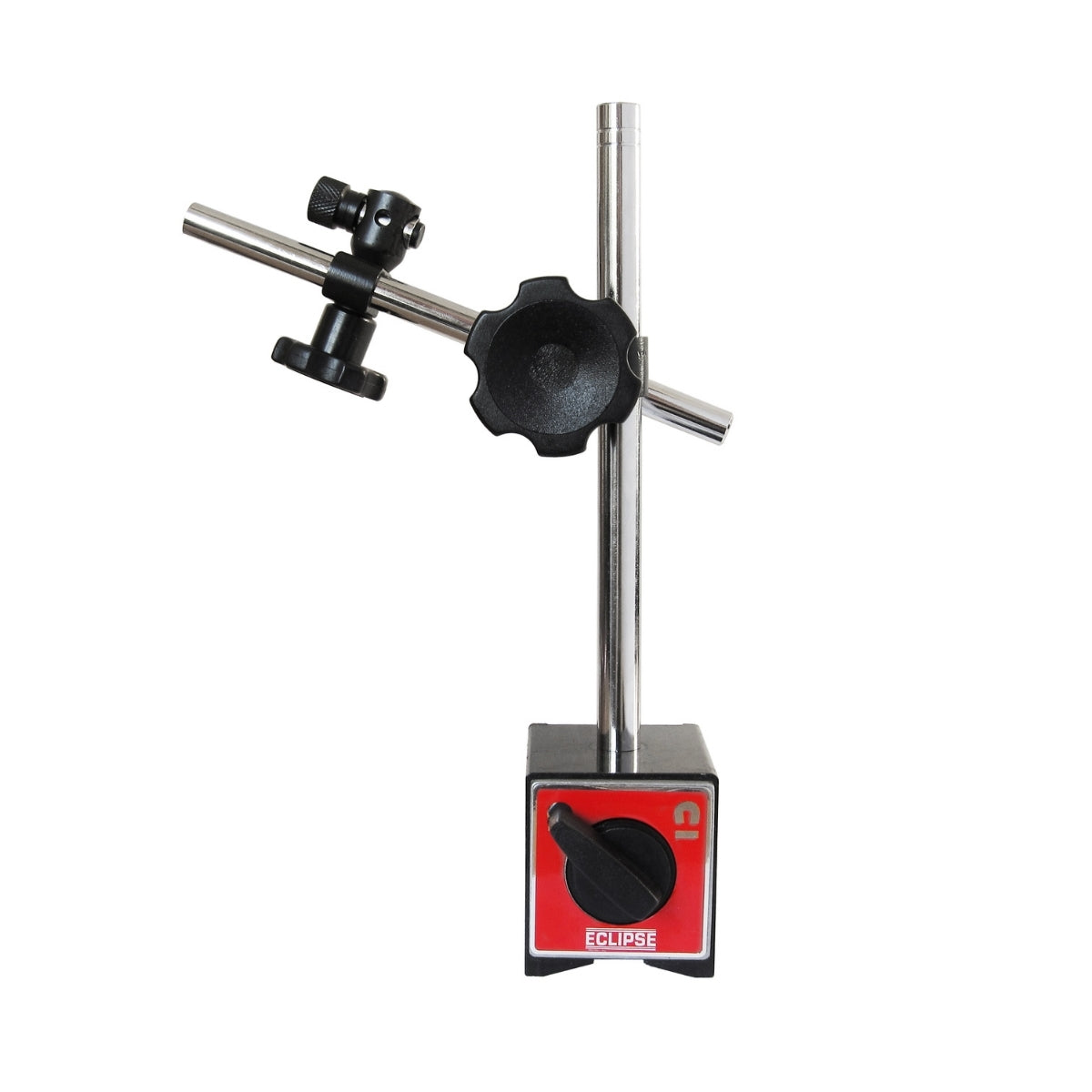

Two versions are available: the E908M with a 30kg pull force base and the E905 with an 80kg pull force base. Both use a 175mm pillar, 165mm crossbar and M8 threaded connection.

The fitment arm includes a fine-adjustment crossbar to support accurate positioning in inspection, measurement and alignment applications. A 4.5mm fitment clamp hole is provided, increasing to 8mm when used with the supplied sleeve arrangement.

These assemblies are well suited to engineering workshops, inspection areas and measurement setups where a stable but repositionable mounting point is required.

Key Features

• Switchable magnetic base for quick attachment and release
• Available with 30kg or 80kg base pull force
• Multi-positional fitment arm for adjustable component placement
• Fine-adjustment crossbar for accurate alignment
• 175mm pillar height across both models
• 165mm crossbar length across both models
• M8 threaded connection between base and fitment arm
• Suitable for mounting measuring instruments, lights and compatible workshop accessories
• Can be used on suitable flat or curved ferrous surfaces
• Designed for workshop, inspection and measurement applications
