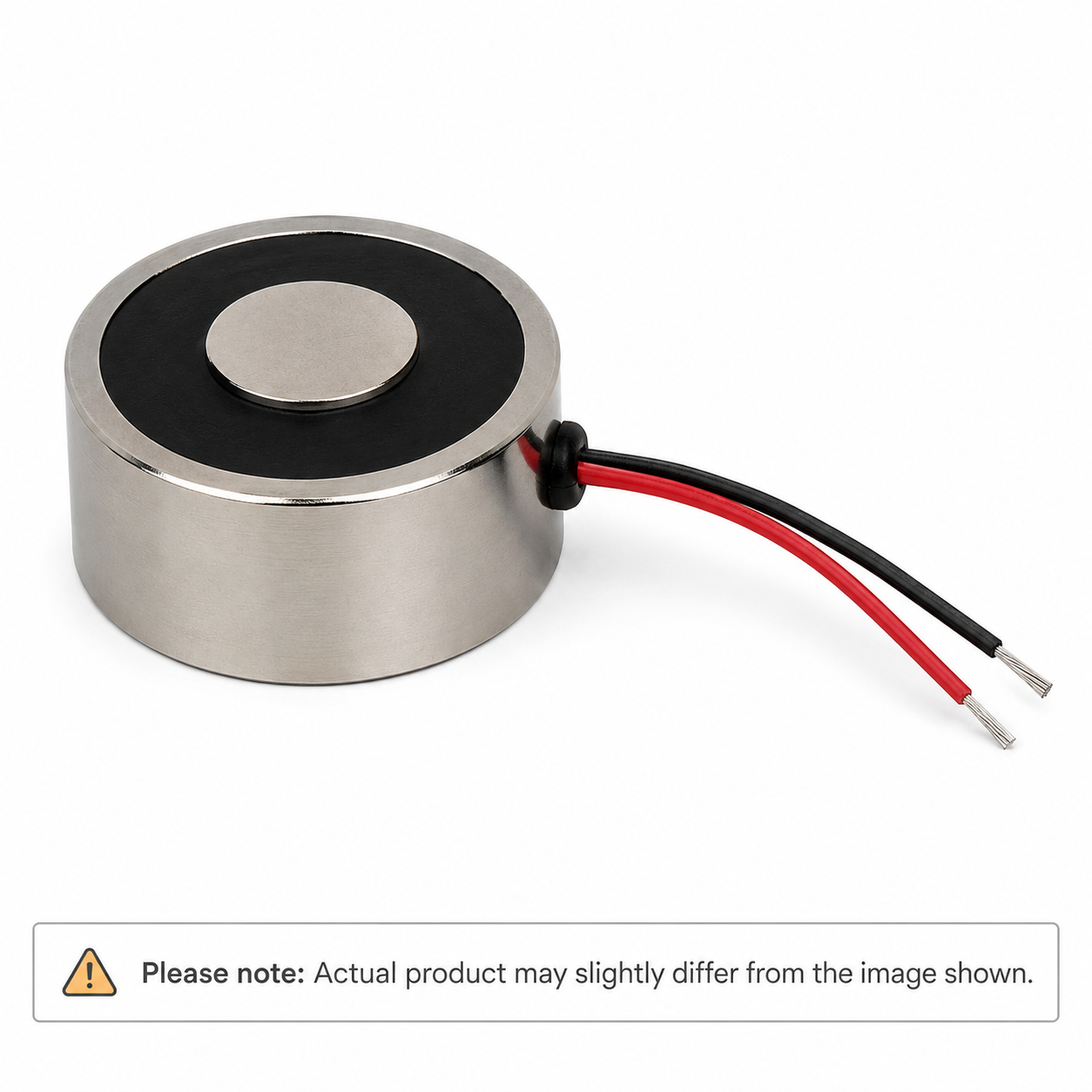

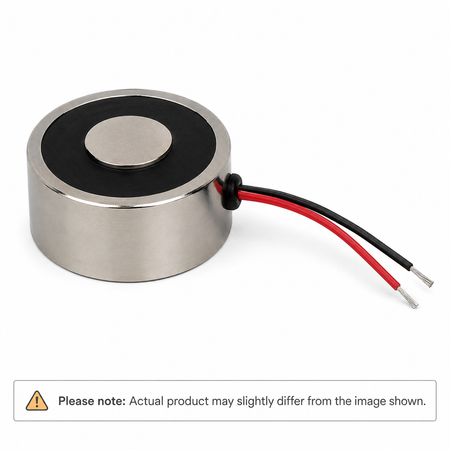

The Eclipse Magnetics Holding Electro Magnet is a high-performance energise-to-hold electromagnet designed for applications requiring reliable, electrically controlled magnetic holding. Operating on 24VDC, the magnet provides a secure holding force while energised and releases instantly when power is removed.
Manufactured with a durable stainless steel pot, this electromagnet offers excellent corrosion resistance, making it suitable for industrial environments where reliability and long service life are essential. The compact 65mm diameter design makes it ideal for automation systems, machinery, handling equipment, access control and production line applications.
Supplied complete with 75mm PTFE insulated flying leads with 5mm stripped and tinned wire ends, installation is quick and straightforward, providing dependable electrical connections in demanding environments.
| Product Code | M52176/24VDC/FL/SS |
| Operation | Energise to Hold |
| Diameter | 65 mm |
| Holding Force | 145.0 kg |
| Voltage | 24 VDC |
| Current | 340 mA |
| Conductor Length | 75 mm |
| Lead Termination | 5 mm Stripped & Tinned |
| Insulation Material | PTFE |
| Housing Material | Stainless Steel Pot |
