Eclipse Magnetics Ferrite Shallow Pot Magnets with Mounting Hole are practical and economical magnetic assemblies designed for a wide range of general-purpose holding and mounting applications. Each magnet features a disc-shaped ferrite core encased within a mild steel shallow pot, which focuses the magnetic field onto the working face to deliver improved holding strength and surface contact efficiency.
The defining feature of this design is the pre-drilled central mounting hole, allowing the magnet to be easily fixed onto non-magnetic surfaces such as wood, plastic, or aluminium using screws or bolts. This provides a secure and reliable mounting method, ideal for situations where magnetic attraction alone is not sufficient to keep the magnet in place.
Durable, corrosion-resistant, and capable of operating at temperatures up to 120°C, Eclipse Magnetics Ferrite Shallow Pots with Mounting Hole are ideal for use in workshops, warehouses, retail environments, and DIY projects — offering a dependable and cost-effective magnetic solution for everyday applications.
Key Features
-
Pre-drilled mounting hole: allows easy and secure fixing with screws or bolts
-
Ferrite magnet core: delivers strong and consistent magnetic performance
-
Low-profile design: suitable for space-limited installations
-
High temperature resistance: operates reliably up to 120°C
-
Naturally corrosion-resistant: suitable for damp or semi-outdoor environments
-
Cost-effective construction: ideal for general-purpose holding and positioning tasks
-
Steel pot casing: directs and concentrates the magnetic field for improved holding power
Technical Data
|
Product Number
|
Diameter
(mm)
|
Thickness
(mm)
|
Hole In Body (mm)
|
Hole in Magnet (mm)
|
Weight (Kg)
|
Pull Force (Kg)
|
|

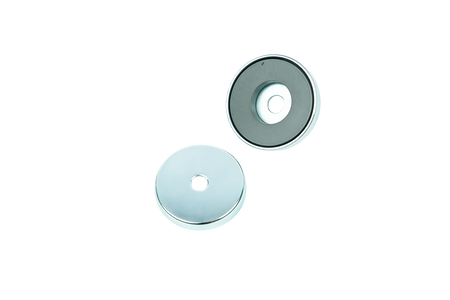

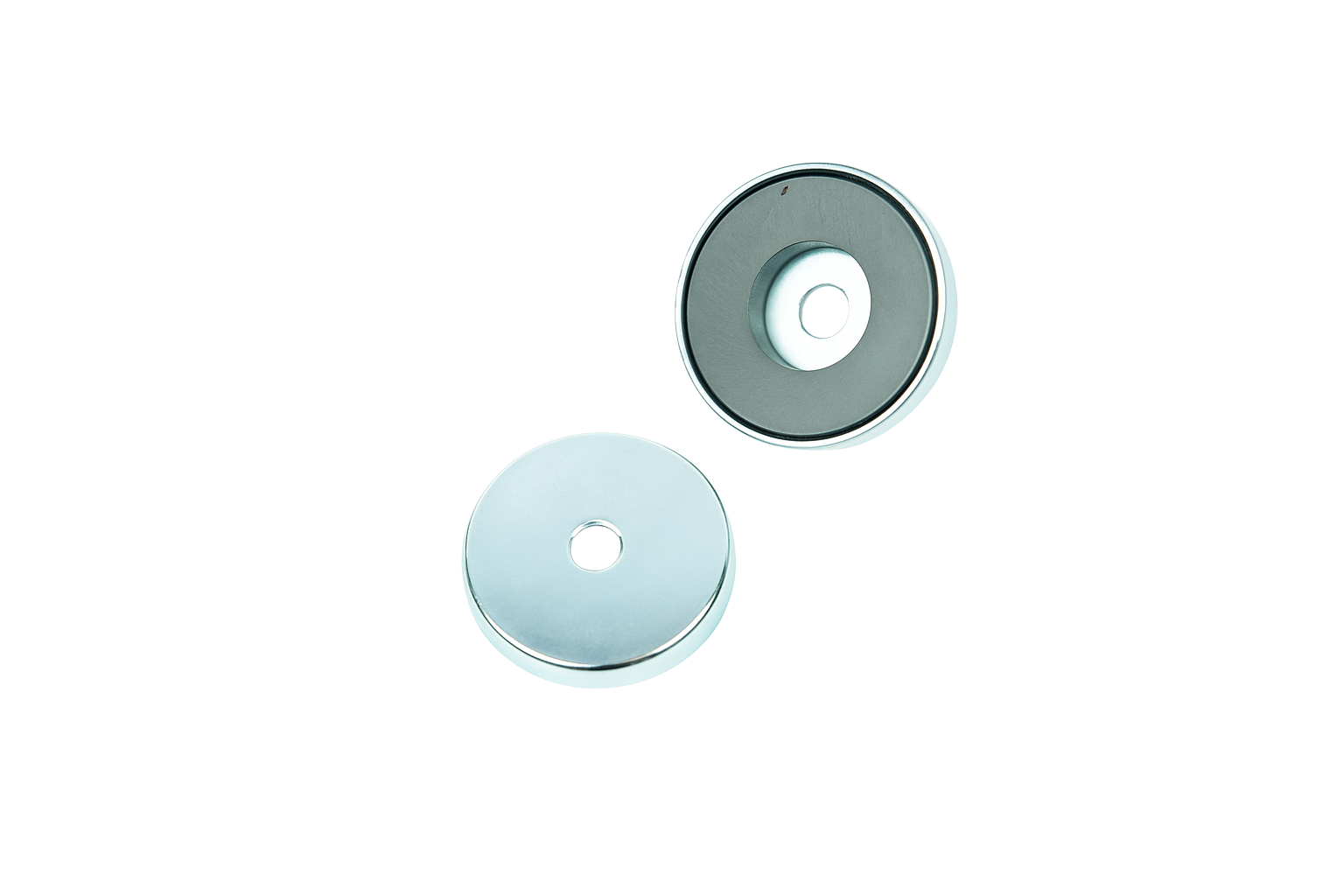

E888
|
50
|
10
|
8.5
|
22
|
0.009
|
18
|
|

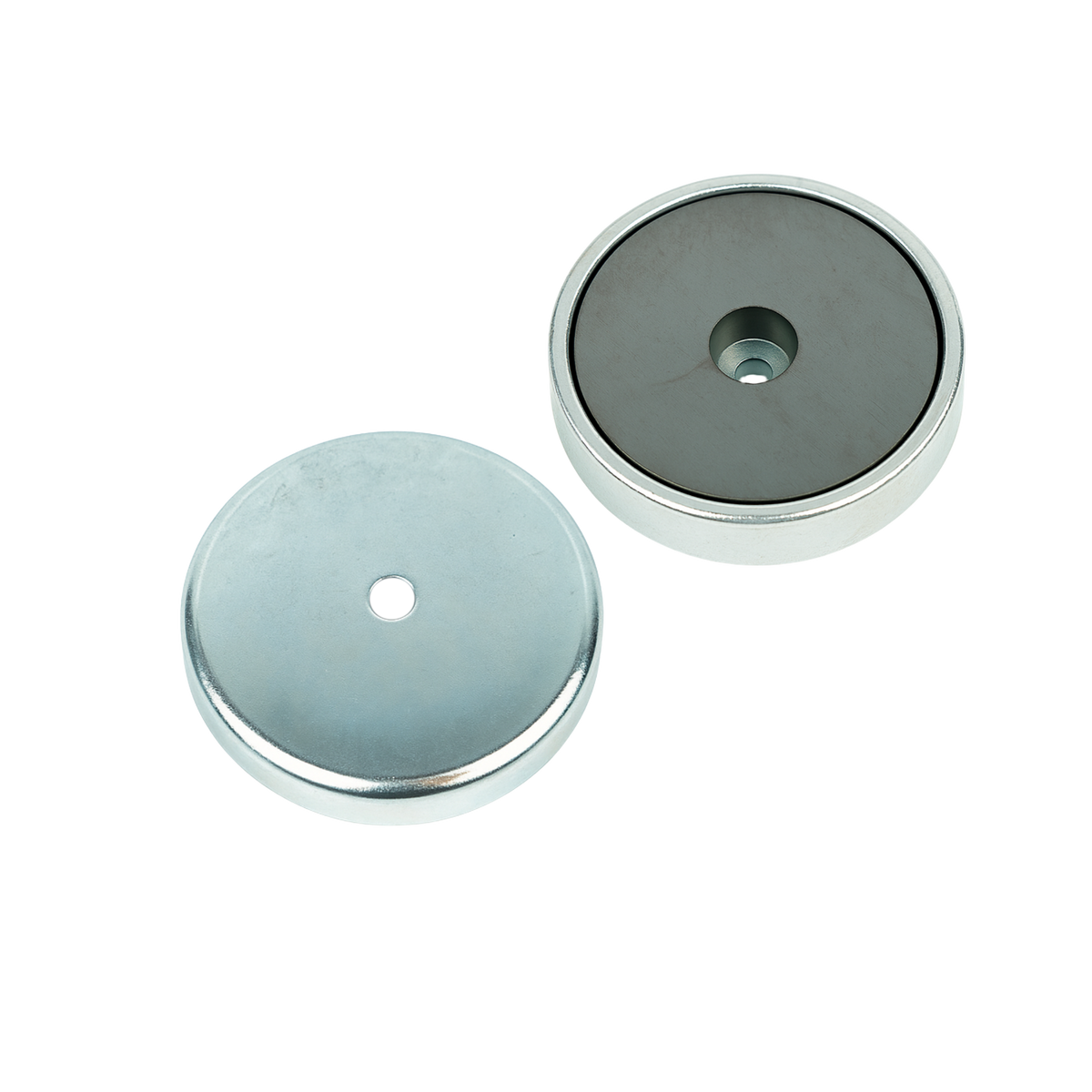

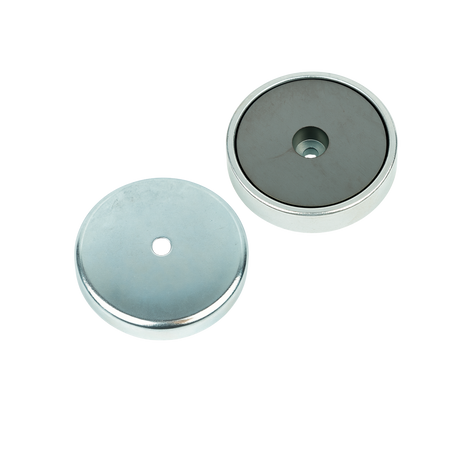

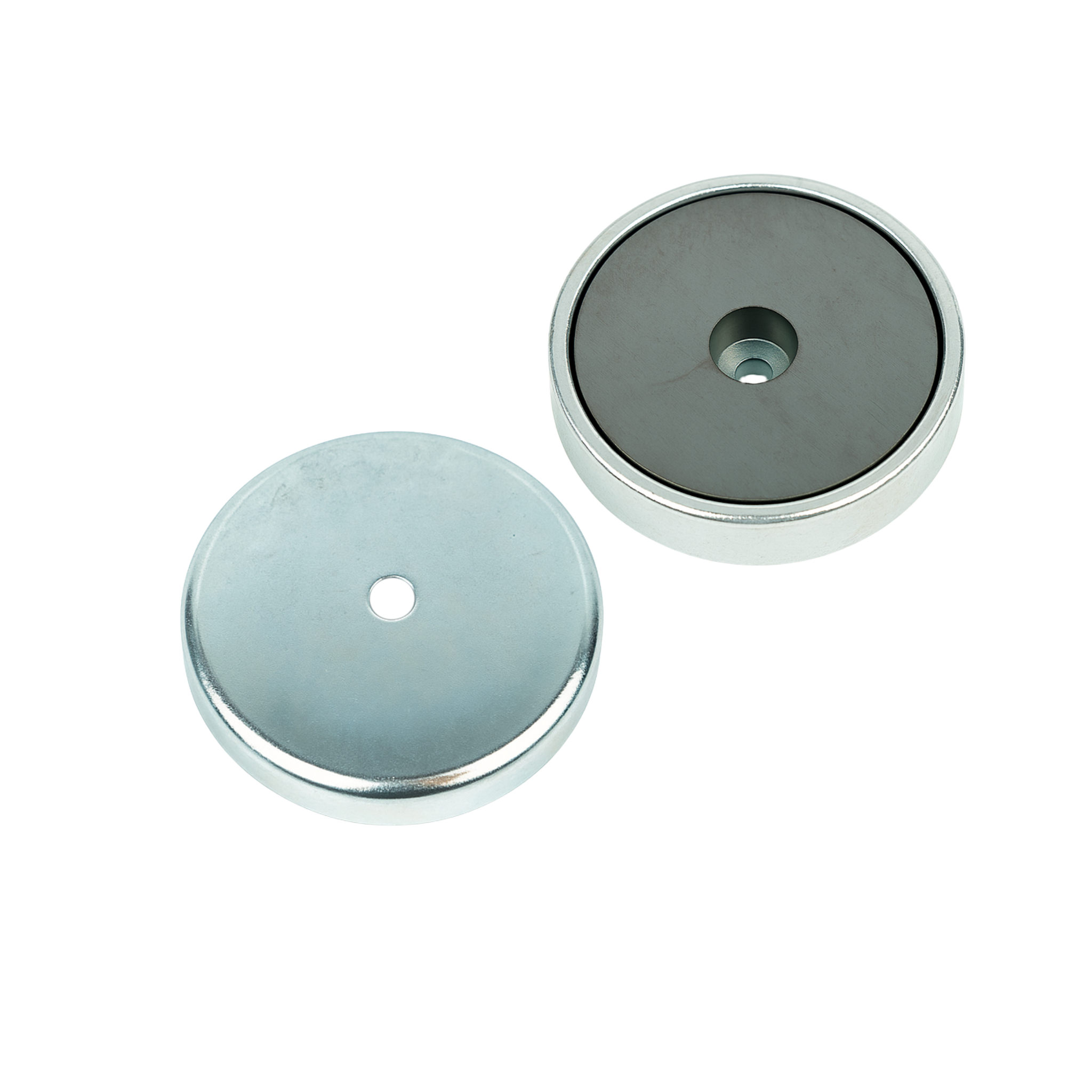

E889
|
80
|
18
|
6.5
|
16
|
0.480
|
54
|
