Eclipse Magnetics Ltd

Ferrite Shallow Pots with Male Thread

Sale Sold out
Regular price £2.10 GBP
Regular price Sale price £2.10 GBP
Shipping calculated at checkout.
Size

Description

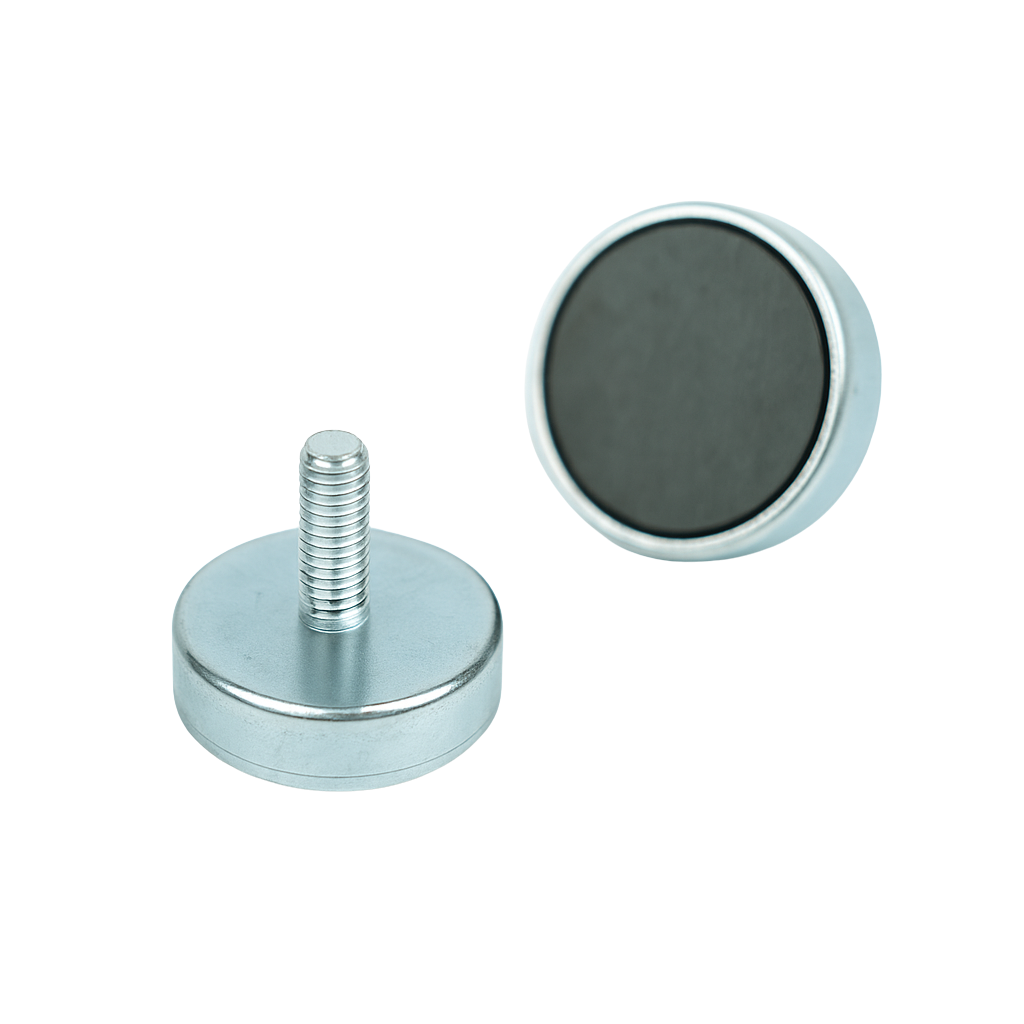

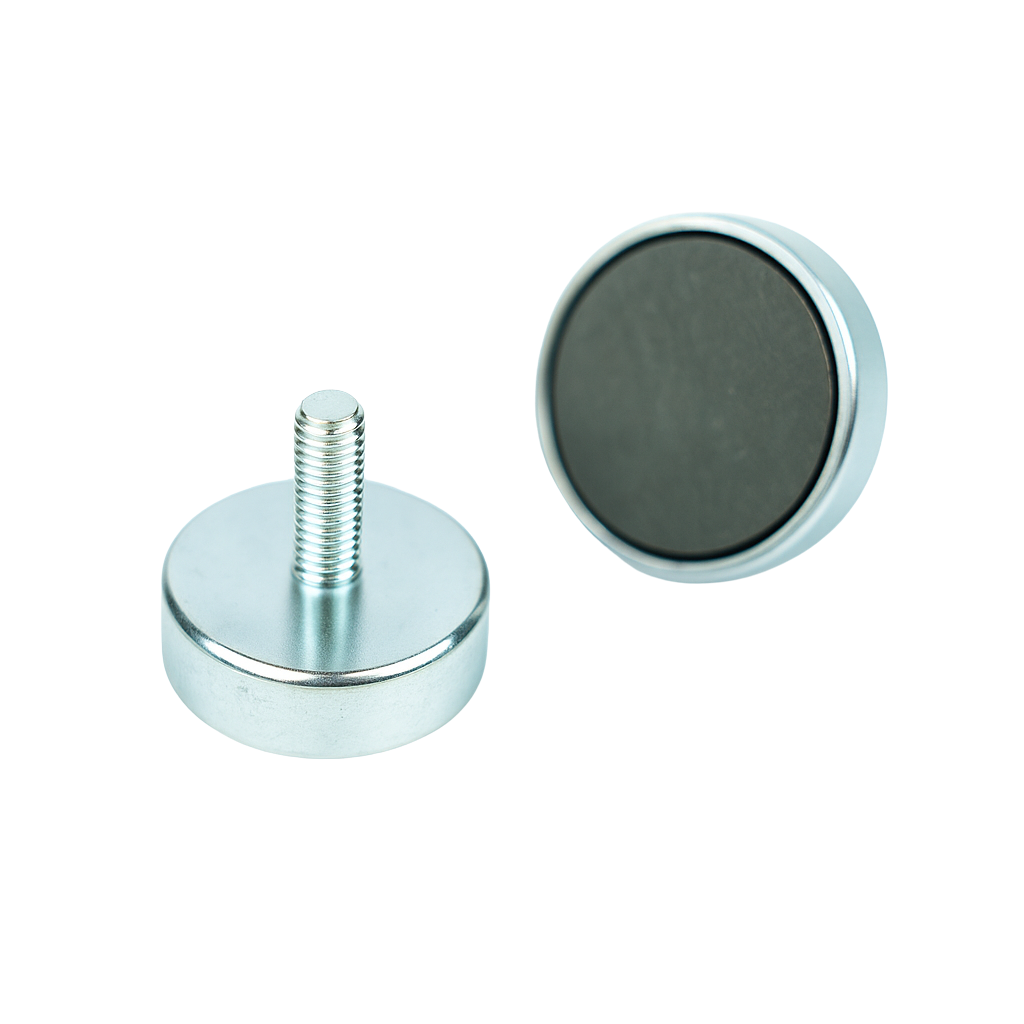

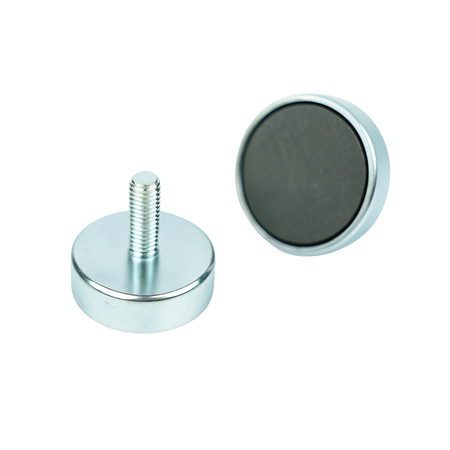

Our Ferrite Shallow Pots with Male Thread are magnetic assemblies designed for quick and secure mounting where a threaded connection is required. These magnets feature a ferrite magnetic core housed in a shallow steel pot, with a protruding M5 male thread at the centre. This threaded stud allows the magnet to be easily screwed into brackets, fixtures, or custom setups, making them ideal for modular applications.

The ferrite magnet provides a dependable holding force suitable for light to medium duty tasks and performs well in environments with higher temperatures (up to 120°C). The steel pot casing enhances magnetic strength on the working face while protecting the brittle ceramic magnet from damage.

Typical Applications

  • Mounting signage or fixtures to brackets or panels using threaded inserts
  • Temporary holding tools or jigs in metalworking and fabrication setups
  • Modular retail displays that need easy magnetic attachment and removal
  • Industrial sensors or components mounted onto machines via threaded connection
  • DIY projects where magnets are fixed into threaded holes or plates for repeatable use

Key Features

  • Protruding M5 male thread for easy and secure screw-in mounting
  • Ferrite magnetic core provides stable, economical holding power
  • Shallow pot design keeps profile low for compact installations
  • High operating temperature - operates reliably up to 120°C
  • Corrosion-resistant material suitable for indoor and semi-outdoor environments
  • Steel casing enhances holding force on the contact surface while protecting the magnet

Technical Data

Product Number

Diameter#

(mm)

Thickness

(mm)

Hole Size (mm)

Thread

Weight (Kg)

Pull Force (Kg)

E720

22

7

17

M5

0.020

3.5

E723

32

7

22

M5

0.032

8.0



Learn More About Ferrite Shallow Pots with Male Thread

Our Ferrite Shallow Pots with Male Thread are designed to offer a simple yet effective magnetic holding solution where a threaded attachment is required. The integrated male thread makes installation fast and secure, allowing the magnet to be screwed directly into brackets, panels, or threaded holes - perfect for setups that need reliable positioning without the use of adhesives or external clamps.

At the core is a ferrite magnet, which is known for its cost-effectiveness, durability, and resistance to high temperatures up to 120°C. While ferrite does not offer the same high pull force as neodymium, it performs reliably in non-critical holding applications and can withstand corrosive or damp conditions without the need for additional coatings.

The steel casing enhances the magnetic field and protects the ferrite disc from damage, making this magnet assembly suitable repeated use in both static and dynamic environments.

Whether you're working on industrial fixtures, modular display systems, or workshop jigs, these magnets provide a practical, threaded magnetic solution that's easy to install, robust, and built to last.
