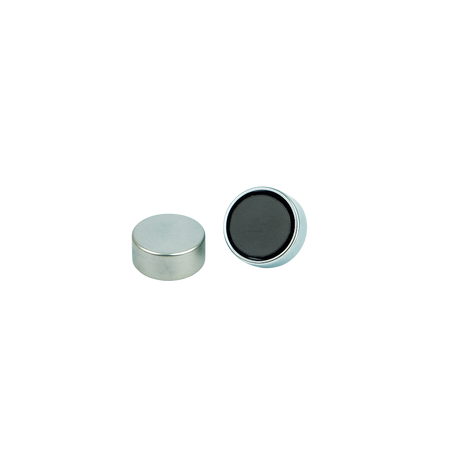

Ferrite Shallow Pots
Ferrite Shallow Pots
Couldn't load pickup availability
Description

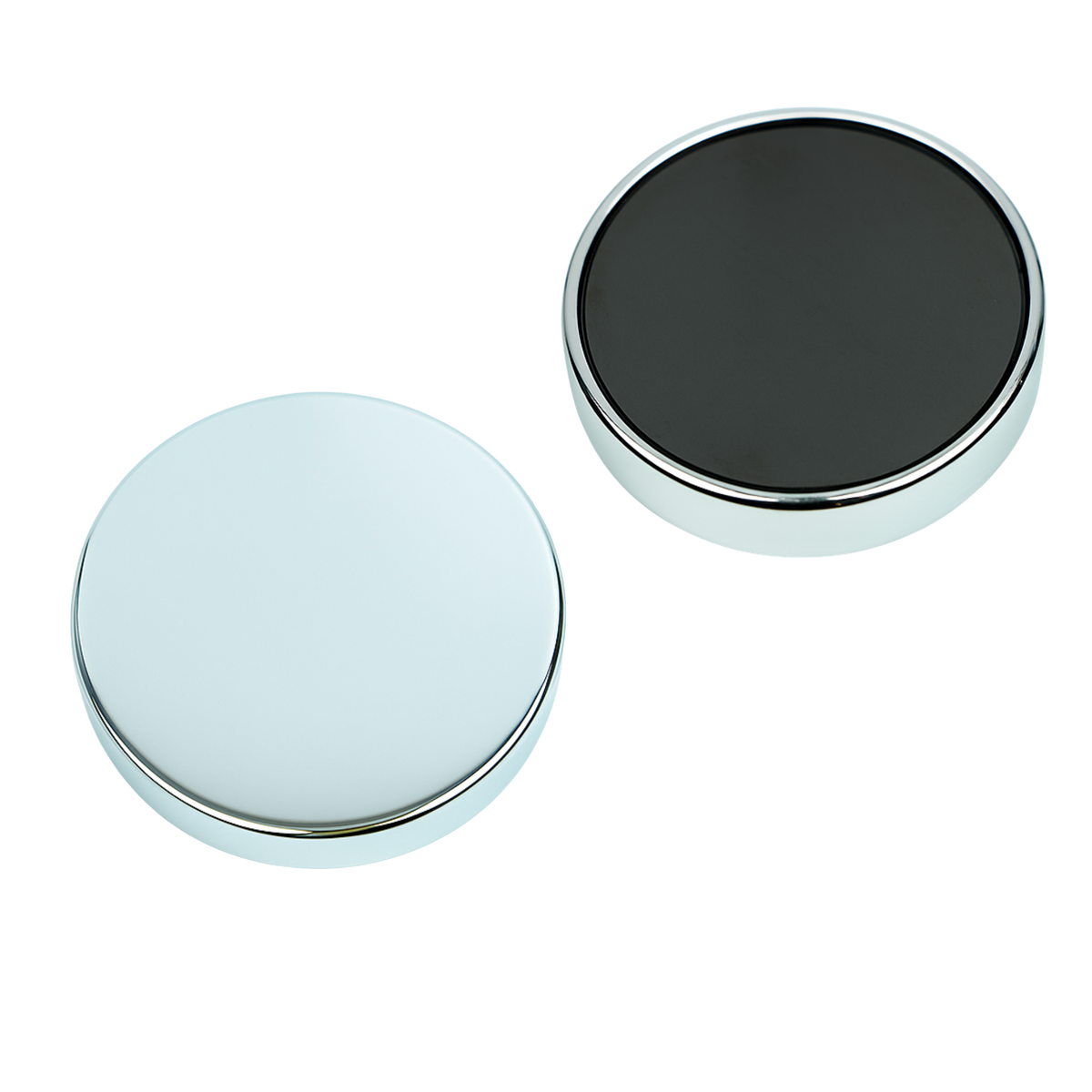

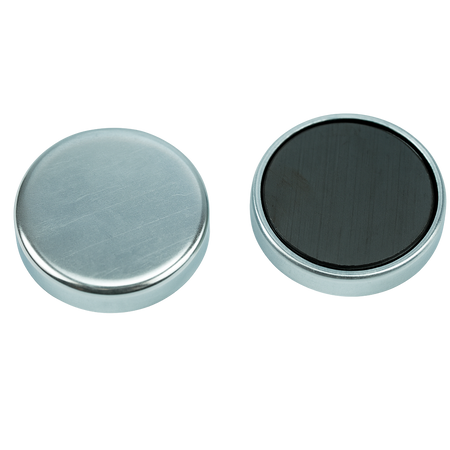

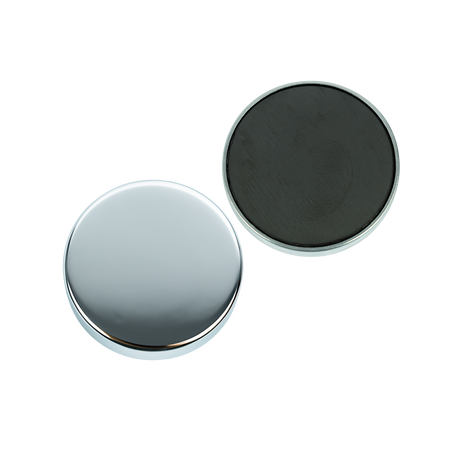

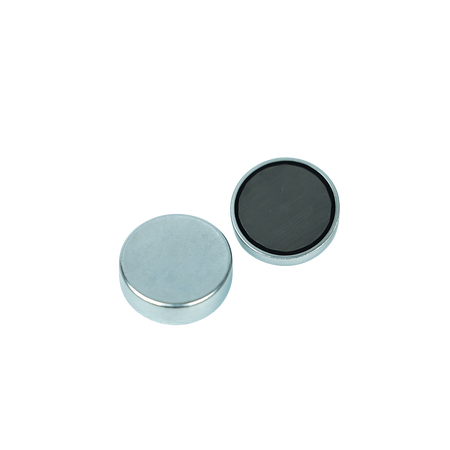

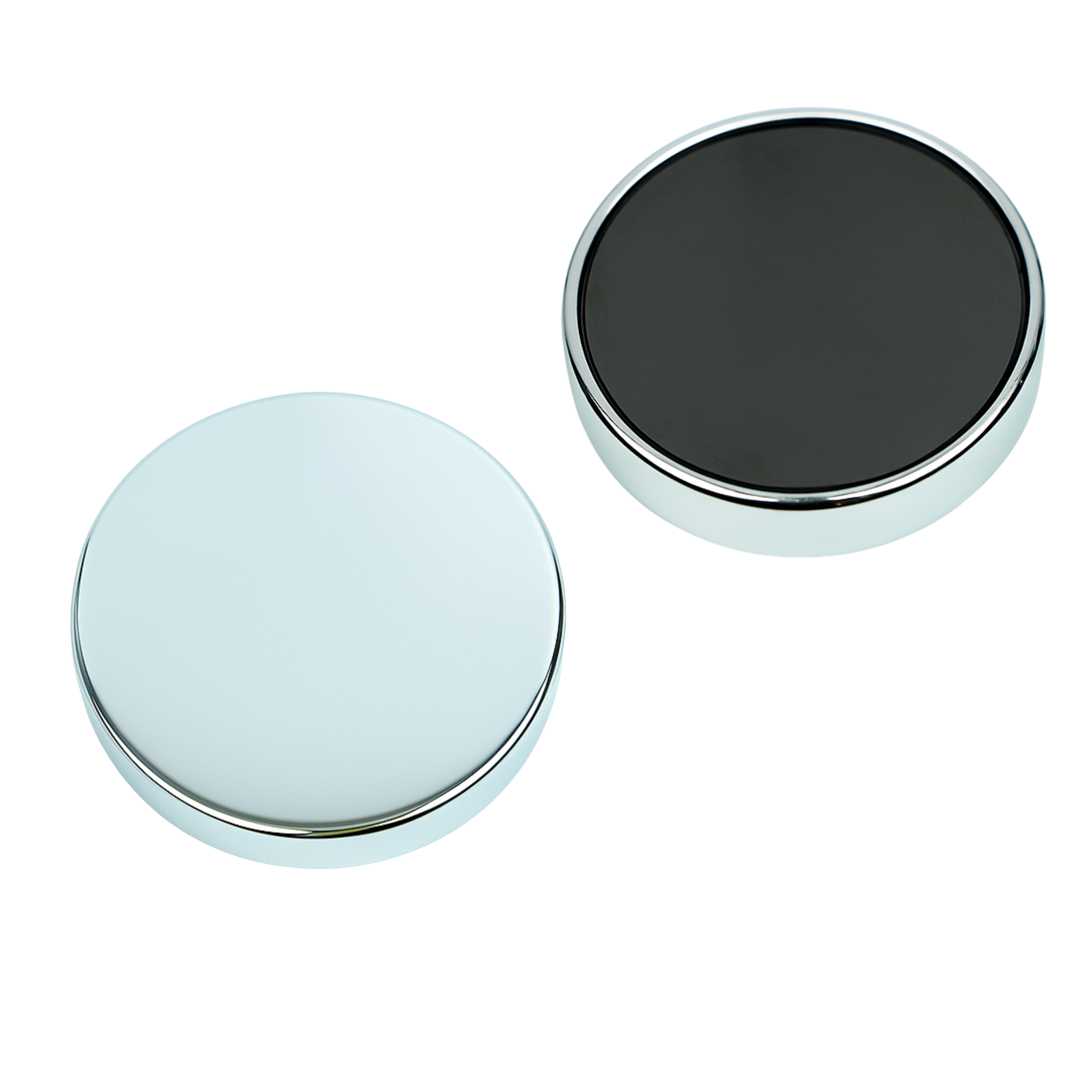

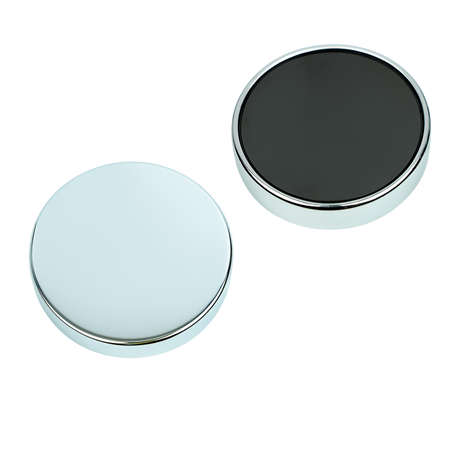

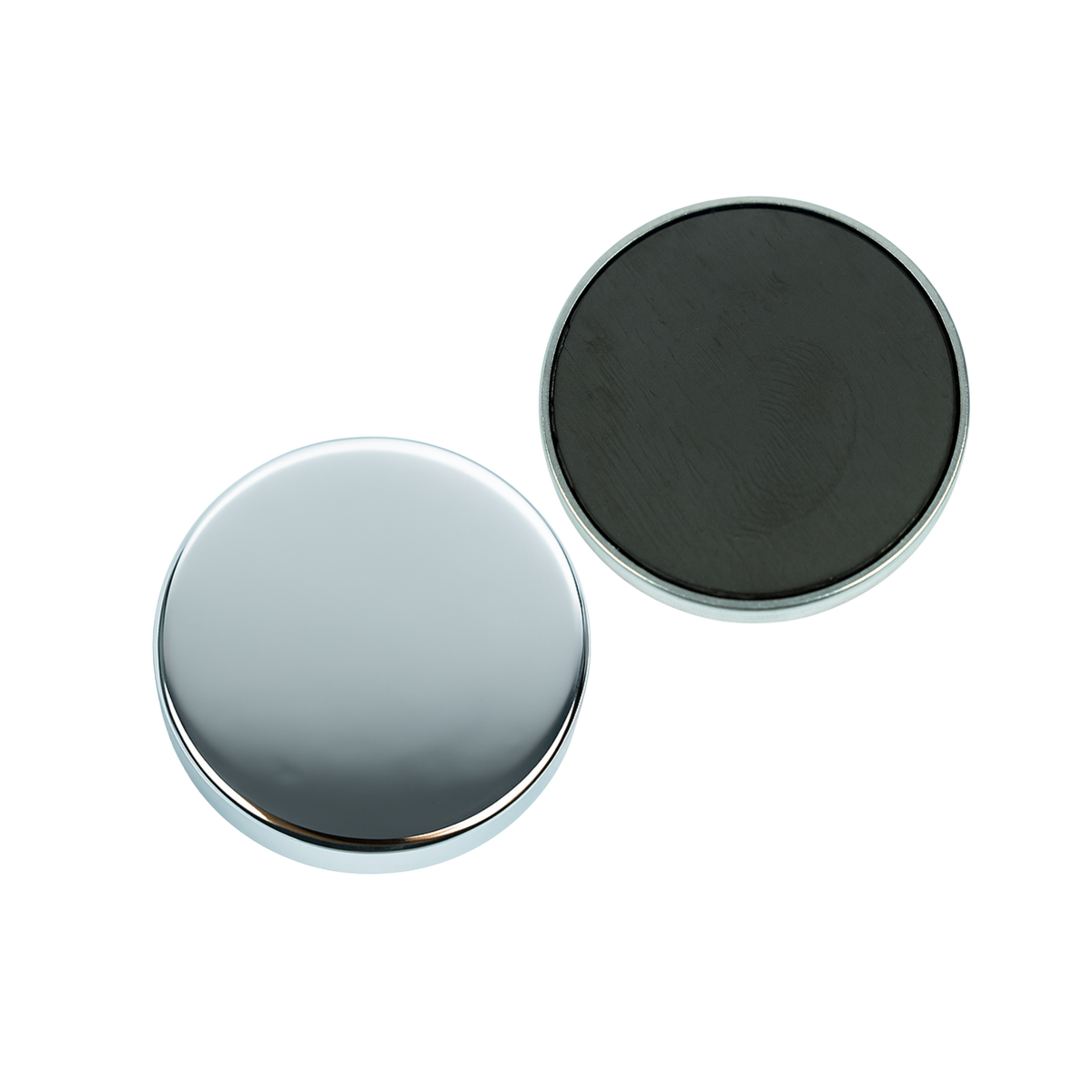

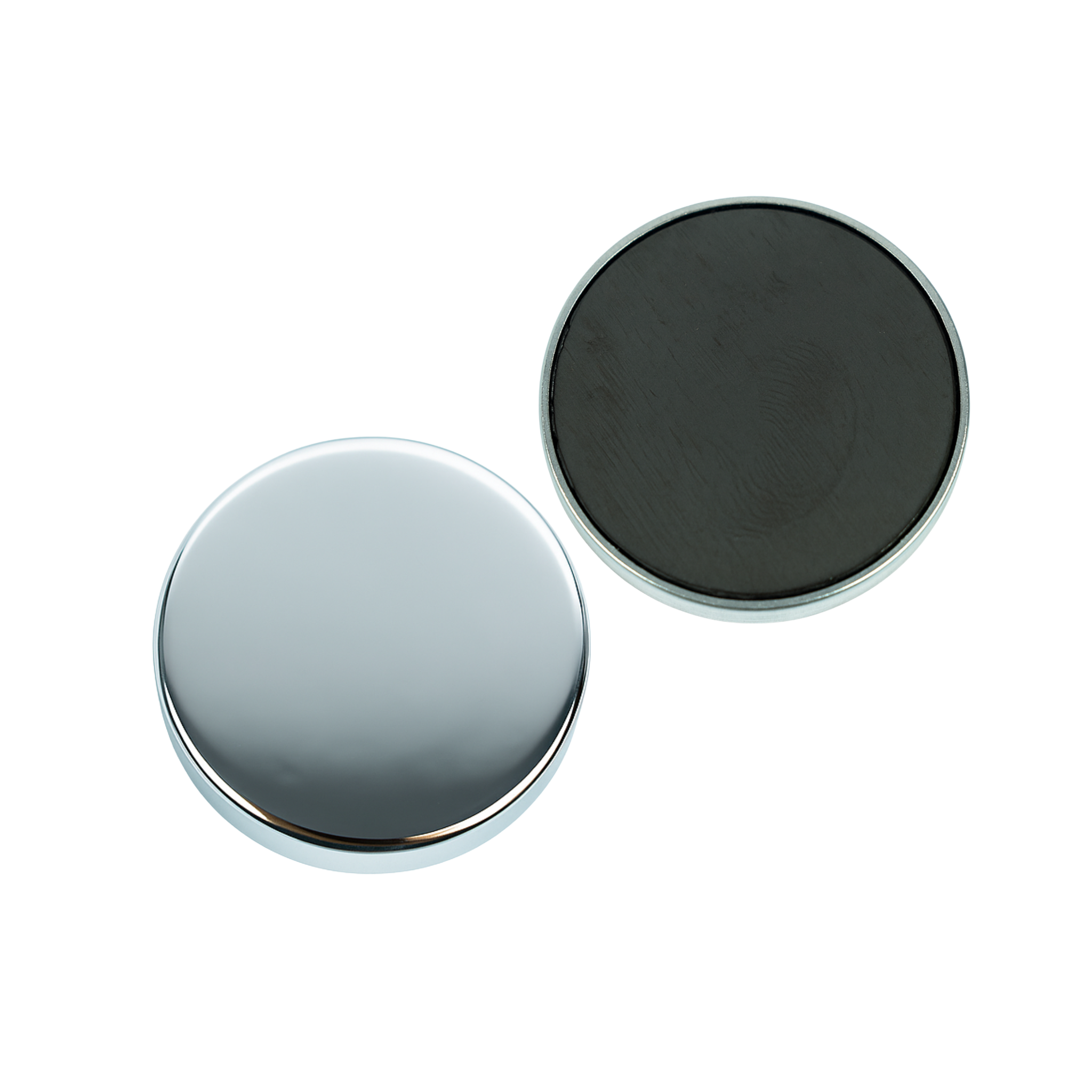

Our Ferrite Shallow Pots are low-profile magnetic assemblies designed for light-duty holding and positioning tasks. These magnets feature a ferrite magnetic core housed in a mild steel shallow pot, which helps direct the magnetic field onto the working face. The result is a more focused and effective grip compared to a bare ferrite disc, especially when mounted on flat surfaces.
They are ideal for applications that require a compact magnet with consistent performance, especially in high-temperature or corrosive environments. The shallow design allows for easy integration into products, displays or fixtures without adding significant bulk.
Typical Applications
- Manufactured in various sizes and mounting styles
- Magnetised on one face with the steel pot directing the magnetic field
- Rust-resistant due to ferrite's chemical stability
- High operating temperature — operates reliably up to 120°C
- Low cost, making them ideal for bulk use
Key Features
- Ferrite magnet core provides stable, reliable magnetic performance
- Shallow steel pot casing concentrates the magnetic field on one face for improved grip.
- High temperature resistance
- Naturally corrosion-resistant and suitable for damp or outdoor conditions
- Low-cost solution for everyday holding and positioning needs
- Compact, low-profile design - easy to install in tight or space-limited setups
Product Code |
Diameter (mm) |
Thickness (mm) |
Pull Force (kg) |
Net Weight (kg) |
E700 |
10 |
4.5 |
0.4 |
0.003 |
E701 |
13 |
4.5 |

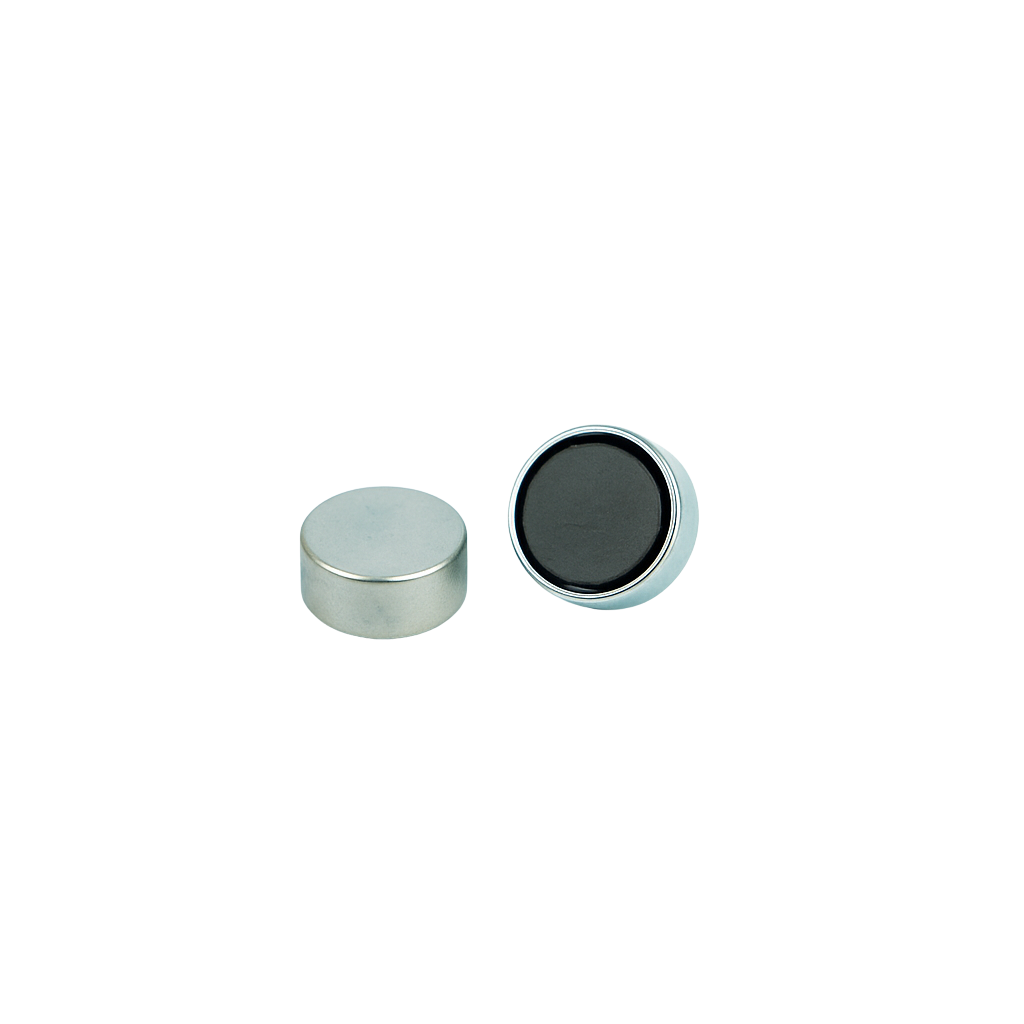

1.0 |
0.005 |
E702 |
16 |
4.5 |

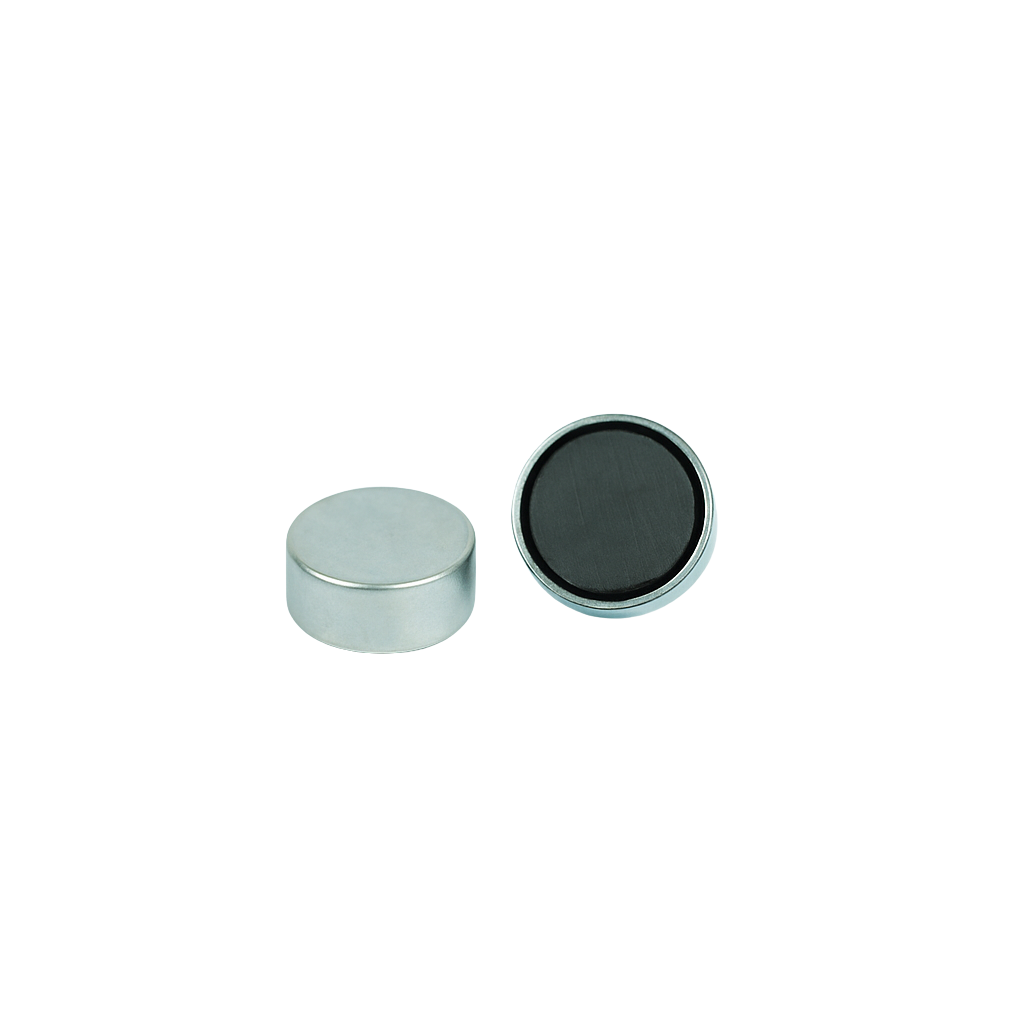

1.8 |
0.007 |
E703 |
20 |
6 |

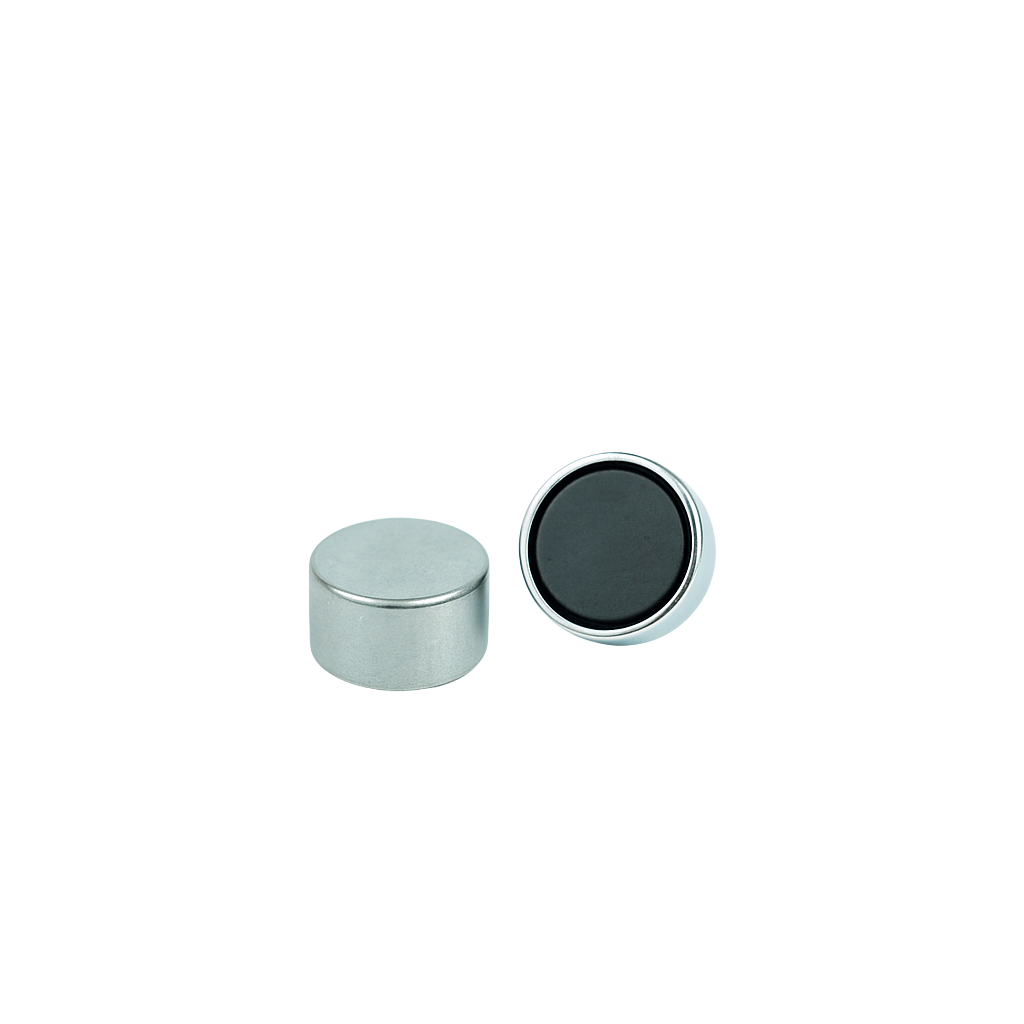

3.0 |
0.016 |
E704 |
25 |
7 |

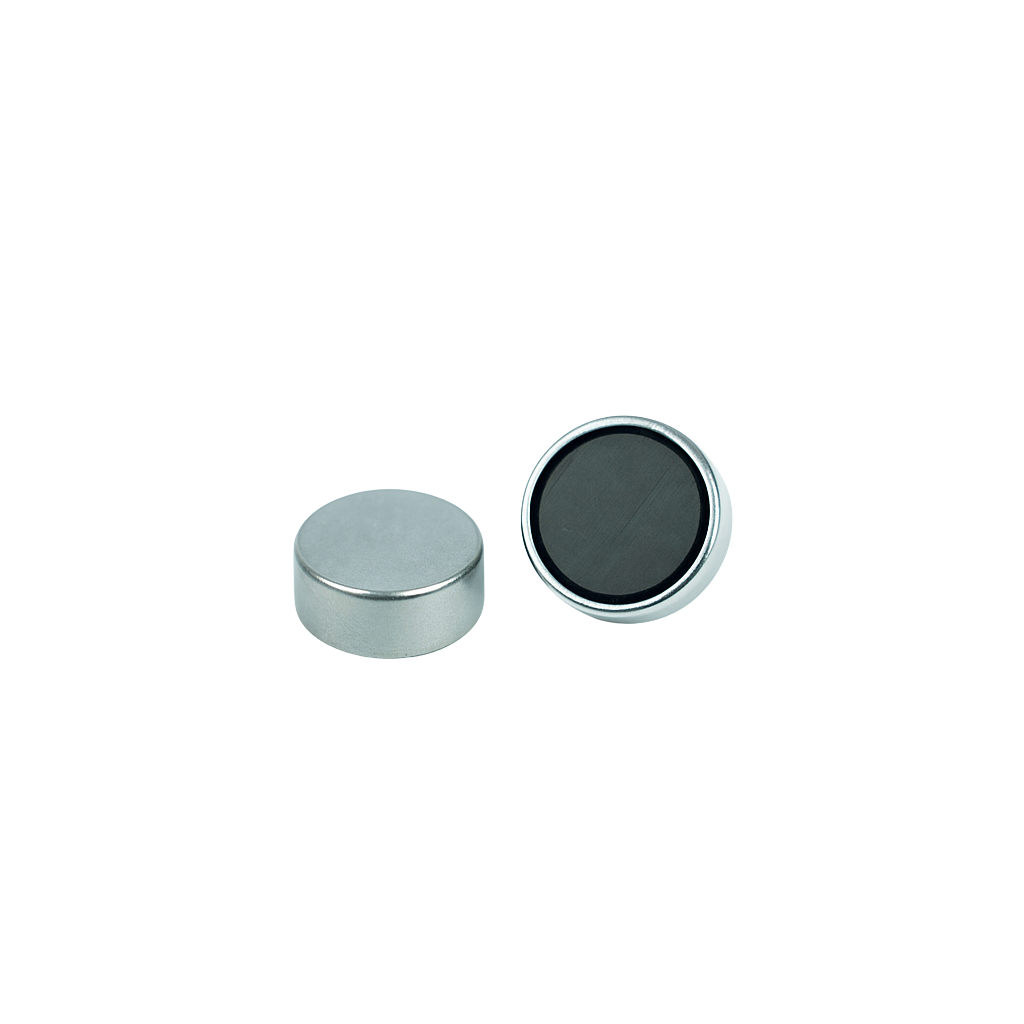

4.0 |
0.026 |
E705 |
32 |
7 |

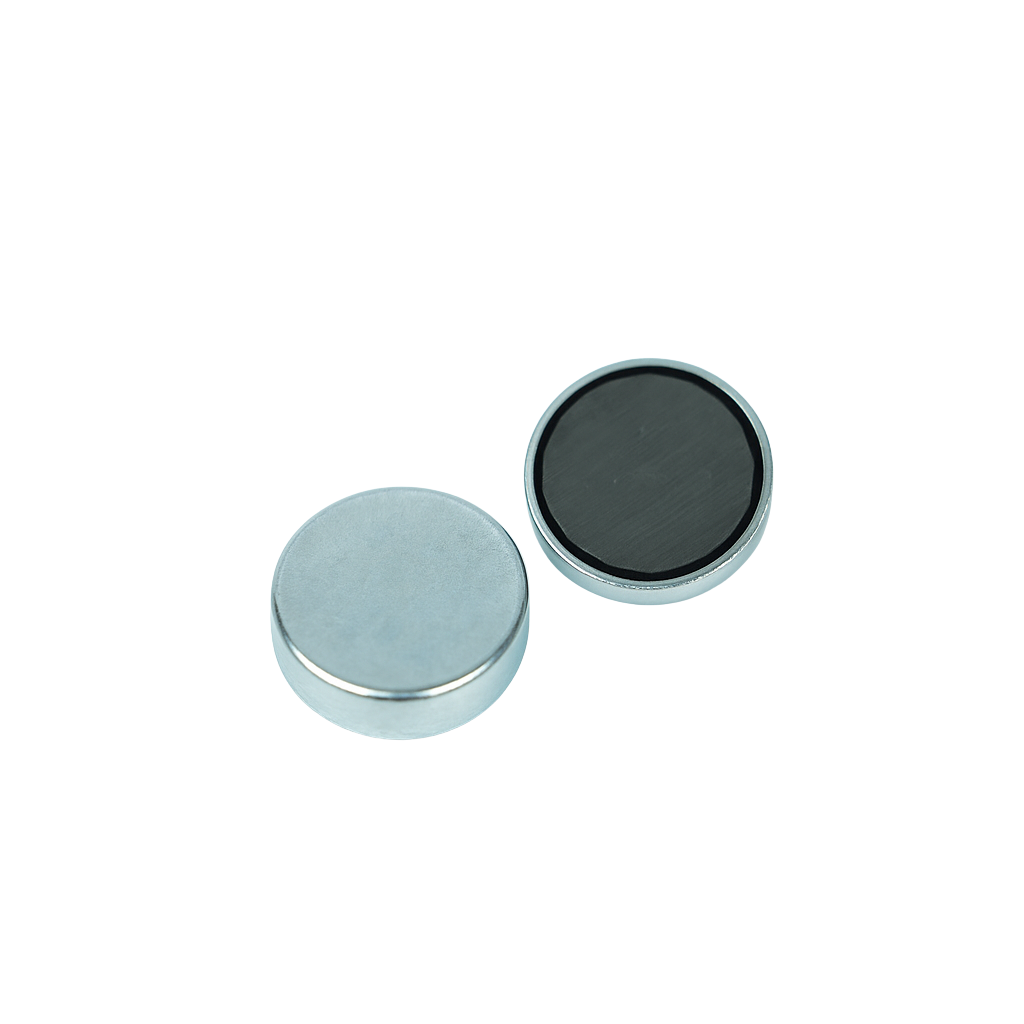

8.0 |
0.043 |
E706 |
40 |
8 |

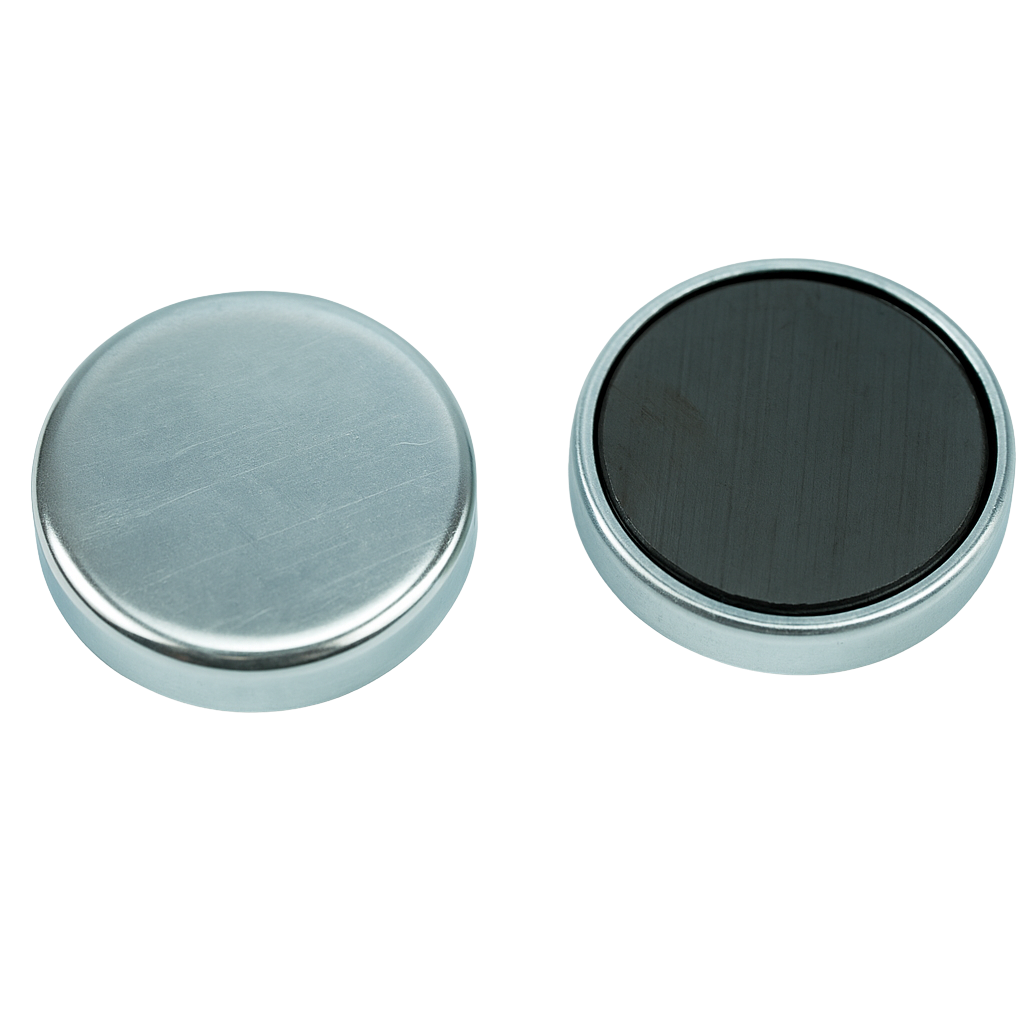

12.5 |
0.074 |
E707 |
50 |
10 |

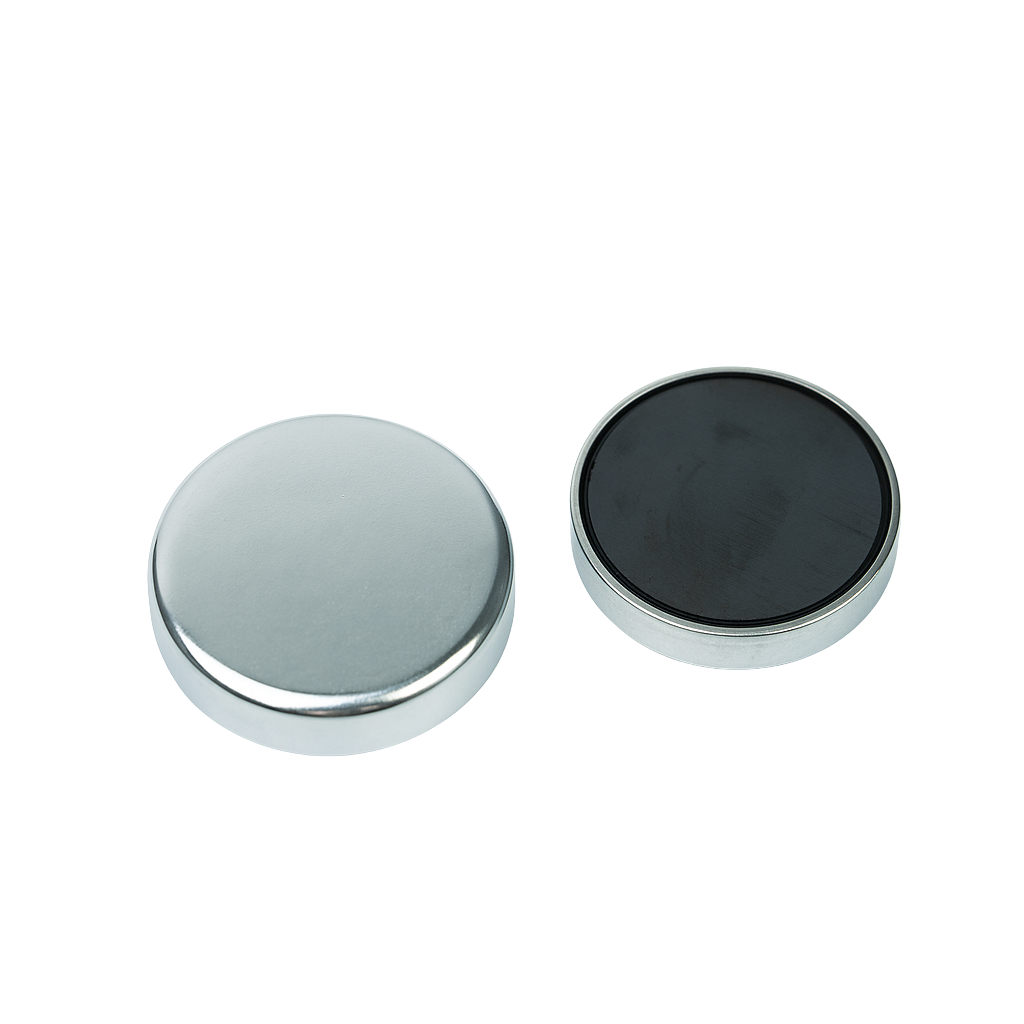

22.0 |
0.151 |
E708 |
63 |
14 |

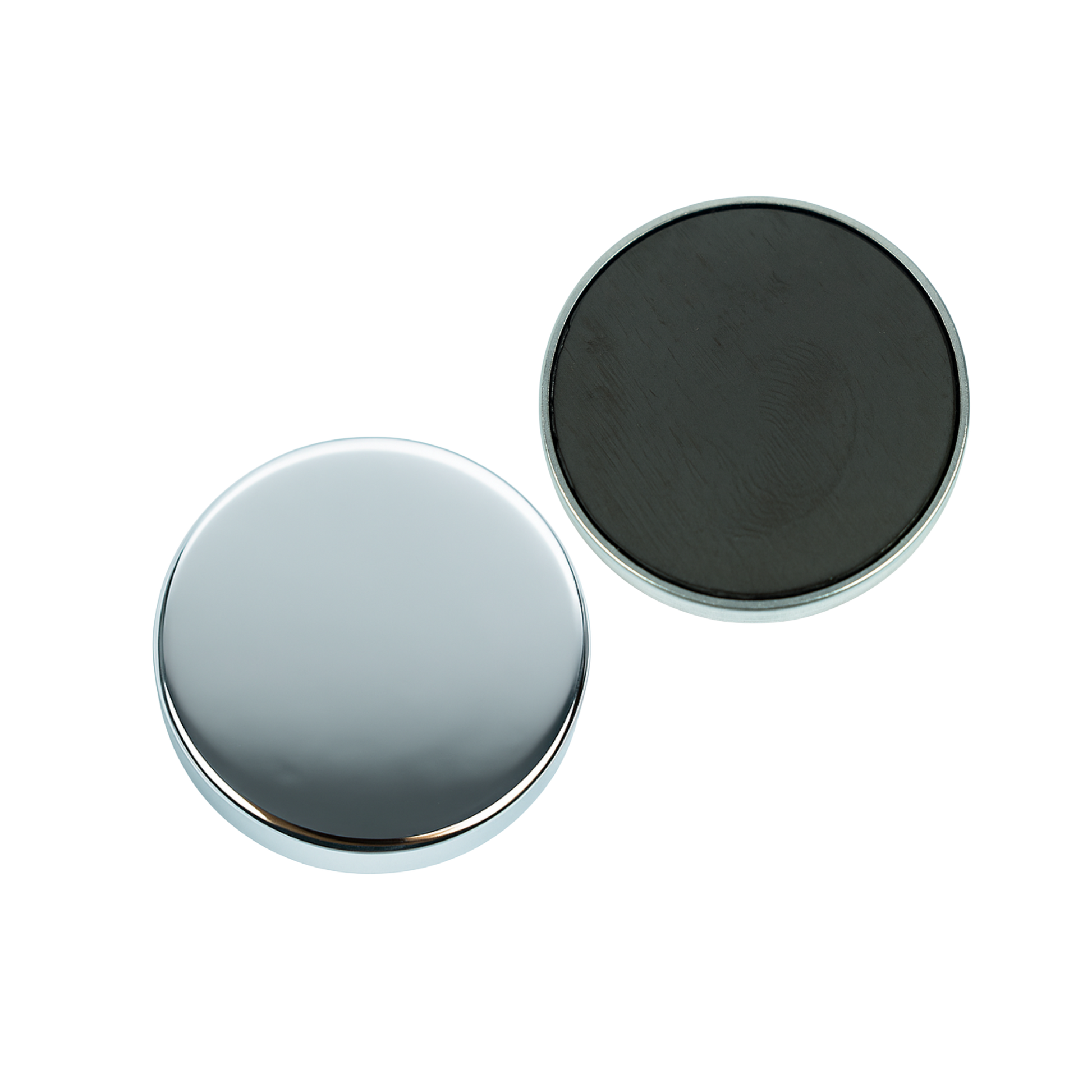

35.0 |
0.295 |
E709 |
80 |
18 |
60.0 |
0.593 |
Learn More About Ferrite Shallow Pots
Our ferrite shallow pot magnets are a type of holding magnet that combines a ferrite (ceramic) magnetic core with a steel casing to concentrate and direct magnetic force. Their shallow profile and wide surface area make them highly effective in applications where space is limed but a secure magnetic hold is required.
These magnets are known for their excellent corrosion resistance, making them suitable for outdoor or humid environments without the need for additional coatings. While ferrite magnets offer lower magnetic strength compared to neodymium, they are far more cost-effective and stable at higher temperatures typically up to 120°C.
Ferrite shallow pots are commonly used in industries such as signage, lighting, exhibition setups, and manufacturing for mounting, holding, or positioning ferrous objects. They are available in various sizes to suit specific needs.
Their simple design, reliability and affordability make ferrite shallow pot magnets a practical and popular choice across multiple sectors.
