Ferrite Shallow Pot Magnets with Threaded Hole
Ferrite Shallow Pot Magnets with Threaded Hole
Couldn't load pickup availability
Description
Ferrite Shallow Pot Magnets with threaded holes are compact, powerful magnetic solutions designed for fixed mounting in various industrial and mechanical applications. These magnets consist of a ferrite disc encased in a mild steel pot, which focuses and enhances the magnetic field on the contact face. The central threaded hole allows for direct fastening to fixtures and components, offering easy installation and reliable holding
power.
Bulk order discounts available - enquire here
Typical Applications
- Tool or fixture positioning
- Assembly line or production jigs
- Sensor or camera mounts
- Light-duty lifting plates and clamps
Key Features
- Central threaded hole for direct mounting
- Strong ferrite magnet with steel casing
- High holding force in a shallow profile
- Operating temperature up to 120°C
- Cost-effective and durable design
Product Number | Diameter (mm) | Thickness (mm) | Thread | Net Weight (kg) | Pull Force (kg) |
---|---|---|---|---|---|

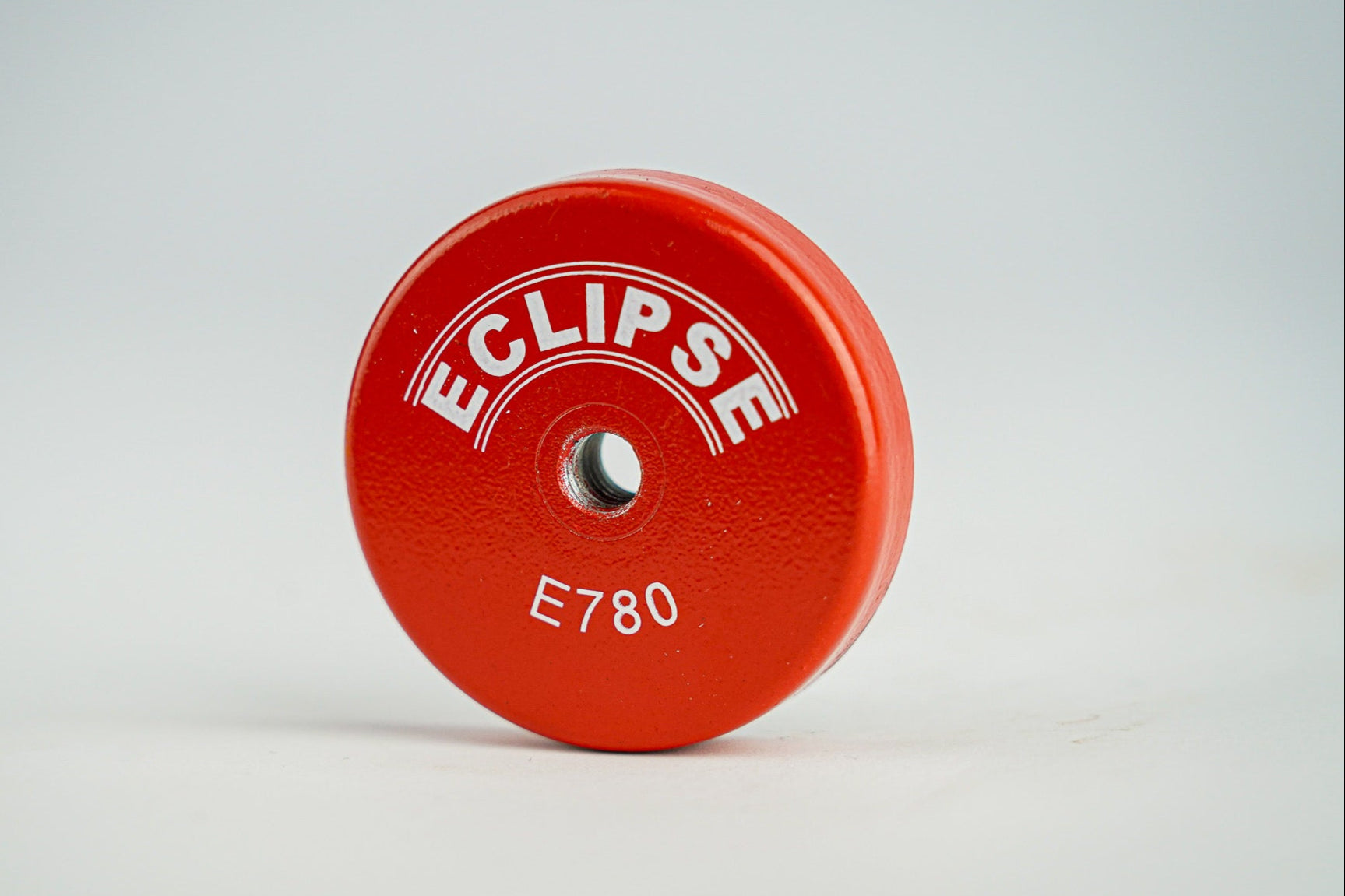

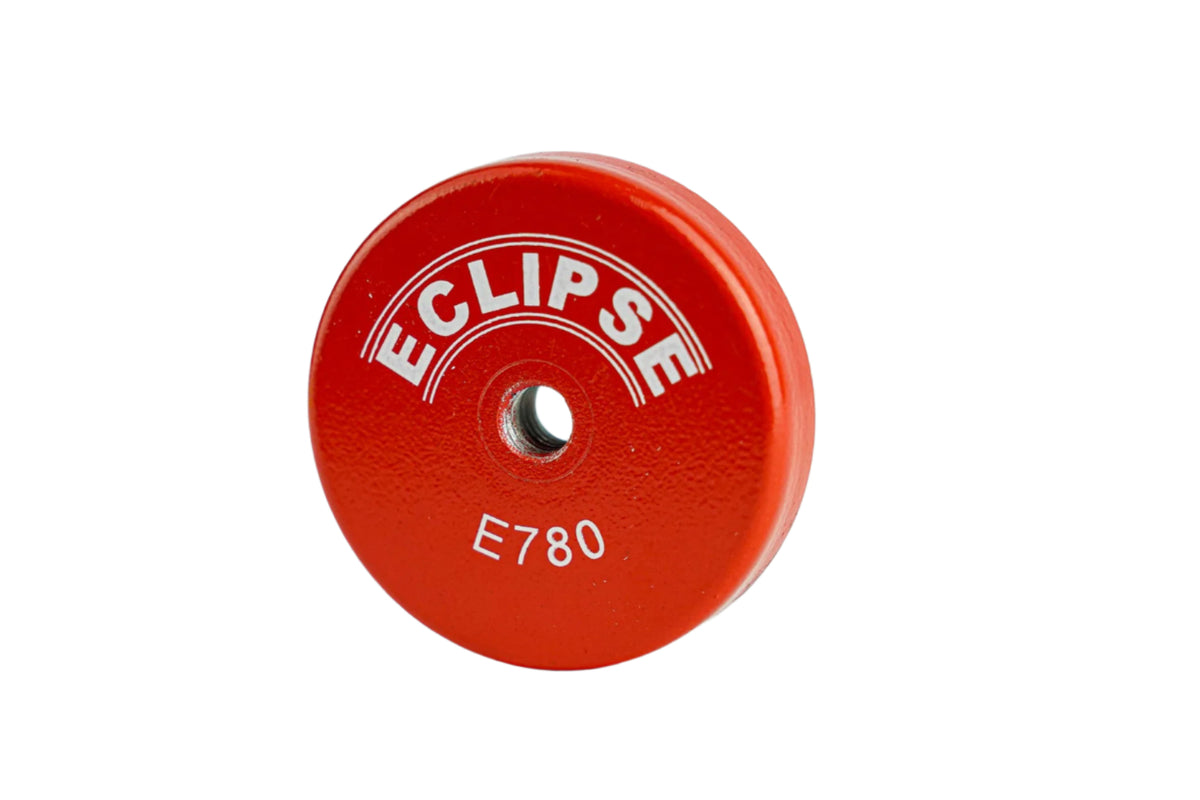

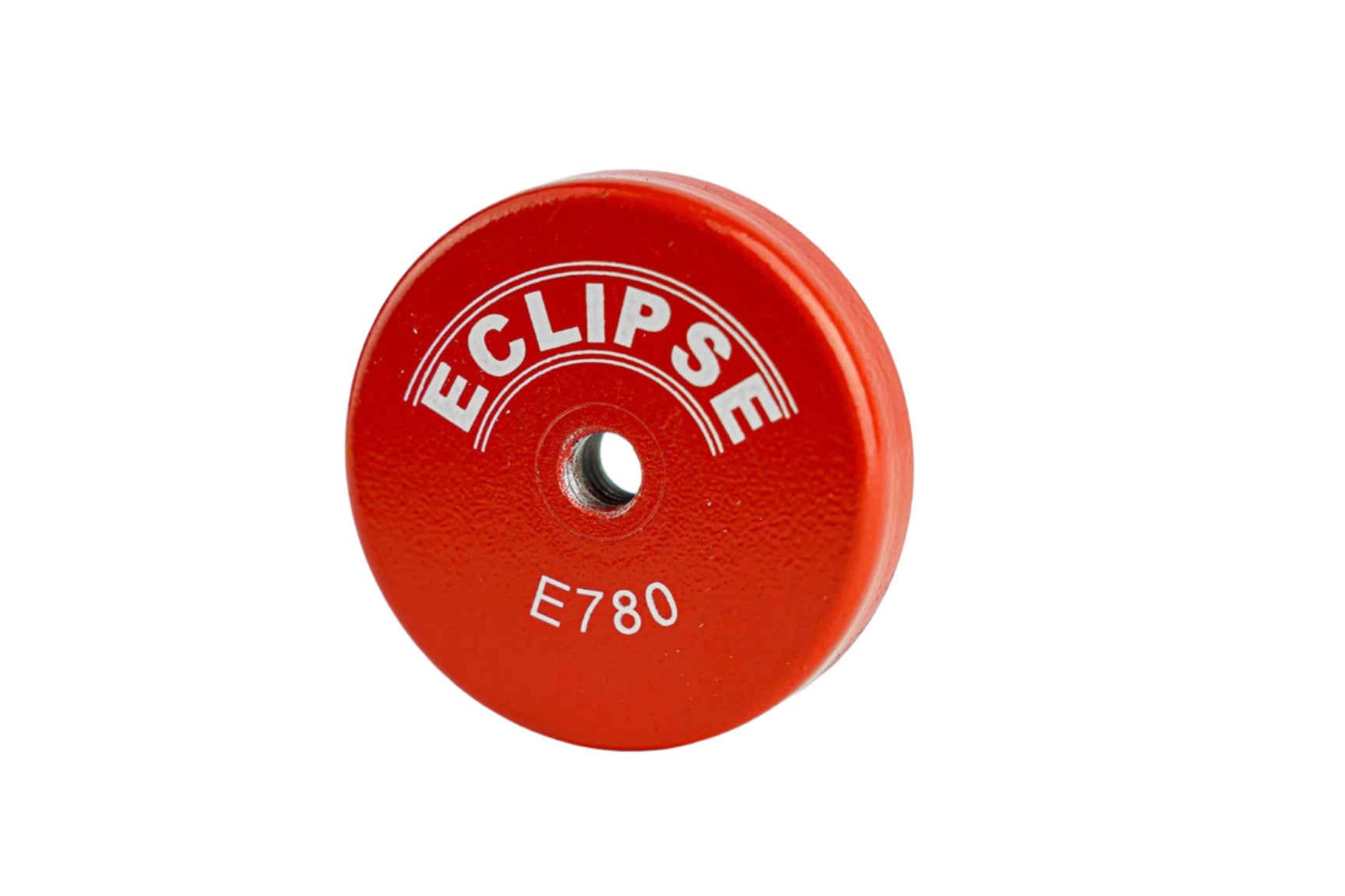

E780 | 50 | 10 | M8 | 0.149 | 15 |

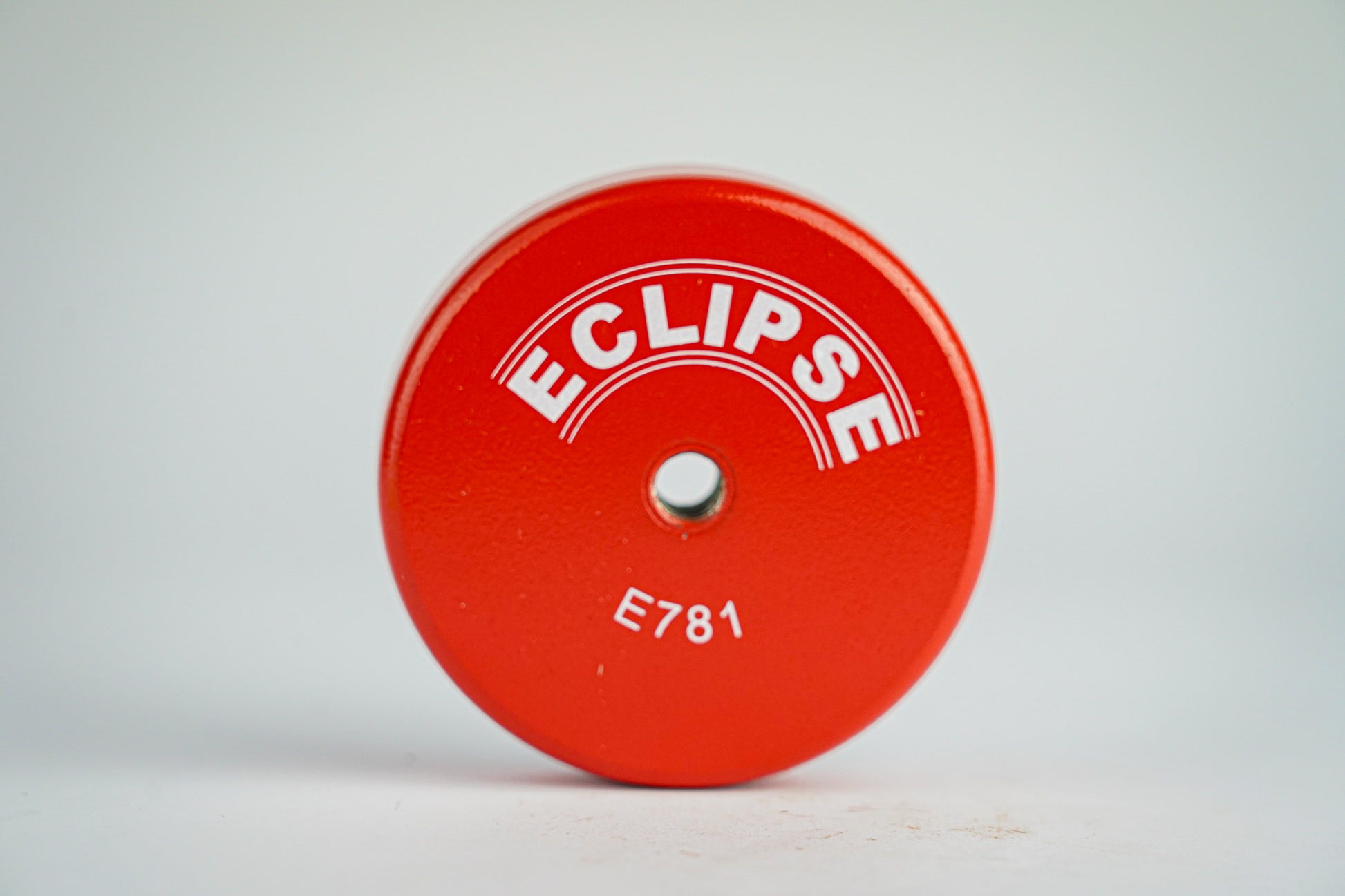

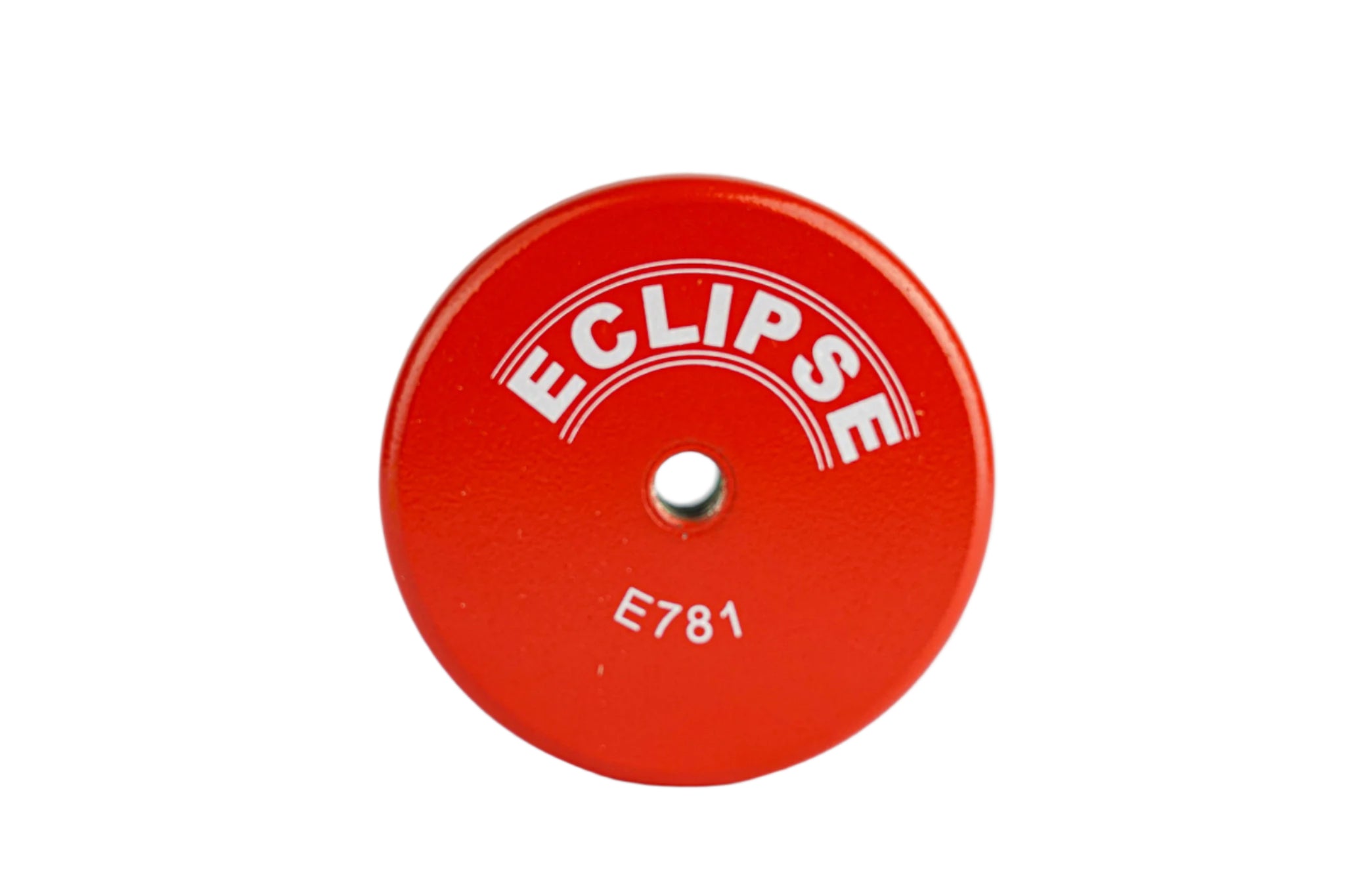

E781 | 80 | 18 | M10 | 0.580 | 55 |
Learn more about our Ferrite Shallow Pot Magnets with Threaded Hole
The Ferrite Shallow Pots with Threaded Hole is a threaded through hole pot magnet that allows parts to be connected to it using bolts or threaded bar. Multiple possible parts can be connected to such a design to allow a wide variety of magnetic clamping applications to be achieved.
Each Ferrite Shallow Pots with Threaded Hole is supplied with a keeper plate for secure storage when not in use. Simply remove the keeper plate to start utilising the magnetism from this ferrite pot magnet. Direct contact with thicker ferrous surfaces is required for maximum holding force potential. The Ferrite Shallow Pots with Threaded Hole is part of the Eclipse Magnetics Heritage range, highlighted by its “Eclipse Magnetic Red” branding. The Ferrite Shallow Pots with Threaded Hole is a short height version ferrite pot magnet. Each has a threaded through hole (M8 or M10) for connecting to a bolt or threaded bar to
create various connection styles to meet the customer magnetic clamping requirements. Typical applications include temporary lighting, secure clamping and height restricted uses.
The Ferrite Shallow Pots with Threaded Hole has a pull force capability rating of up to 55kg or 121lb. The pull force varies with the ferrous material being held - the actual pull force achieved is application specific. The Ferrite Shallow Pots with Threaded Hole is capable of being used at temperatures up to 120°C (248°F) - the ferrite magnet used can be used up to 220°C but the lower limitation due to the way the pot magnet has been assembled
