Ferrite Limpet Pot Magnets with Removable Jack Fittings | Ø66mm–100mm | 25kg–55kg Pull Force

Eclipse Magnetics Ferrite Limpet Pot Magnets with Removable Jack Fittings are robust magnetic holders designed for adjustable suspension, clamping and positioning applications.

Each unit combines a durable ferrite magnetic core with a mild steel pot, helping to concentrate the magnetic field through the working face for improved holding performance on suitable ferrous surfaces.

The range includes three sizes from 66mm to 100mm diameter, with pull forces from 25kg to 55kg. All models feature an M6 threaded interface and a removable jack fitting, allowing controlled adjustment, tightening and positioning to suit different installation requirements.

Their adjustable format makes them particularly suitable for ceiling and rafter hanging systems, display rigs, lighting installations and general mechanical holding applications where both magnetic holding strength and positional adjustment are required.

With durable construction and operating performance up to 120°C, these Ferrite Limpet Pot Magnets provide a practical and cost-effective solution for industrial and general-purpose magnetic mounting applications.

Key Features

• Ferrite magnetic core for durable and economical holding performance
• Mild steel pot helps concentrate the magnetic field through the working face

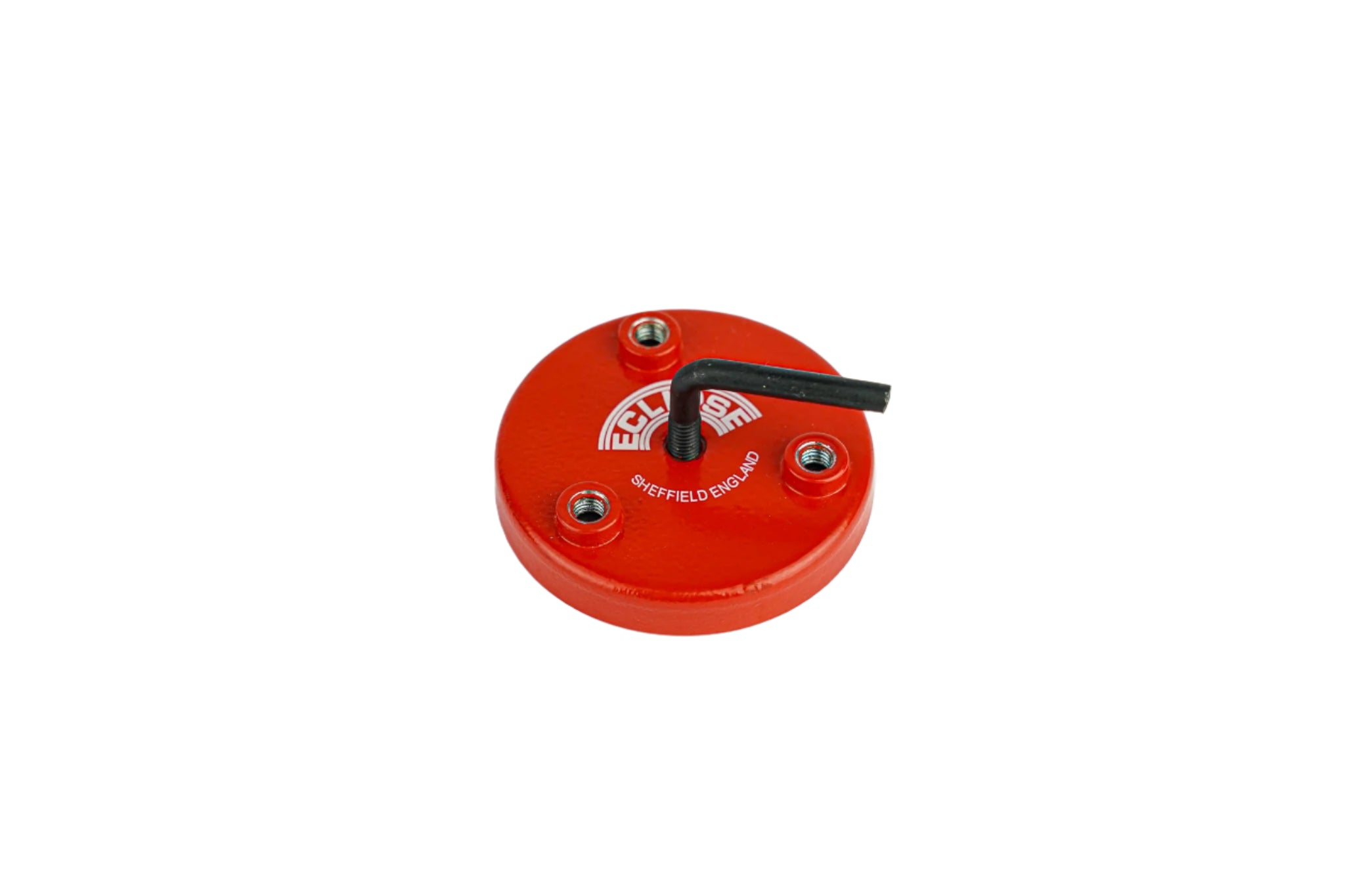

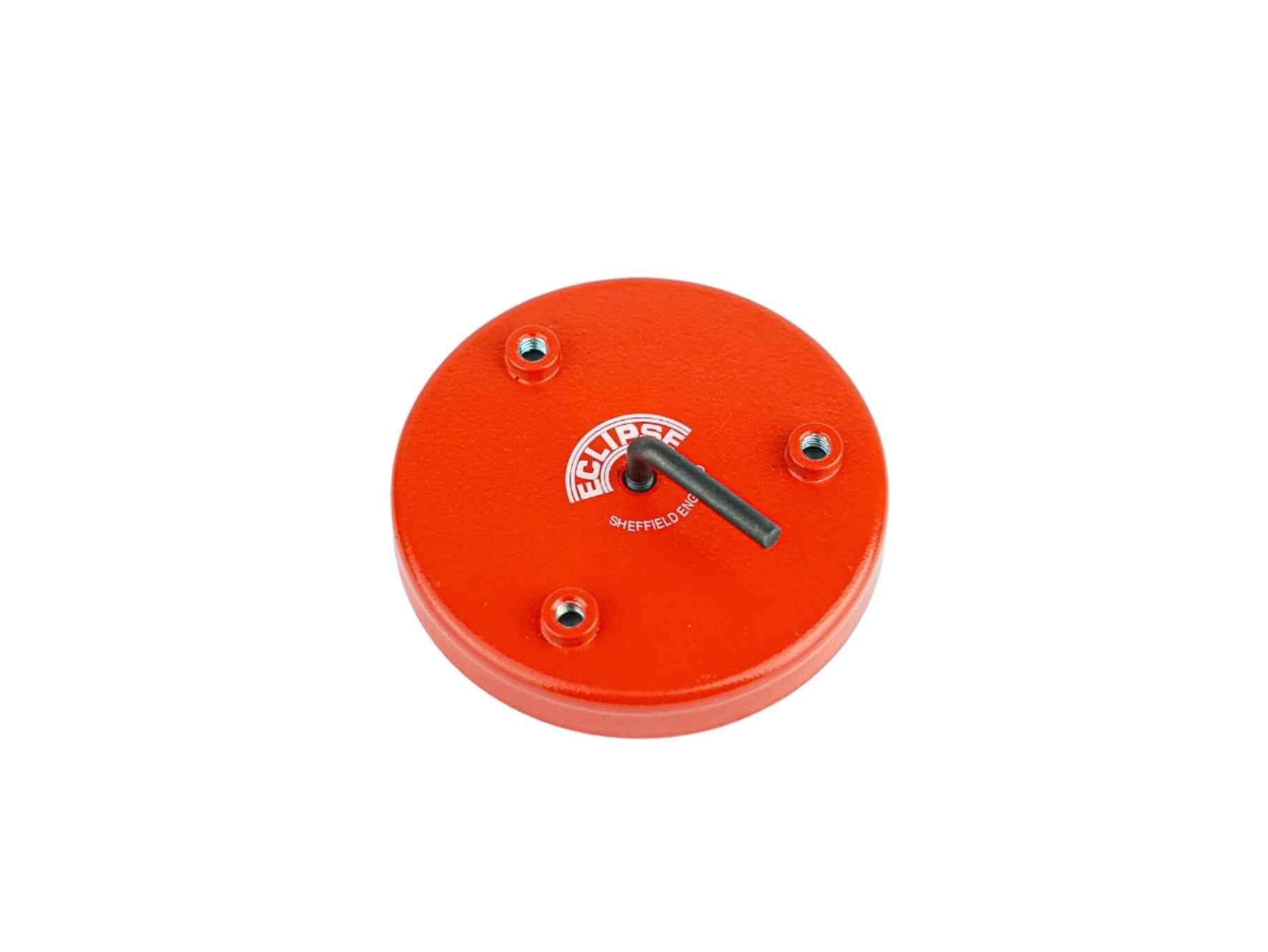

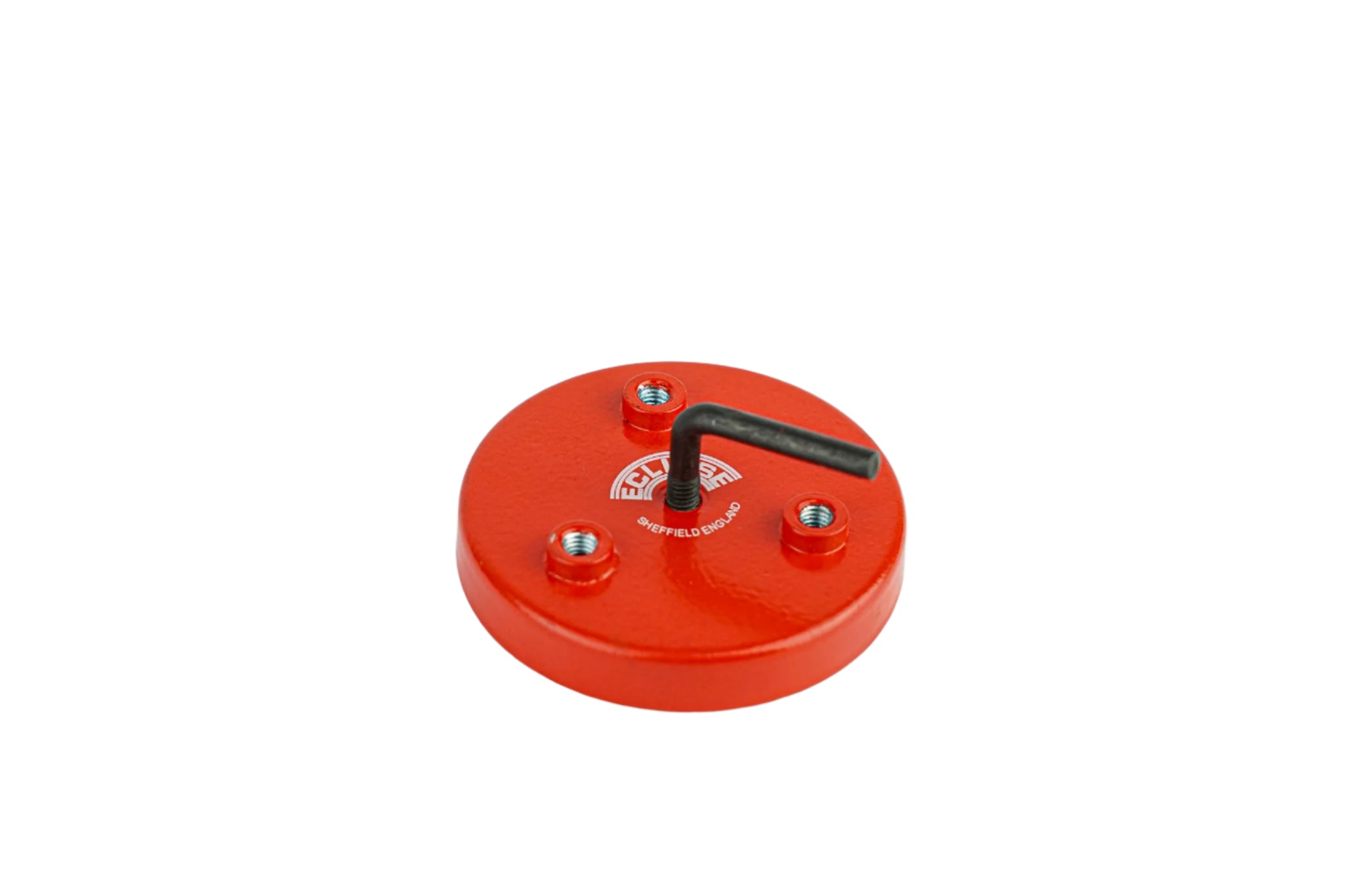

• Available in 66mm, 76mm and 100mm diameters
• Pull forces from 25kg up to 55kg
• Removable jack fitting for adjustable positioning and tightening
• M6 threaded interface across the range
• Suitable for suspension, clamping and adjustable holding applications
• Ideal for ceiling and rafter systems, display rigs and lighting installations
• Three-hole fixing arrangement for secure jack-fitting attachment
• Maximum operating temperature of 120°C
