Ferrite Channel Magnets
Ferrite Channel Magnets
Couldn't load pickup availability
Description
Ferrite Channel Magnets are durable, high-strength magnetic assemblies designed for mounting and latching applications. Built with a ceramic ferrite magnet set in a plated mild steel 'C' section channel, these magnets concentrate their clamping force on one side, making them ideal for secure contact with ferrous surfaces. Their protective casing increases durability and reduces breakage, allowing for reliable performance even in
tough environments.
Bulk order discounts available - enquire here
Typical Applications
- Cabinet doors and gate latching
- Secure mounting of signs or panels
- Fixture and jig holding
- General industrial clamping tasks
Key Features
- Strong clamping force directed on one surface
- Steel channel protects magnet and focuses magnetic field
- Reliable performance at temperatures up to 120C
- Simple installation with fixing holes or threaded options
- Suitable for mild steel, ferrous materials, and structural frameworks
Technical Data
Product Number |
Length (mm) |
Width (mm) |
Height (mm) |
Plain Fixing Holes (mm) |
Hole Centres (mm) |
Weight (kg) |
Pull Force (kg) |

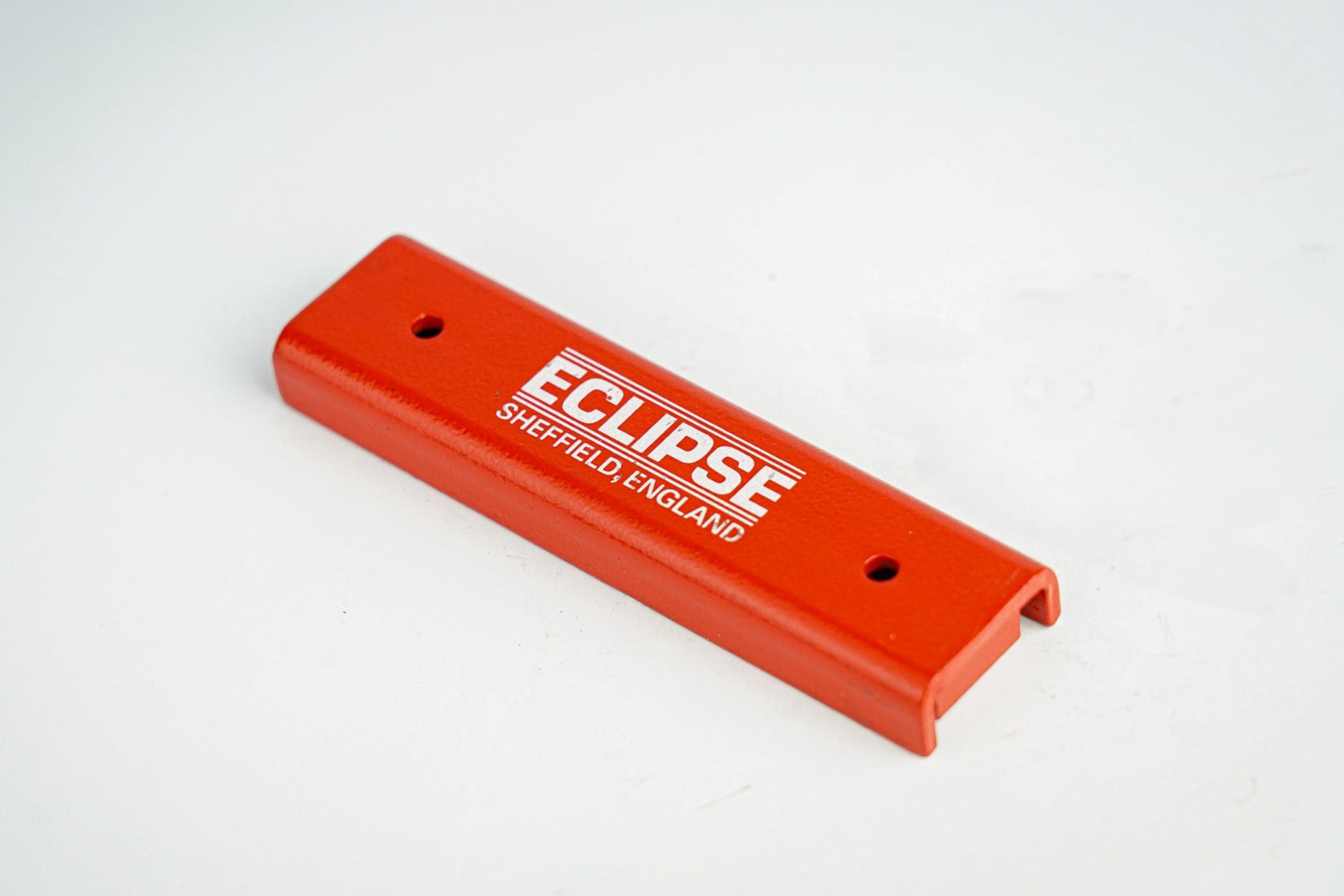

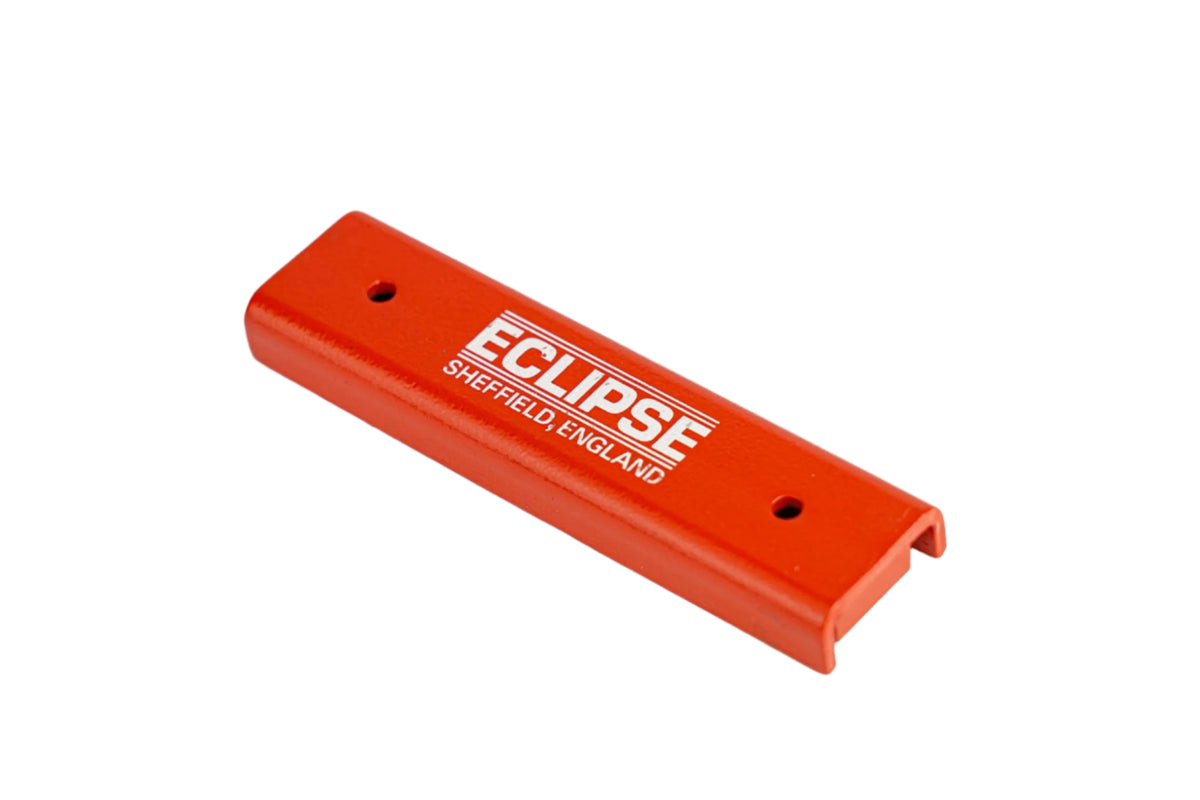

E898/1 |
115 |
30 |
13 |
4.2 |
80 |
0.2 |
8 |

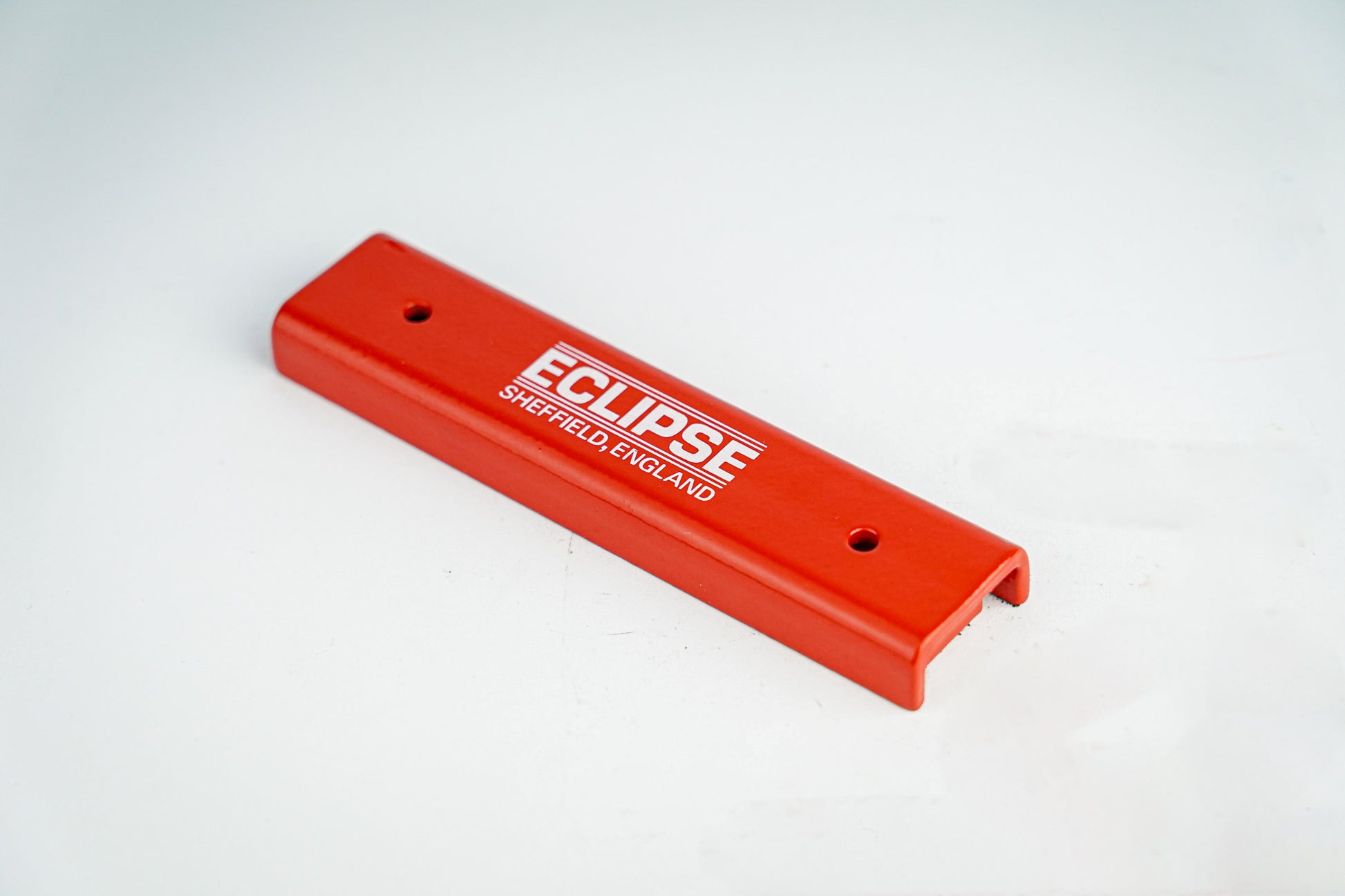

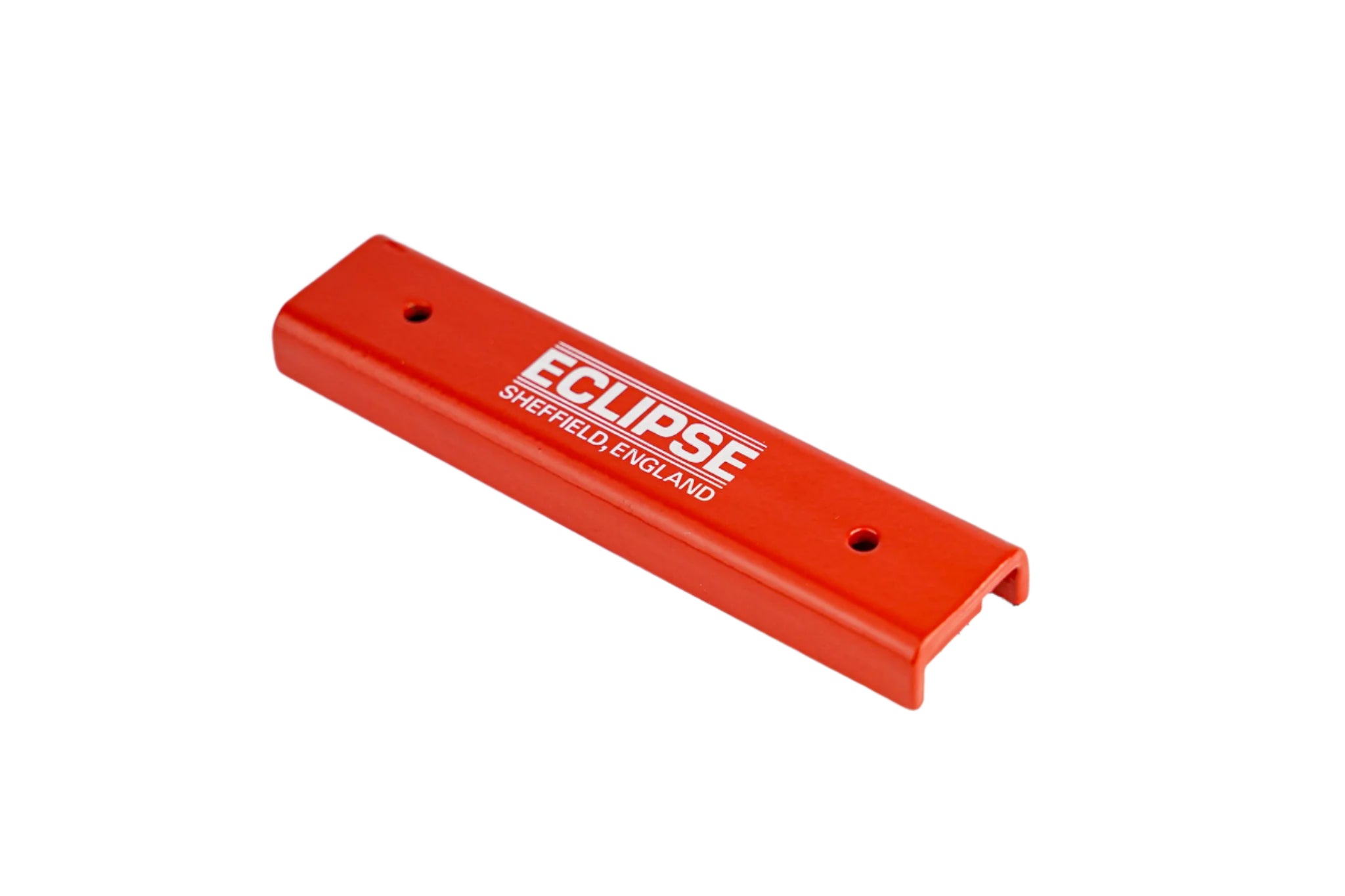

E898/2 |
130 |
30 |
13 |
4.2 |
90 |
0.226 |
14 |

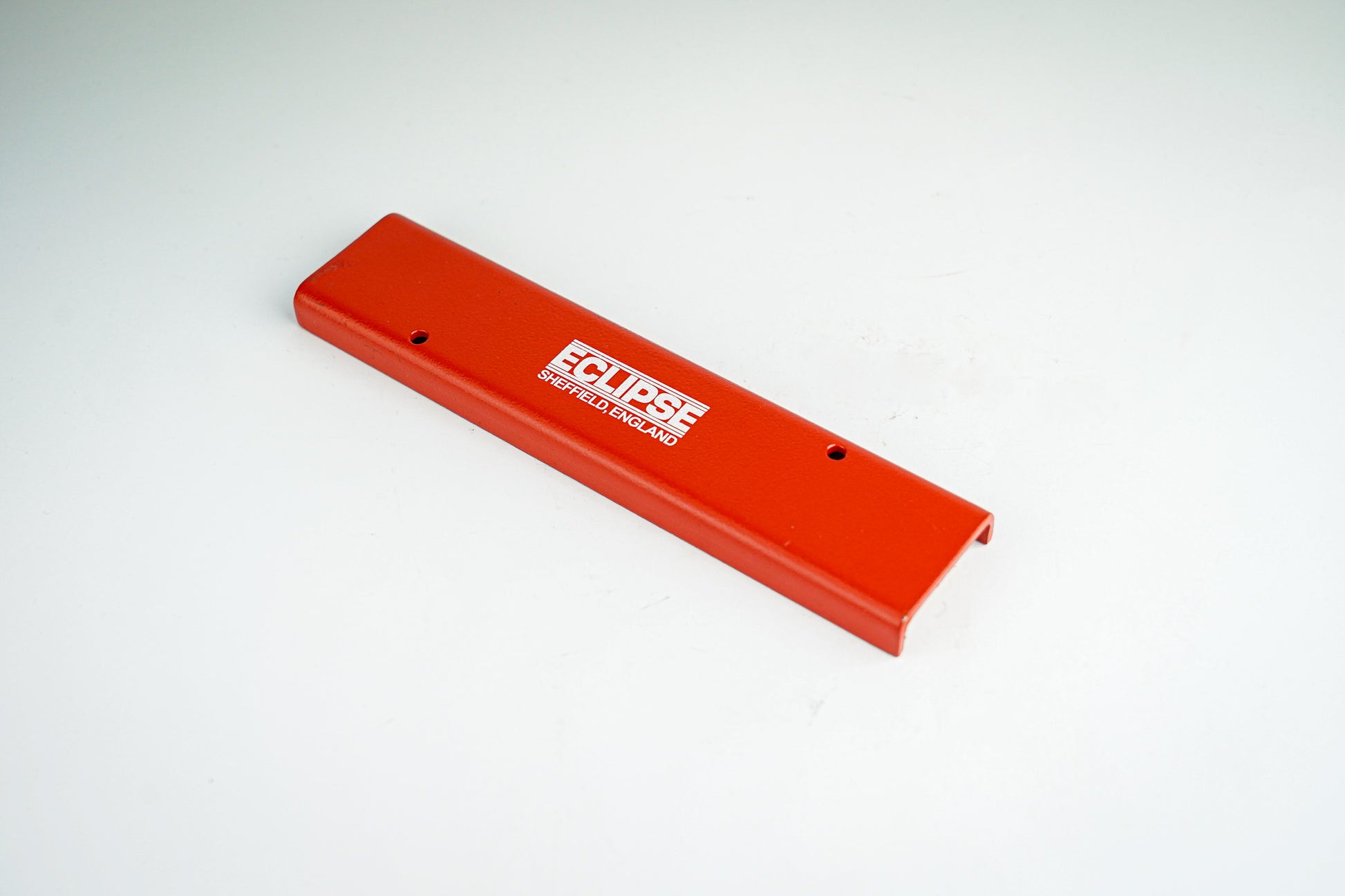

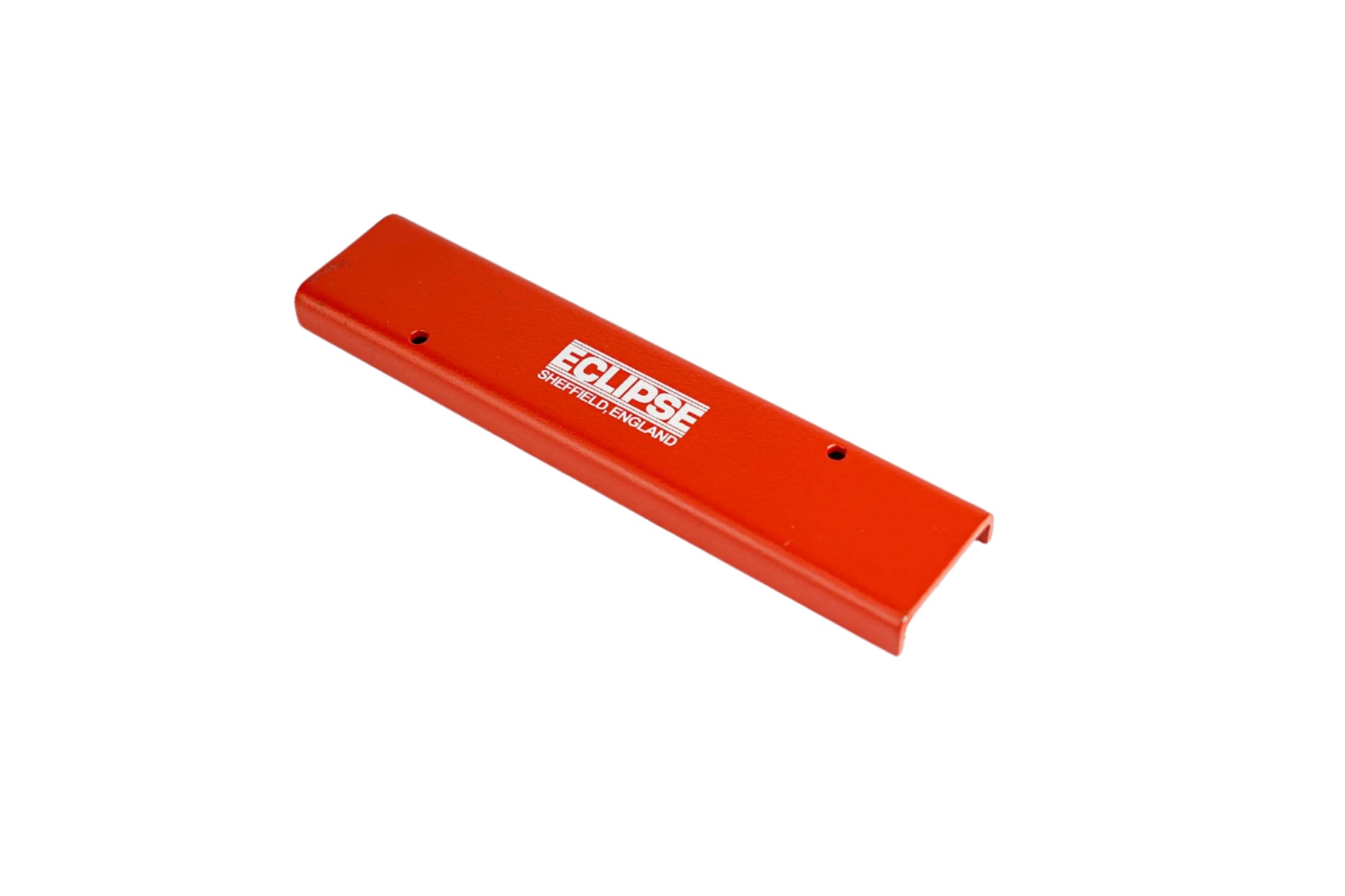

E899 |
190 |
43 |
13 |
4.2 |
110 |
0.481 |
48 |
Learn More About Ferrite Channel Magnets
Ferrite Channel Magnets offer a rugged and efficient alternative to traditional pot magnets, particularly in linear or flush-mount clamping scenarios. Their 'C' shaped steel housing not only protects the ferrite core from damage but also significantly enhances the magnetic field on the contact face, maximizing the holding force. These magnets are especially suited for environments where high strength and durability are essential,
such as in industrial doors, machinery access panels, or warehouse signage. Thanks to their wide temperature tolerance (up to 120C) and corrosion resistance, they're dependable even in heat-prone or demanding environments. Whether used in mechanical jigs, latches, or DIY fabrication projects, Ferrite Channel Magnets are an economical and practical choice that consistently delivers strong and stable magnetic performance
