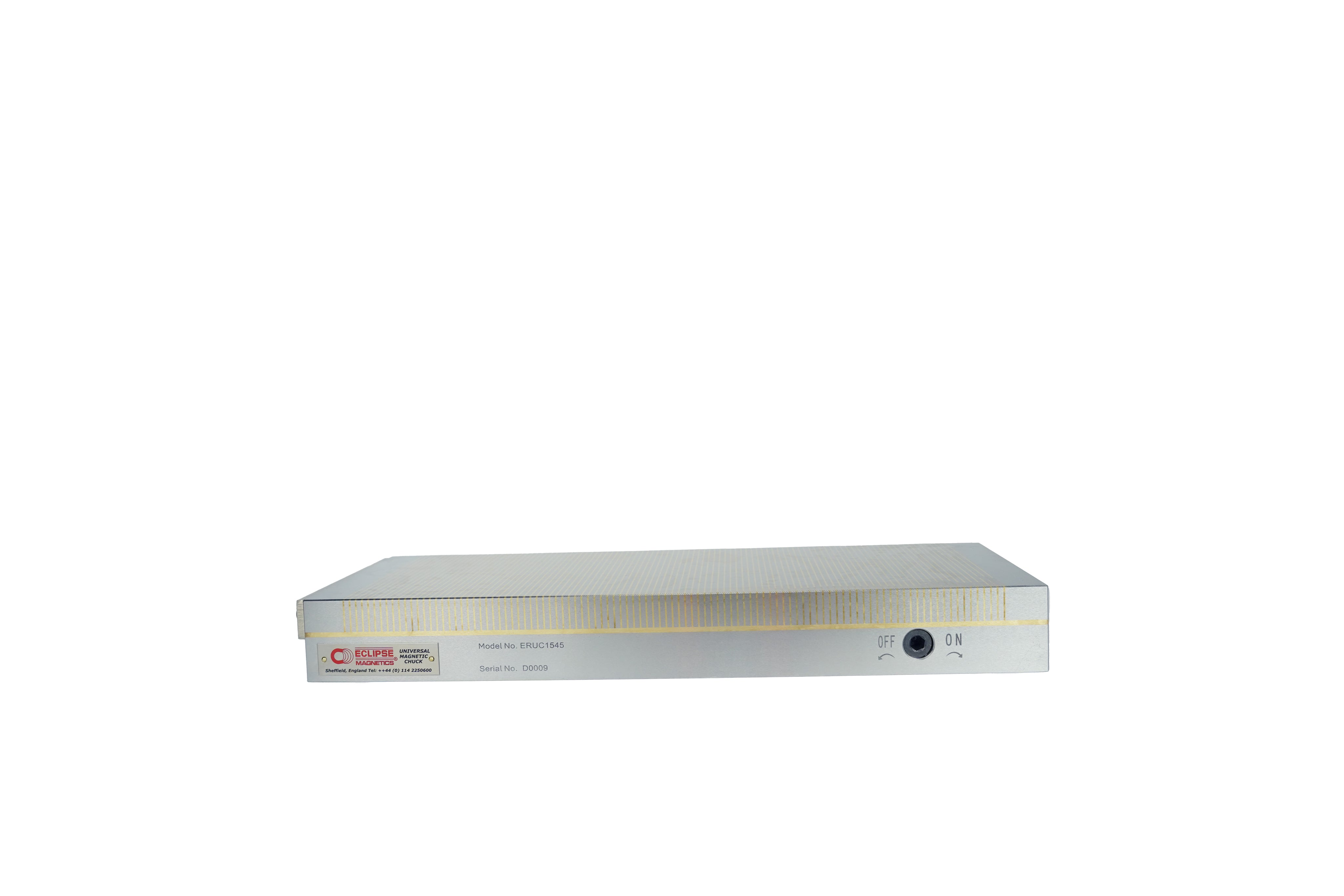

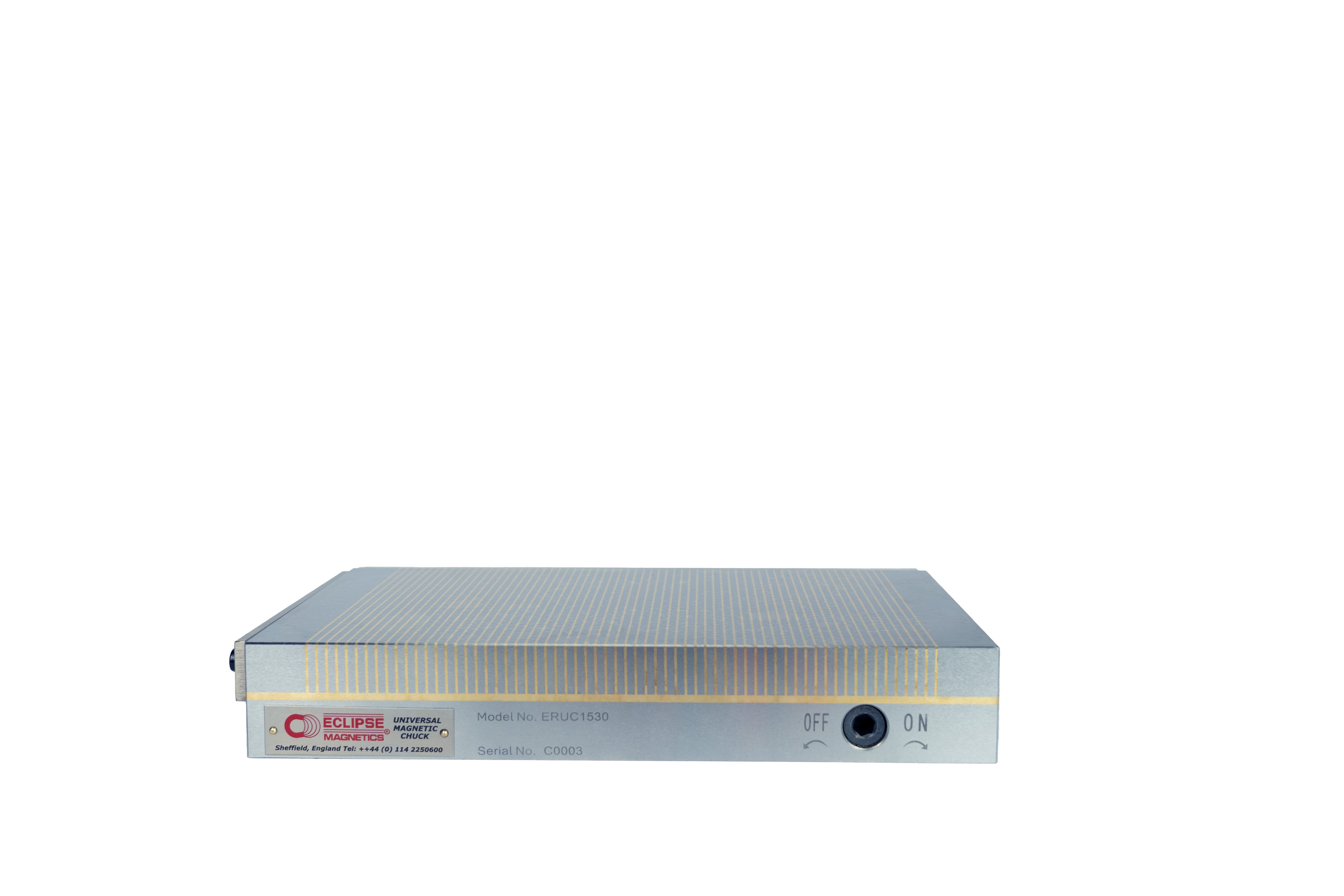

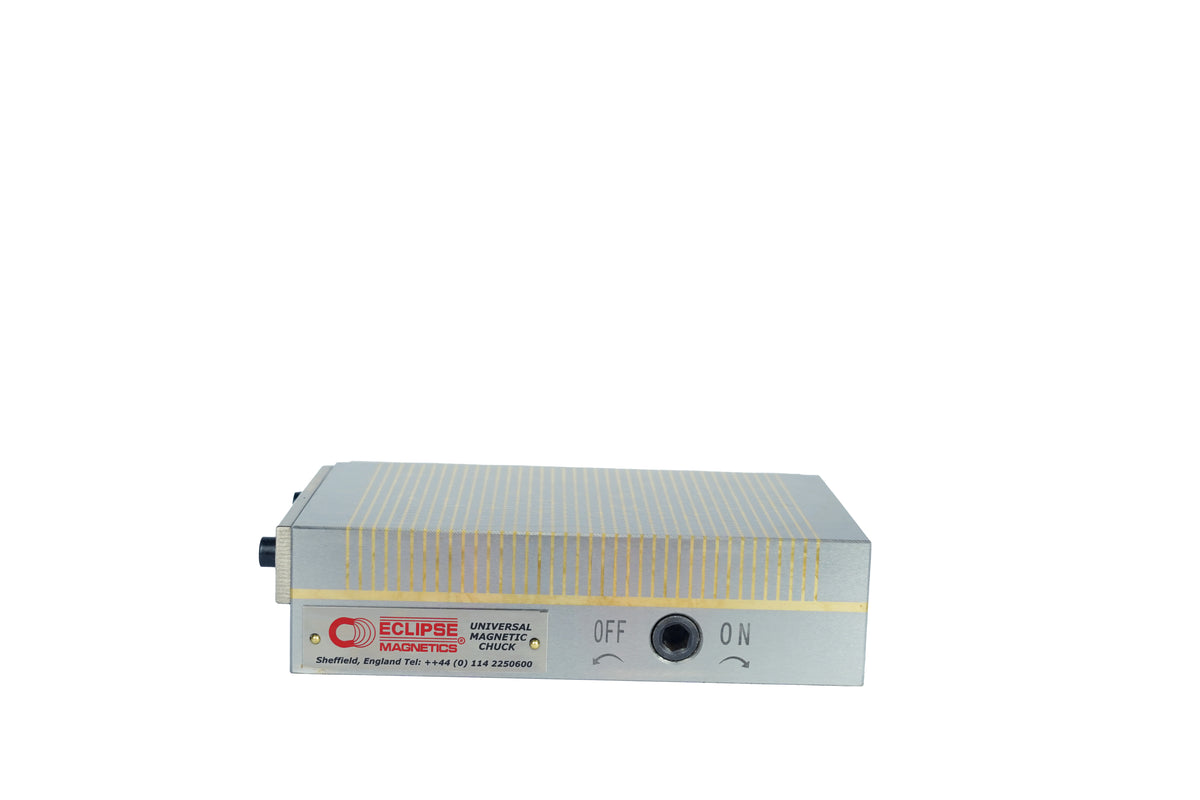

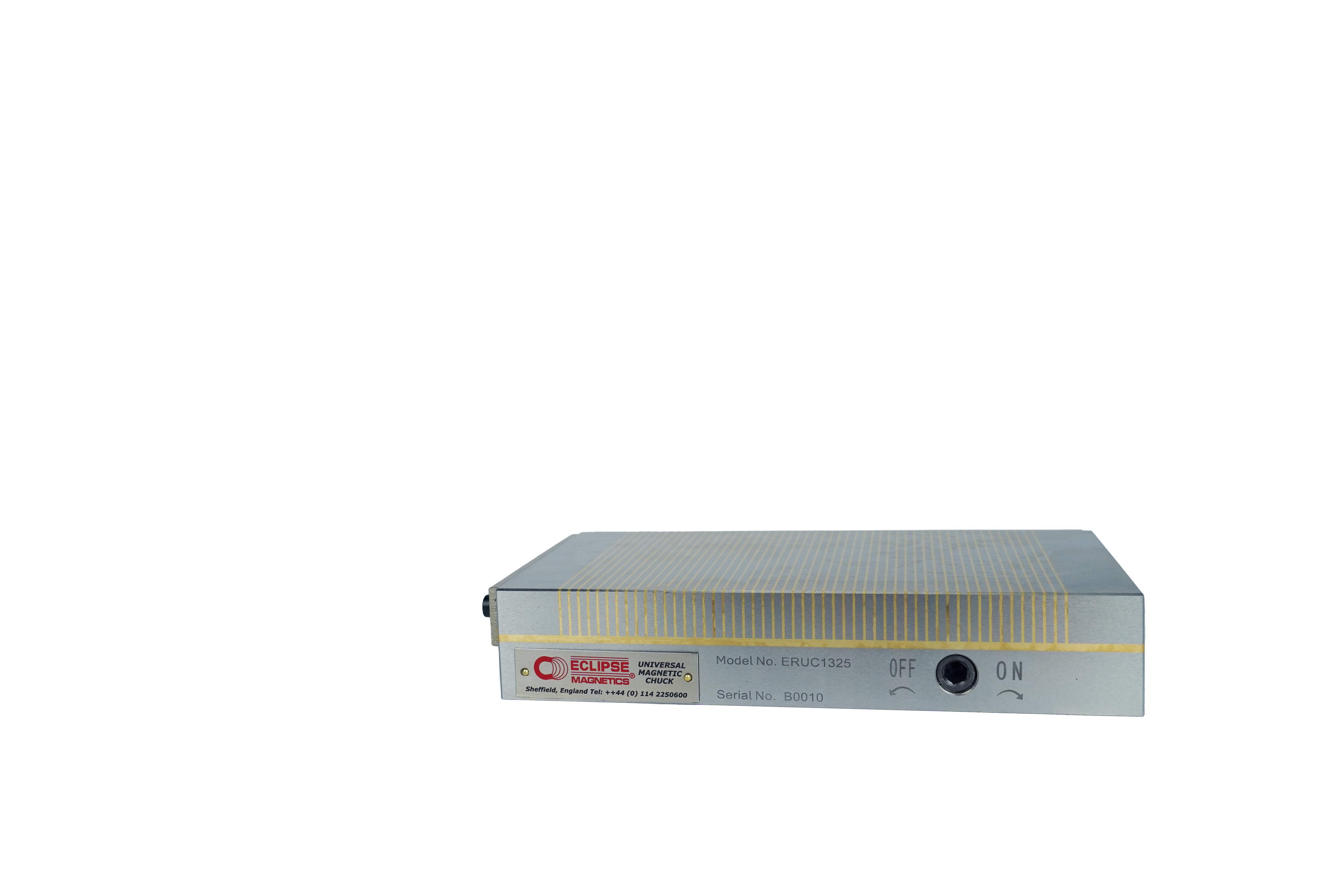

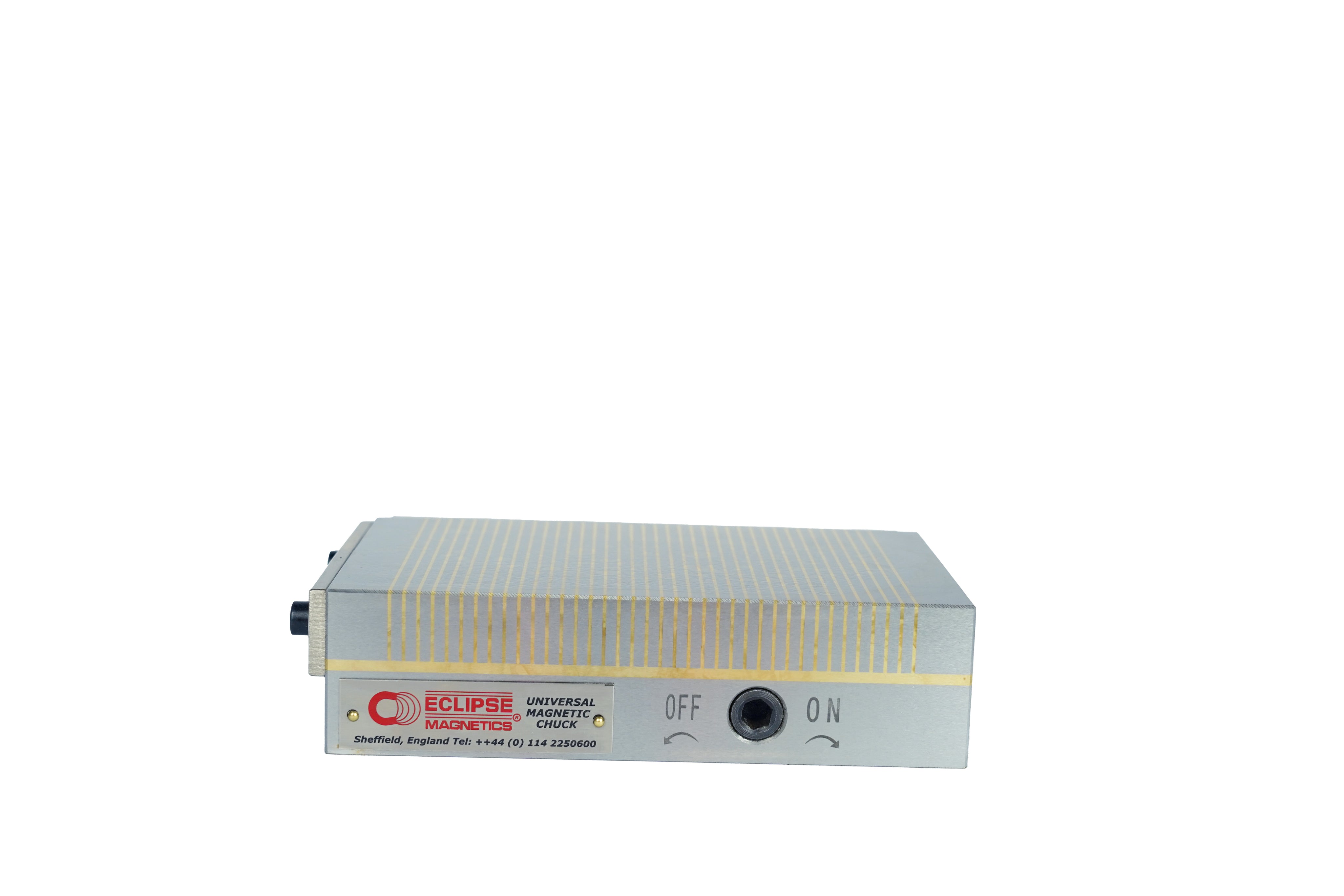

Rectangular Universal Magnetic Chuck – Fine-Pole

The Eclipse Magnetics Rectangular Universal Chuck delivers fast, accurate and safe clamping for a wide range of workpiece shapes, sizes and thicknesses. Powered by high-strength neodymium magnets, this permanent magnetic chuck features a universal pole pattern (1 mm brass / 3 mm steel) that provides effective holding for both thin and thicker work-pieces. A robust all-metal top plate concentrates magnetic energy into the face, and the chuck includes a manual on/off handle for rapid workpiece setup and release. With the ability to partially magnetise the top plate, fine positional adjustments of the workpiece are possible before full clamping is engaged.

Key Features

• Permanent magnetic clamping with high-strength neodymium magnets for long-term performance.
• Universal pole pitch of 1 mm brass / 3 mm steel — suitable for a wide range of workpiece thicknesses and materials.
• All-metal top plate focuses the magnetic field at the working face for maximum holding efficiency.
• Manual on/off switching handle for quick and safe engagement/release.
• Partial magnetisation capability allows fine positioning of the workpiece prior to full hold.
• Rectangular format ideal for machine tables, grinding, EDM, turning, milling and inspection.

Typical Applications

• Surface grinding of ferrous components requiring fast change-over and high accuracy.
• EDM and milling of small or irregular workpieces where mechanical clamps are not suitable.
• Inspection or toolroom setups where five-face access and reliable clamping are critical.
• Production workflows requiring repeatable positioning and rapid realignment of parts.

Technical Data
