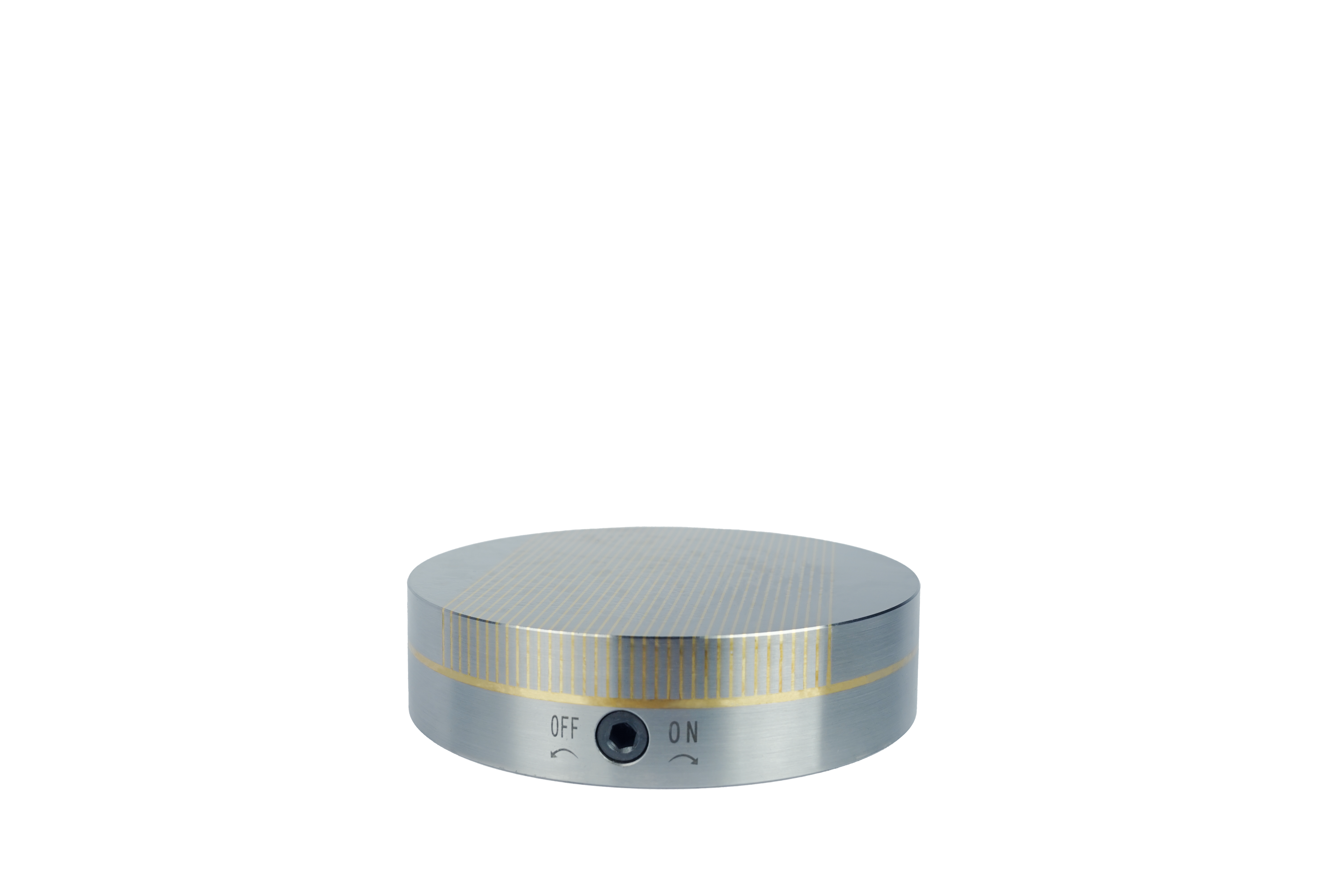

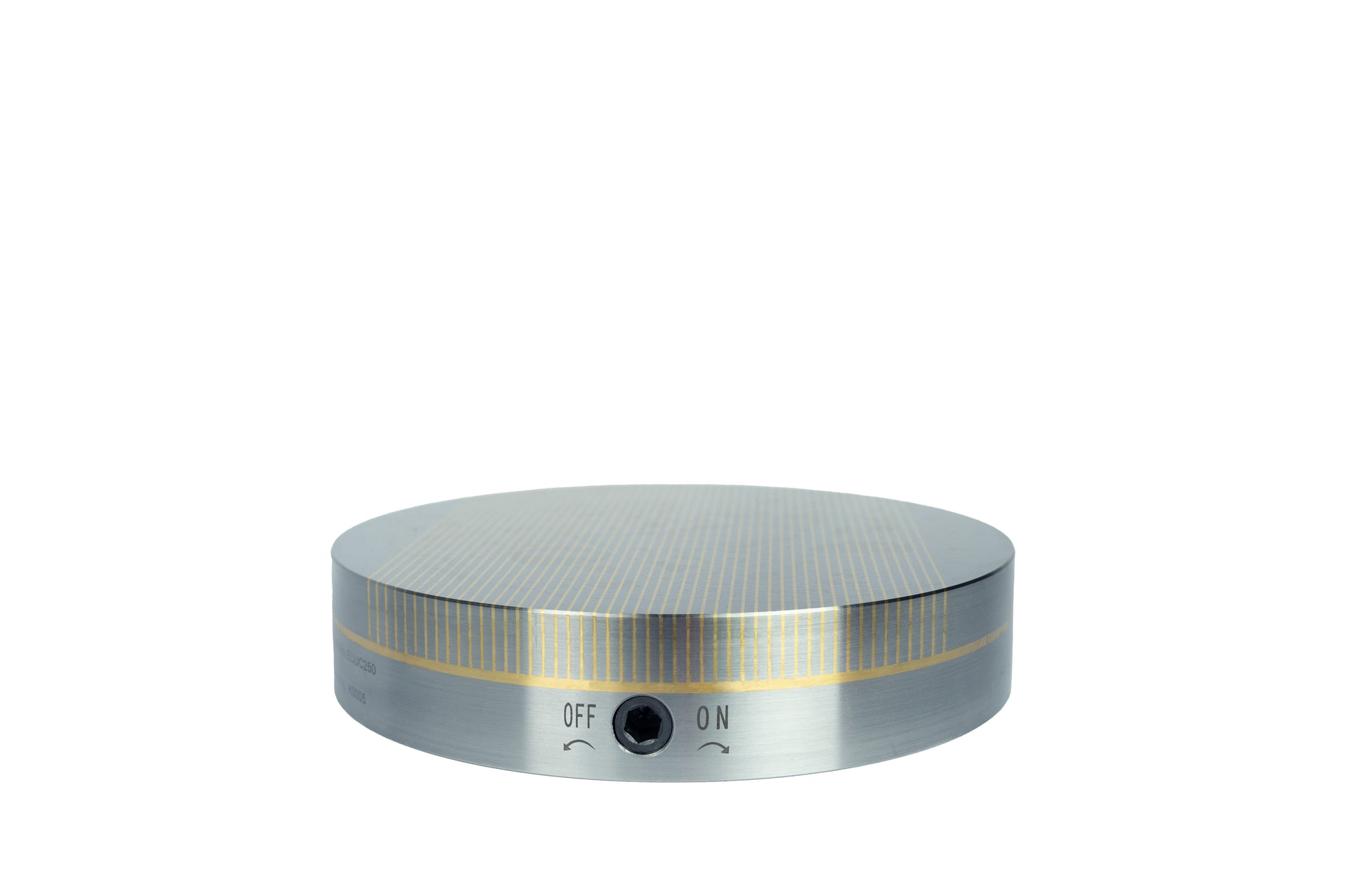

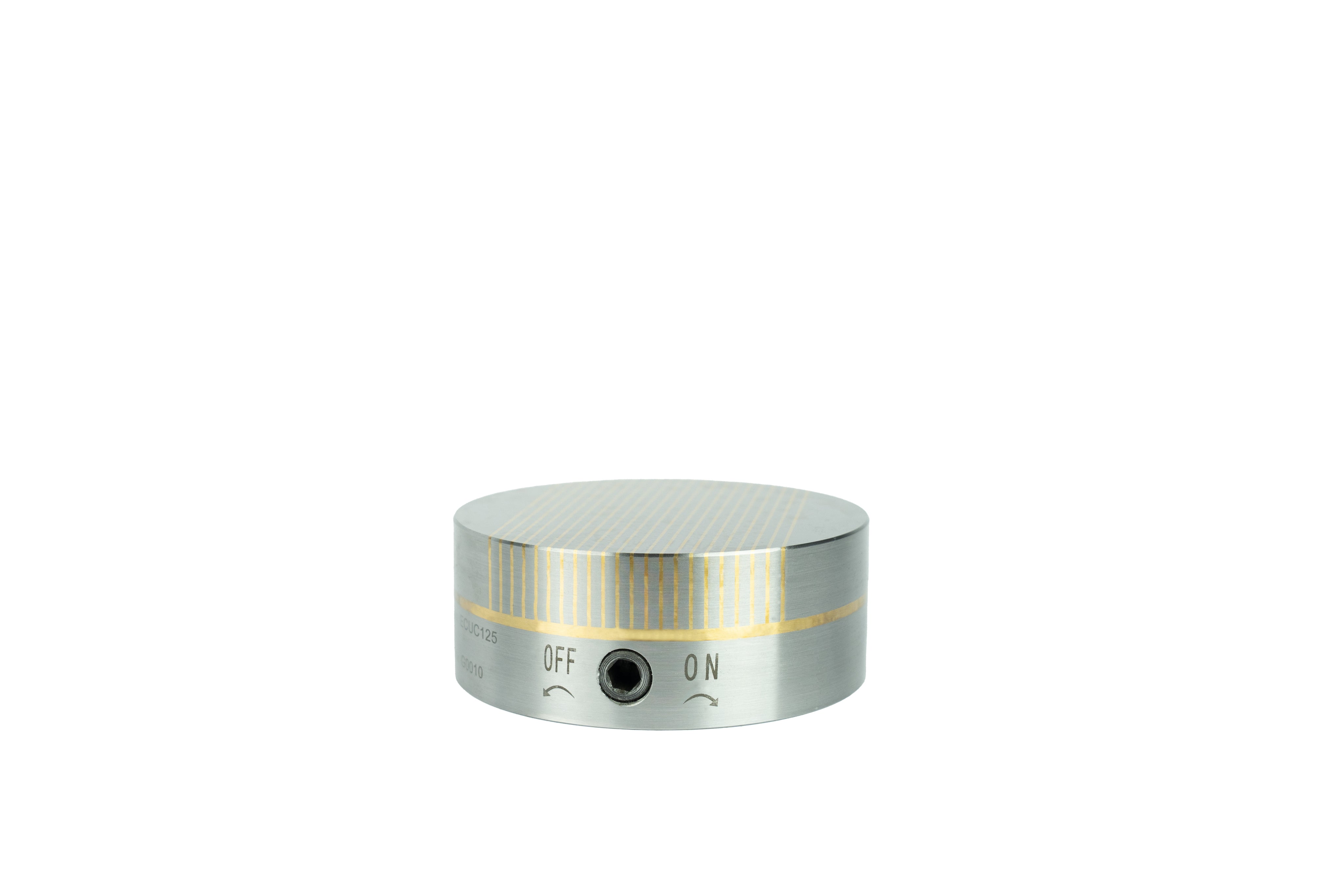

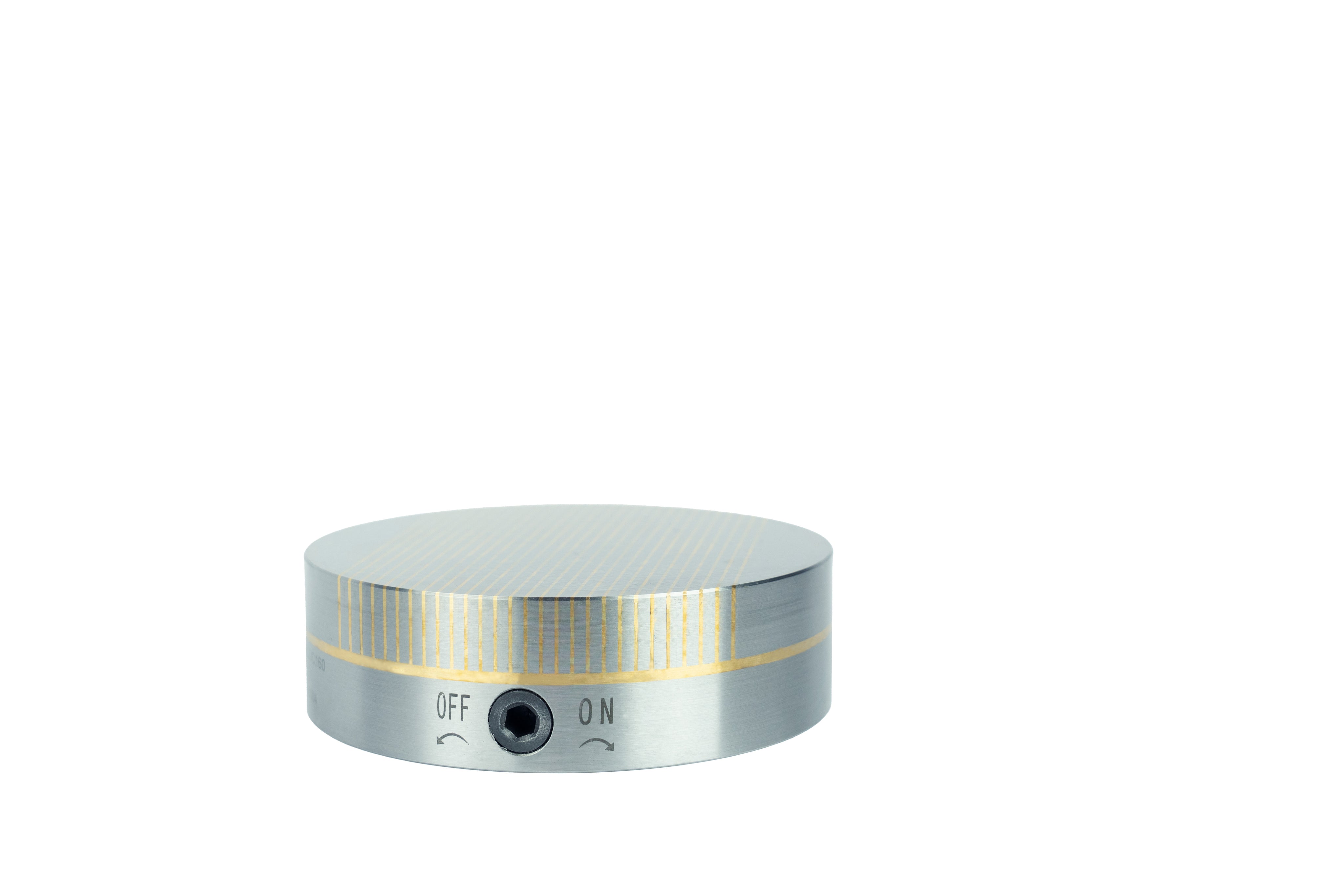

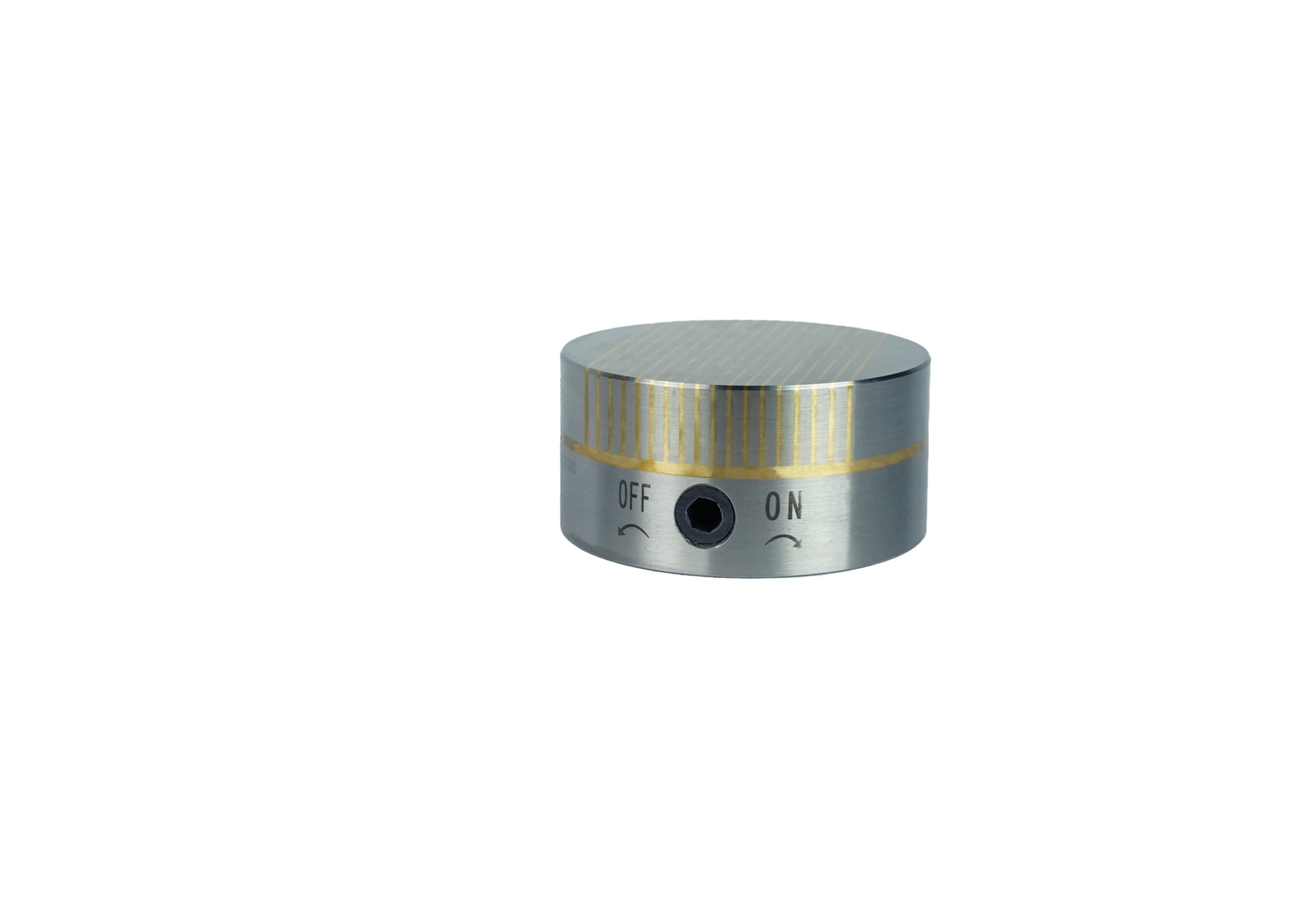

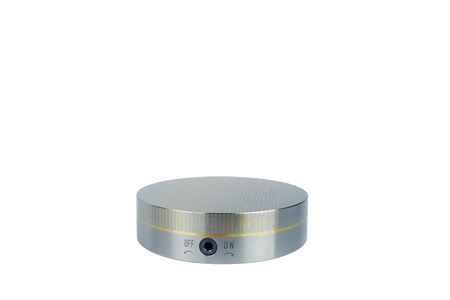

Universal Circular Permanent Magnetic Chucks – Fine Pole, Manual ON/OFF

The Eclipse Magnetics Universal Circular Permanent Magnetic Chucks provide secure and repeatable work-holding for precision grinding, light milling, and EDM applications. Each unit features a fine-pole magnetic surface and a manual ON/OFF control operated by a hex key or detachable lever. This design allows for rapid engagement and release of the magnetic field without the need for electrical power, offering convenience, reliability, and safety. Manufactured from high-grade steel with precision-ground surfaces, these chucks deliver excellent rigidity, accuracy, and durability for both toolroom and production use.

Key Features

• Permanent magnetic chuck with manual ON/OFF control – no electrical power required.
• Fine-pole configuration provides uniform magnetic holding for small or thin workpieces.
• Precision-ground steel top plate ensures flatness, accuracy, and long service life.
• Easily operated via hex key or lever for quick workpiece setup and release.
• Fully sealed construction prevents coolant or oil ingress for enhanced reliability.
• Ideal for surface grinding, light milling, and EDM machine applications.

Typical Applications

• Precision surface and cylindrical grinding of ferrous components.
• Light milling and finishing operations requiring repeatable accuracy.
• Holding thin or small parts securely without mechanical clamps.
• Use on rotary tables, toolroom setups, and general workshop fixtures.

Technical Data
