The Eclipse Magnetics Rectangular Magnetic Chuck range offers high-precision, manually controlled magnetic clamping designed for ferrous workpieces in grinding, milling and EDM applications.

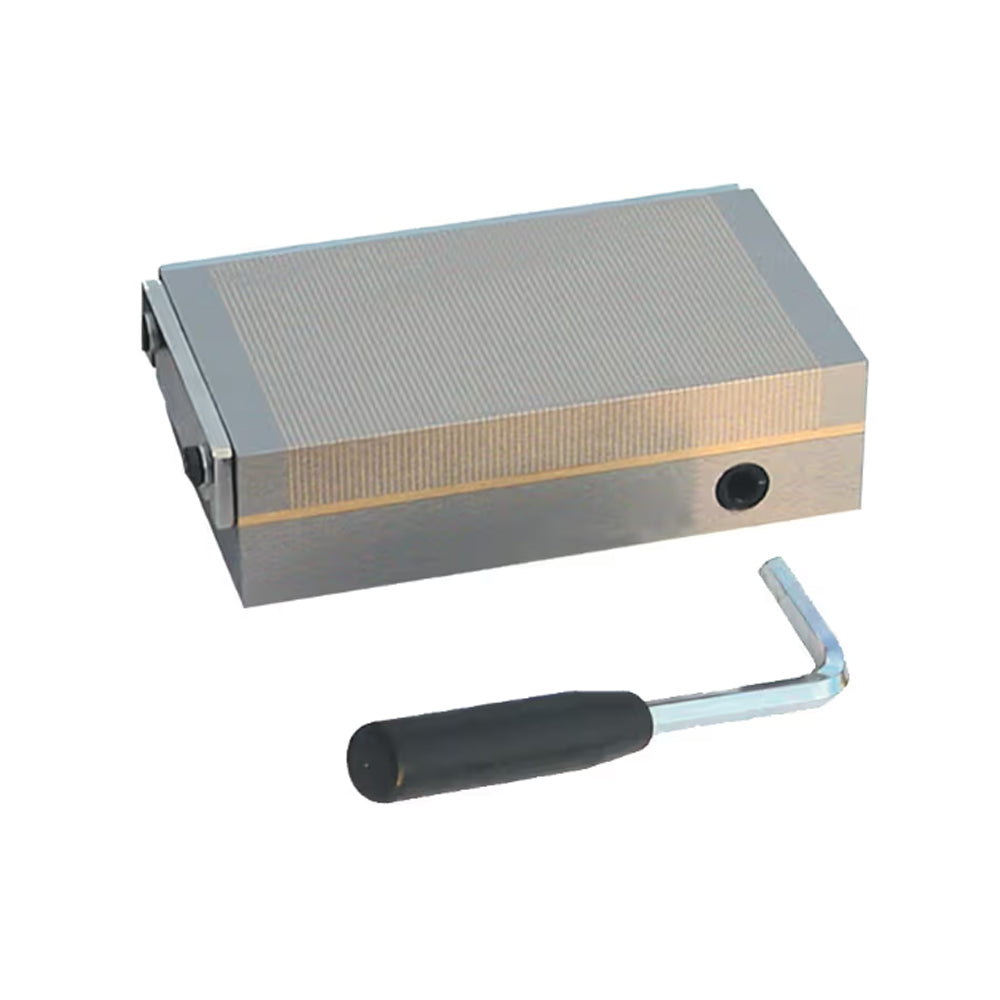

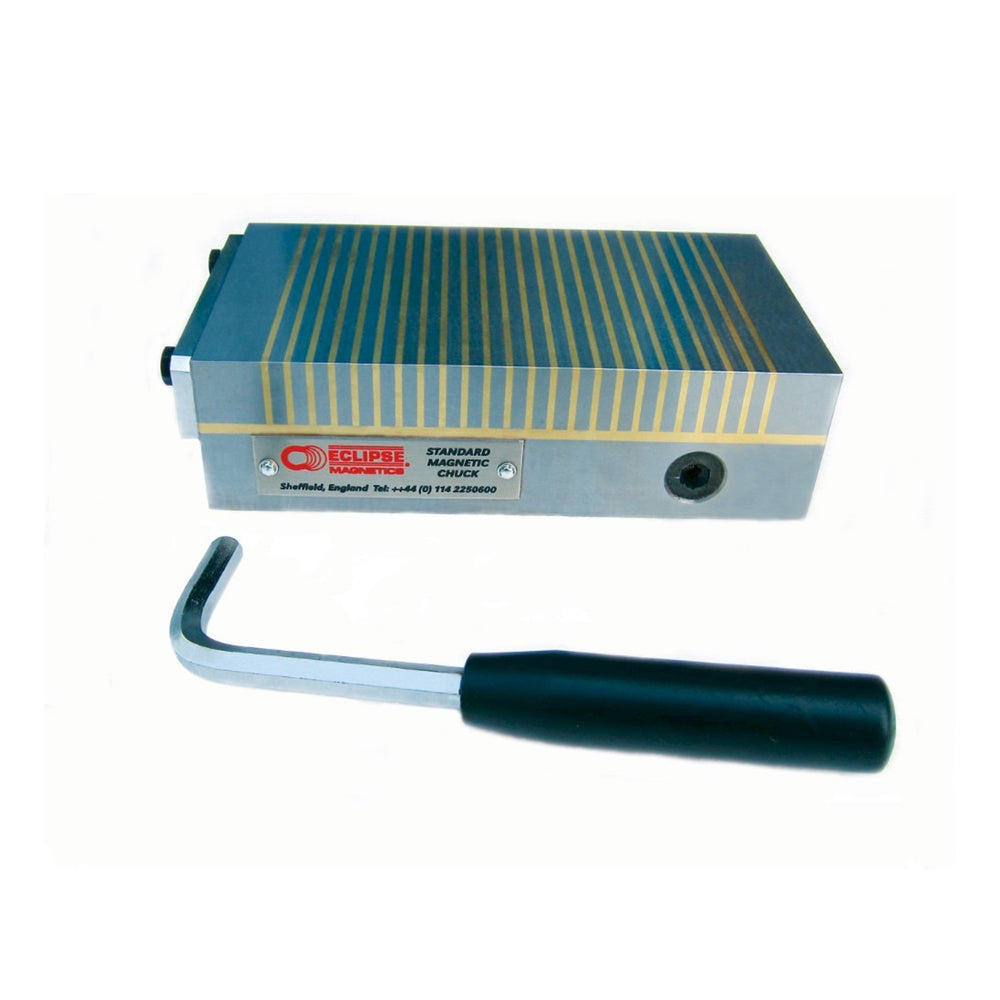

Both the ERFP1545 (150 × 450 × 50 mm) and the ERFP1535 (150 × 350 × 50 mm) feature a fine-pole pattern for optimal contact, ensuring excellent holding strength even for thin or uneven components.
A robust steel top plate focuses magnetic flux into the working face, providing stable and repeatable clamping in demanding toolroom and production environments. With their compact, sealed design, these chucks resist coolant and chip ingress, offering maintenance-free longevity with secure, reliable performance.
Key Features
- Permanent magnetic technology — no power required once engaged.
- Fine-pole surface for superior holding of thin or small workpieces.
- Manual ON/OFF control for rapid engagement and safe release.
- Available in two sizes: 150 × 450 mm and 150 × 350 mm — both 50 mm height.
- Sealed construction for enhanced durability against coolant and swarf.
Typical Applications
- Surface grinding and finishing of steel components requiring quick changeovers.
- Milling and EDM operations where traditional clamps impede access.
- Toolroom setups needing repeatable location accuracy and secure fixturing.
- Batch production of ferrous parts with varying sizes and geometries.
Technical Data
| Model |
Length (mm) |
Width (mm) |
Height (mm) |
Pole Pitch |
Clamping Force (N/cm²) |
| ERFP1545 |
450 |
150 |
50 |
1 mm/3 mm* |
Up to 80 N/cm²† |
| ERFP1535 |
350 |
150 |
50 |
1.5mm/0,5mm* |
Up to 80N/cm2 |
