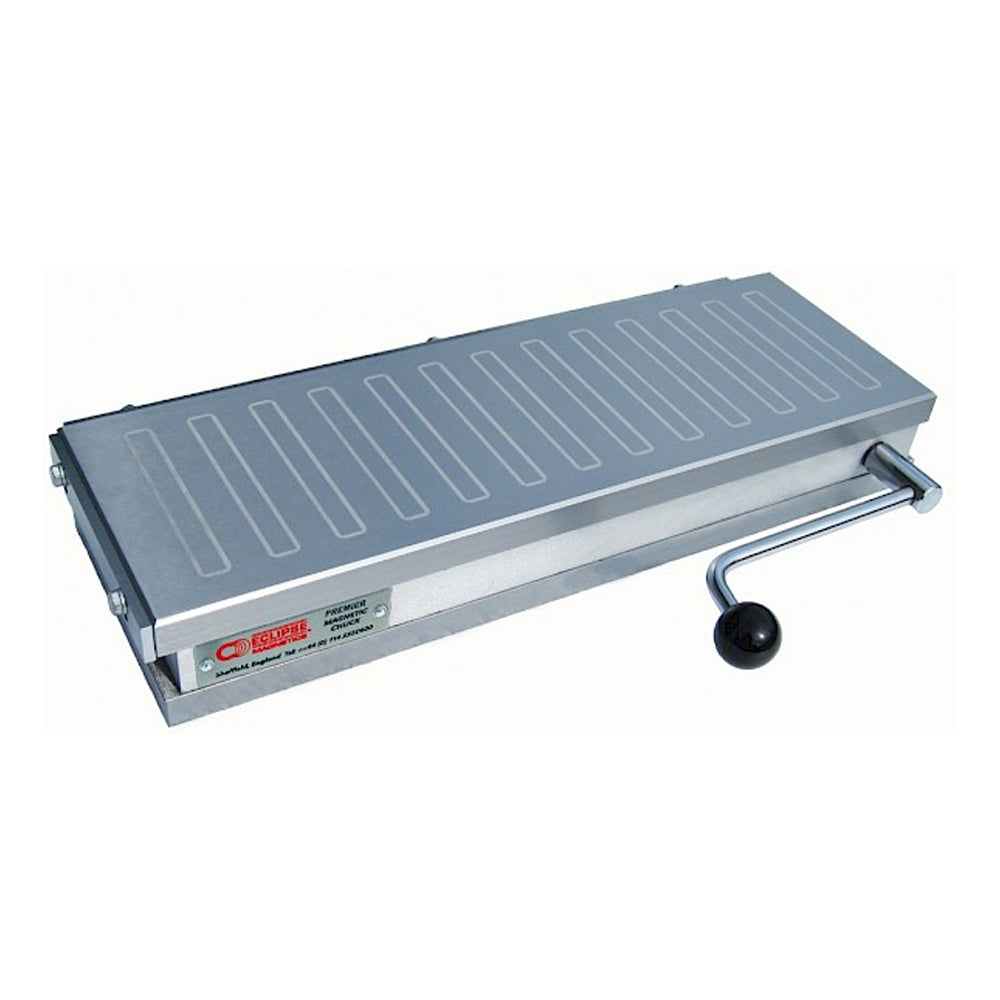

Rectangular Premier Permanent Magnetic Chucks | 203mm–601mm | 6 Sizes

Eclipse Magnetics Rectangular Premier Chucks are permanent magnetic workholding chucks designed for tool-room grinding, inspection and precision machining of ferrous components.

Each chuck features a thick all-metal top plate and robust construction for stable, repeatable holding in demanding workshop and machine-shop environments.

The permanent magnetic design requires no electrical power during operation, while the removable operating handle allows the magnetic field to be switched on and off for straightforward loading, positioning and release of the workpiece.

The design provides access to five faces of the workpiece, helping support grinding, inspection and other machining operations where open access around the component is important.

Six sizes are available, ranging from 203mm to 601mm in length, with pole pitches from 17.6mm to 35mm depending on the model.

Key Features

• Permanent magnetic workholding with no power required during use
• Thick all-metal top plate
• Manual ON/OFF operation using a removable handle
• Five-face access to the workpiece
• Suitable for tool-room grinding, inspection and precision machining
• Available in six sizes from 203mm to 601mm long
• Pole pitch options from 17.6mm to 35mm
• Robust construction for workshop and production environments

For more workholding options, explore our wider range of magnetic chucks for grinding and milling.

Technical Data
