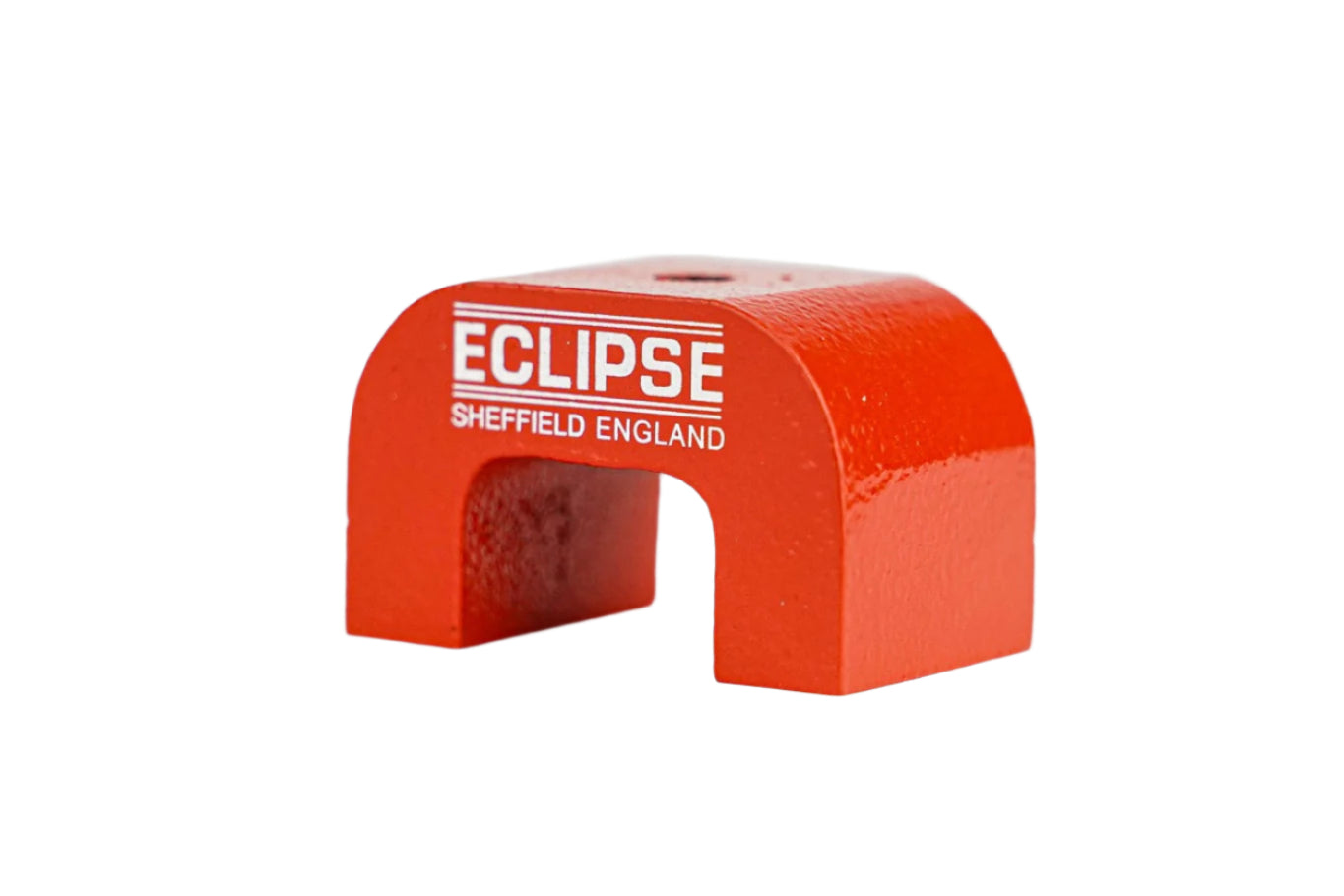

Alnico Power Horseshoe Magnet
Alnico Power Horseshoe Magnet
Couldn't load pickup availability
Description
Alnico Power Magnets are heavy-duty, high-strength magnets designed for demanding clamping and holding applications. These magnets are crafted from premium Alnico alloy to deliver stable magnetic performance in environments where extreme strength and high temperature resistance are required. Their U-shape design with wide pole faces allows for maximum surface contact and secure holding force, making them ideal for industrial setups
Bulk order discounts available - enquire here
Typical Applications
- Welding and soldering jigs
- Retrieval and lifting of steel parts
- Ultrasonic testing and crack detection
- Clamping systems in machining
- Heavy-duty attracting and fixturing
Key Features
- Exceptionally high pull force up to 60 kg
- Built from Alnico for high-temperature stability
- Available with or without fixing holes
- Wide magnetic gap for stronger surface engagement
- Precision-machined and coated for durability -550°C maximum operating temperature
| Product Number | Length (mm) | Width (mm) | Height (mm) | Gap Width (mm) | Hole Size (mm) | Hole Centres (mm) | Net Weight (kg) | Pull Force (kg) |
|---|---|---|---|---|---|---|---|---|

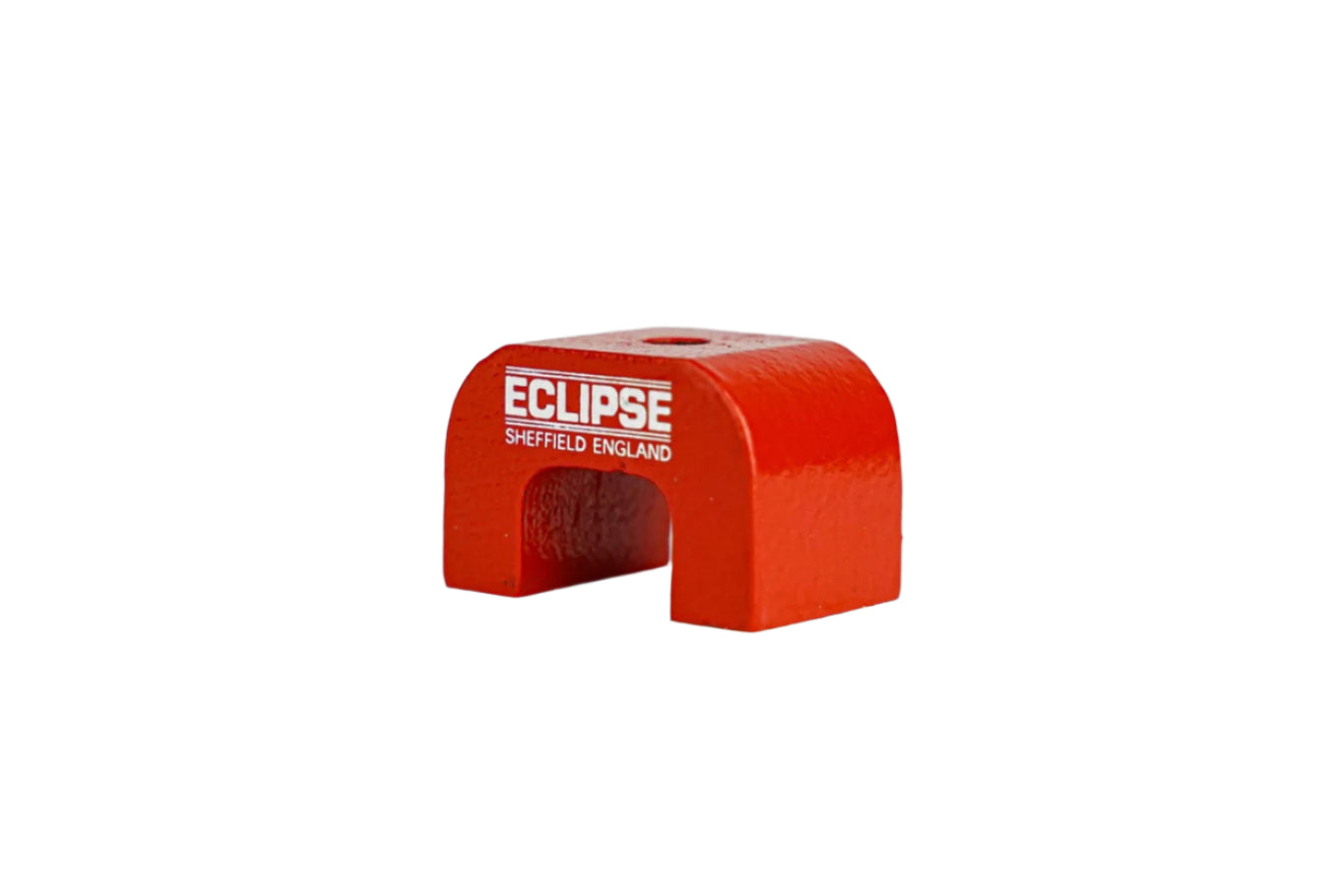

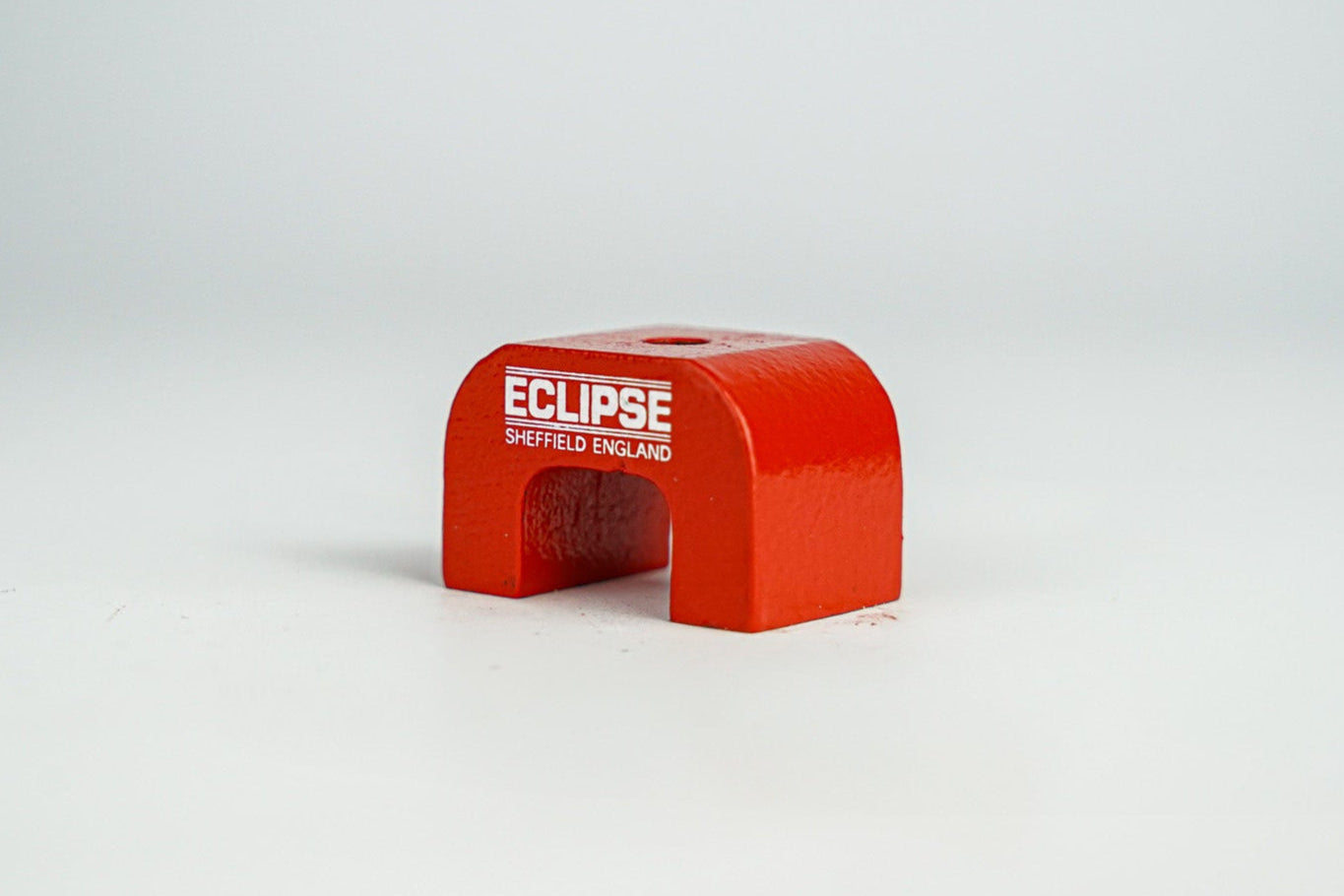

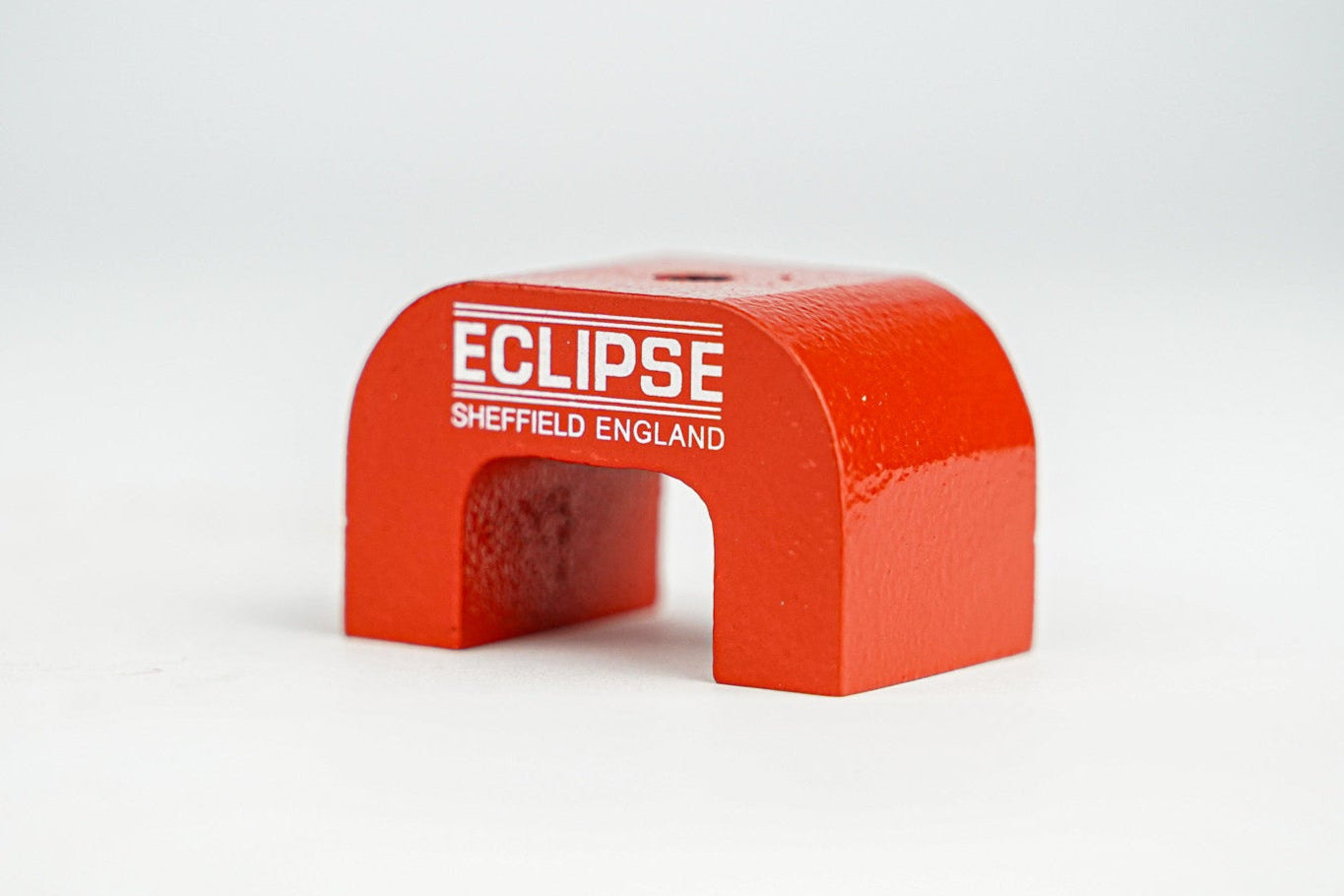

| 811 | 30 | 20 | 20 | 15 | 5 | n/a | 0.074 | 4.5 |
| 812 | 40 | 25 | 25 | 20 | 5 | n/a | 0.150 | 5.0 |

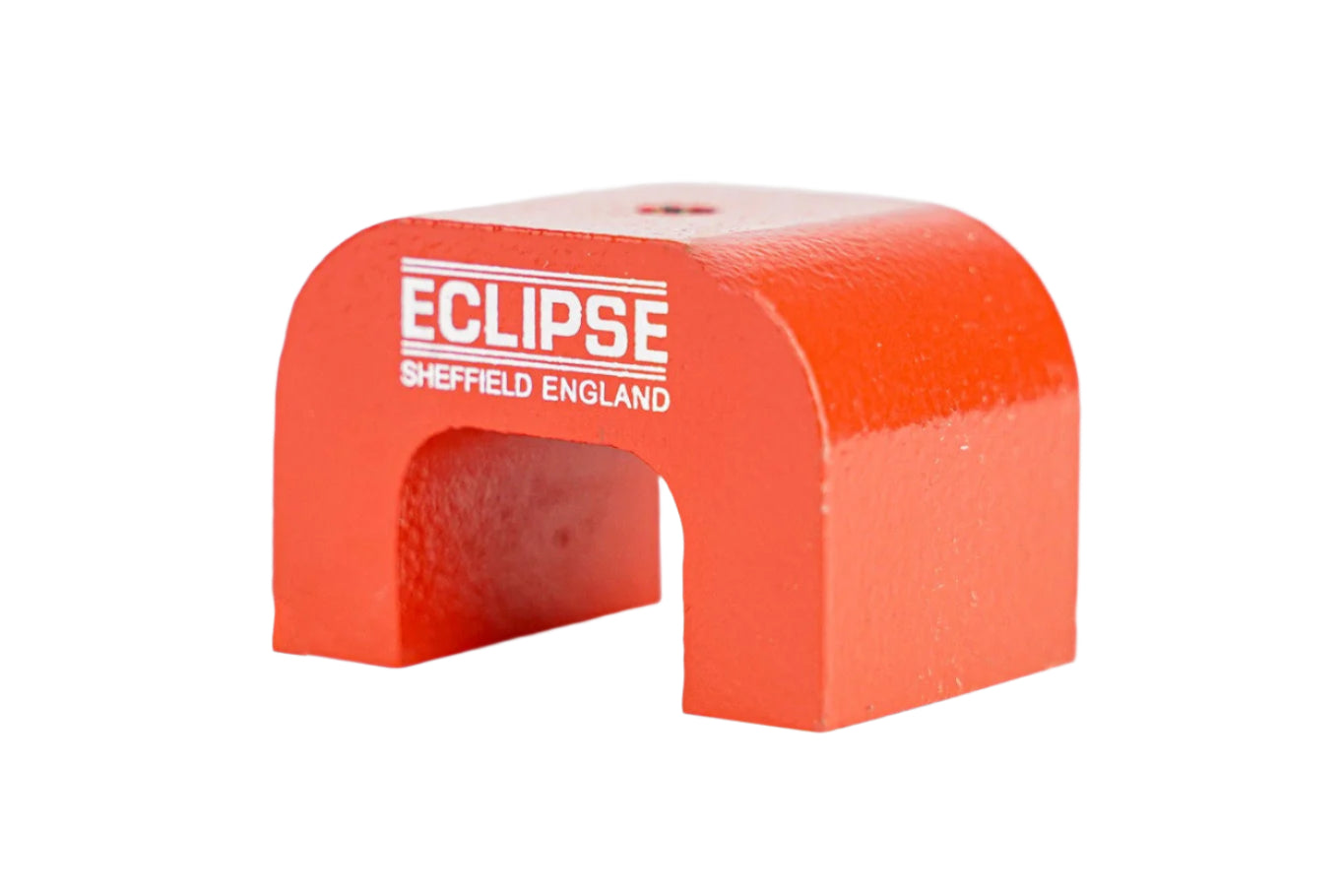

| 813 | 45 | 30 | 30 | 25.2 | 5 | n/a | 0.256 | 11.8 |

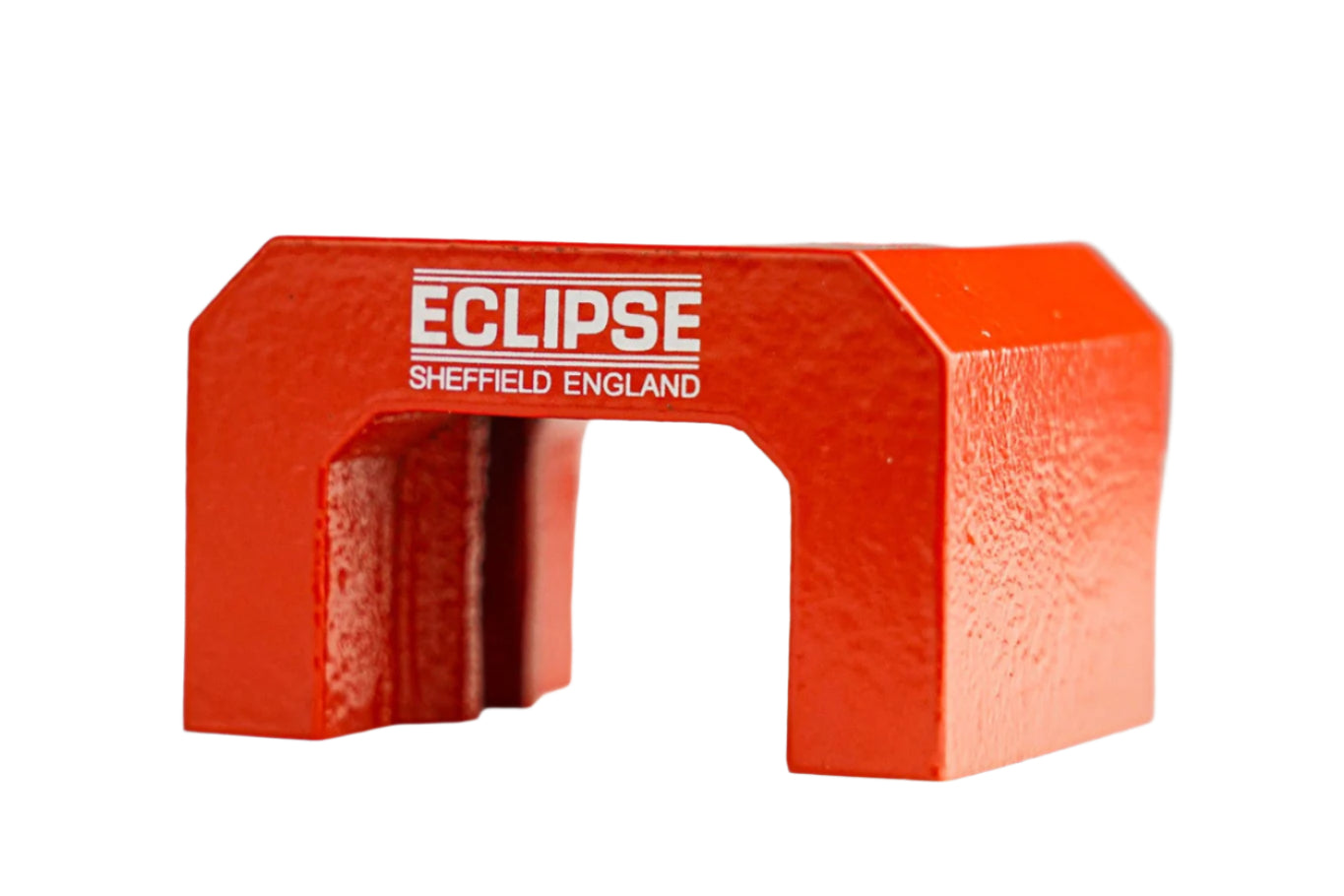

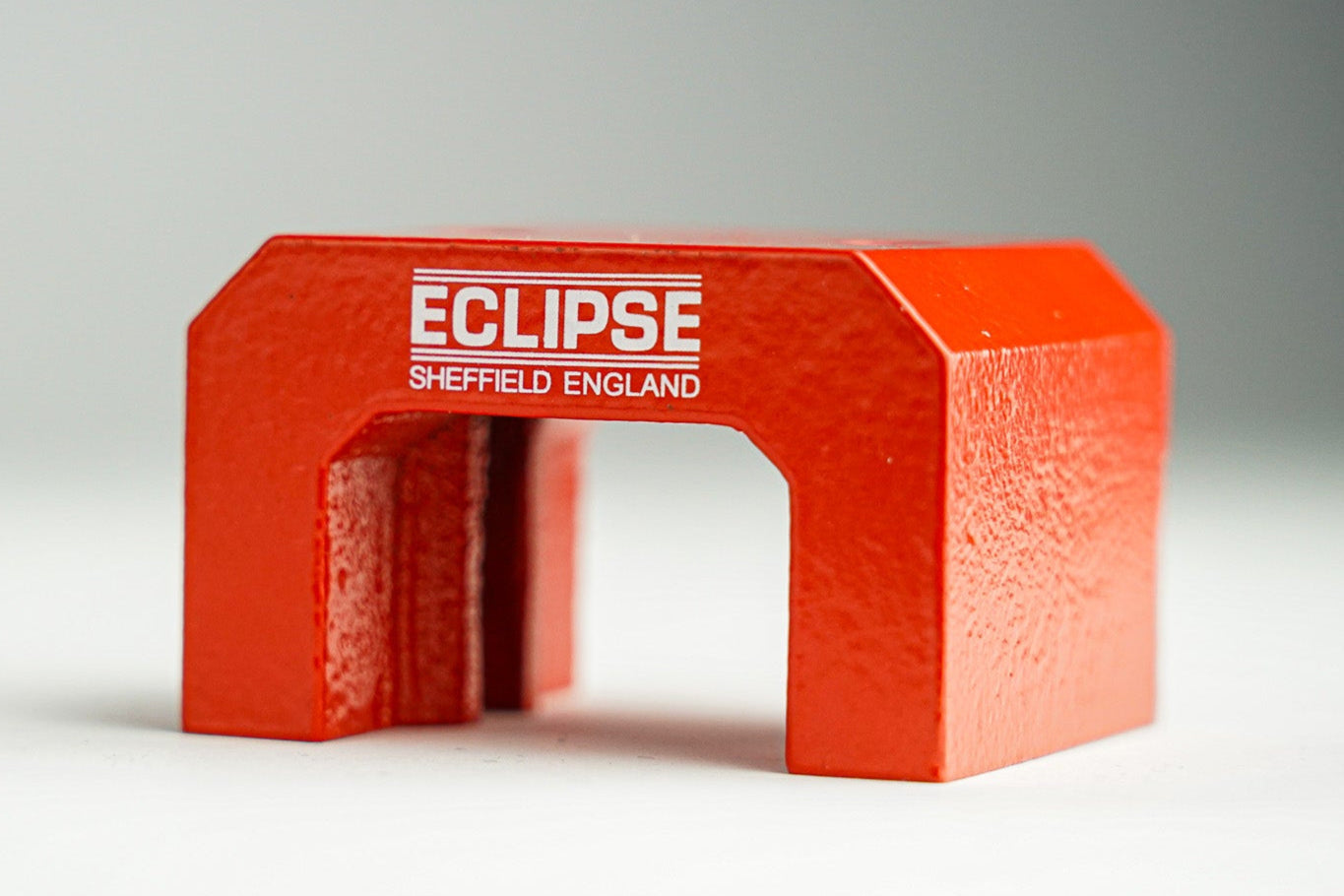

| 814 | 57 | 44.5 | 35 | 27.8 | 2 x 7.9 | 31.75 | 0.479 | 23.5 |

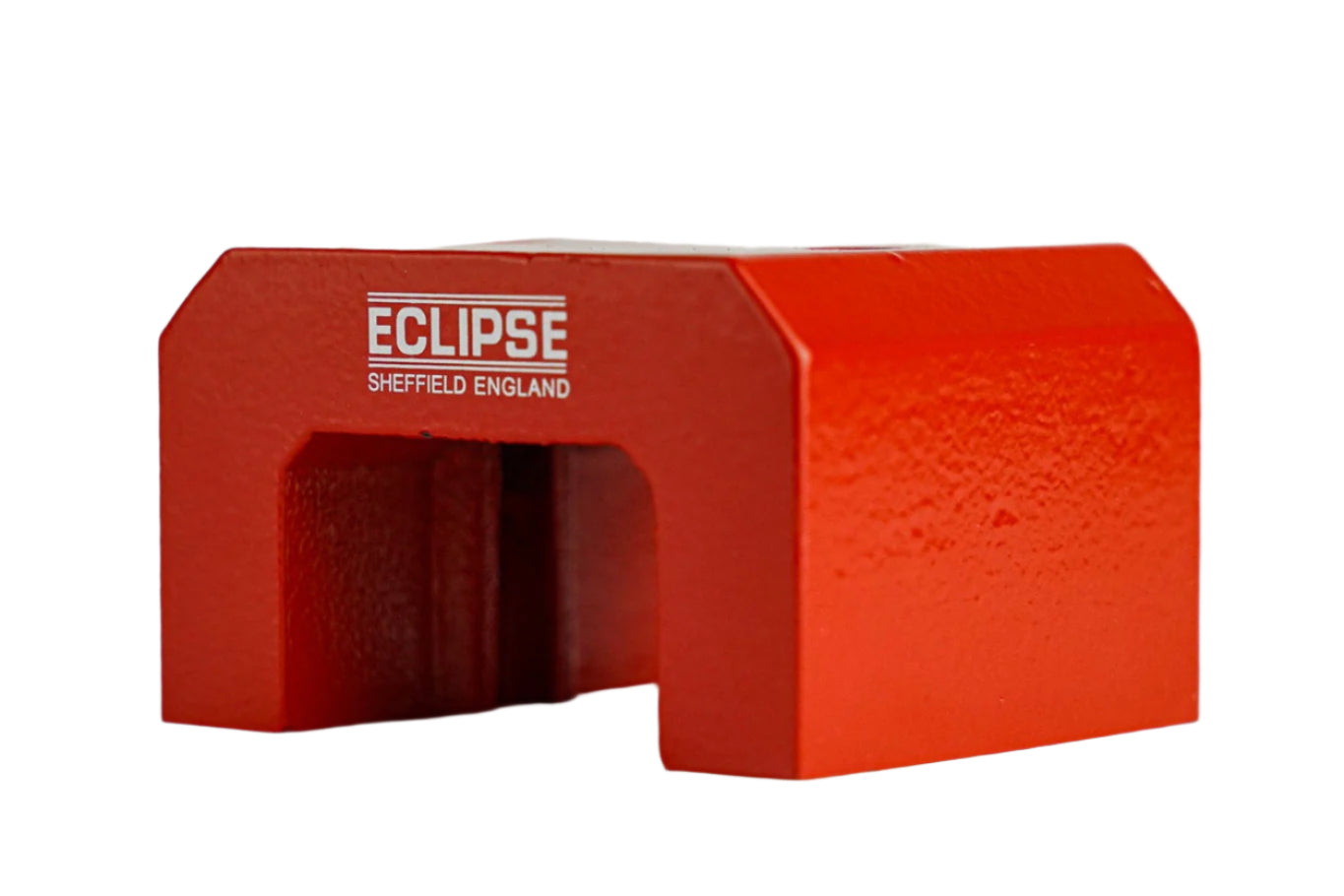

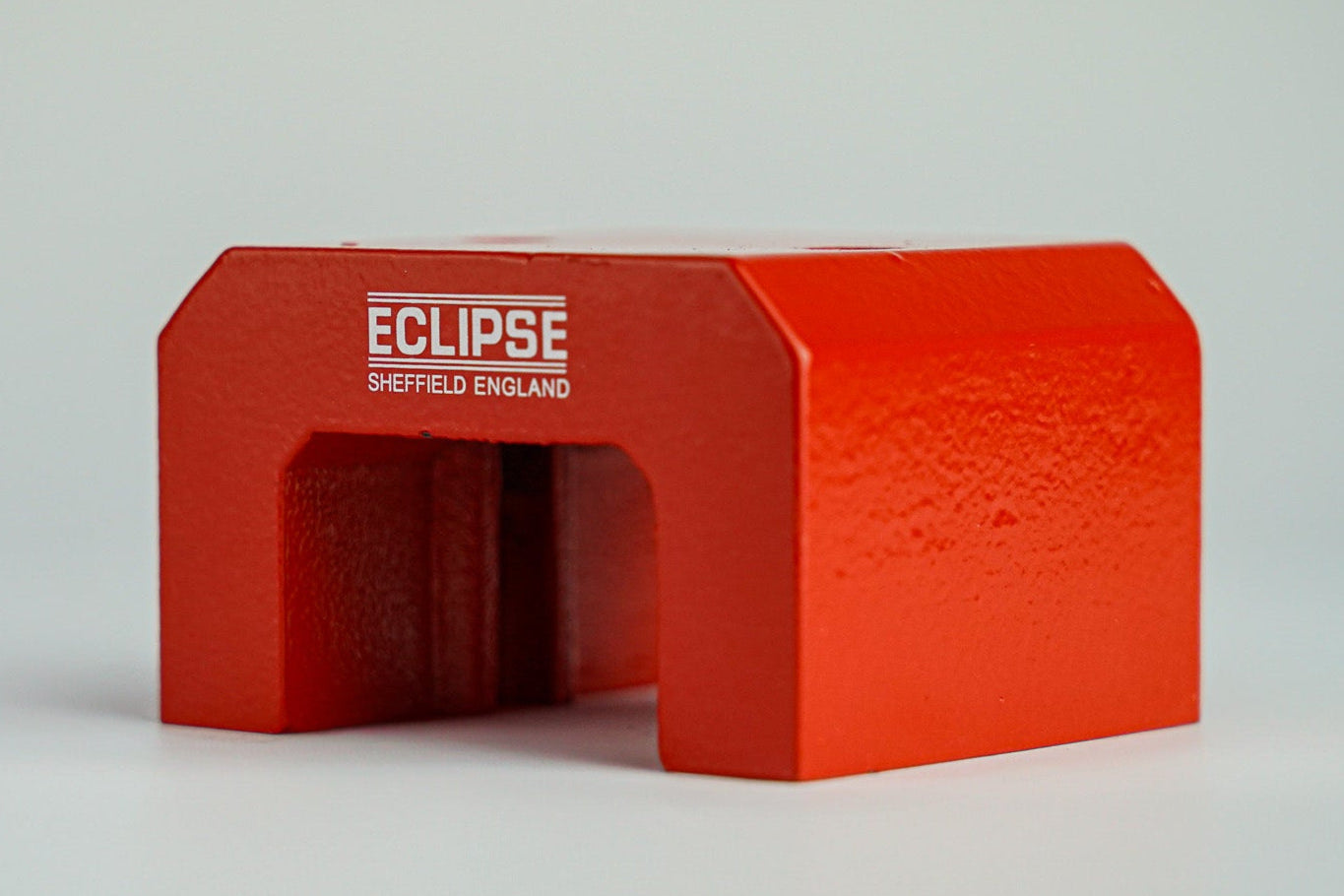

| 815 | 70 | 57.2 | 41.3 | 32.7 | 2 x 7.9 | 38.10 | 0.860 | 30.0 |

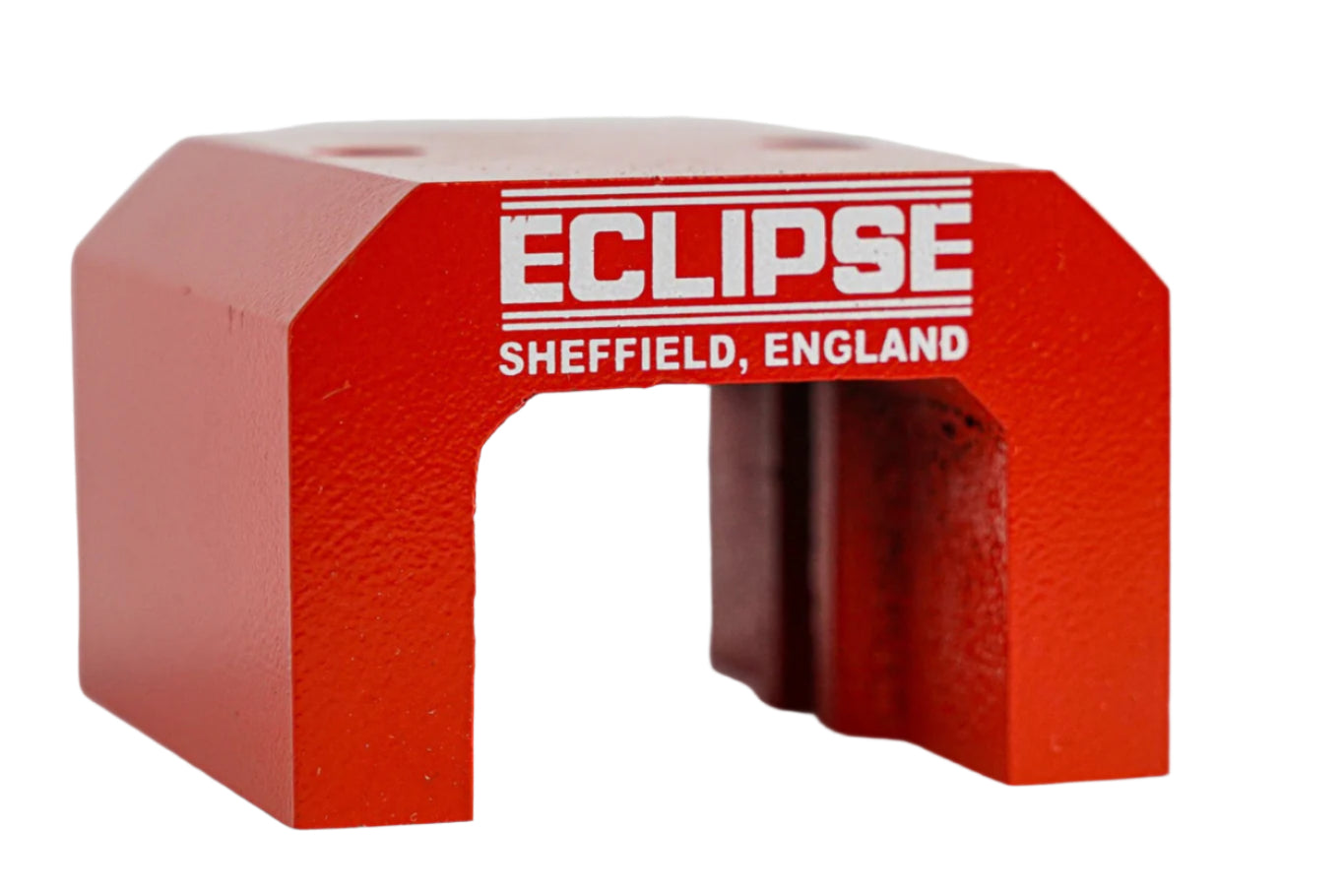

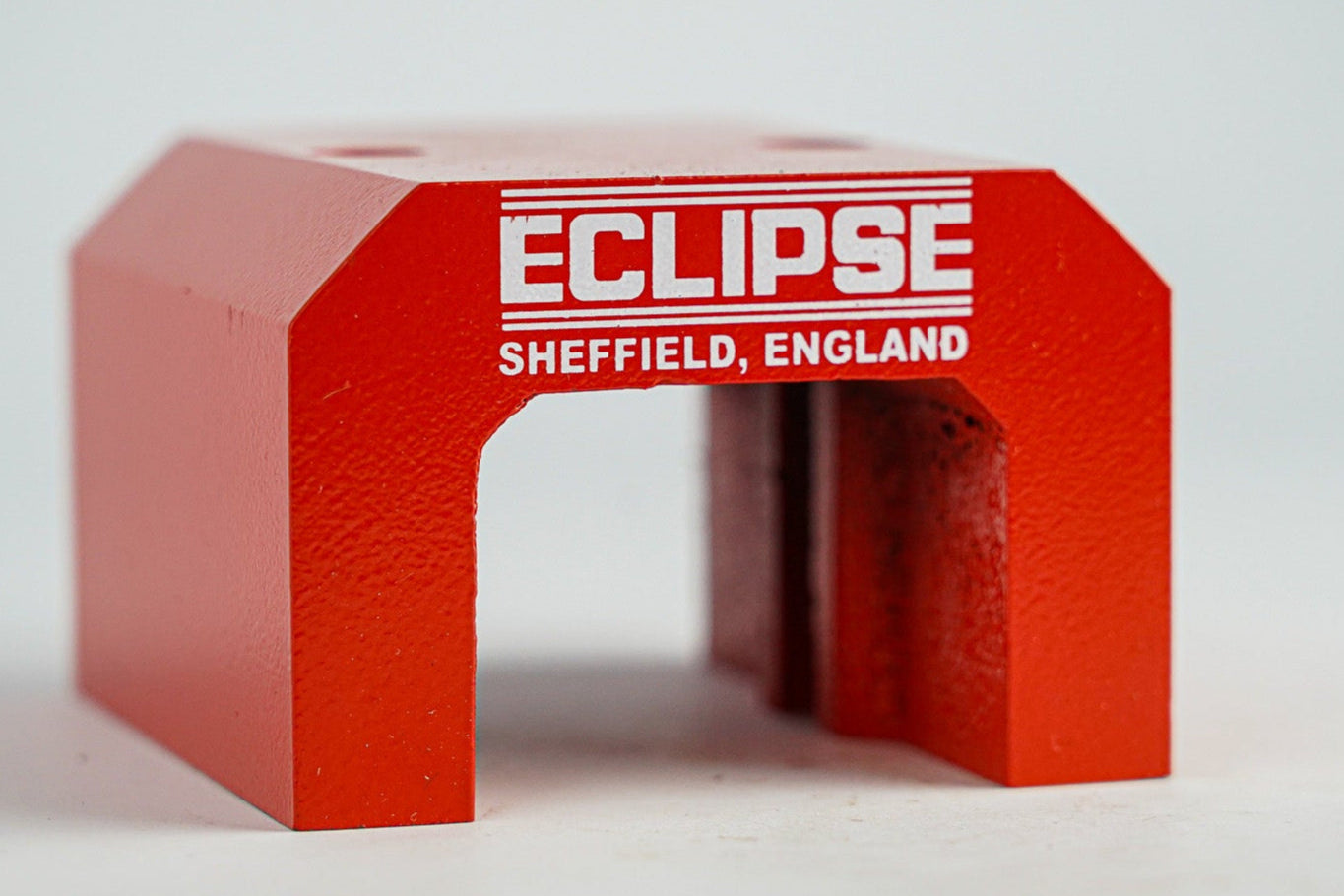

| 816 | 79.4 | 82.6 | 54 | 34.1 | 2 x 9.5 | 42.86 | 1.815 | 47.0 |

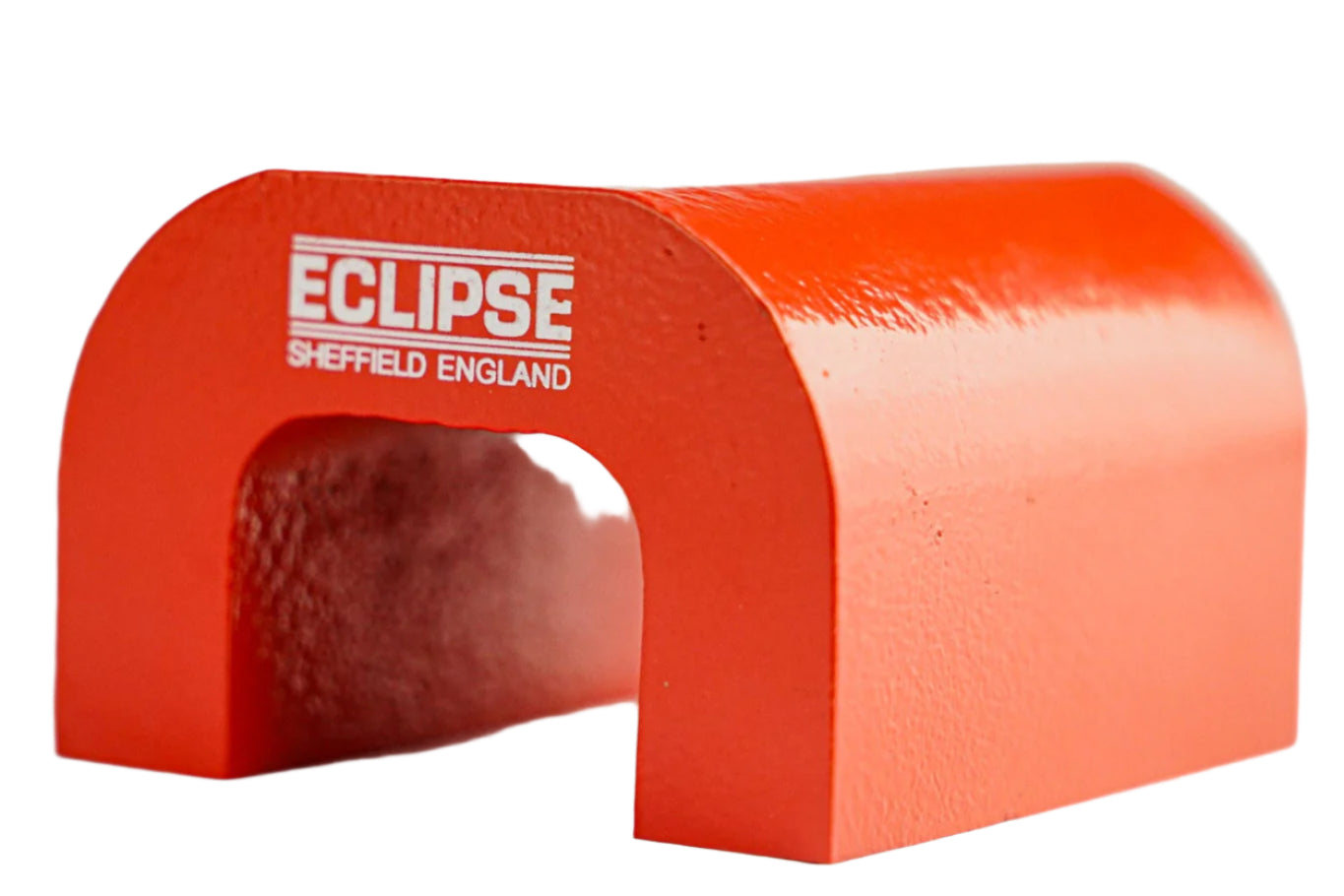

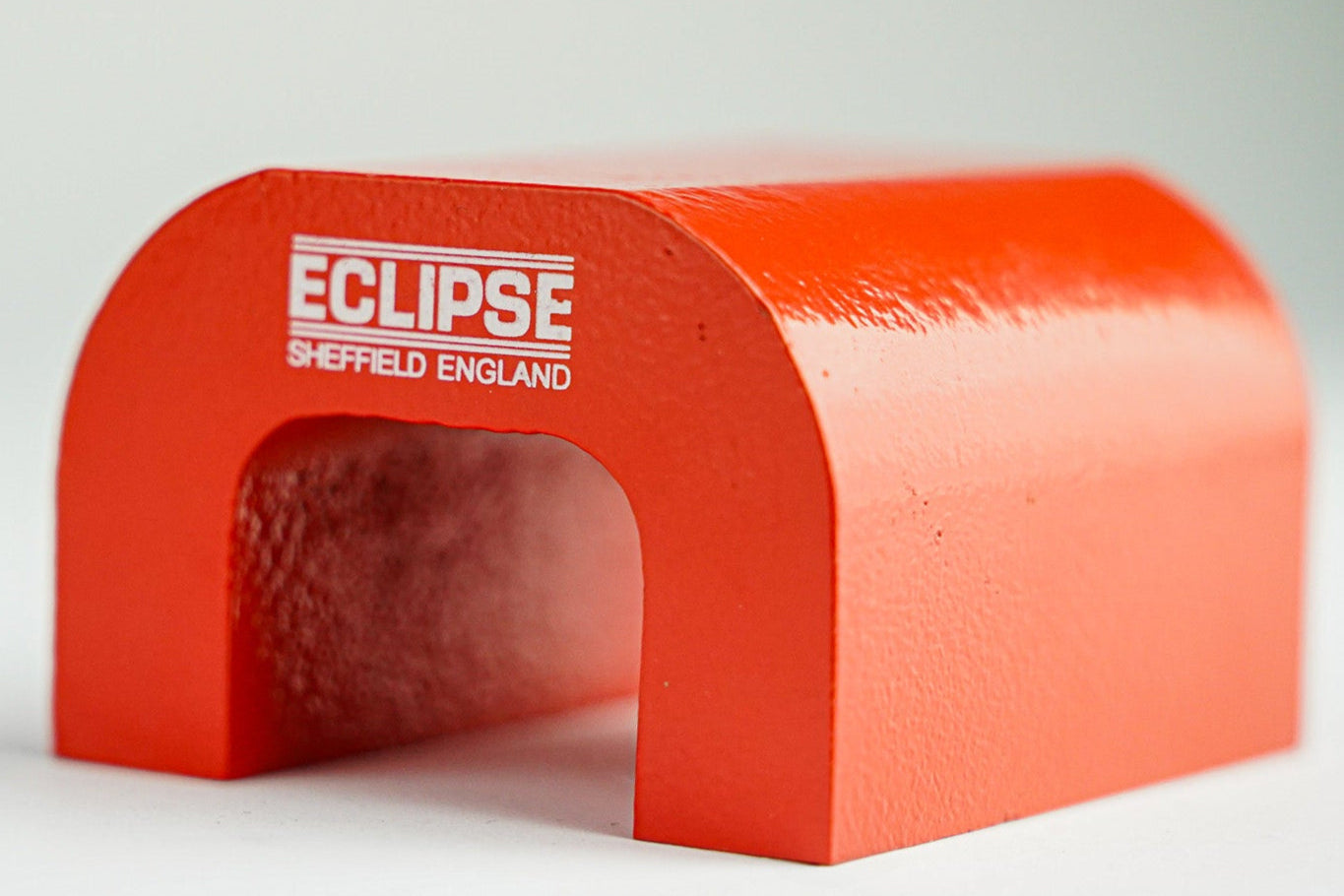

| 817 | 60.3 | 62.0 | 39.7 | 31.75 | n/a | n/a | 0.806 | 41.0 |

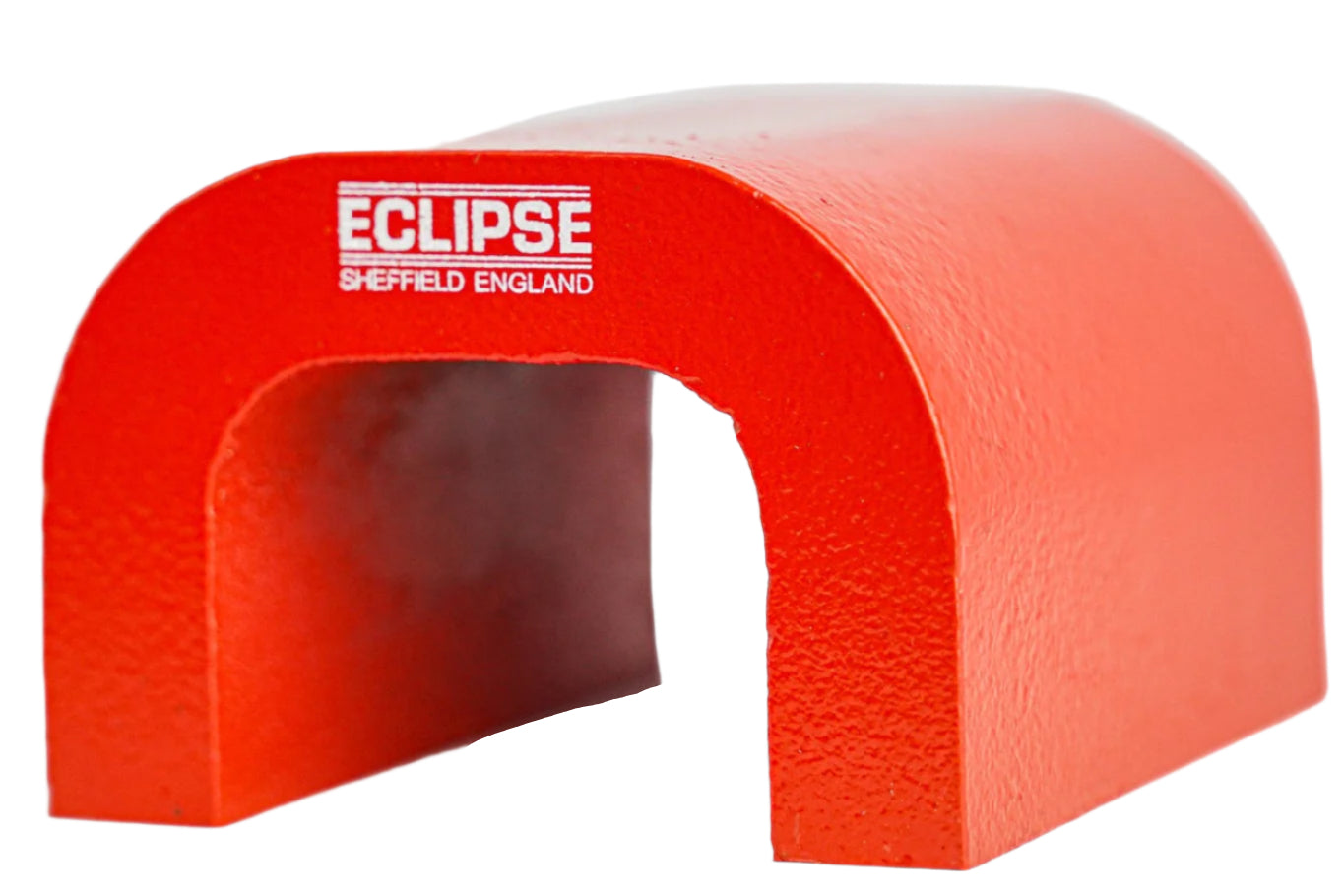

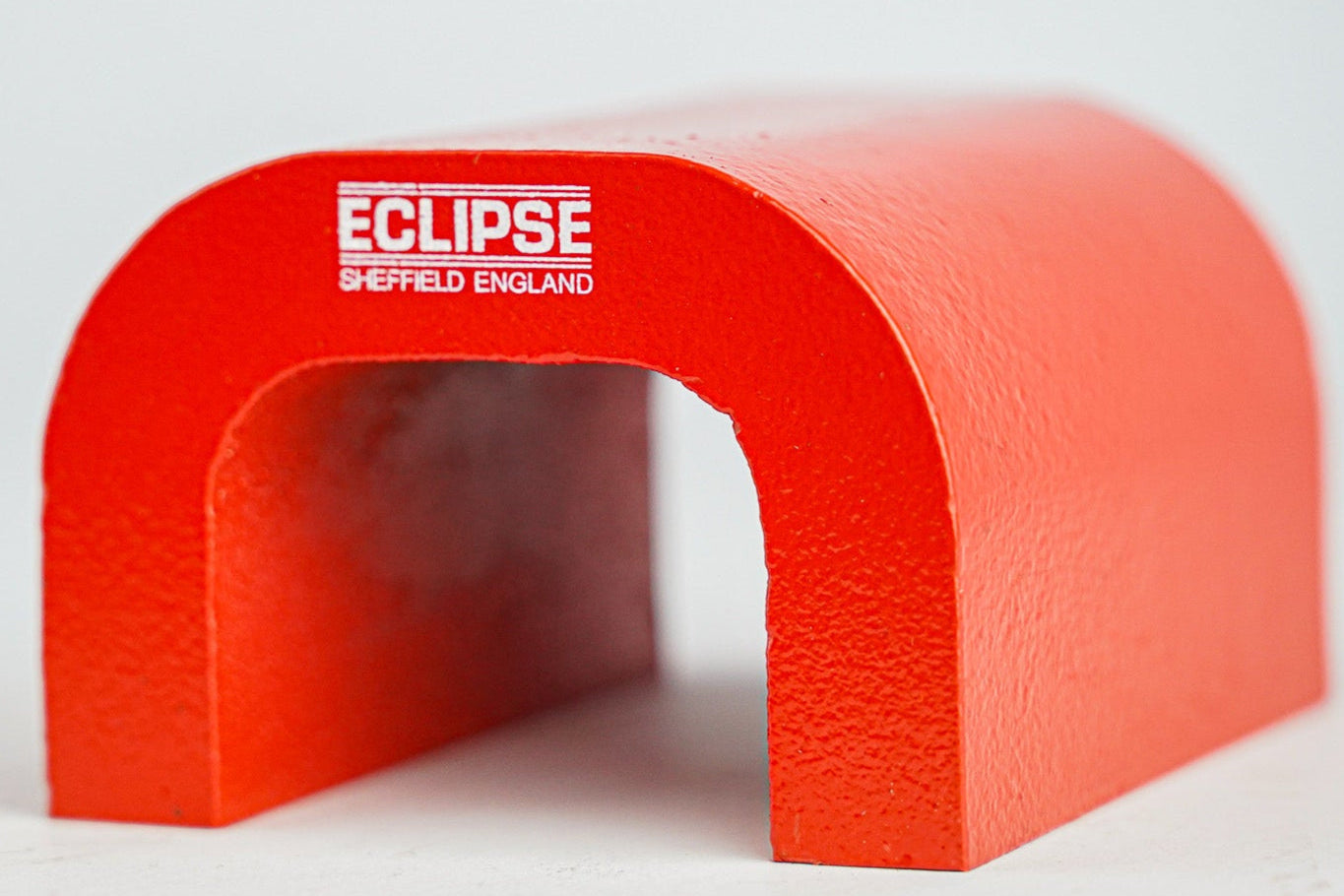

| 818 | 79.4 | 85.7 | 54 | 47.6 | n/a | n/a | 1.708 | 60.0 |
Learn More About Alnico Power Magnets
The Alnico Power magnet is a popular high temperature clamping magnet. It is a larger bridge-shaped version of a power horseshoe magnet, sometimes referred to as an Alnico bridge power magnet.
Each Alnico Power Magnet is supplied with a keeper plate for secure storage when not in use. Simply remove the keeper plate to start utilising the magnetism from this alnico magnet.
The Alnico Power Magnet is part of the Eclipse Magnetics Heritage range, highlighted by its “Eclipse Magnetic Red” branding. The Alnico Power Magnet is a larger bridge-shaped version of the alnico horseshoe magnet that provides higher clamping forces, sometimes known as an alnico power bridge magnet.
The Alnico Power Magnet has a pull force capability rating of up to 60kg or 132lb. The pull force varies with the ferrous material being held - the actual pull force achieved is application specific.
Typical applications include welding and soldering fixtures, retrieval, ultrasonic testing /crack detection and general attracting, holding or clamping of ferrous parts.
The alnico magnetic material is capable of being used at temperatures up to 550°C (1022°F). But please note that the red coating may show signs of thermal damage above 200°C (392°F)..
