Alnico Shallow Pot Magnets
Alnico Shallow Pot Magnets
Couldn't load pickup availability
Description

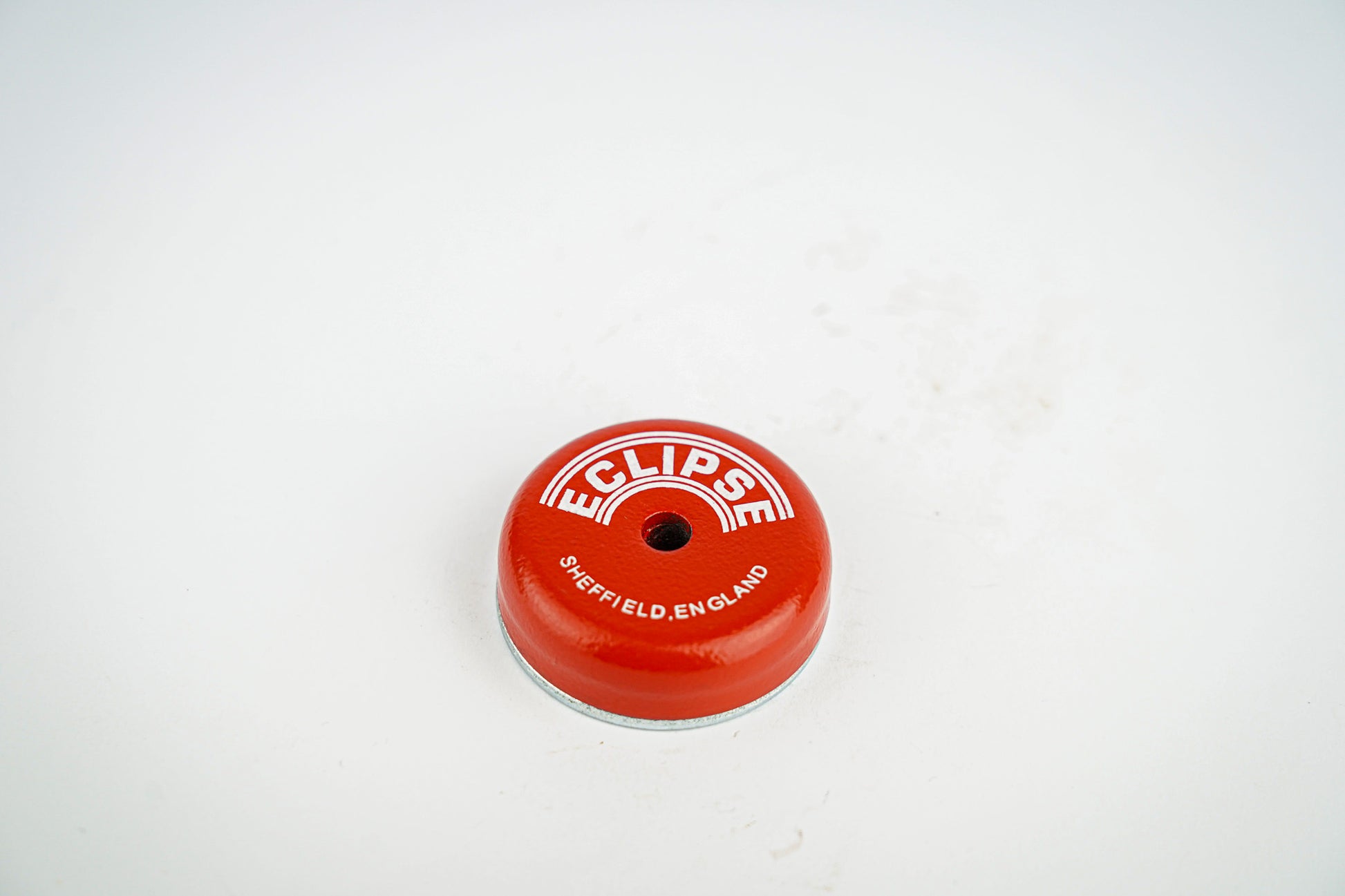

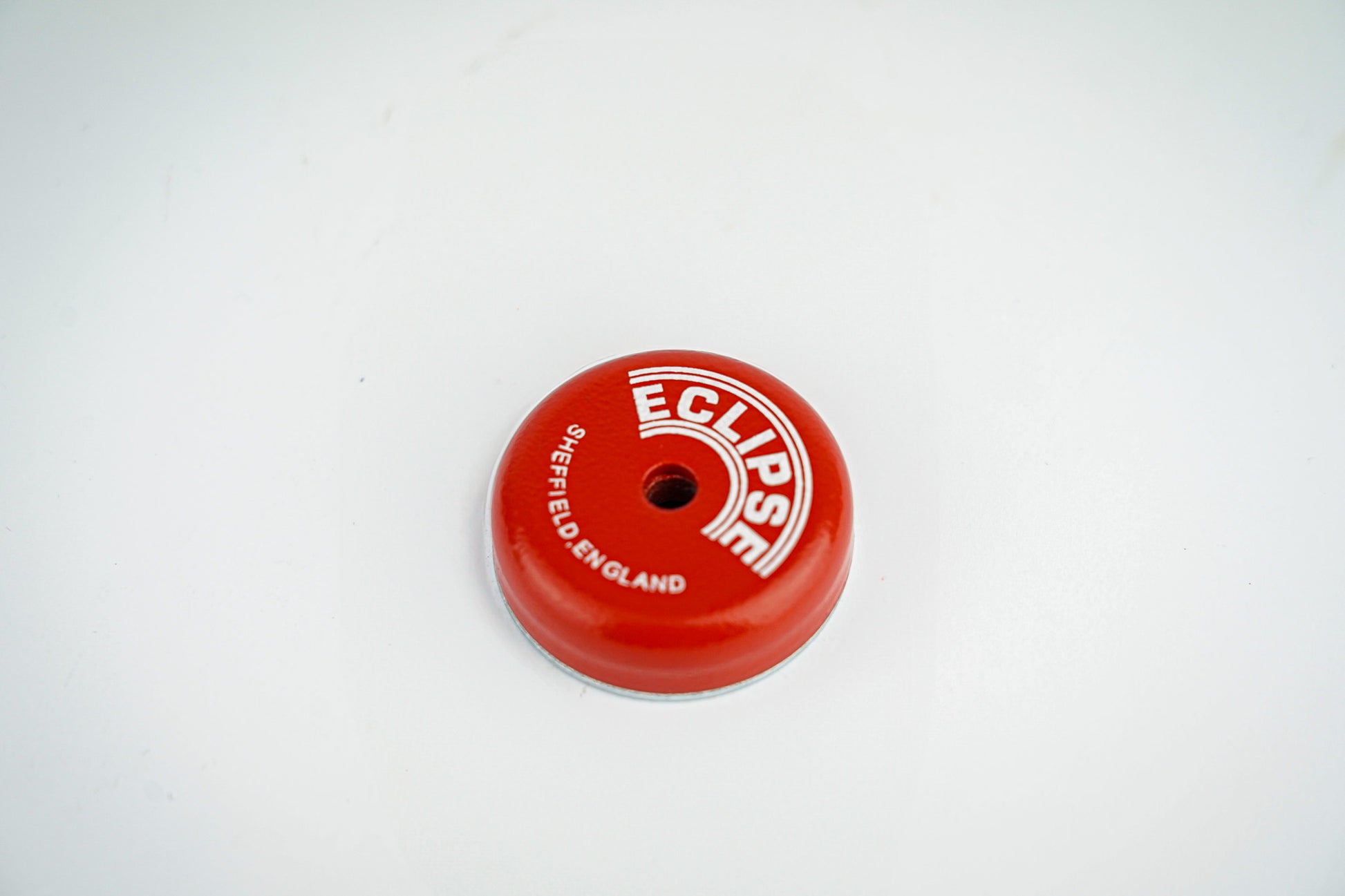

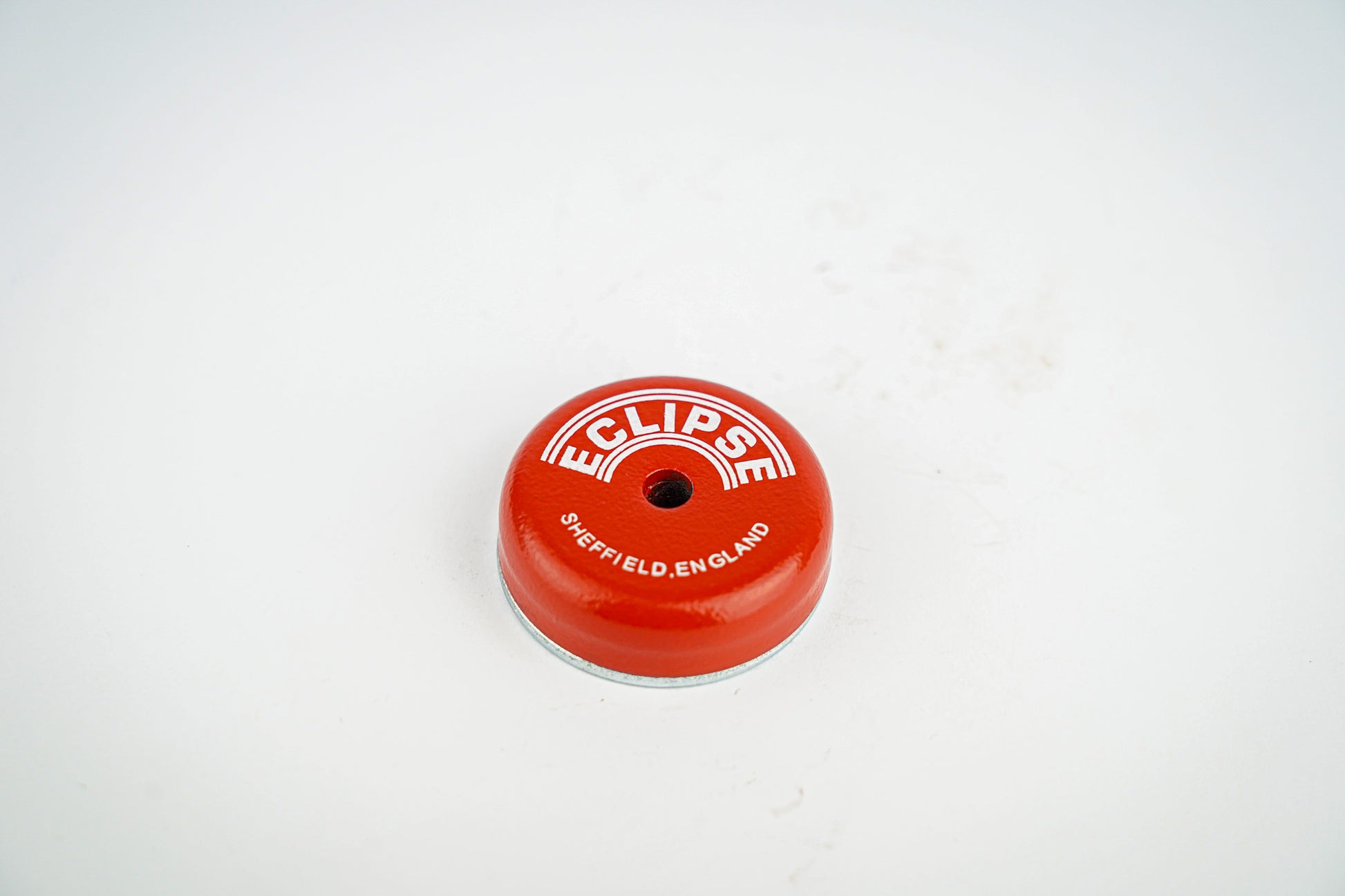

Alnico Shallow Pot Magnets are compact, high-temperature-resistant magnetic assemblies designed for low-profile holding applications. Featuring Alnico cores encased in a mild steel housing, these magnets deliver stable magnetic performance with a shallow profile and precision countersunk fixing options for easy and secure mounting.
Bulk order discounts available - enquire here
Typical Applications
- Jigs and fixture assemblies
- Gripping and lifting
- Soldering fixtures
- Holding and alignment in compact assemblies
Key Features
- Compact low-profile magnetic design
- Countersunk holes for flush installation
- 450°C maximum operating temperature
- Precision-engineered Alnico core
- Durable steel shell for enhanced focus and protection
Product Number | Diameter (mm) | Height (mm) | Hole Size (mm) |
ScrewHeadSize |
Net Weight (kg) | Pull Force (kg) |
---|---|---|---|---|---|---|

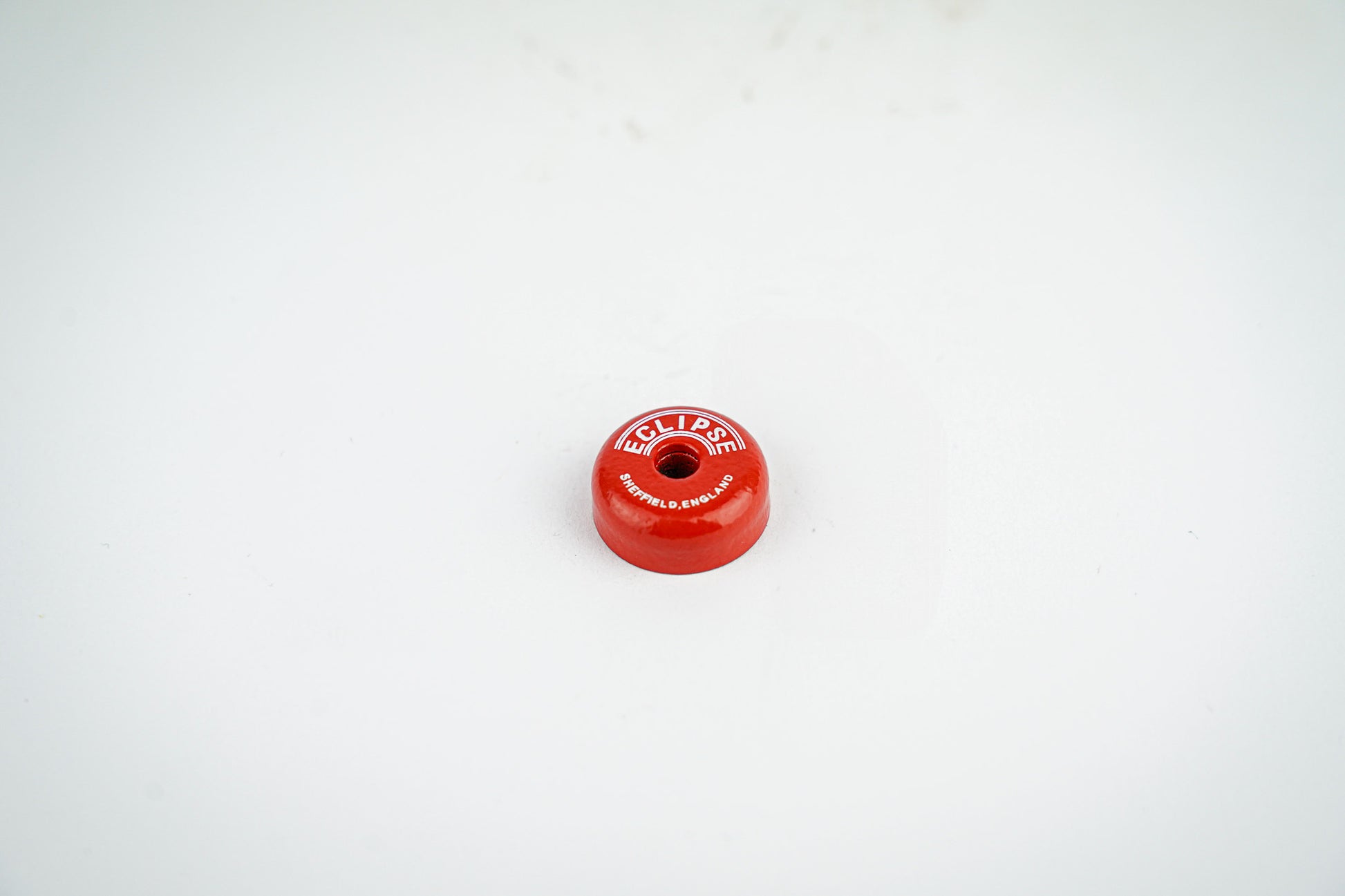

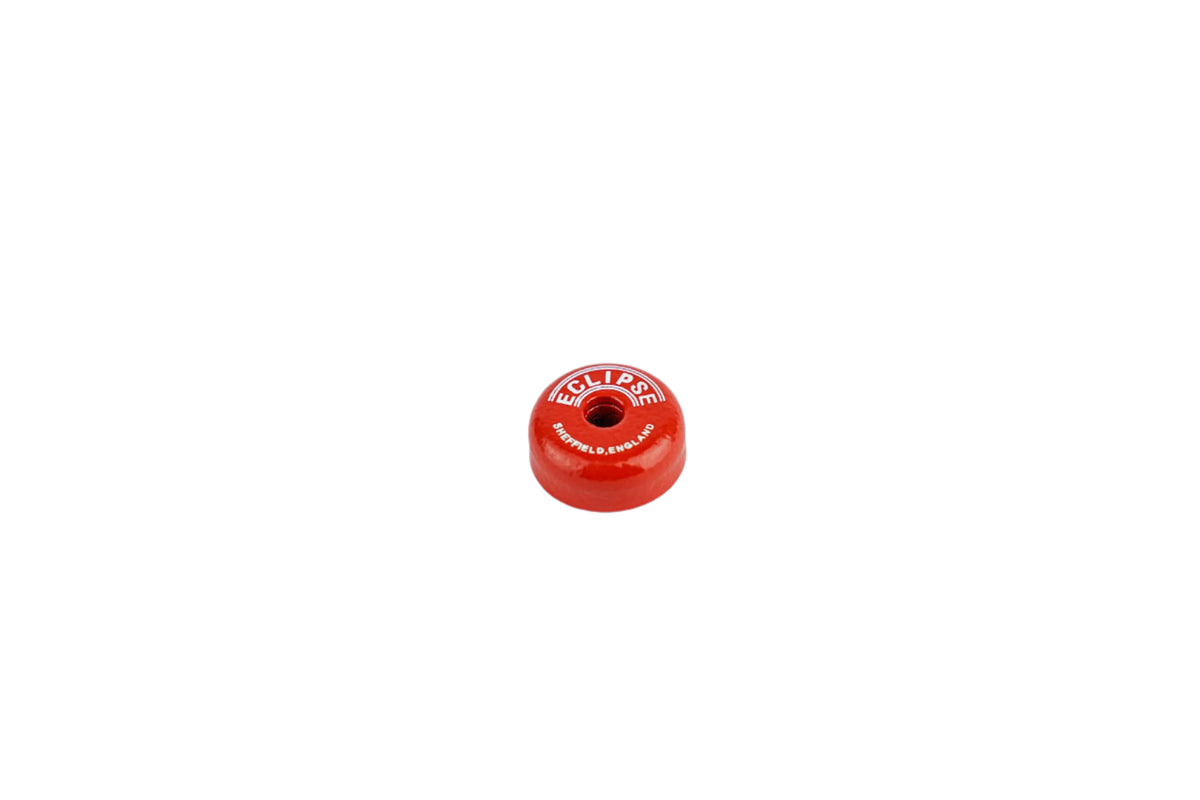

826 | 19.0 | 7.5 | 4.5 | M3 Csk | 0.016 | 3.0 |

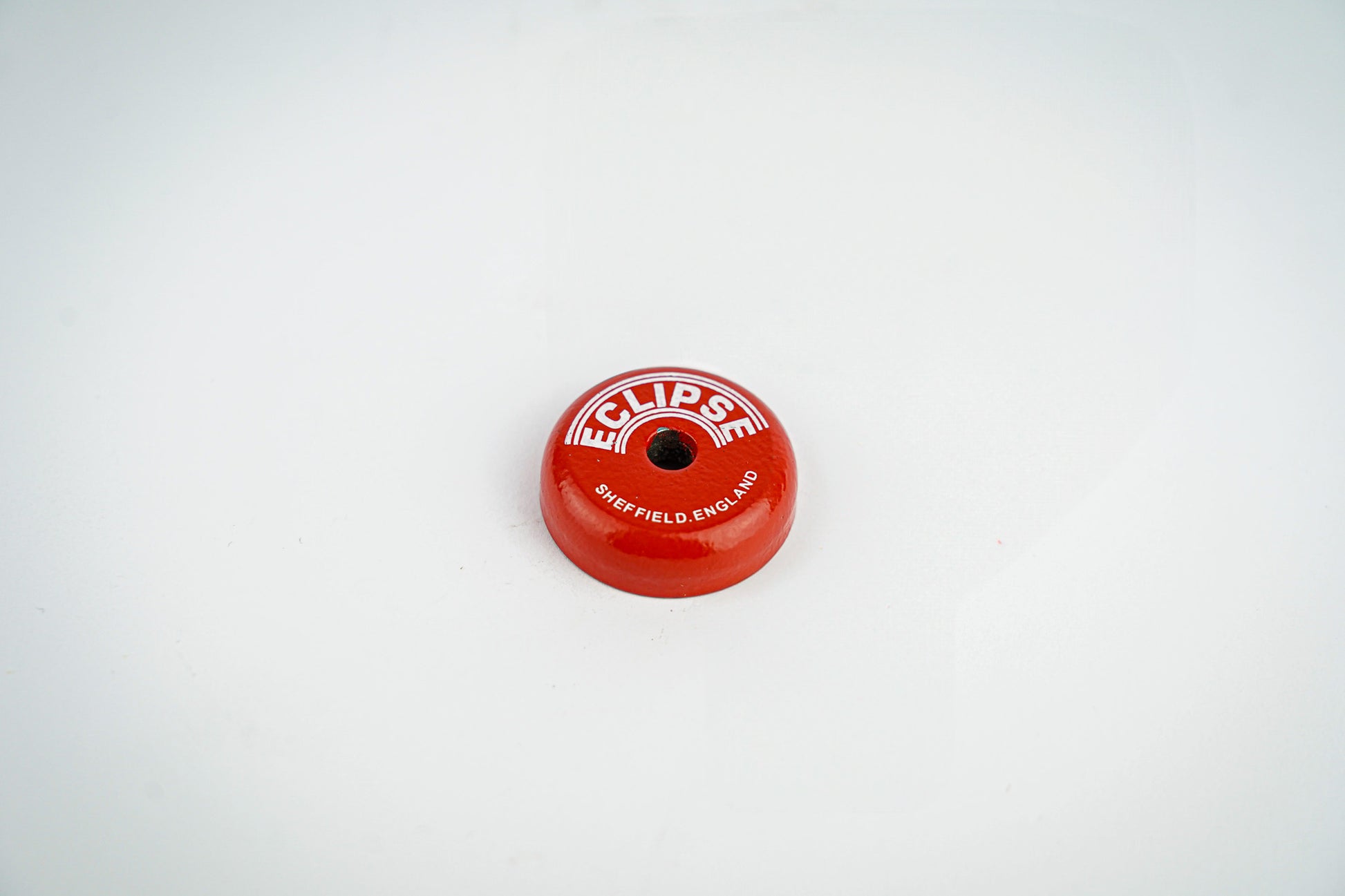

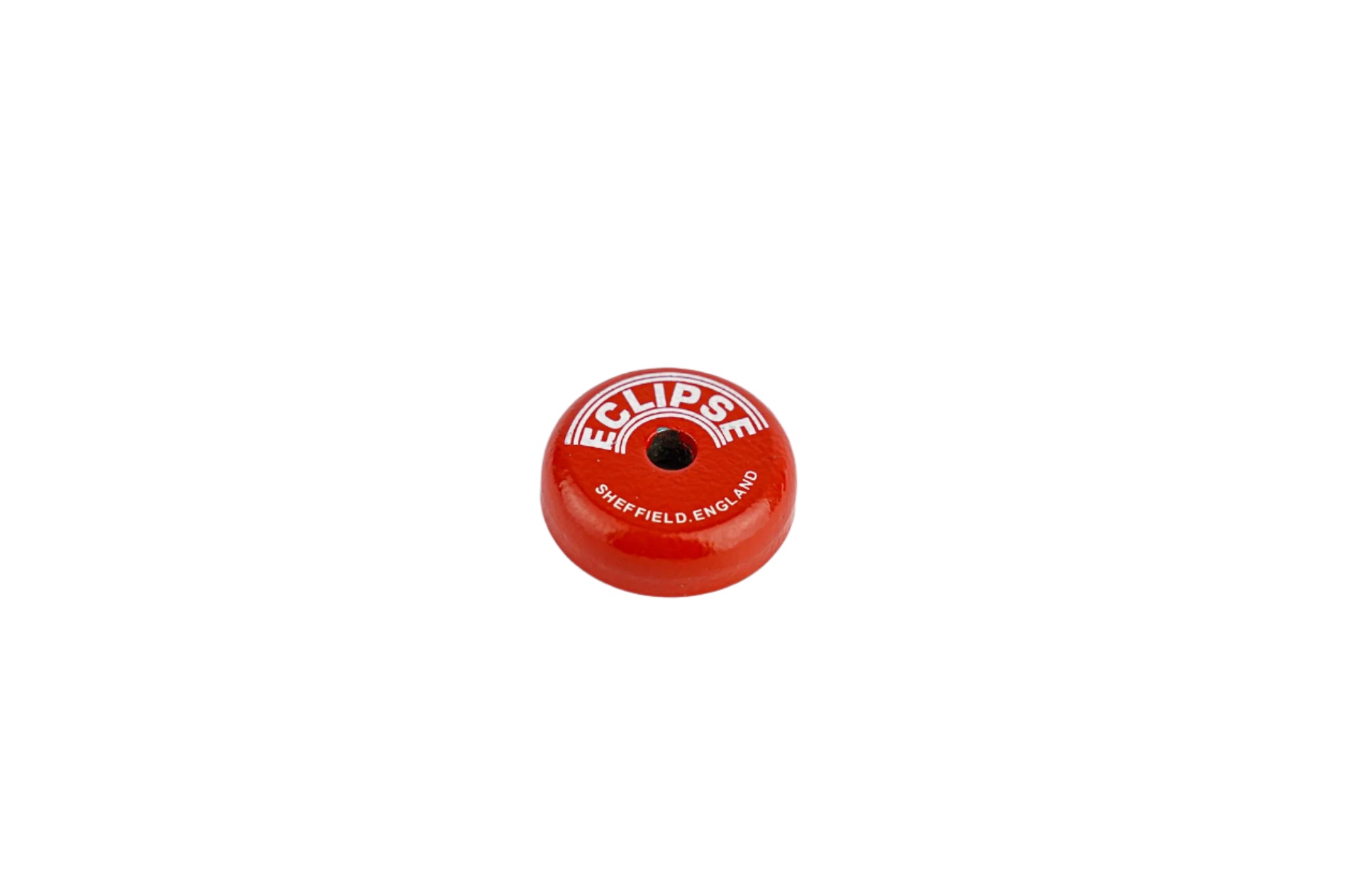

827 | 28.5 | 8.5 | 5.2 | M4 Csk | 0.042 | 5.0 |

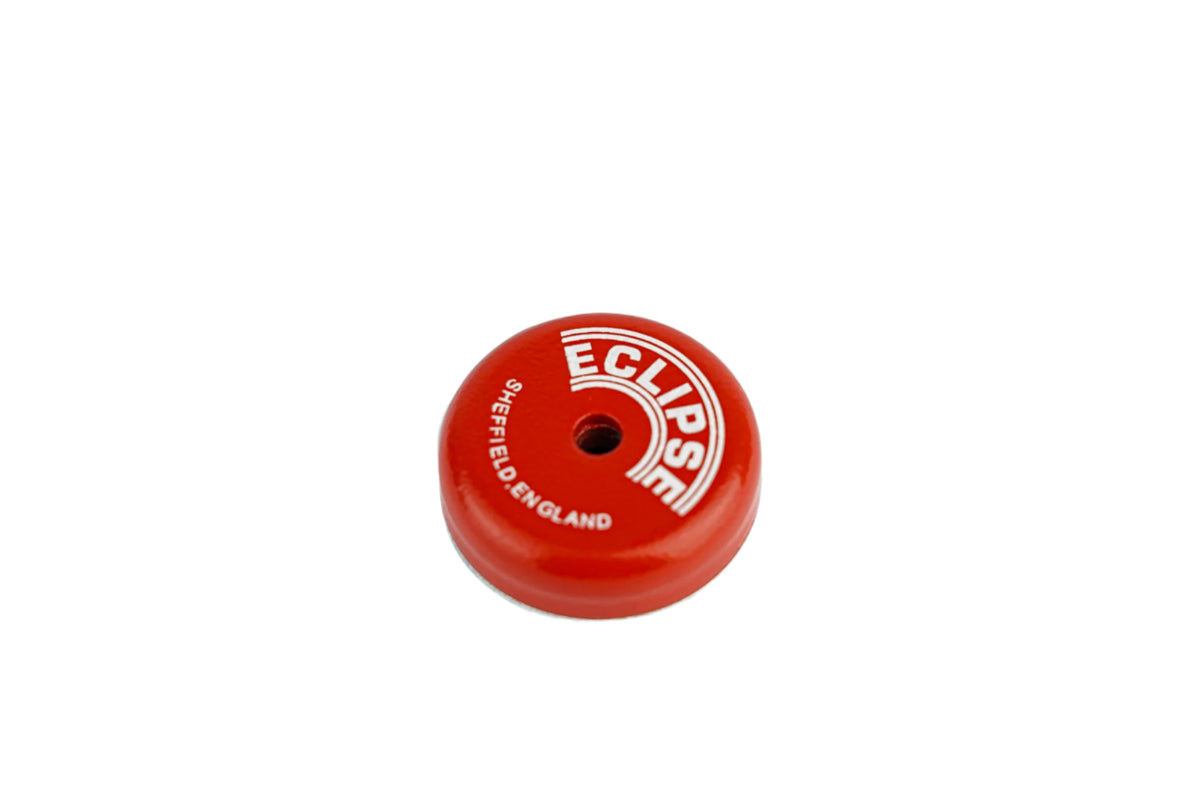

828 | 38.1 | 10.35 | 5.2 | M4 Csk | 0.094 | 13.0 |
Learn More About Ferrite Channel Magnets
These shallow pot magnets are designed for use in applications where space is limited but a reliable magnetic hold is still essential. Their countersunk holes make them easy to install into flat surfaces using standard machine screws, and their durable steel housing protects the Alnico core while focusing its magnetic field.
With excellent resistance to demagnetization and high working temperatures (up to 450°C), these magnets are ideal for use in demanding technical, academic, or industrial environments.
