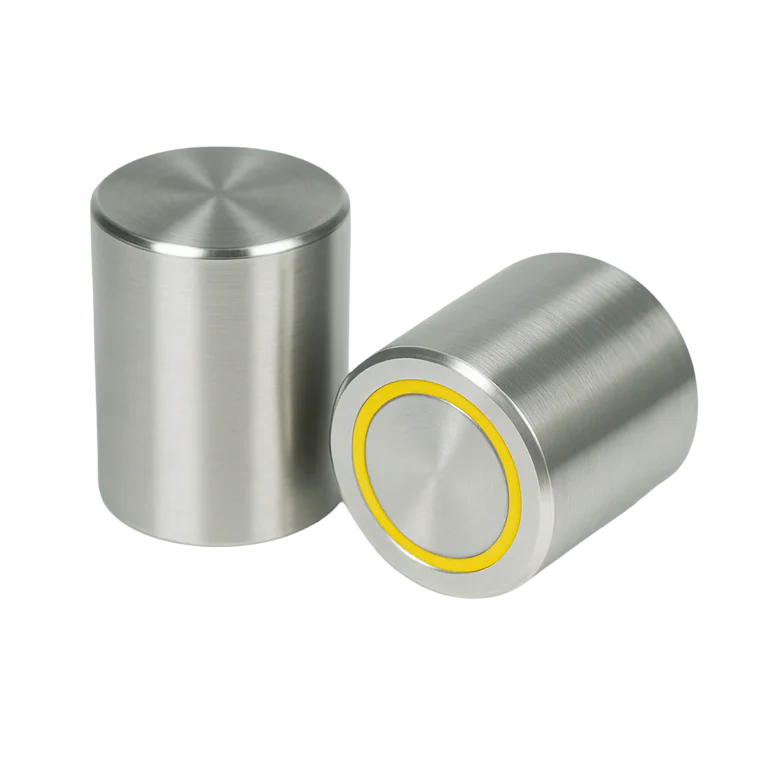

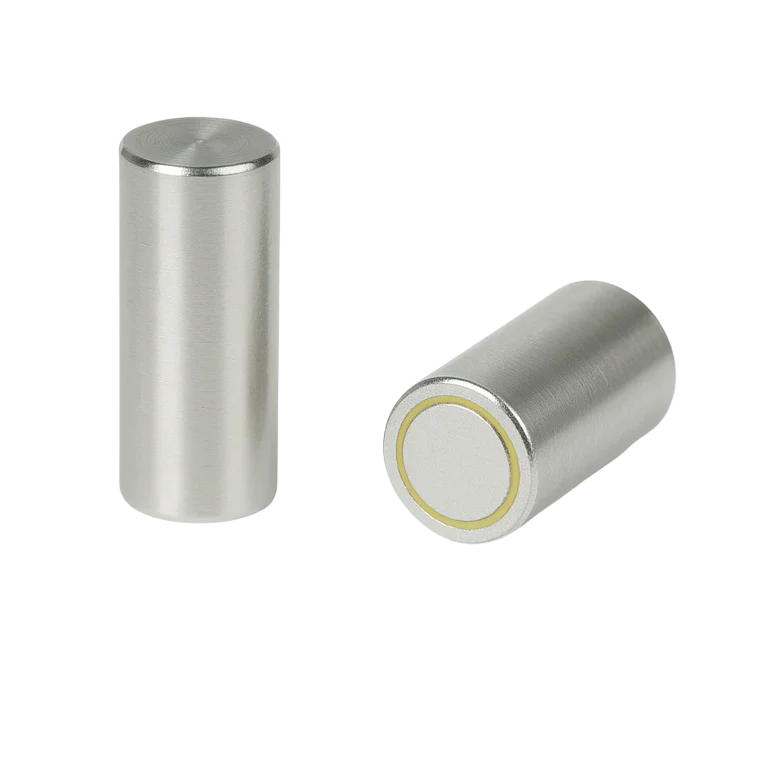

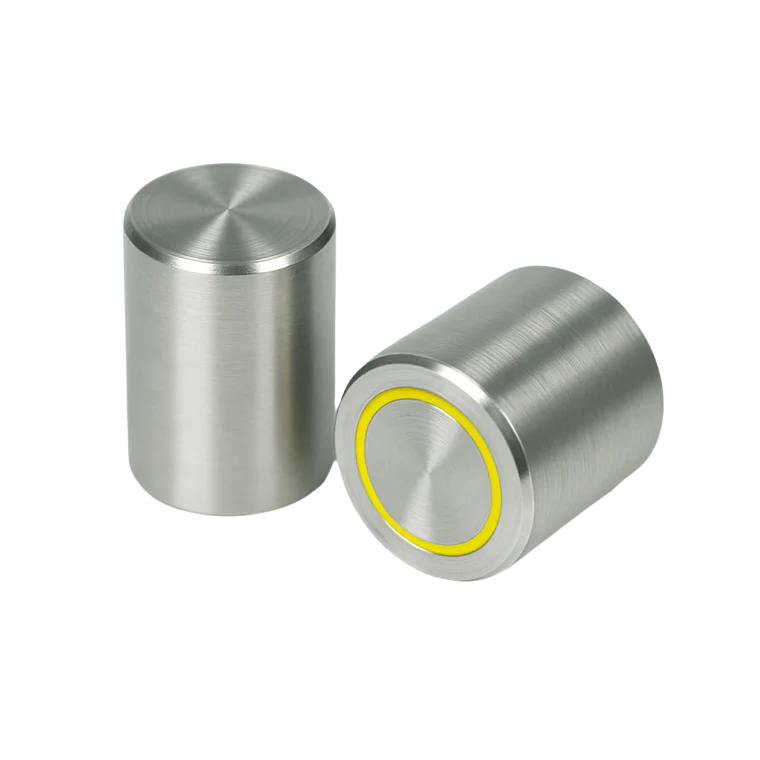

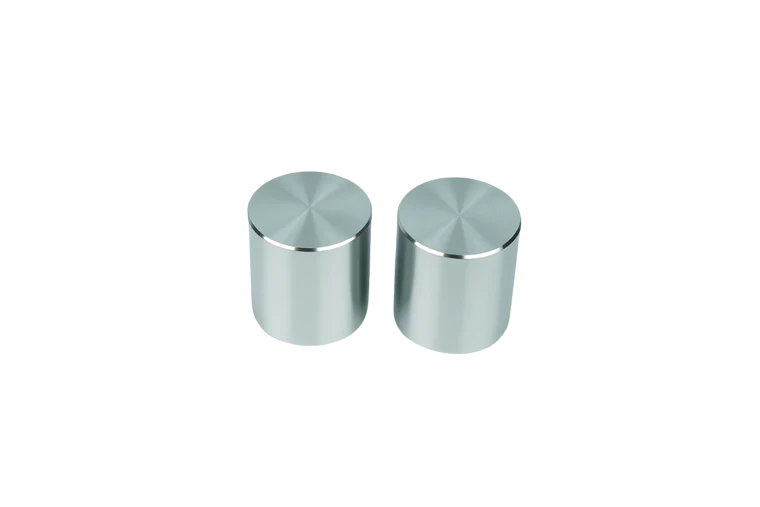

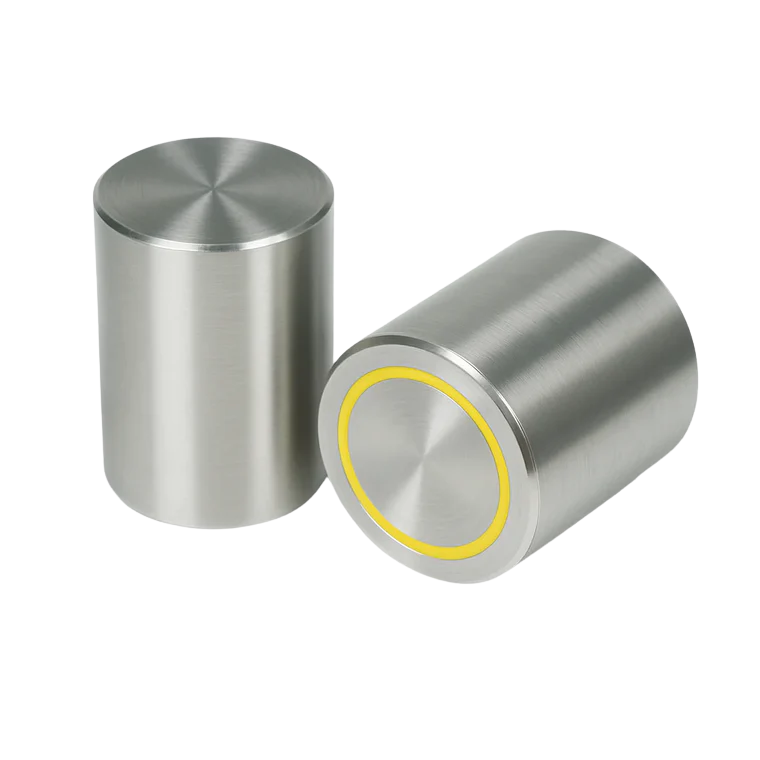

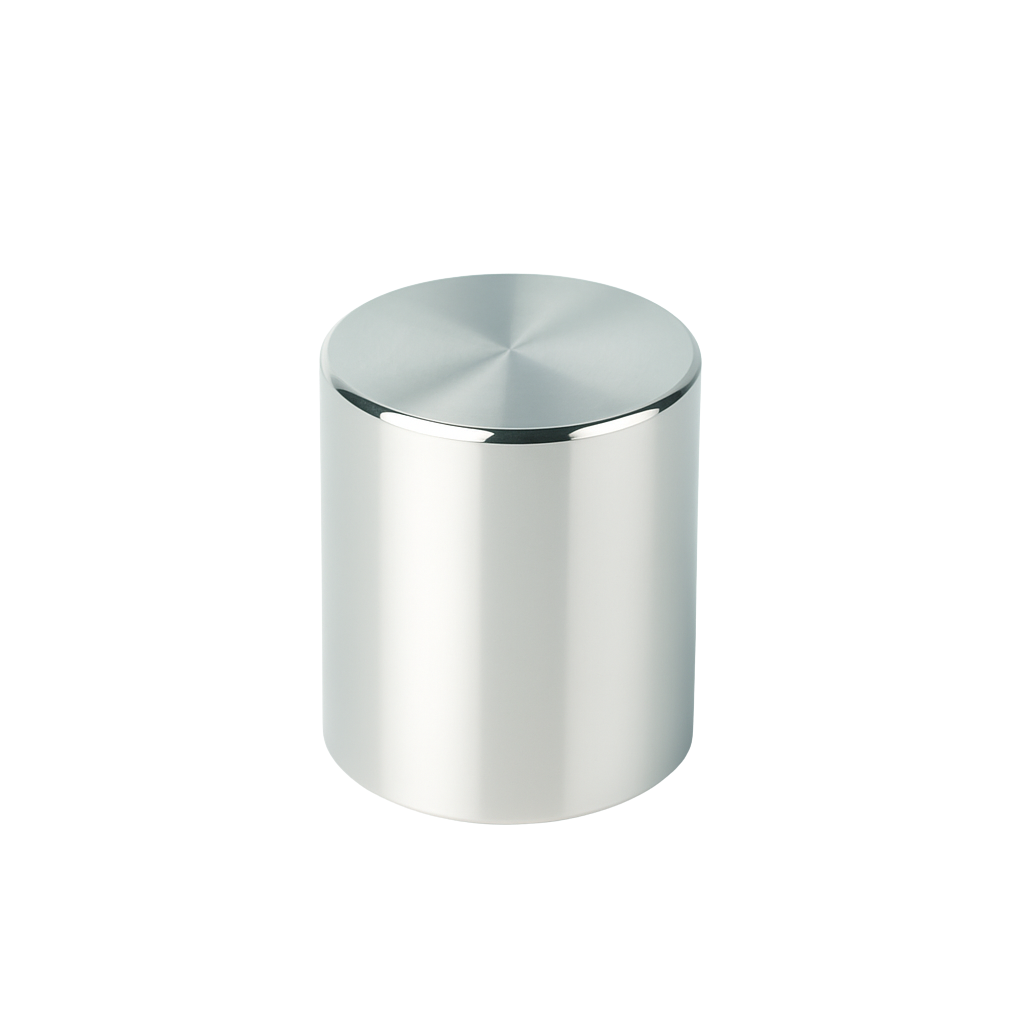

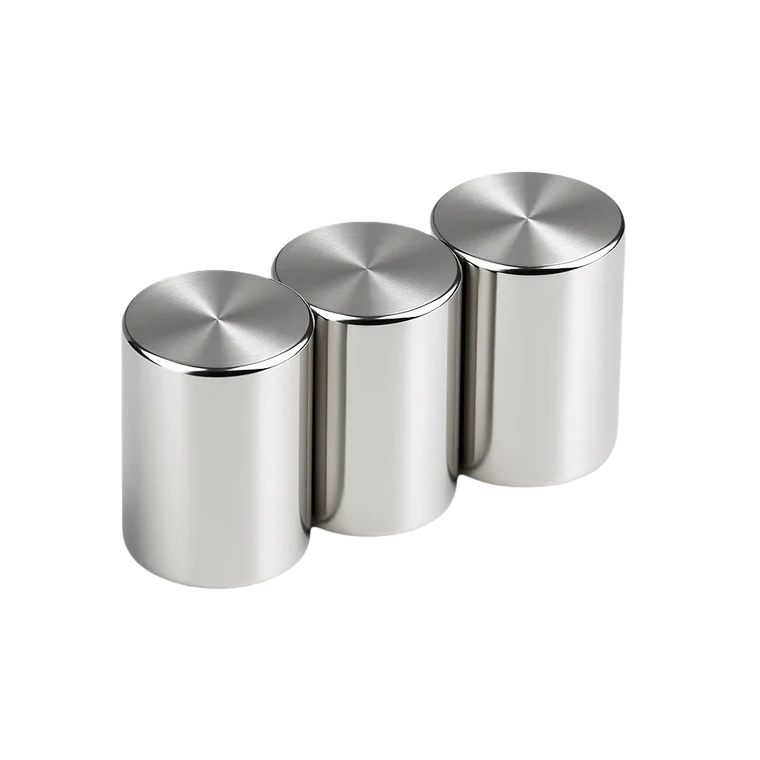

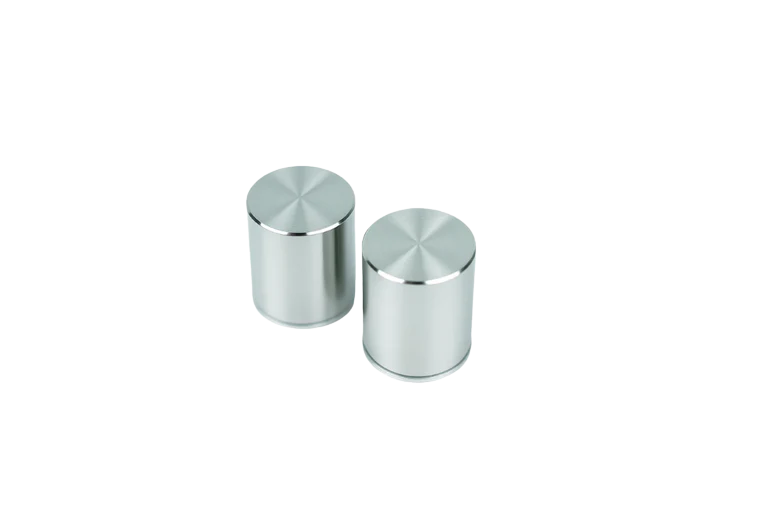

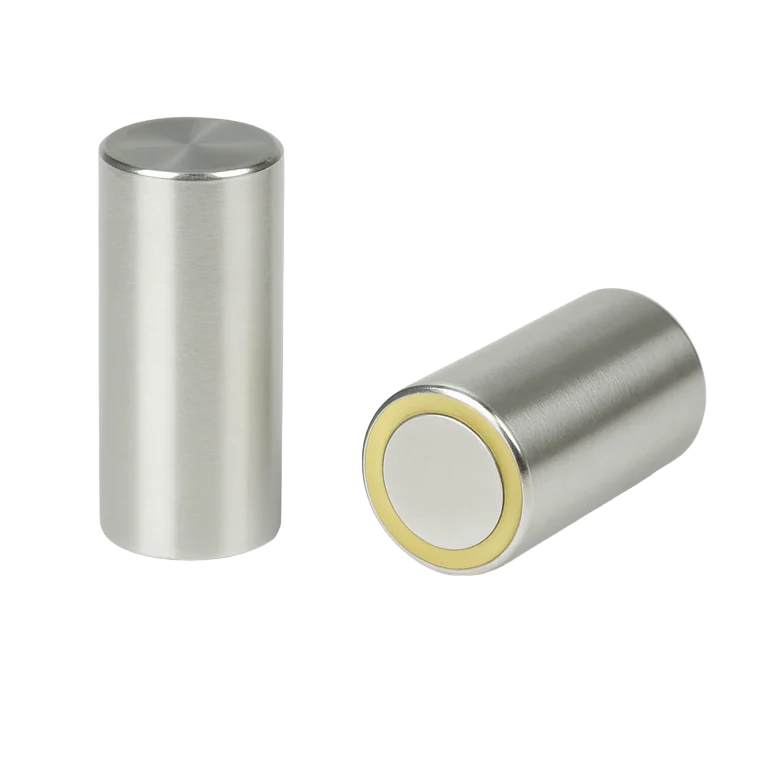

Eclipse Magnetics Alnico Deep Pot Magnets are engineered for demanding gripping, lifting, and positioning applications where temperature stability and strong magnetic performance are essential. Their compact cylindrical design, featuring a mild steel pot and brass spacer, allows for precise placement even in restricted spaces, making them ideal for high-accuracy holding and alignment tasks.
Constructed from Alnico magnetic material, these magnets provide exceptional temperature resistance, performing reliably at temperatures up to 220°C without loss of magnetic strength. The zinc-plated body offers additional corrosion protection, ensuring long-term durability in industrial environments. Designed to tight H6 diameter tolerances, these magnets are perfectly suited for press-fitting into milled holes and precision-engineered assemblies.
Eclipse Magnetics Alnico Deep Pots deliver consistent, high-performance magnetic holding in compact form — ideal for applications where reliability and accuracy under heat and stress are critical.
Key Features
-
High operating temperature: performs reliably up to 220°C
-
Mild steel pot with brass spacer: concentrates the magnetic field for improved holding efficiency
-
Zinc-plated body: provides corrosion resistance and long-term durability
-
Precision tolerance: diameter ground to H6 tolerance for accurate fitting
-
Compact design: ideal for press-fitting into milled holes and space-limited applications
Technical Data
|
Product Number
|
Diameter (mm)
|
Height (mm)
|
Unit Weight (g)
|
Pull Force (kg)
|
Net Weight (kg)
|
|

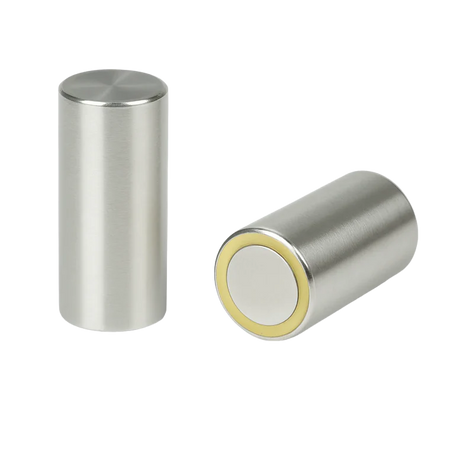

E730
|
6
|
10
|
2
|
0.2
|
0.002
|
|

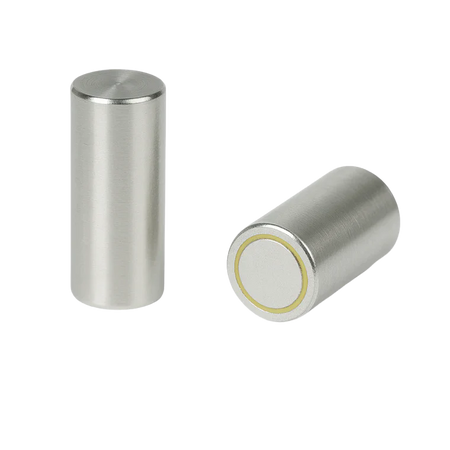

E731
|
8
|
12
|
4
|
0.3
|
0.005
|
|
E732
|
10
|
16
|
9
|
0.5
|
0.011
|
|
E733
|
13
|
18
|
17
|
1.0
|
0.02
|
|
E734
|
16
|
20
|
29
|
1.5
|
0.033
|
|

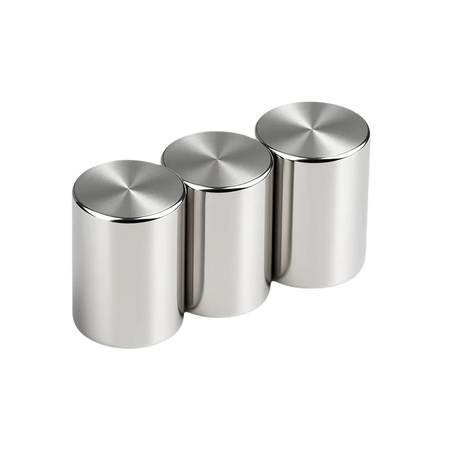

E735
|
20
|
25
|
57
|
3.5
|
0.066
|
|

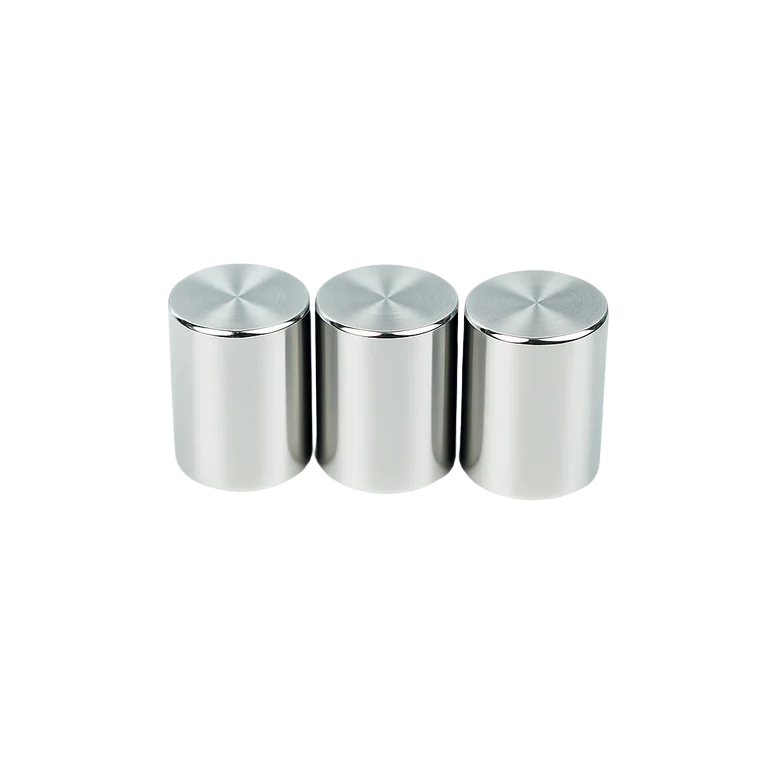

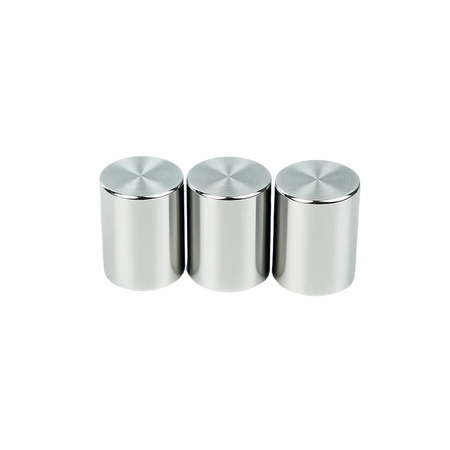

E736
|
25
|
30
|
110
|
8.0
|
0.12
|
|

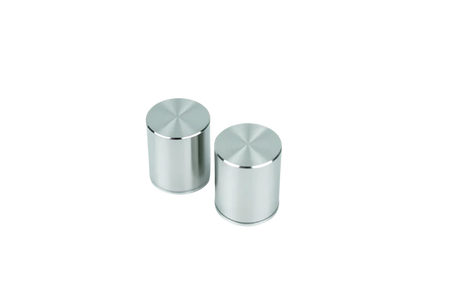

E737
|
32
|
35
|
200
|
15.0
|
0.206
|
|

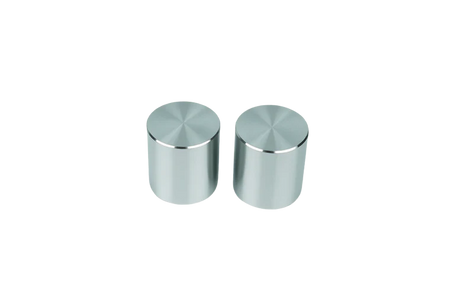

E738
|
40
|
45
|
420
|
20.0
|
0.42
|
|
E739
|
50
|
50
|
720
|
35.0
|
0.693
|
