Alnico Deep Pot Magnets - High Temperature | Ø6mm–25mm | Up to 8kg Pull Force

Eclipse Magnetics Alnico Deep Pot Magnets are compact, high-temperature permanent magnetic assemblies designed for gripping, positioning and fixture-holding applications where reliable magnetic performance and precise installation are required.

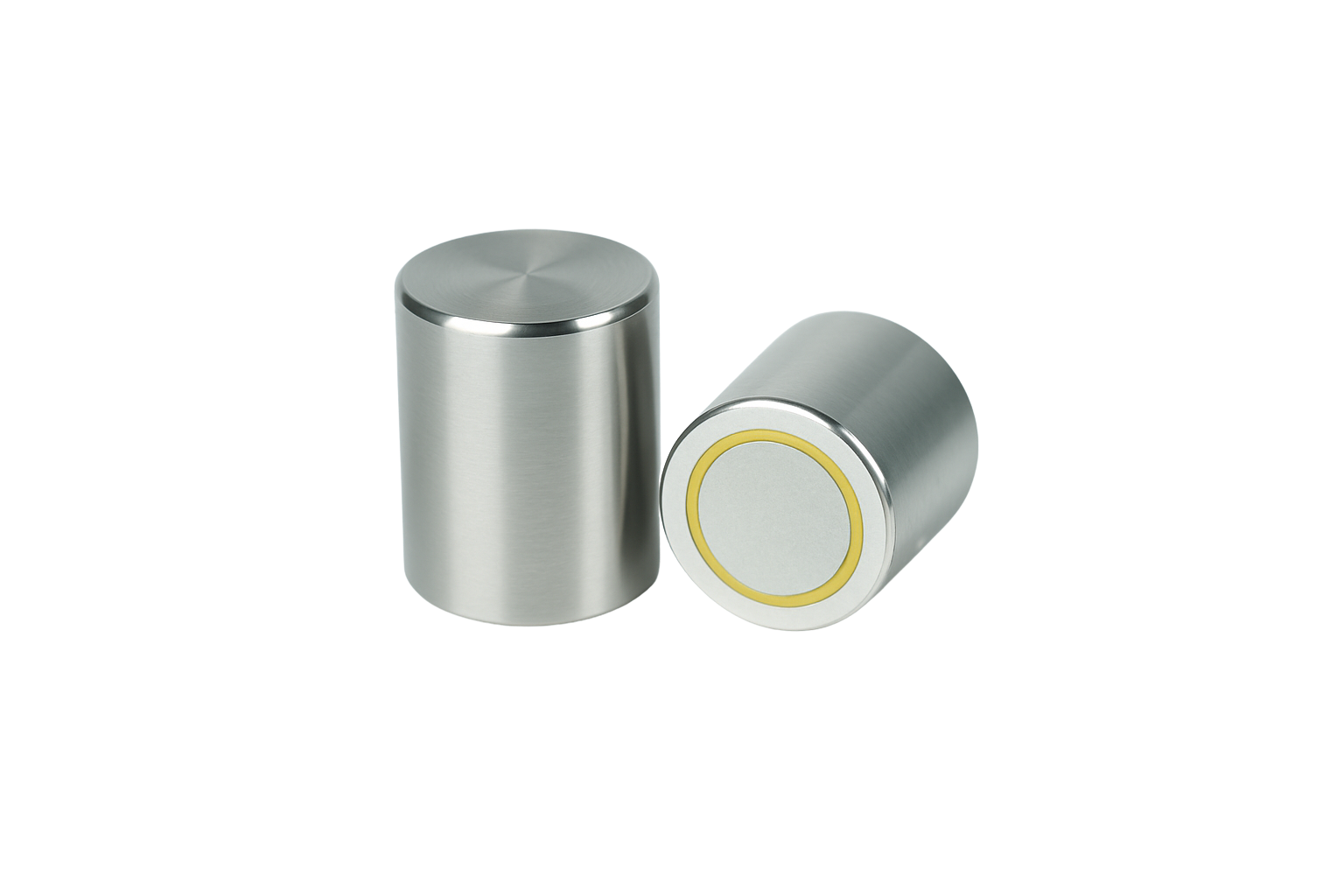

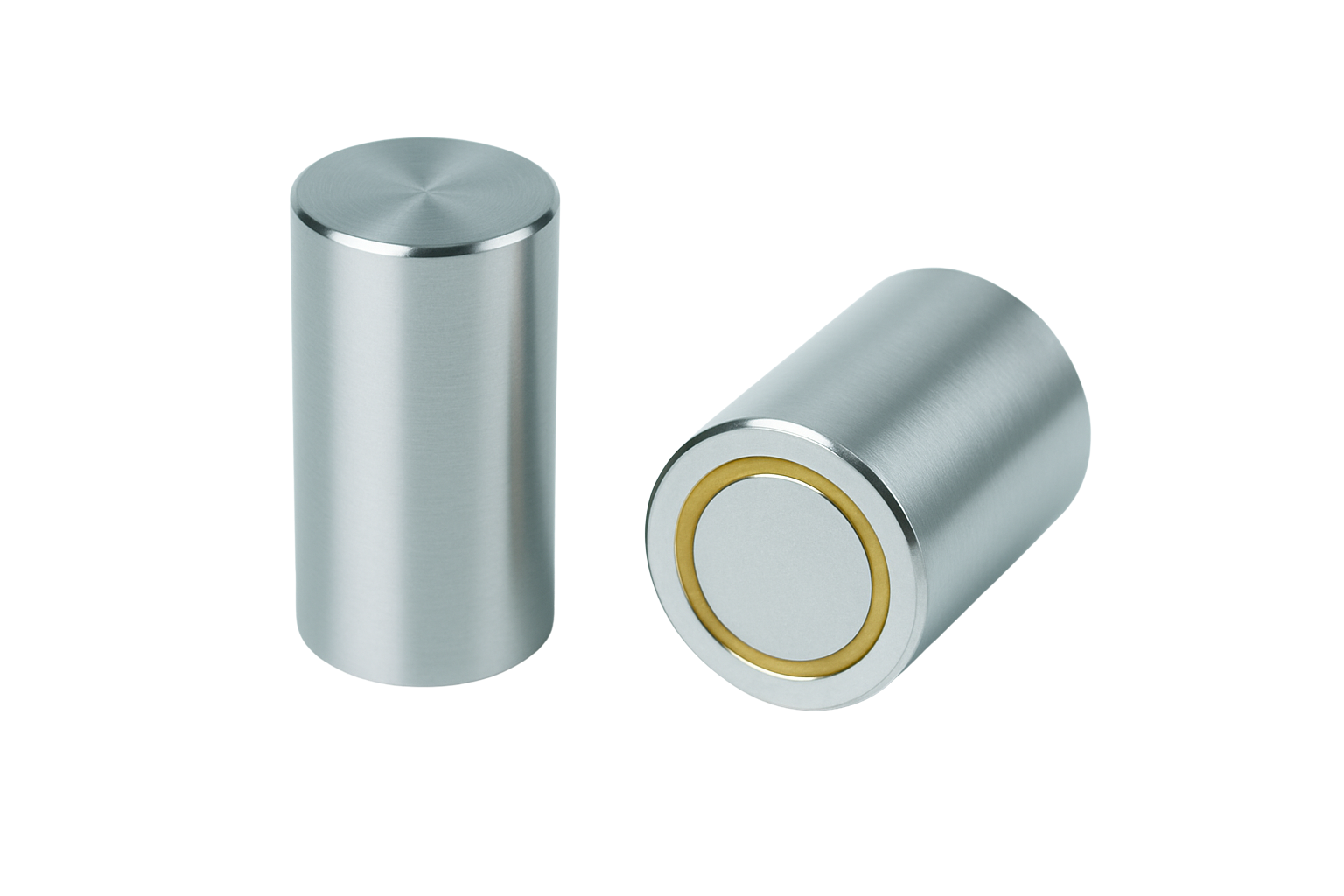

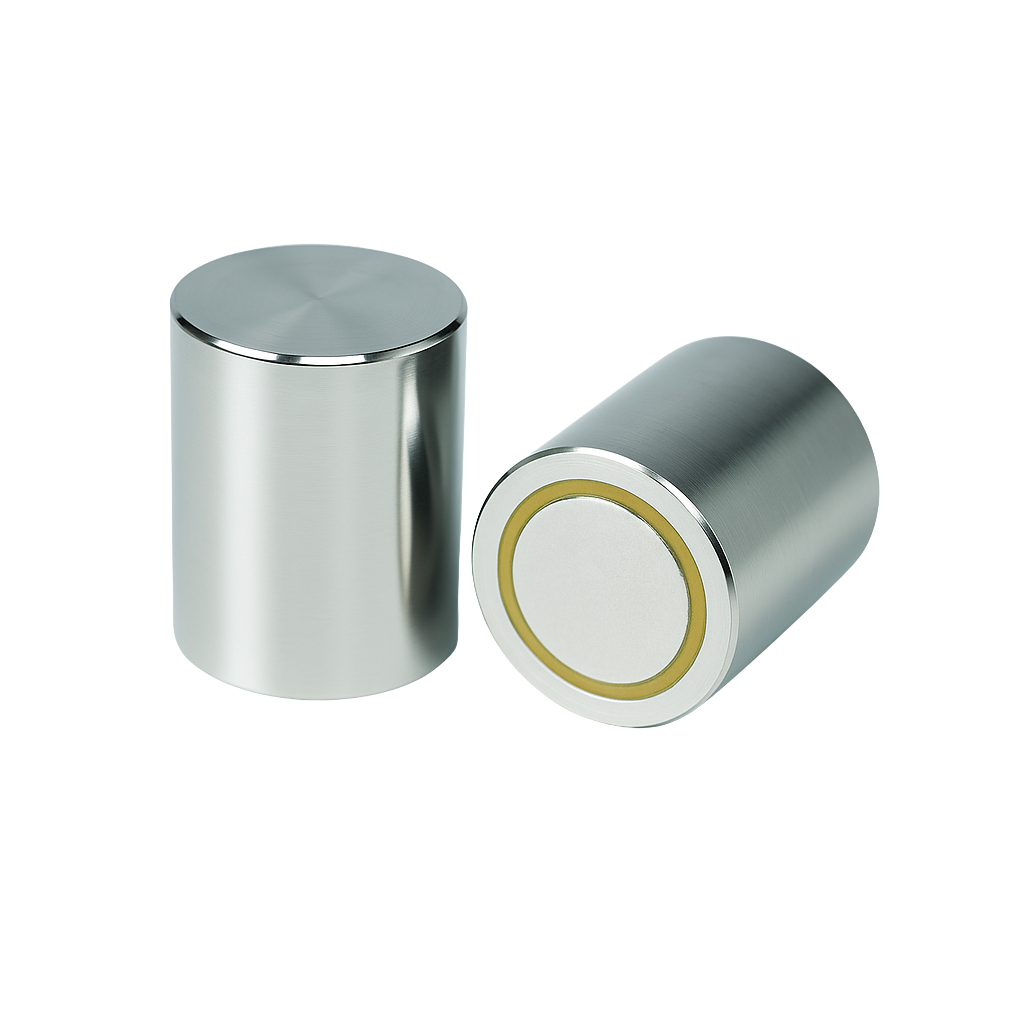

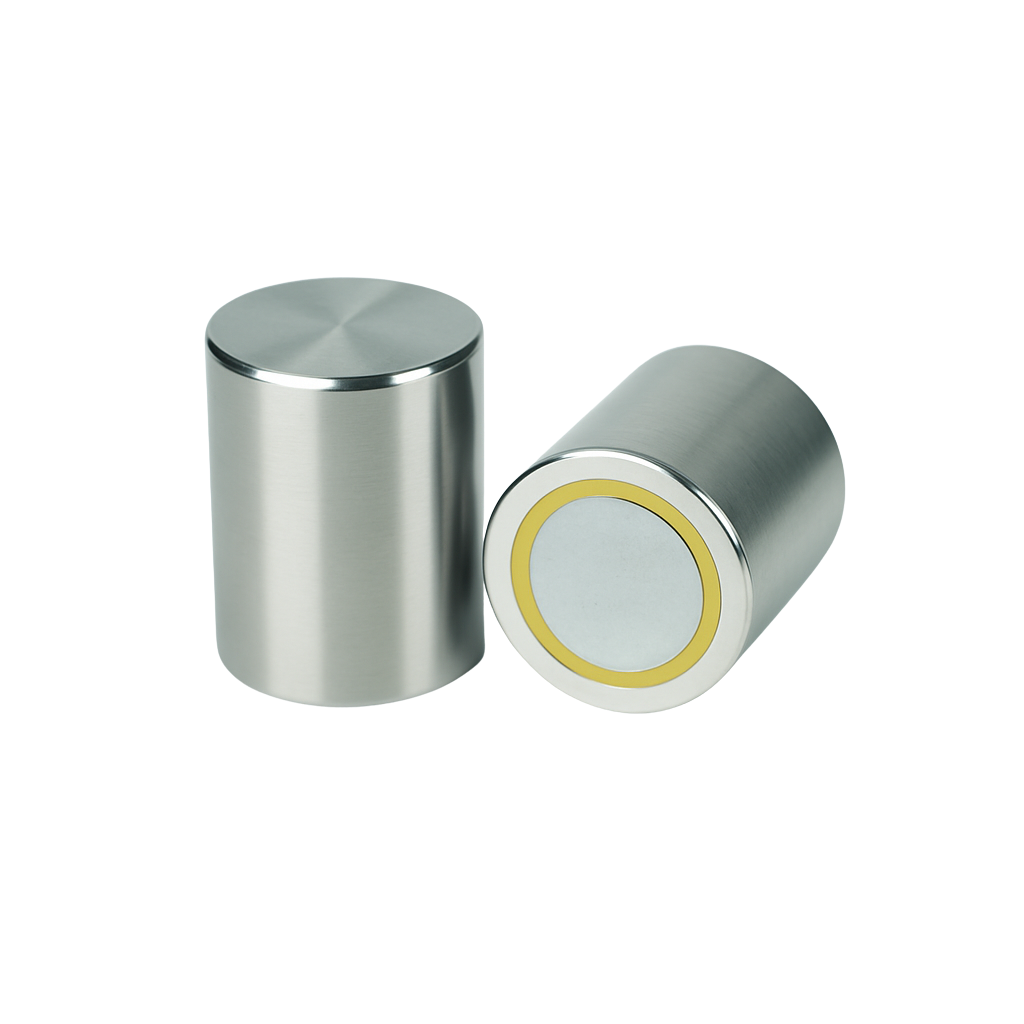

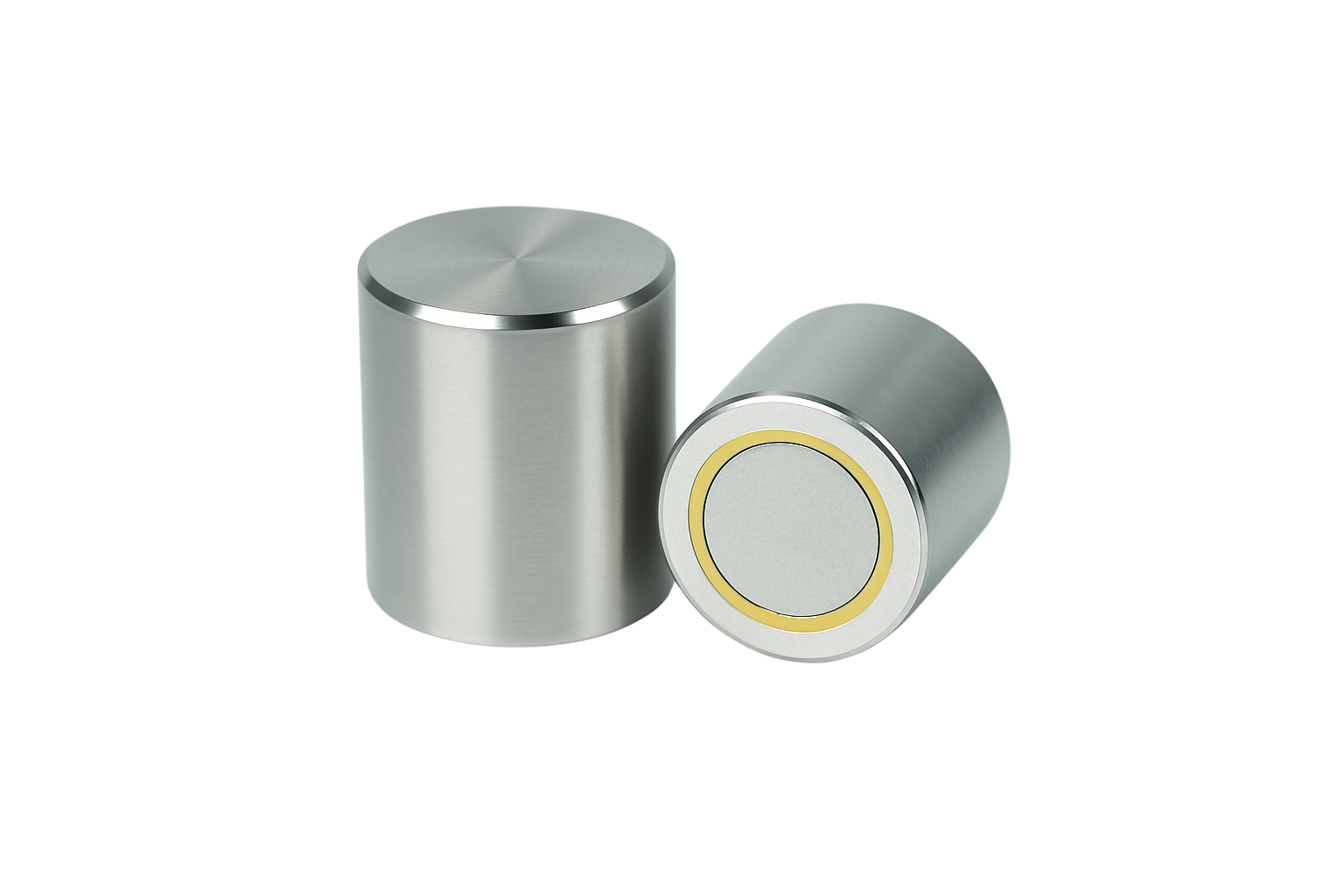

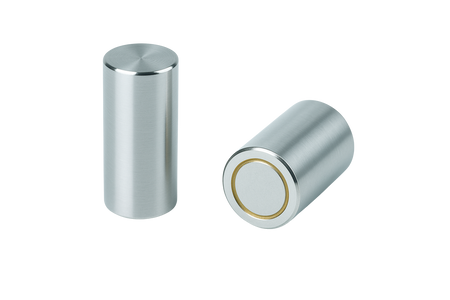

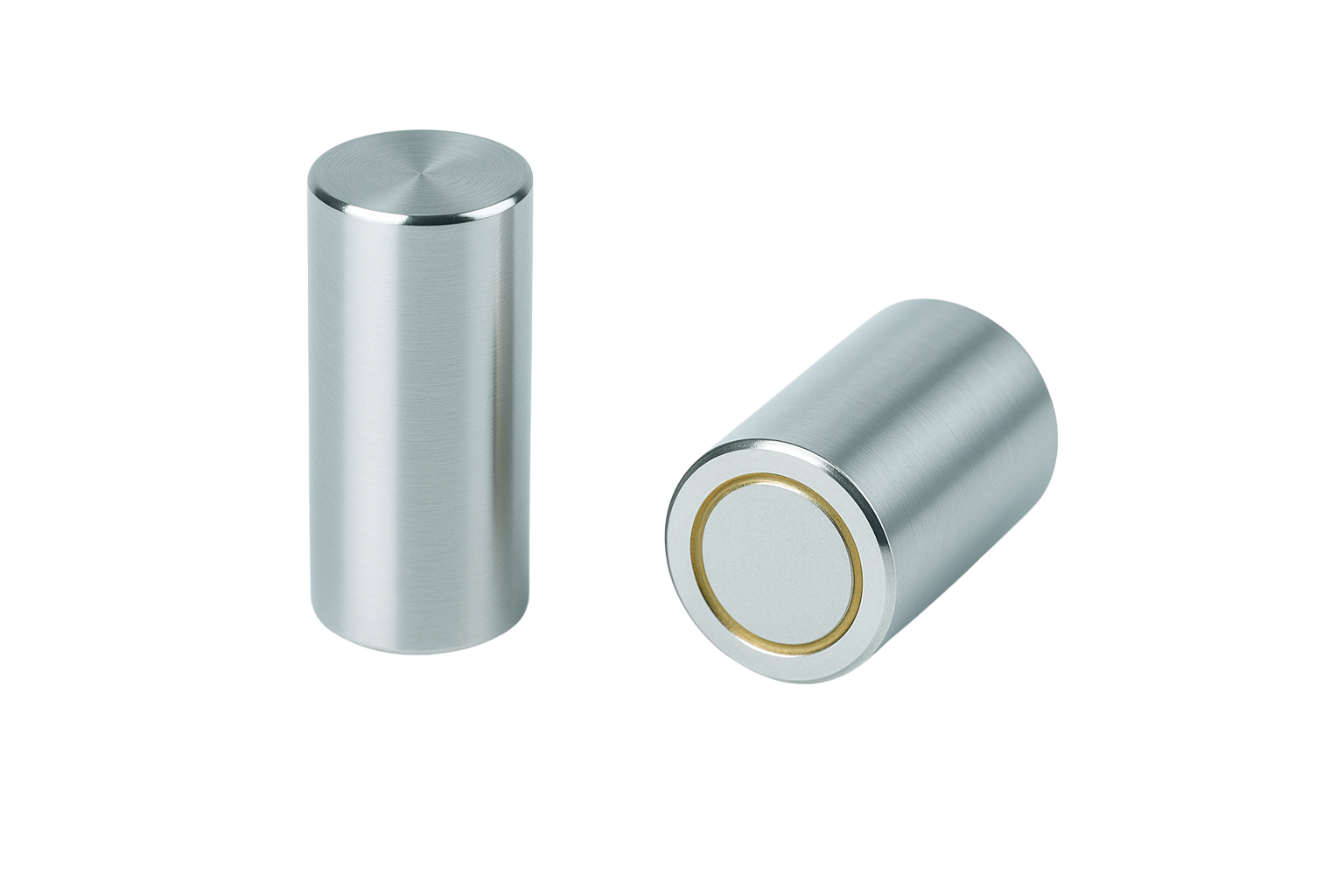

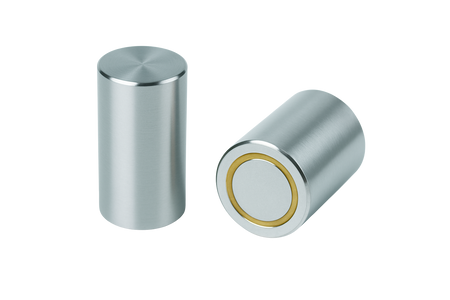

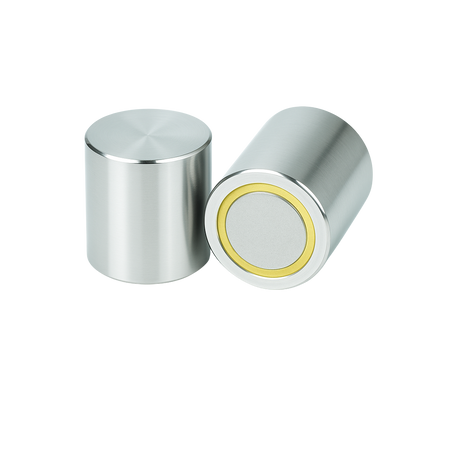

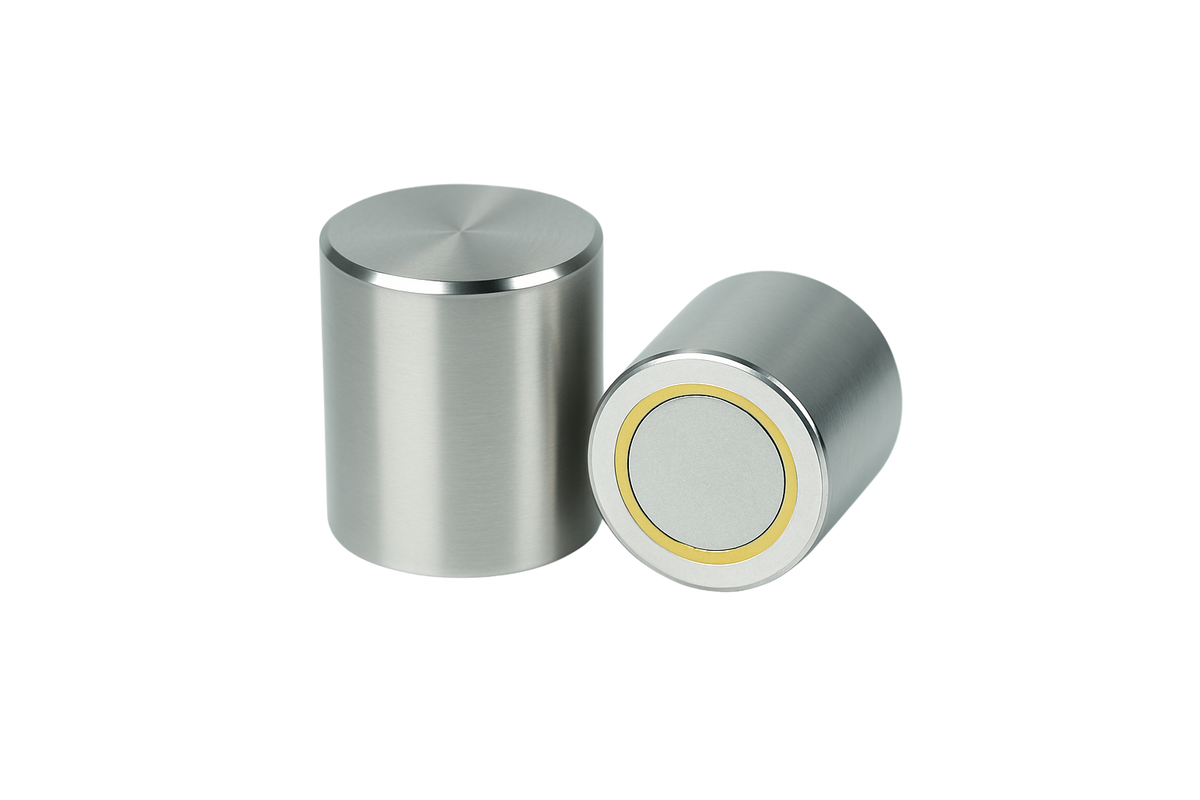

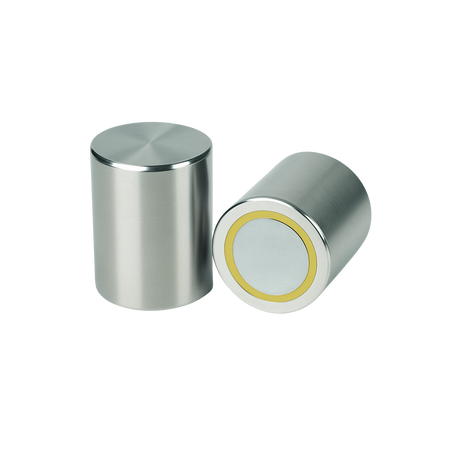

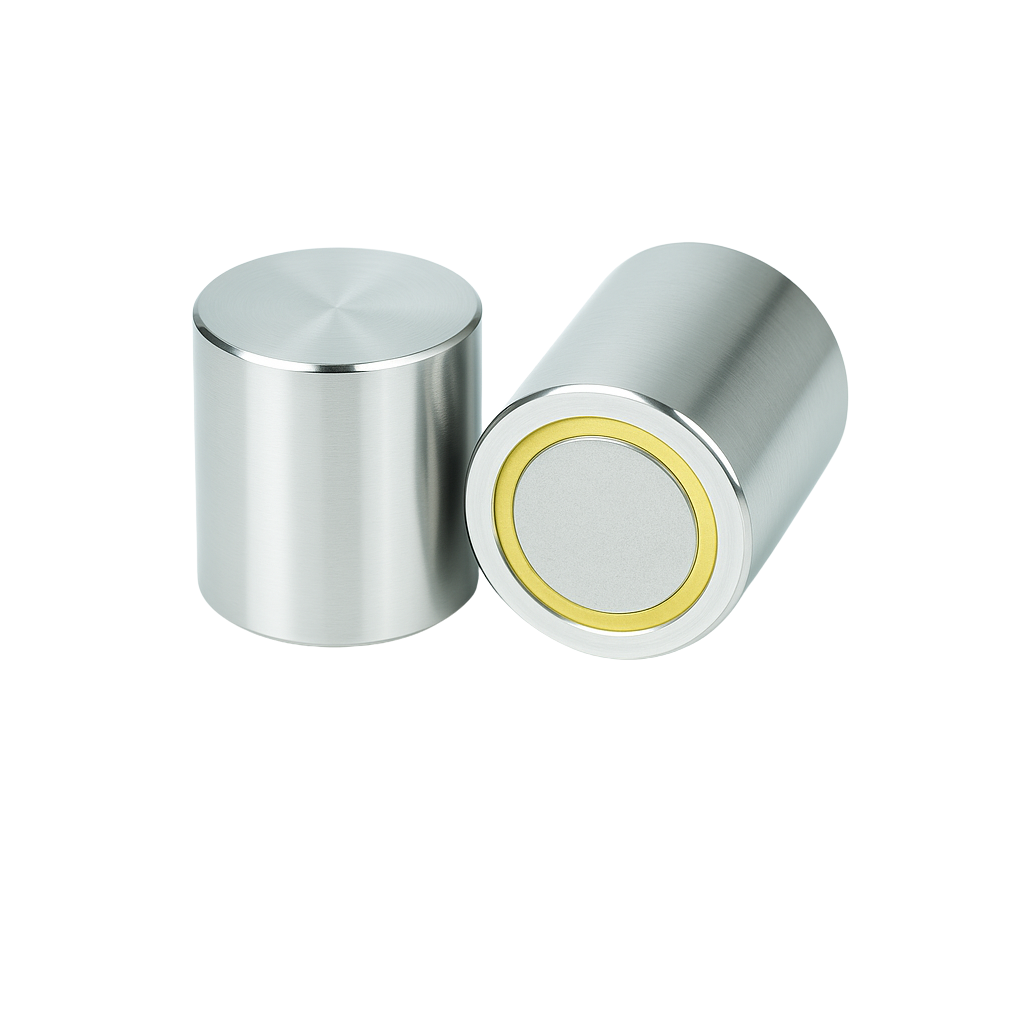

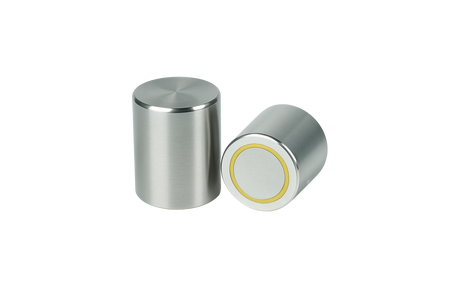

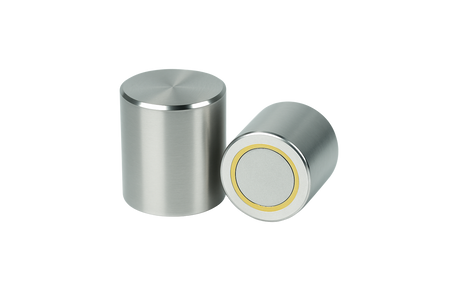

Each magnet features a high-quality Alnico magnetic core housed within a mild steel pot with a brass spacer, helping to concentrate the magnetic field through the working face for efficient holding performance. The zinc-plated body provides added protection against corrosion and wear, making the range suitable for demanding workshop, production and industrial environments.

The range is available in seven sizes from 6mm to 25mm diameter, with pull forces ranging from 0.2kg up to 8kg. The extended-height design makes these magnets particularly well suited to deep press-fit installations and applications where the magnet needs to be securely integrated into a fixture, jig or component.

With operating capability up to 220°C, these Alnico deep pot magnets provide dependable magnetic stability in elevated-temperature applications where standard magnets may not be suitable.

Key Features

• Manufactured with a high-quality Alnico magnetic core
• Available in seven diameters from 6mm to 25mm
• Pull-force options ranging from 0.2kg to 8kg
• High-temperature performance up to 220°C
• Mild steel pot with brass spacer helps concentrate the magnetic field
• Zinc-plated body provides added corrosion and wear protection
• Extended-height design suitable for deep press-fit installations
• Ideal for gripping, positioning and fixture-holding applications
• Suitable for jigs, tooling, machine assemblies and precision fixtures
• Designed for workshop, production and industrial environments

Technical Data
