90 Degree Inside/Outside Clamp PK2

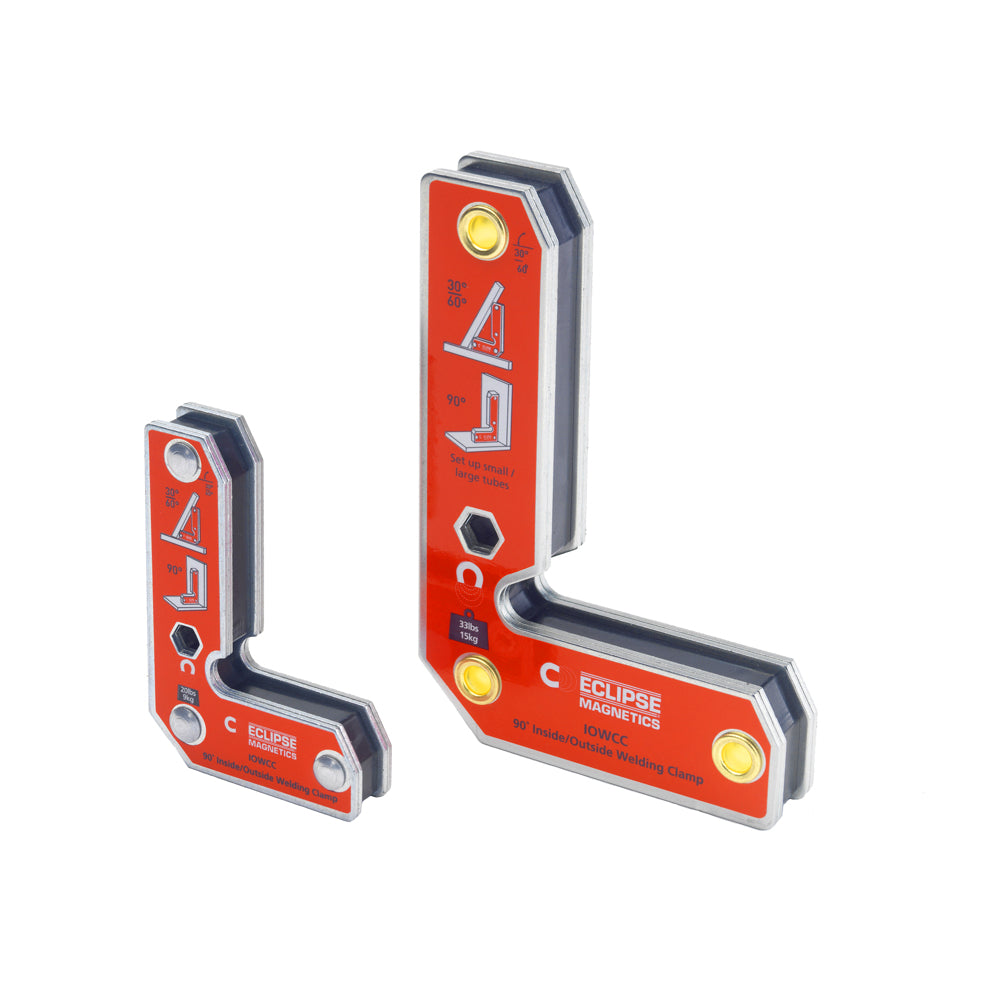

The Eclipse Magnetics Inside & Outside Welding Clamps (IOWCC) offer a flexible and efficient solution for positioning and holding ferrous components at internal or external angles of 30°, 60°, or 90°, especially during tack-welding and assembly operations. With both inner and outer magnetic faces, they enable secure clamping around tubes, angles, sheets or flat stock, while mounting holes and a hex hole provide linking or break-away control. Available in compact dual-unit pack sizes (9 kg and 15 kg pull force variants), the IOWCC clamp set is ideal for rapid, accurate setup of steel components in fabrication and metal-working environments.

Key Features

• Clamps on **inside and outside faces** using independent magnetic fields — ideal for internal/external corner positioning.
• Fixed angle support at **30°, 60°, and 90°** for versatile fixture setups and component alignment.
• Mounting holes for linking two clamp units together to create extended fixturing systems.
• Hexagonal hole provided for tool-leverage break-away when demounting adherent pieces.
• Compact dual-unit pack format in IOWCC (9 kg and 15 kg pull force options) for flexible workshop use.

Typical Applications

• Clamping and positioning sheet metal, tubes, angles or flat stock for tack welding operations.
• Fabrication of internal/external joints in round pipe, square tubing or metal frameworks where both sides of the joint need magnetic grip.
• Pre-weld fixture setup in production jigs where rapid repositioning and reliable alignment are required.
• Workshop and maintenance environments where traditional screws or clamps are slower, or access is restricted.

Technical Data
