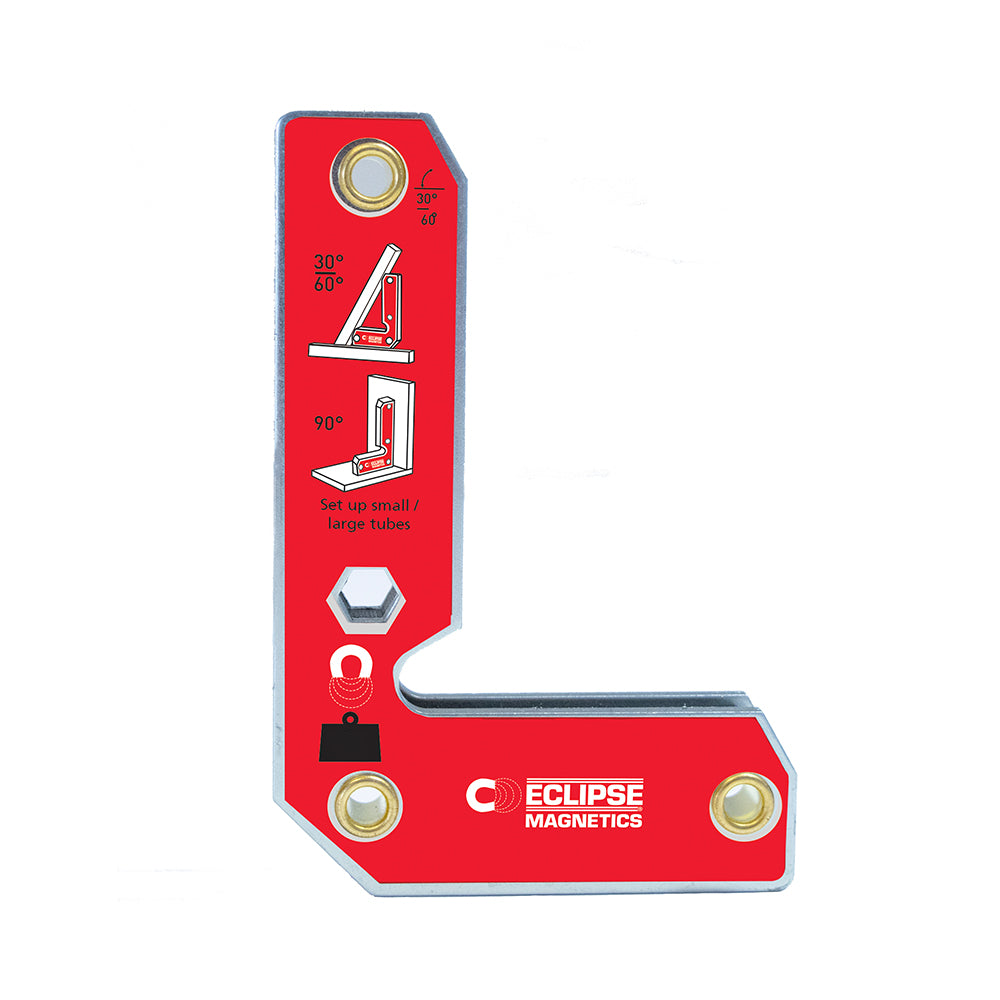

90 Degree Inside/Outside Clamp Large

The Eclipse Magnetics Inside & Outside Welding Clamps (IOWCL) deliver versatile, efficient clamping for internal or external angles of 30°, 60°, or 90° — ideal for tack welding and assembly of sheets, tubes, or flat stock. With independent magnetic faces for both the inside and outside surfaces of the joint, and linking holes for multi-unit setups, this clamp offers secure alignment and fast setup in fabrication environments. Available in a robust single-unit format (18 kg pull force), the IOWCL suits high-performance positioning of steel components.

Key Features

• Independent inside and outside magnetic faces enable clamping both internal and external joint surfaces
• Fixed angles: 30°, 60°, and 90° for versatile fixture and assembly configurations
• Linking holes allow multiple clamps to be connected to form extended fixturing systems
• Hex hole provided for tool-leverage break-away when separating the clamp from the workpiece
• High holding capacity: up to 18 kg pull force for reliable positioning of steel components

Typical Applications

• Setting up sheet metal, tubes, or angle steel for tack welding at internal/external angles
• Fabricating frameworks where access is limited and dual face clamping is advantageous
• Rapid repositioning during pre-weld alignment in production jigs and welding cells
• Workshop and maintenance tasks requiring precise fixture hold-down where standard clamps cannot access both sides

Technical Data
