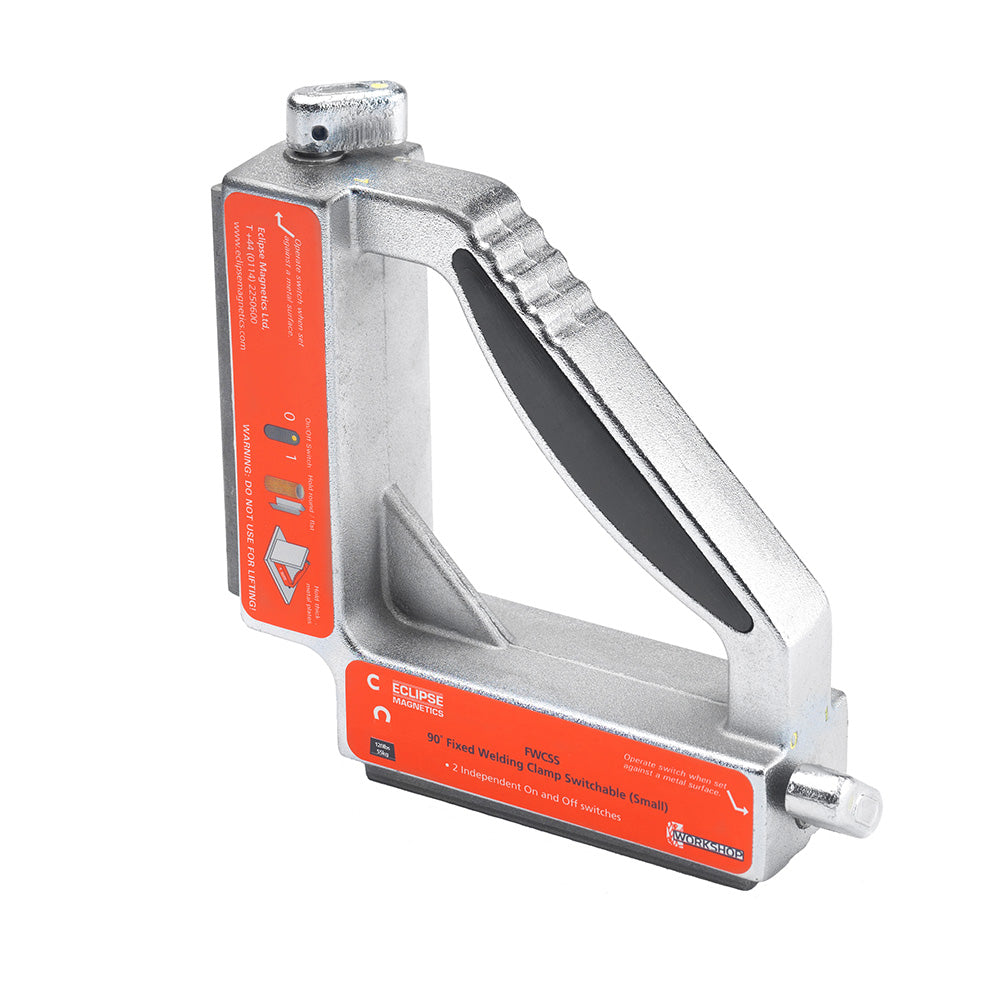

90 Degree Fixed Magnetic Welding Clamp Switchable

The Eclipse Magnetics 90° Fixed Magnetic Welding Clamps Switchable offer a quick-set solution for securing ferrous components at exact right angles—ideal for welding, fabrication, and assembly operations. With two on/off magnetic switches, these clamps allow fast engagement and release, delivering accurate alignment on sheets, tubes or angled stock. Constructed for heavy-duty use with 90° clamping faces, they are available in two pull-force ratings (55 kg and 120 kg) to suit varying material thicknesses and loads.

Key Features

• Switchable magnetic interface with dual on/off toggle controls for rapid engagement and release
• Fixed 90° clamping arrangement ideal for fabricating corners, angles and tube structures
• Suitable for round and square tubing, flat stock or angle iron
• Heavy-duty construction built for industrial welding environments

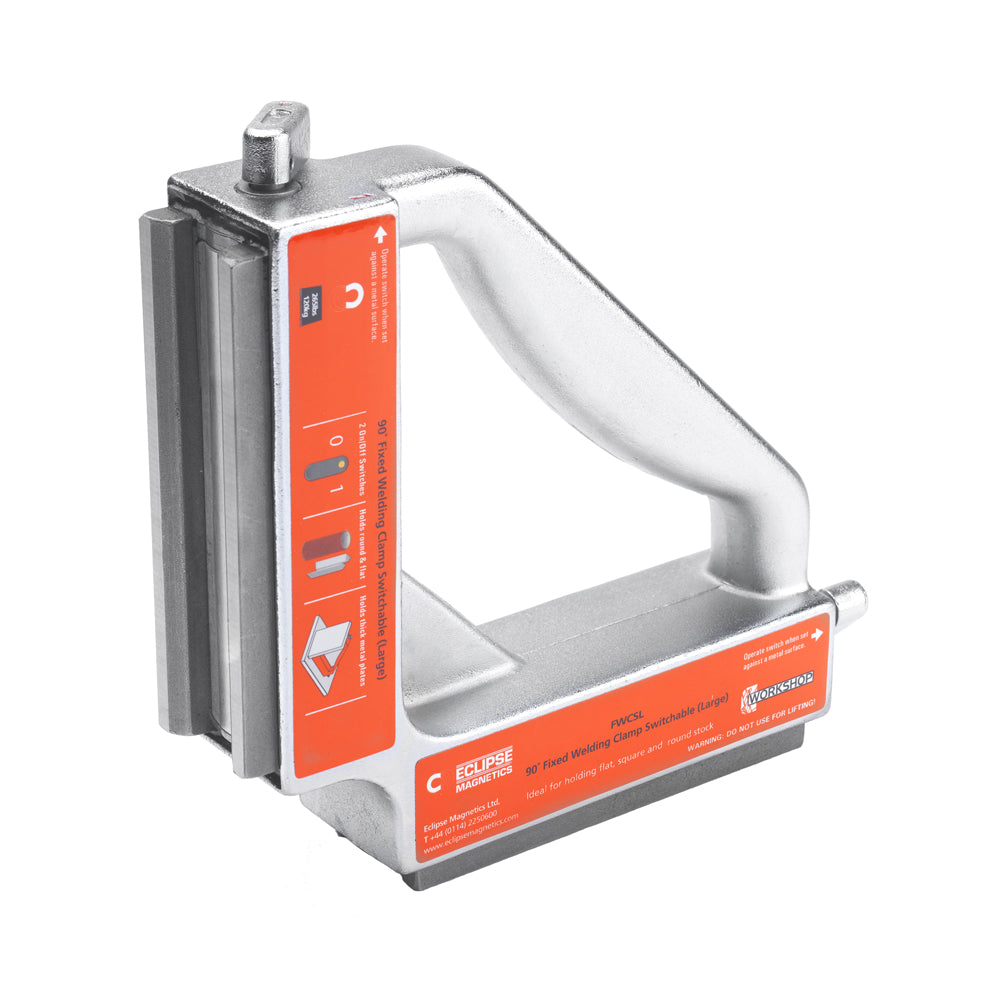

• Two pull-force options: 55 kg (FWCSS) and 120 kg (FWCSL) rated on 10 mm thick steel

Typical Applications

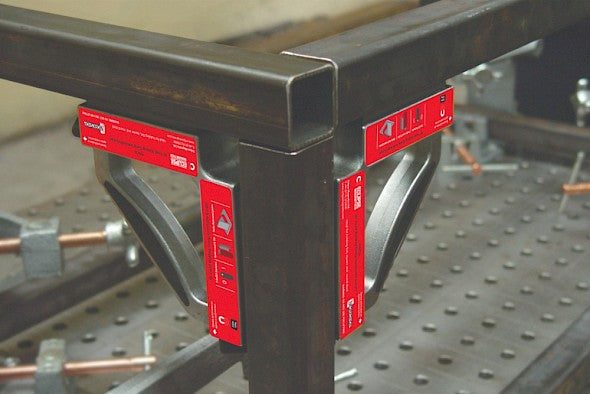

• Tack welding of corner or angled steel assemblies in fabrication shops
• Pre-weld setup of tubes, profiles, and sheet metal requiring exact 90° alignment
• Replacement for traditional angle clamps, corner clamps or C-clamps in high throughput environments
• Welding jigs and fixtures where fast setup and repositioning are critical

Technical Data
