90° Fixed Magnetic Welding Clamp
90° Fixed Magnetic Welding Clamp
Couldn't load pickup availability
Based In The U.K - Fast delivery, local support, and trusted magnetic solutions.
Description
The Eclipse Magnetics 90° Fixed Magnetic Welding Clamps deliver fast, accurate, and cost-effective clamping of ferrous components at exact right angles—ideal for welding, fabrication, and assembly operations. Their fixed U-shaped design features two magnetic faces set at 90°, allowing secure, rigid holding of sheets, pipes, or tubes during pre-weld preparation and metalworking. With an angular tolerance of ±0.05 mm per 100 mm, these clamps ensure precision alignment even on large assemblies. Available in three sizes (part numbers E971, E972, E973), these clamps suit a wide range of fabrication and welding tasks.
Key Features
- Fixed 90° clamping interface ideal for welding and assembly tasks
- Two magnetic faces provide rigid holding for sheets, tubes, or joints
- High precision: angular tolerance of ±0.05/100 mm
- Robust construction optimised for metalworking and fabrication environments
- Part numbers: E971 (40 kg pull), E972 (75 kg pull), E973 (200 kg pull)
Typical Applications
- Welding jigs and fixture setups using sheet or tubular steel
- Pre-weld component assembly and alignment
- Metal fabrication and structural assembly of large components
- Jigging of sheets, pipes, and tubes for accurate 90° joining
Technical Data
| Product Number | Angles | Dimensions (mm) | Weight (kg) | Pull Force (kg) |
|---|---|---|---|---|

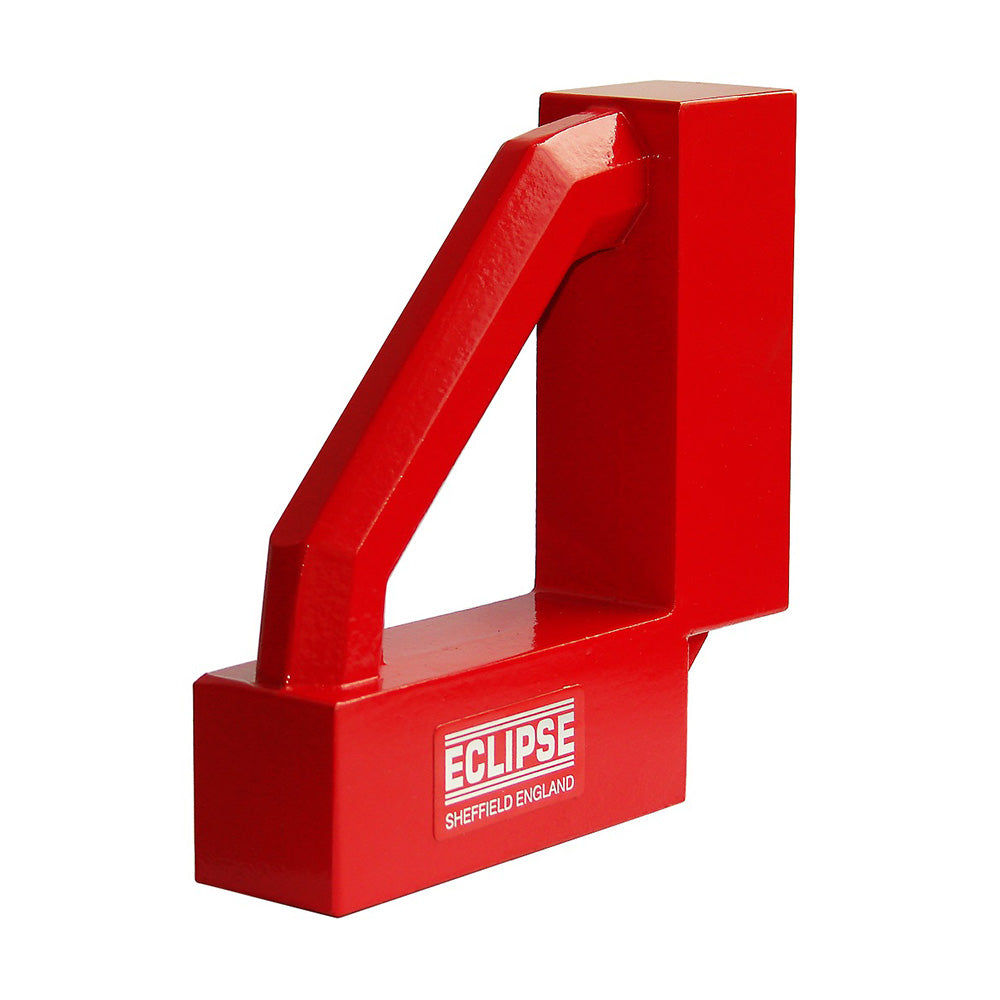

| E971 | 90° | 140 × 140 × 35 | 1.40 | 40 |

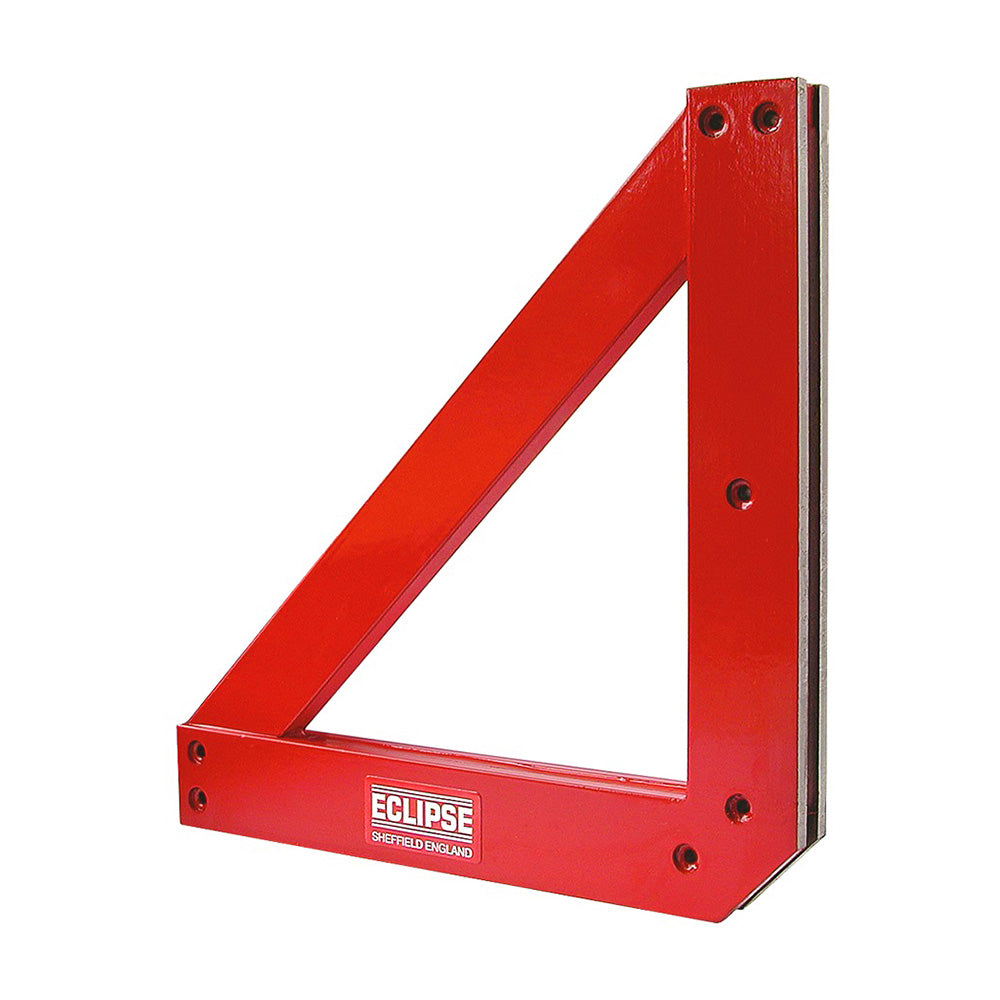

| E972 | 90° | 225 × 225 × 22 | 2.20 | 75 |

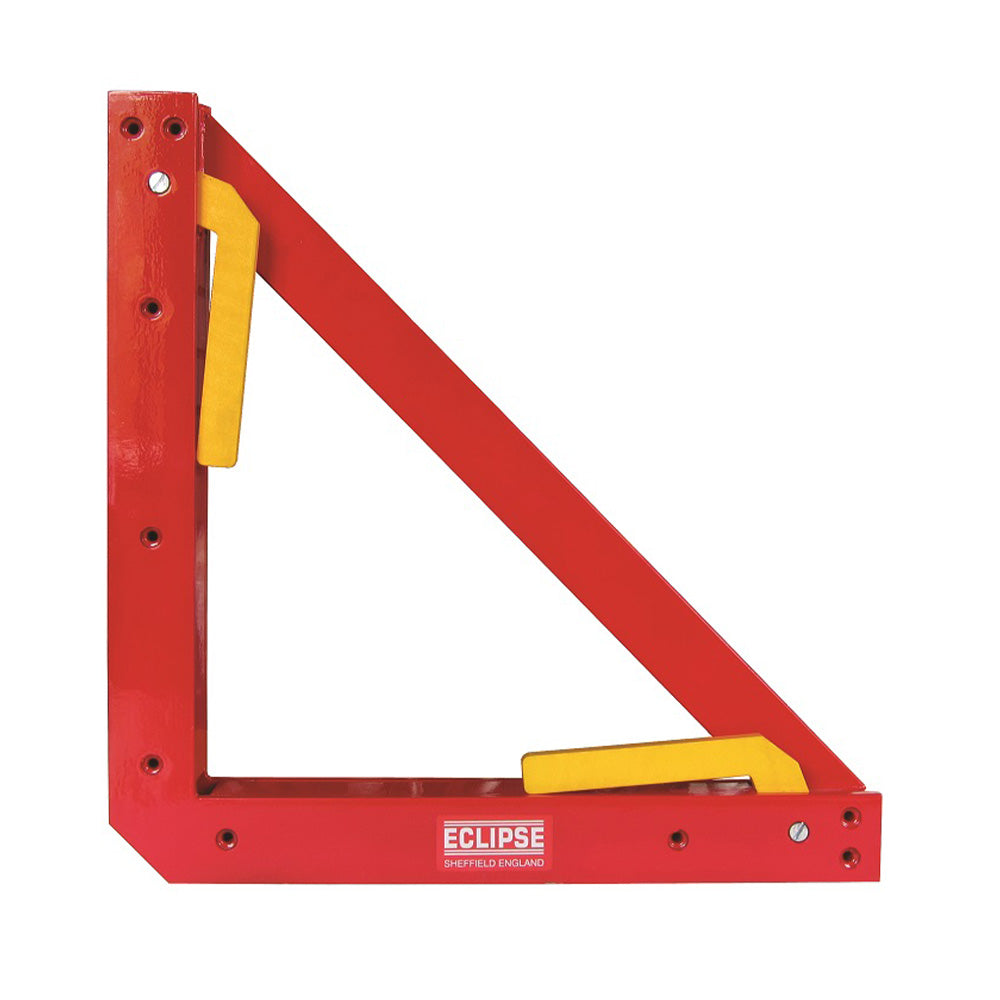

| E973 | 90° | 300 × 300 × 35 | 4.70 | 200 |
