A magnet may be described as having a particular holding or pull force, but in real-world applications, you may find that it doesn't achieve the performance you expected.
Does that mean the magnet has lost its strength?
Not necessarily.
Everything from the thickness of the steel to a small layer of paint can influence magnetic holding performance. Understanding these factors is important when choosing the right magnet for an application.
In this guide, we'll explain why magnets lose holding force and what you can do to improve magnetic performance.
What Is Magnetic Holding Force?
Holding force describes the force a magnet can provide when attached to a suitable ferrous surface.
Manufacturers typically determine pull-force figures under controlled conditions, using factors such as:
- Clean steel
- A flat contact surface
- Sufficient material thickness
- Direct contact
- A force pulling directly away from the surface
Real-world applications are rarely this perfect.
As conditions change, the effective holding force of the magnet can decrease.

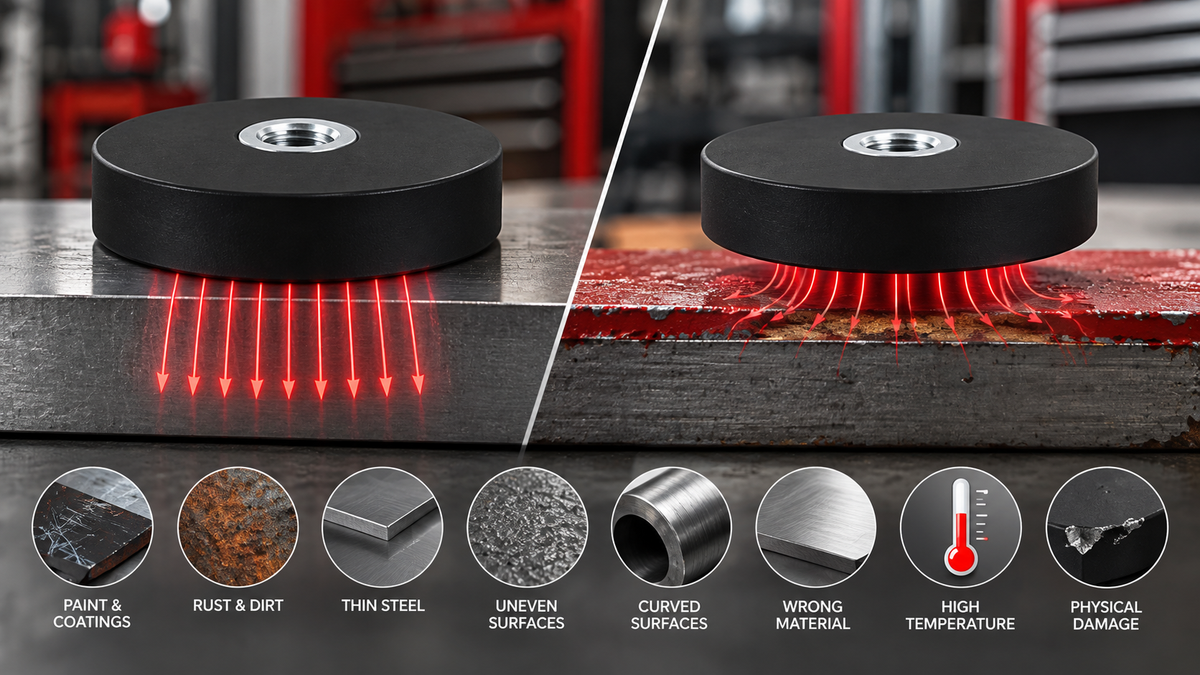

1. Air Gaps Between the Magnet and Steel
One of the biggest factors affecting magnetic holding force is an air gap.
Magnetic force decreases as the distance between the magnet and the target material increases.
An air gap doesn't necessarily mean there is literally air between the two surfaces. It can be created by:
- Paint
- Powder coating
- Plastic
- Rubber
- Adhesive
- Dirt
- Rust
- Surface irregularities
Even a relatively small separation can noticeably reduce holding performance.
This is why magnets generally perform best when they have close contact with a suitable ferrous surface.
2. Paint and Surface Coatings
A magnet may stick strongly to bare steel but feel considerably weaker when attached to painted or coated steel.
The magnet hasn't necessarily become weaker.
Instead, the coating creates additional distance between the magnet and the steel.
The thicker the coating, the greater the potential reduction in holding performance.
This should be considered when mounting magnets onto:
- Painted machinery
- Vehicles
- Powder-coated frames
- Cabinets
- Coated steel structures
3. Steel Thickness
The thickness of the material you're attaching the magnet to can also have a significant effect.
If the steel is too thin, it may not be able to carry the magnet's full magnetic flux effectively.
As a result, the magnet may achieve less holding force than it would against a sufficiently thick steel surface.
This is particularly important with powerful magnets attached to thin sheet metal.
A stronger magnet doesn't automatically mean maximum holding force if the target material isn't suitable.
4. The Type of Metal Matters
Not every metal responds to magnets in the same way.
Magnets generally perform very well against ferromagnetic materials such as iron and many types of steel.
However, materials including:
- Aluminium
- Copper
- Brass
- Bronze
will not provide the same conventional magnetic attraction.
Stainless steel is particularly important because some grades are magnetic while others have very low magnetic response.
If a magnet appears unusually weak, checking the material you're attaching it to should be one of the first steps.
5. Poor Surface Contact
For many holding magnets, surface contact is extremely important.
If either surface is:
- Curved
- Rough
- Uneven
- Damaged
- Contaminated
the magnet may only make contact across part of its working face.
Less effective contact can mean reduced holding performance.
This is why a flat magnet attached to a clean, flat steel plate will generally perform better than the same magnet placed against an irregular steel surface.
6. Pulling vs Sliding
Another common reason a magnet may appear weaker than expected is the direction of the load.
There is an important difference between pulling a magnet directly away from a surface and attempting to slide it across that surface.
A quoted pull force will not necessarily represent the load a magnet can support when mounted vertically.
For example, imagine attaching a magnet to a steel wall and hanging equipment from it.
Gravity is attempting to slide the magnet down the wall rather than pull it directly away.
Friction therefore becomes an important part of the application.
This is one reason rubber-coated pot magnets can be useful for mounting applications. The rubber helps increase friction while also protecting the contact surface.
7. Temperature
Heat can affect the magnetic properties of permanent magnets.
As temperature increases, magnetic performance can decrease.
Different magnet materials have different temperature capabilities.
For example:
- Neodymium provides exceptional strength but standard grades can be sensitive to higher temperatures.
- Ferrite generally offers good temperature resistance.
- Samarium cobalt combines strong magnetic performance with excellent high-temperature capability.
- Alnico is particularly well suited to high-temperature environments.
Exceeding the recommended operating temperature of a magnet can result in irreversible loss of magnetic performance.
8. Corrosion
Corrosion can also affect long-term magnetic performance.
This is particularly relevant to neodymium magnets because the magnetic material can be vulnerable to corrosion if its protective coating becomes damaged.
Over time, corrosion can physically degrade the magnet and reduce its performance.
Environmental conditions should therefore be considered when choosing a magnet for:
- Outdoor applications
- Marine environments
- Wet environments
- Washdown areas
- Humid conditions
Selecting the appropriate magnet material and protective finish can significantly improve service life.
9. Physical Damage
Permanent magnets can be strong magnetically while remaining relatively brittle mechanically.
Dropping, striking or allowing powerful magnets to snap together can cause:
- Cracking
- Chipping
- Coating damage
- Structural damage
Damage can affect both the reliability and performance of the magnet.
Strong magnets should therefore always be handled carefully.
10. The Magnet May Be Too Small
Sometimes there is nothing wrong with the magnet or mounting surface.
The magnet simply isn't large or powerful enough for the application.
When choosing a magnet, consider more than the weight of the object being held.
You should also consider:
- Available contact area
- Load direction
- Vibration
- Movement
- Surface condition
- Steel thickness
- Temperature
- Environmental conditions
Selecting a magnet solely from a quoted pull-force figure can result in an unsuitable choice.
Does a Magnet Permanently Lose Strength?
It can, but a reduction in apparent holding force doesn't automatically mean permanent demagnetisation has occurred.
If a magnet suddenly seems weaker, first check:
- Has the mounting surface changed?
- Is there an additional coating?
- Is the steel thinner?
- Is there dirt or debris between the surfaces?
- Is the magnet being loaded in a different direction?
- Has the magnet been exposed to excessive heat?
- Is there visible corrosion or damage?
Often, the problem is the application rather than the magnet itself.
How Can You Improve Magnetic Holding Force?
Several simple changes can improve performance:
Reduce the air gap
Allow the magnet to make the closest possible contact with the target surface.
Clean the surfaces
Remove dirt, swarf and other contaminants.
Use suitable steel
Make sure the target material responds strongly to the magnet.
Increase steel thickness where appropriate
Very thin steel can restrict magnetic performance.
Increase contact area
A larger suitable contact surface can improve stability.
Choose the correct magnet
Different sizes, materials and designs are suited to different applications.
Consider the direction of the load
Don't assume a quoted direct pull force is the same as vertical holding capability.
Why Choosing the Right Magnet Matters
The strongest magnet isn't automatically the best magnet.
An effective magnetic solution needs to consider the complete application.
A smaller neodymium magnet might be ideal where space is limited, while a rubber-coated pot magnet could be more appropriate for mounting equipment to a painted surface.
Elsewhere, temperature resistance may make alnico or samarium cobalt a better choice.
Understanding the operating conditions allows you to choose a magnet that delivers reliable performance rather than simply selecting the highest quoted holding force.
Final Thoughts
Why does a magnet lose holding force?
In many cases, the magnet hasn't actually lost its magnetism.
Reduced holding force can be caused by air gaps, paint, insufficient steel thickness, poor surface contact, the wrong target material, load direction or operating conditions.
Permanent loss of magnetic strength can also occur through excessive temperature, corrosion or physical damage.
If a magnet isn't performing as expected, examining the complete application is therefore just as important as examining the magnet itself.
By considering magnet size, material, contact area, temperature, surface condition and load direction, you can select a magnetic solution that provides reliable and consistent holding performance.
