Pot magnets are one of the most versatile and widely used magnetic products available today. Found in everything from manufacturing and engineering to retail displays and DIY projects, pot magnets offer exceptional holding power in a compact design.
But what exactly is a pot magnet, and why are they so popular?
In this guide, we'll explain how pot magnets work, their advantages, and the many applications where they provide reliable magnetic holding.

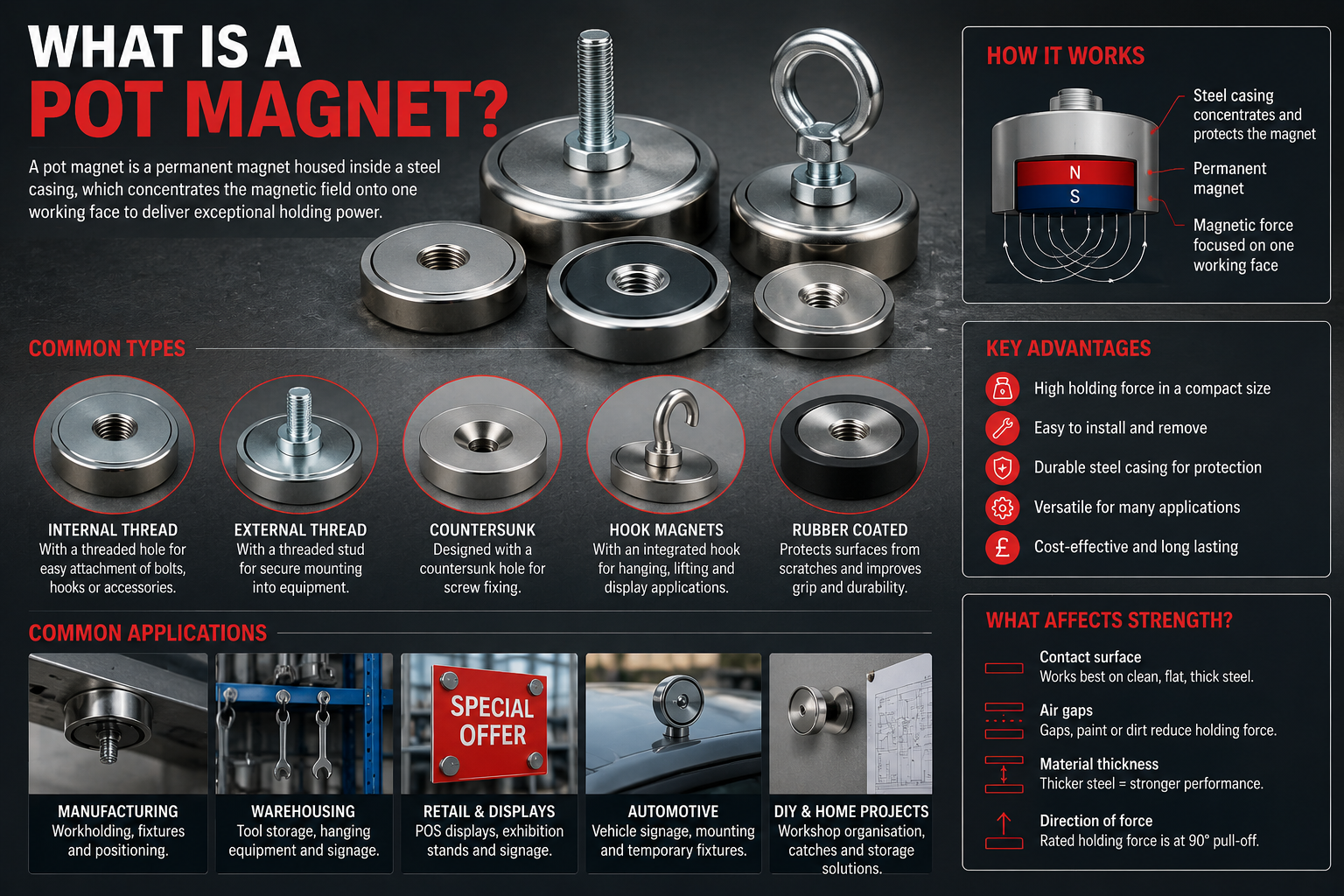

What Is a Pot Magnet?
A pot magnet is a permanent magnet housed inside a steel casing, often referred to as a "pot."
The steel pot surrounds the magnet and helps concentrate the magnetic field onto a single working face.
This design significantly increases the magnet's holding force compared to a standard magnet of the same size.
Pot magnets are available in various materials including:
- Neodymium
- Ferrite
- Alnico
- Samarium Cobalt
The most common and strongest versions use neodymium magnets.
How Does a Pot Magnet Work?
Unlike a standard magnet that emits magnetic force from multiple sides, a pot magnet focuses its magnetic field through one face.
The steel casing:
- Protects the magnet
- Reduces magnetic loss
- Directs the magnetic field
- Increases holding performance
This concentrated magnetic force allows pot magnets to achieve impressive holding strength while remaining compact and easy to install.
Why Are Pot Magnets So Strong?
The steel housing acts as a magnetic circuit, channelling the magnetic energy to the working surface.
Benefits include:
- Increased holding force
- Improved efficiency
- Better magnetic performance
- Protection from impact damage
This is why a relatively small pot magnet can often hold surprisingly heavy loads when attached to a clean steel surface.
Common Types of Pot Magnets
Internal Thread Pot Magnets
Feature a threaded hole in the centre, allowing accessories, hooks, brackets, or fixtures to be attached easily.
Popular for:
- Signage
- Displays
- Mounting systems
External Thread Pot Magnets
Feature a threaded stud for fast installation into equipment or structures.
Commonly used in:
- Industrial fixtures
- Engineering applications
- Machine building
Countersunk Pot Magnets
Designed with a countersunk hole to allow direct screw fixing.
Often used for:
- Door catches
- Displays
- Furniture
- Shop fittings
Hook Magnets
Pot magnets supplied with an integrated hook.
Ideal for:
- Hanging tools
- Retail displays
- Storage systems
- Warehouse organisation
Rubber Coated Pot Magnets
Feature a protective rubber coating to:
- Prevent scratches
- Improve grip
- Protect delicate surfaces
Often used on:
- Vehicles
- Painted surfaces
- Display equipment
Advantages of Pot Magnets
High Holding Force
Pot magnets offer excellent holding power relative to their size.
Compact Design
Strong magnetic performance without requiring a large magnet.
Easy Installation
Available with threaded inserts, studs, hooks, and countersunk fixing options.
Durable Construction
The steel pot protects the magnet from damage during everyday use.
Versatile Applications
Suitable for industrial, commercial, and domestic applications.
Common Applications for Pot Magnets
Pot magnets are used throughout a wide range of industries.
Manufacturing
Used for:
- Workholding
- Fixtures
- Positioning systems
- Machine building
Warehousing
Used for:
- Tool storage
- Hanging equipment
- Signage systems
Retail & Displays
Ideal for:
- Point-of-sale displays
- Exhibition stands
- Temporary signage
Automotive
Often used for:
- Vehicle signage
- Mounting accessories
- Temporary fixtures
DIY & Home Projects
Popular for:
- Workshop organisation
- Magnetic catches
- Storage solutions
- Home improvement projects
What Affects Pot Magnet Strength?
Several factors influence how much weight a pot magnet can hold.
Contact Surface
The magnet performs best when attached to:
- Thick steel
- Clean surfaces
- Flat surfaces
Air Gaps
Even a small gap between the magnet and steel surface can significantly reduce holding force.
Paint, coatings, dirt, or uneven surfaces can affect performance.
Material Thickness
Thicker steel allows the magnetic circuit to work more efficiently.
Thin sheet metal may reduce the available holding force.
Direction of Force
Manufacturers typically quote maximum holding force under ideal pull-off conditions.
Sliding loads usually require significantly less force than direct vertical lifting.
Neodymium Pot Magnets vs Ferrite Pot Magnets
Neodymium Pot Magnets
- Extremely strong
- Compact design
- Higher holding force
- Ideal for demanding applications
Ferrite Pot Magnets
- More economical
- Corrosion resistant
- Suitable for general-purpose applications
- Good for larger, lower-cost installations
Choosing the Right Pot Magnet
When selecting a pot magnet, consider:
- Required holding force
- Mounting method
- Environmental conditions
- Surface type
- Available space
- Indoor or outdoor use
Choosing the correct design helps ensure safe and reliable performance.
Final Thoughts
Pot magnets are one of the most versatile magnetic solutions available, combining strong holding power with compact design and simple installation.
By concentrating magnetic force through a single working face, pot magnets provide significantly greater performance than many standard magnets while remaining durable and easy to use.
Whether you're securing signage, organising a workshop, building machinery, or creating custom mounting systems, pot magnets offer a reliable and cost-effective solution for countless applications.
