Magnetic chucks are essential workholding tools in precision engineering, machining, and grinding environments. They provide fast, secure, and distortion-free clamping for ferrous components, helping operators achieve tighter tolerances, enhanced surface finish quality, and faster setup times. This guide explains the main types of magnetic chucks, their applications, and practical setup tips.

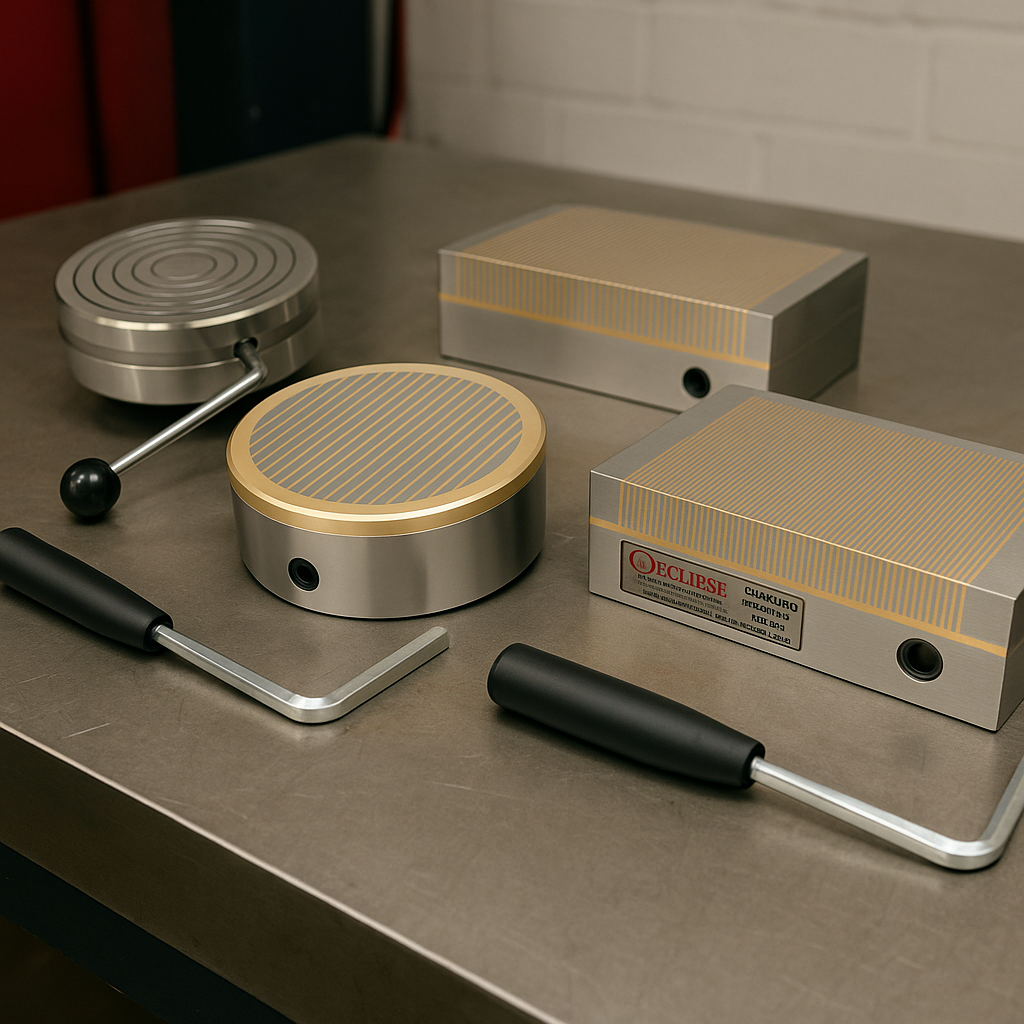

Types of Magnetic Chucks
Below are the most common magnetic chuck types used in workshops and machine shops:
1. Permanent Magnetic Chucks
Permanent magnetic chucks use high-performance magnets to offer consistent holding force with no electrical power required. They are ideal for general grinding and light milling.
2. Electromagnetic Chucks
Electromagnetic chucks generate controllable holding power using an electrical current, allowing operators to vary the clamping force depending on the shape and thickness of the workpiece.
3. Electro-Permanent Magnetic Chucks
Electro-permanent technology combines the safety of permanent magnets with the flexibility of electromagnetic control. Power is only required to switch the chuck ON or OFF, not to maintain clamping force.
4. Fine-Pole Magnetic Chucks
Designed for holding small, thin, or delicate workpieces. Fine-pole chucks are commonly used in precision grinding where uniform clamping is essential.
Applications of Magnetic Chucks
Magnetic chucks are used across machining, engineering, and manufacturing operations:
- Surface grinding of flat or shallow components
- Milling and drilling of ferrous workpieces
- Turning cylindrical components using rotary magnetic chucks
- EDM (Electro-Discharge Machining)
- Inspection and measurement setups
- Workholding for small or thin sheet metal parts
Magnetic Chuck Comparison Table
| Magnetic Chuck Type | Power Requirement | Holding Strength | Suitable Applications |
|---|---|---|---|
| Permanent | None | Medium | Surface grinding, general machining |
| Electromagnetic | Continuous electrical power | High (adjustable) | Heavy-duty milling, grinding, turning |
| Electro-Permanent | Power only for switching | High | CNC machining, precision milling |
| Fine Pole | None / Low | Medium–High | Small components, thin materials |
Setup Tips for Magnetic Chucks
1. Ensure Proper Surface Contact
The workpiece must have maximum contact with the chuck. Avoid gaps as these reduce holding power.
2. Clean the Chuck and Workpiece
Even small chips or swarf reduce magnetic performance. Clean both surfaces before clamping.
3. Use Pole Risers or Magnetic Blocks When Needed
For irregular shapes, use magnetic parallels or blocks to enhance stability and support.
4. Check the Chuck for Wear
Over time, the top plate may develop wear. Resurfacing may be required to restore flatness.
5. Use the Correct Clamping Force (Electromagnetic Only)
Thinner parts require lower force to avoid distortion, whereas thicker components benefit from higher force.
Conclusion
Magnetic chucks are a vital part of modern machining operations, enabling fast, safe, and precise workholding across grinding, milling, turning, and EDM processes. Choosing the right type of chuck and setting it up correctly ensures optimal performance and accuracy. Explore the full range of chucks and accessories at eclipsemagnetics.shop.
