Choosing a magnet might seem simple: find out how much weight you need to hold and select a magnet with a matching pull force.
In reality, choosing the correct magnet strength depends on much more than the weight of the object.
The material you're attaching to, steel thickness, surface condition, air gaps, load direction and operating environment can all affect how much holding force you actually achieve.
So, how strong a magnet do you need?
The magnet should provide sufficient holding force for the load under the actual conditions of your application, with an appropriate safety margin. You shouldn't select a magnet based solely on its quoted maximum pull force.
Here's what you need to consider.
What Does Magnet Strength Mean?
When people refer to the "strength" of a magnet, they can actually be talking about several different measurements.
These include:
- Pull force
- Holding force
- Magnetic field strength
- Magnetic flux density
- Gauss
- Tesla
For a holding application, pull force is often one of the most useful specifications.
Pull force describes the force required to pull a magnet directly away from a suitable ferrous surface under specified test conditions.
However, this figure doesn't necessarily represent how the magnet will perform in your application.
Don't Simply Match Magnet Pull Force to Load Weight
Imagine you need to hold an object weighing 10 kg.
Choosing a magnet advertised with a 10 kg pull force doesn't automatically mean it is suitable.
The quoted pull force may have been achieved against an ideal steel test surface with:
- Direct contact
- Sufficient steel thickness
- A clean surface
- A flat surface
- No paint or coating
- A load pulling directly away from the magnet
Your application may be very different.
That's why the conditions surrounding the magnet are just as important as its quoted strength.
1. How Heavy Is the Object?
Start by determining the load the magnet needs to support.
A heavier object will generally require greater magnetic holding force.
However, weight should only be your starting point.
You also need to consider whether the object will remain stationary or experience movement, vibration, shock or other forces during use.
2. Which Direction Is the Load Acting?
This is one of the most important considerations when choosing a magnet.
A magnet behaves differently depending on whether the load is trying to pull it away from the surface or slide it across the surface.
Direct Pull
This occurs when force acts perpendicular to the mounting surface.
For example, pulling a magnet directly away from a horizontal steel plate.
This is typically the condition used when measuring maximum pull force.
Shear or Sliding Load
Now imagine attaching the same magnet to a vertical steel wall.
The weight is attempting to slide the magnet down the surface.
In this situation, friction between the magnet and steel becomes extremely important.
The magnet's quoted direct pull force therefore shouldn't be treated as its vertical load capacity.
3. What Material Is the Magnet Attaching To?
The target material has a major influence on magnetic performance.
Magnets work particularly well with ferromagnetic materials such as:
- Iron
- Mild steel
- Carbon steel
- Certain grades of stainless steel
Materials such as aluminium, copper and brass don't provide conventional magnetic attraction.
Stainless steel deserves particular attention because different grades can behave very differently magnetically.
Always establish what material you're attaching the magnet to before selecting its size.
4. How Thick Is the Steel?
A powerful magnet needs sufficient ferrous material to support its magnetic circuit.
If the steel is too thin, it can become magnetically saturated and the magnet may not achieve its maximum potential holding force.
This means a magnet capable of extremely high pull force against thick steel may perform very differently against thin sheet metal.
Increasing magnet strength alone won't necessarily solve the problem.
5. Is There an Air Gap?
Magnetic holding force can decrease significantly as the distance between the magnet and target surface increases.
An "air gap" can be caused by more than empty space.
It could include:
- Paint
- Powder coating
- Rubber
- Plastic
- Adhesive
- Dirt
- Rust
- Protective films
Even relatively small gaps can affect performance.
If your magnet needs to work through another material, this should be considered when choosing its strength.
6. How Good Is the Surface Contact?
Maximum holding performance generally requires good contact between the magnet and target surface.
A magnet may produce less holding force against a surface that is:
- Rough
- Curved
- Uneven
- Corroded
- Dirty
- Damaged
This is because the effective contact between the magnet and steel is reduced.
A clean, flat magnet against clean, flat steel generally provides the best conditions.
7. Will the Magnet Experience Vibration or Movement?
Static load isn't always the only force acting on a magnet.
Industrial applications can introduce:
- Vibration
- Sudden movement
- Impact
- Acceleration
- Shock loading
For example, a magnet holding a stationary sign experiences very different conditions from one holding equipment to moving machinery.
Applications involving dynamic forces need to be assessed accordingly.
8. What Temperature Will the Magnet Experience?
Temperature can affect magnetic performance.
Different magnetic materials have different maximum operating temperatures.
For example, standard neodymium magnets provide exceptional magnetic strength but can be more temperature-sensitive than materials such as:
Ferrite – good temperature resistance and cost-effective performance.
Alnico – particularly suitable for high-temperature environments.
Samarium Cobalt – combines powerful magnetic performance with excellent temperature resistance.
If the magnet will operate near machinery, ovens, engines or other heat sources, temperature should be considered before choosing the material.
9. Will the Magnet Be Used Outdoors?
Environmental conditions matter too.
Consider exposure to:
- Rain
- Humidity
- Chemicals
- Salt
- Temperature changes
- Corrosive environments
The strongest magnet isn't necessarily the most suitable if its material or coating isn't appropriate for the environment.
A magnet's protective coating and construction should therefore form part of the selection process.
Should I Choose a Stronger Magnet Than I Need?
An appropriate safety margin is important, particularly where failure could cause damage or injury.
However, simply choosing the strongest possible magnet isn't always the answer.
An unnecessarily powerful magnet can:
- Be difficult to remove
- Trap fingers
- Damage delicate surfaces
- Cause components to snap together unexpectedly
- Make positioning more difficult
- Increase product size and cost unnecessarily
The objective should be to choose the right magnet for the application rather than simply the strongest magnet available.
Which Type of Magnet Should I Choose?
Different applications may benefit from different magnetic solutions.
Neodymium Magnets
Ideal when very high magnetic strength is required from a relatively small magnet.
Commonly used for compact holding, sensing, engineering and manufacturing applications.
Ferrite Magnets
A cost-effective option offering good corrosion and temperature resistance.
Useful where maximum magnetic strength isn't essential.
Alnico Magnets
Well suited to applications involving elevated temperatures and where excellent temperature stability is required.
Samarium Cobalt Magnets
Ideal for demanding applications requiring strong magnetic performance combined with excellent temperature and corrosion resistance.
Pot Magnets
Pot magnets concentrate magnetic holding force onto a working face and provide convenient mounting options.
They're particularly useful for holding, mounting and positioning applications.
Rubber-Coated Pot Magnets
These provide magnetic holding while helping protect delicate or painted surfaces.
The rubber can also increase friction, making them useful where resistance to sliding is important.

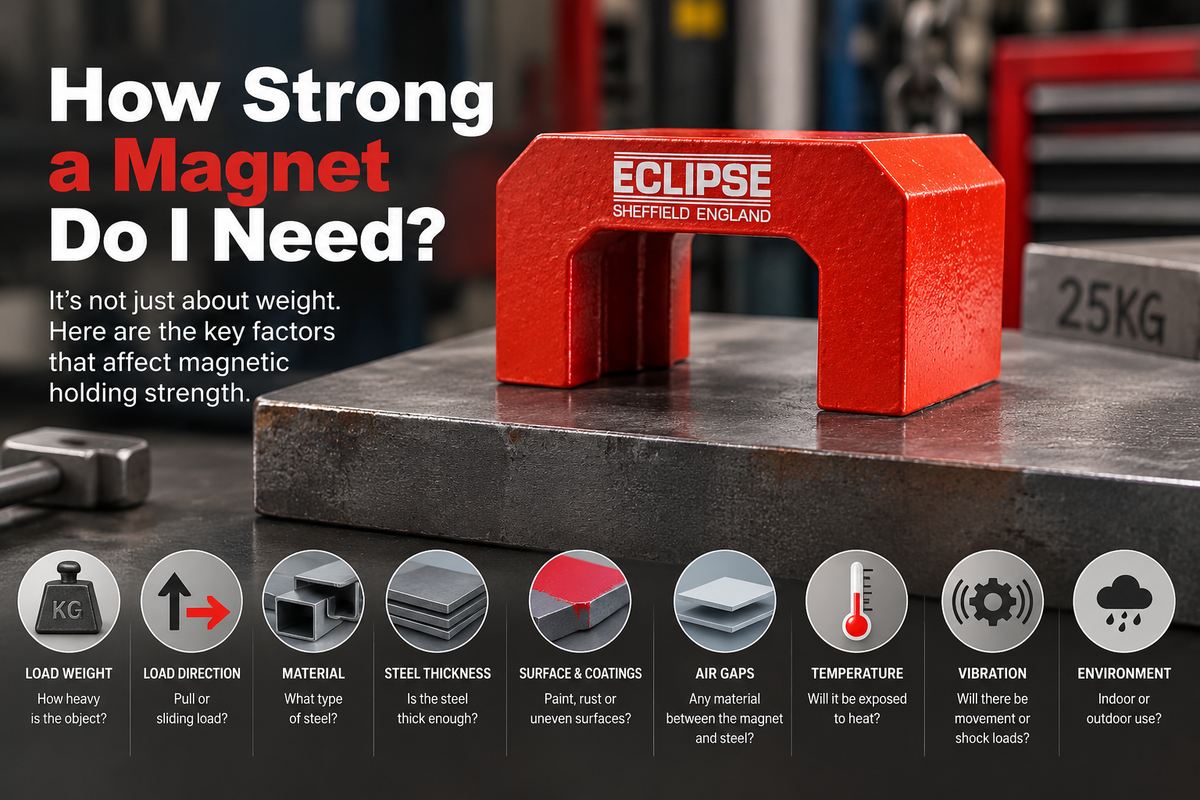

How Do I Calculate What Strength Magnet I Need?
There isn't one universal calculation that works for every magnetic application.
Start with the load, then assess:
- Load weight
- Load direction
- Target material
- Steel thickness
- Surface condition
- Air gap or coatings
- Vibration and movement
- Operating temperature
- Environmental exposure
- Required safety margin
Only then should you compare the application with the magnet's specified performance.
For critical lifting, safety or industrial applications, selection should be based on the manufacturer's technical data and the requirements of the specific application rather than a simple weight-to-pull-force calculation.
Example: Mounting Equipment to a Steel Machine
Suppose you want to magnetically mount a piece of equipment to the side of a machine.
You know its weight, but you also discover:
- The machine is painted.
- The mounting surface is vertical.
- The equipment experiences vibration.
- The steel panel is relatively thin.
All four factors could reduce real-world holding performance compared with a laboratory pull-force figure.
This is exactly why selecting a magnet purely by its advertised pull force can result in disappointing performance.
Why Magnet Size Matters
Physical size also affects magnetic performance.
Diameter, thickness, shape and magnetic material can all influence the magnetic field and holding characteristics.
But bigger doesn't always automatically mean better.
The correct magnet is one whose design works effectively with the geometry, material and operating conditions of your application.
How Do I Know If My Magnet Is Strong Enough?
Before putting a magnetic solution into service, particularly in an industrial environment, it should be tested under conditions representative of the actual application.
Consider the complete assembly rather than testing the magnet alone.
If the application changes—for example, the steel becomes thinner or a coating is added—the available holding force may also change.
Final Thoughts
How strong a magnet do you need?
There isn't a single answer based purely on weight.
The correct magnet needs sufficient holding force for the application after considering load direction, steel type and thickness, surface contact, air gaps, temperature, vibration and environmental conditions.
Rather than simply choosing the magnet with the highest pull-force figure, consider how and where the magnet will actually be used.
Getting the specification right can provide better performance, greater reliability and a magnetic solution that's properly suited to the job.
