Precision is at the heart of every successful machining operation. Whether you're surface grinding, milling, or carrying out toolroom work, securely holding the workpiece is essential for achieving consistent, high-quality results.
One of the most effective workholding solutions for ferrous materials is the magnetic chuck. Unlike traditional mechanical clamps, magnetic chucks provide even holding force across the entire workpiece, helping to reduce distortion, improve stability, and enhance machining accuracy.
In this guide, we'll explain how magnetic chucks work and why they are trusted by manufacturers worldwide to improve precision machining.
What Is a Magnetic Chuck?

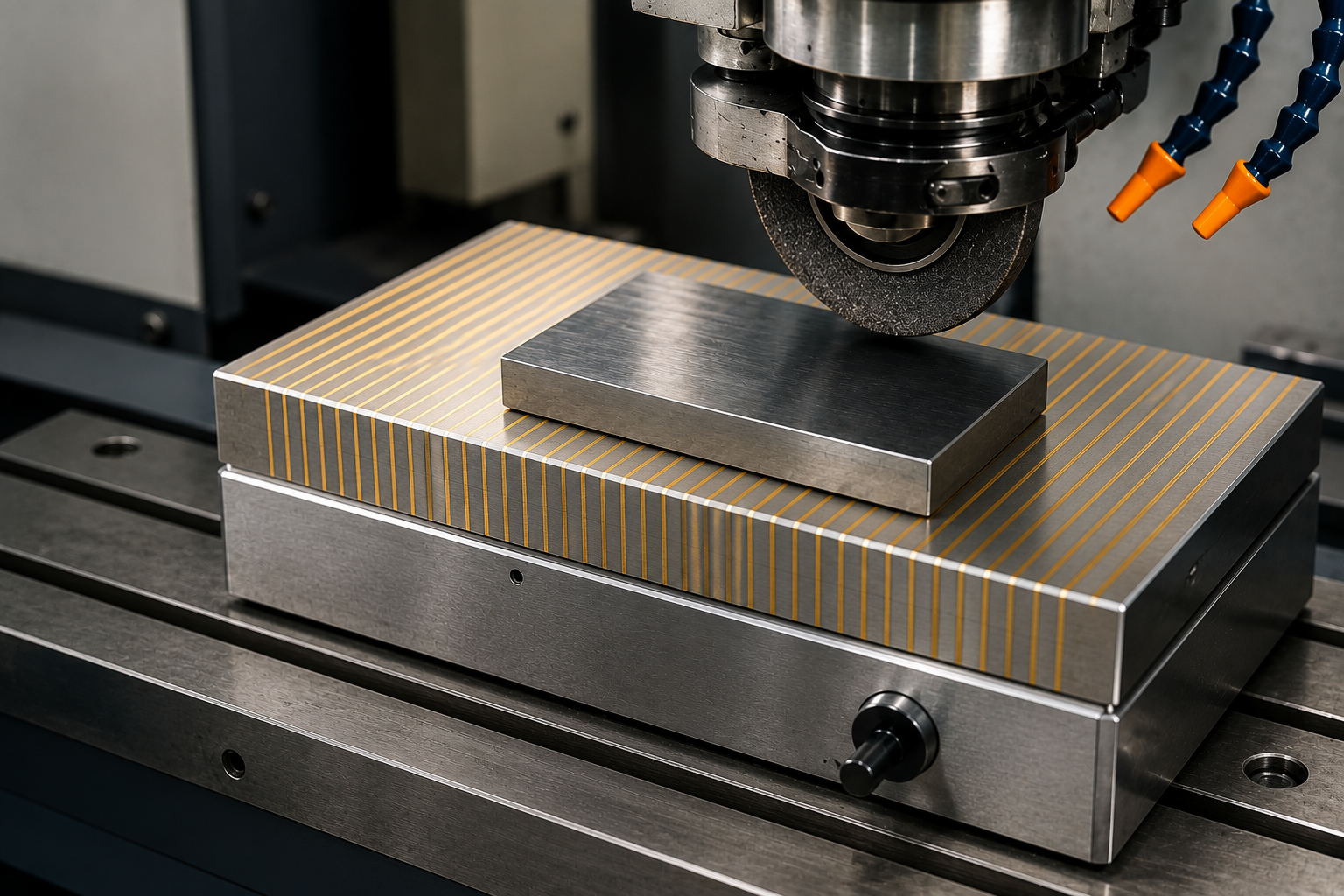

A magnetic chuck is a workholding device that uses magnetic force to securely hold ferrous workpieces during machining operations.
Rather than relying on mechanical clamps that grip the workpiece at a few points, a magnetic chuck distributes holding force across the entire contact surface.
This creates a more stable setup and allows greater access to the component during machining.
Magnetic chucks are commonly used for:
- Surface grinding
- Milling
- Toolroom operations
- Precision machining
- Inspection work
Why Workholding Matters
Even the most advanced CNC machine cannot produce accurate parts if the workpiece is not held securely.
Poor workholding can lead to:
- Vibration
- Movement during machining
- Poor surface finish
- Inaccurate dimensions
- Increased tool wear
- Scrap components
Choosing the right workholding method is just as important as selecting the correct cutting tools.
Even Holding Force Reduces Distortion
Traditional clamps apply force to specific areas of the workpiece.
This concentrated pressure can cause:
- Bending
- Twisting
- Localised distortion
This is especially noticeable when machining thin or delicate components.
Magnetic chucks distribute the holding force evenly across the underside of the workpiece, helping maintain its natural shape throughout the machining process.
The result is improved dimensional accuracy and better overall consistency.
Improved Surface Finish
A securely held workpiece experiences less vibration during machining.
Reduced vibration helps achieve:
- Smoother surface finishes
- Improved grinding quality
- More consistent machining results
- Better dimensional control
For precision grinding applications, this can make a significant difference to the finished component.
Better Access for Machining
Mechanical clamps often obstruct cutting tools, limiting the amount of the component that can be machined in a single setup.
Magnetic chucks eliminate many of these obstacles.
With no clamps surrounding the workpiece, operators benefit from:
- Improved tool access
- Larger machining area
- Fewer setup changes
- Greater machining efficiency
This can reduce production time while improving part quality.
Increased Repeatability
Manufacturing relies on producing identical parts repeatedly.
Magnetic chucks provide highly repeatable workholding by applying consistent magnetic force every time a component is positioned.
This helps maintain:
- Consistent part quality
- Accurate positioning
- Reduced setup variation
- Reliable production processes
Repeatability is particularly valuable in high-volume manufacturing environments.
Faster Setup Times
Magnetic chucks can significantly reduce setup time.
Instead of:
- Positioning clamps
- Tightening bolts
- Adjusting fixtures
operators simply position the workpiece and activate the magnetic chuck.
This allows more machine time to be spent cutting rather than setting up.
Reduced Risk of Workpiece Movement
Any movement during machining can affect accuracy.
Magnetic chucks provide secure holding across a large contact area, helping resist movement caused by cutting forces.
This contributes to:
- More accurate machining
- Better tolerances
- Reduced rework
Ideal Applications
Magnetic chucks are particularly effective for:
Surface Grinding
One of the most common applications where precision and flatness are essential.
Milling
Suitable for many light and medium-duty milling operations on ferrous materials.
Toolmaking
Provides stable workholding for high-precision tooling components.
Inspection
Allows components to be securely positioned during quality control processes.
Precision Engineering
Used wherever dimensional accuracy and repeatability are critical.
Choosing the Right Magnetic Chuck
Selecting the correct chuck depends on several factors, including:
- Workpiece size
- Material type
- Thickness
- Machining operation
- Required holding force
- Surface finish requirements
Different pole configurations are available for different applications, helping maximise holding performance.
Magnetic Chucks vs Mechanical Clamps
| Feature | Magnetic Chuck | Mechanical Clamps |
|---|---|---|
| Setup Speed | Excellent | Moderate |
| Tool Access | Excellent | Limited |
| Workpiece Distortion | Minimal | Possible |
| Surface Finish | Excellent | Good |
| Repeatability | Excellent | Good |
| Thin Workpieces | Excellent | Can be challenging |
| Setup Changes | Minimal | More frequent |
Why Manufacturers Choose Magnetic Chucks
Across industries including aerospace, automotive, toolmaking, and precision engineering, magnetic chucks are chosen because they help:
- Improve machining accuracy
- Increase productivity
- Reduce setup times
- Improve surface finish
- Minimise workpiece distortion
- Enhance repeatability
- Lower production costs
For many machining operations, these advantages translate directly into higher-quality components and more efficient manufacturing.
Final Thoughts
A magnetic chuck does far more than simply hold a workpiece in place—it creates a stable, evenly supported foundation for precision machining.
By reducing distortion, minimising vibration, improving tool access, and providing consistent workholding, magnetic chucks help manufacturers achieve tighter tolerances, superior surface finishes, and greater production efficiency.
For engineers looking to improve machining accuracy while reducing setup time, a high-quality magnetic chuck remains one of the most effective workholding solutions available.
